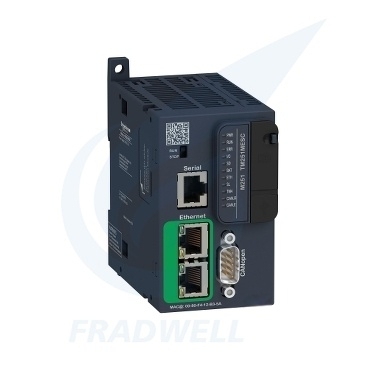

Global Smart Manufacturing Control Solution
The Modicon M251 distributed control solution is engineered for global smart manufacturing applications, offering versatile automation capabilities across packaging machinery, food & beverage, and logistics warehousing industries. Its modular expansion design and distributed control architecture provide exceptional flexibility and scalability.
Core Features & Capabilities
Powerful Connectivity & Seamless Integration
- Multi-protocol communication support including CANopen, Modbus TCP, and EtherNet/IP
- Universal compatibility with SCADA, MES, and ERP systems worldwide
- Dual-port Ethernet switch, Wi-Fi capability, RS-232/RS-485 serial interface, and USB Mini-B port
- Embedded web server, FTP server, OPC UA server, and SQL client for remote monitoring
High Performance & Compact Design
- Fast 22μs instruction execution speed with 64MB RAM and 128MB flash memory
- Expandable storage up to 32GB via SD card for complex control tasks
- Ultra-compact dimensions (54mm*95mm*90mm, 0.22kg) with DIN rail mounting
- Supports up to 14 expansion modules handling 448 discrete I/O and 114 analog I/O points
Intuitive Programming & Efficient Maintenance
- Compatible with EcoStruxure Machine Expert software
- Supports IEC 61131-3 programming languages (LD, FBD, ST, etc.) and CFC language
- Predefined function blocks and complete libraries reduce engineering time
- Built-in visualization pages for on-site maintenance via mobile devices
Global Compliance & Reliable Operation
- International certifications including CE, UL, CSA, ATEX, and marine class approvals
- Stable operation in harsh environments (0~55°C, ≤95% RH without condensation)
- IP20 protection rating for industrial applications
- Modular distributed architecture ensures flexible scalability
Technical Specifications
| Parameter Category |
Specification Details |
| Power Supply |
Rated voltage: 24 V DC
Voltage range: 20.4~28.8 V DC
Inrush current: 50 A
Power consumption: 32.6~40.4 W (with max I/O expansion) |
| Processing Performance |
Instruction execution speed: 22μs per instruction
Program memory: 8 MB
System RAM: 64 MB
Flash memory (backup): 128 MB
SD card expansion: Up to 32 GB |
| I/O Expansion |
Local I/O slots: 7
Remote I/O slots: 14
Max discrete I/O points: 448
Max analog I/O points: 114
Expansion bus: Modicon TM3 series |
| Communication Interfaces |
Dual-port Ethernet switch (10/100 Mbps, RJ45)
USB Mini-B 2.0 port
RS-232/RS-485 serial interface (1.2~115.2 kbit/s)
CANCopen J1939 (9-way D-sub connector)
Supported protocols: Modbus TCP, EtherNet/IP, OPC UA, SQL, FTP |
| Physical Specifications |
Dimensions (W*D*H): 54 mm*95 mm*90 mm
Weight: 0.22 kg
Mounting type: DIN rail (TH35-15/TH35-7.5, IEC 60715)
Protection rating: IP20 |
| Environmental Performance |
Operating temperature: 0~55°C
Storage temperature: -25~70°C
Humidity: ≤95% RH (no condensation)
Electromagnetic compatibility: Complies with EN/IEC 61000 series |
| Certifications & Standards |
CE, UL 508, UL 1604, CSA C22.2, ATEX
Marine certifications: LR, ABS, DNV, GL
Complies with IEC 61131-2, ANSI/ISA 12-12-01 |
| Programming & Software |
Software: EcoStruxure Machine Expert
Supported languages: IEC 61131-3 (LD, FBD, ST, SFC, IL) + CFC
Predefined function blocks, web visualization pages |
Product Models
| Model Number |
Core Configuration |
Key Features & Market Positioning |
Main Application Scenarios |
| TM251MESC |
24V DC power supply
1 serial line port
Dual-port Ethernet switch
64MB RAM + 128MB flash memory
Supports 7 local + 14 remote I/O expansion modules |
Standard CANopen/SAE J1939 communication interfaces, focusing on fieldbus interconnection for distributed control needs; streamlined hardware interfaces with outstanding cost-effectiveness |
Food and beverage packaging lines, logistics and warehousing sorting equipment, small material handling machinery |
| TM251MESE |
24V DC power supply
1 serial line port
Dual-port Ethernet switch (10/100 Mbps)
64MB RAM + 128MB flash memory (expandable to 32GB via SD card)
Supports 7 local + 14 remote I/O expansion modules |
Enhanced compatibility with EtherNet/IP and Modbus TCP protocols; built-in Web server, FTP server, and OPC UA server; supports Wi-Fi wireless connection and remote monitoring; 22μs instruction execution speed |
Smart manufacturing production lines, automated assembly equipment, new energy battery production equipment, marine engineering supporting machinery |
Industry Applications
Food & Beverage Industry
Direct connection to weight sensors, temperature controllers, and packaging machinery with Modbus TCP synchronization. Enables quick production parameter changes without system reconfiguration. Compact design fits tight control cabinet spaces with stable operation in humid, temperature-fluctuating environments.
Packaging Machinery Industry
22μs instruction execution speed for precise control of sealing machines and labelers. CANopen protocol support for servo motors and inverters. Remote maintenance capability via built-in web server reduces international service requirements.
Logistics & Warehousing Industry
Integration with AGVs, barcode scanners, and conveyor systems via EtherNet/IP. Wi-Fi connectivity eliminates extensive wiring requirements. Modular expansion adapts to warehouses of all sizes from small e-commerce facilities to large logistics hubs.
Smart Manufacturing Industry
Built-in OPC UA server for seamless MES and ERP system integration. SQL client for product quality data storage and traceability. Distributed architecture supports production line upgrades without core PLC replacement.
New Energy Industry
Compliance with international EMC standards for high electromagnetic interference environments. EtherNet/IP support for charging station modules and safety alarm triggering. Wi-Fi remote monitoring for solar farm inverters.
Marine Engineering Industry
Marine class approvals (LR, ABS, DNV) for ship ballast water control systems and deck machinery. Wide voltage input (20.4~28.8V DC) ensures stable operation with fluctuating ship power supplies. Distributed architecture reduces wiring and failure points.
Automotive Components Industry
Connection to robots and testing equipment for high-precision control. Fast expansion modules enable new production line additions without reprogramming. Code reuse and I/O module additions reduce changeover time significantly.
Frequently Asked Questions
Q1: The PLC can't connect to the local Wi-Fi in my European factory--what's wrong?
A1: Verify Wi-Fi uses 2.4GHz band (Modicon M251 only supports 802.11 b/g/n). Ensure password contains only letters and numbers without special characters. Maintain PLC within 30 meters of router and avoid signal obstructions.
Q2: When expanding I/O modules in my Southeast Asian warehouse, the new TM3 modules aren't detected--why?
A2: Power off PLC before module insertion. Insert TM3 modules sequentially into local slots (maximum 7). Avoid hot-swapping in humid environments. Check firm module connections and update PLC firmware if necessary.
Q3: The PLC keeps triggering overvoltage alarms in my North American automotive plant--how to fix it?
A3: Install UL-certified surge protector between power supply and PLC. Verify correct polarity wiring and use 1.5mm² minimum power cables to prevent voltage drops and instability.
Q4: I can't remotely access the PLC via OPC UA from my office in Germany to the factory in Poland--what's the issue?
A4: Confirm factory firewall allows OPC UA port 4840 access. Enable OPC UA server in PLC web settings. Ensure stable VPN connection for cross-network access. Use wired Ethernet for large data transfers.
Q5: The PLC's instruction execution speed slows down in my Middle Eastern new energy plant--why?
A5: Relocate PLC away from heat sources. Add cooling fan to control cabinet. Optimize program by removing unnecessary loops and using SD cards for large log files instead of internal flash memory.
Q6: When connecting the PLC to CANopen devices in my Italian packaging plant, the data sync is delayed--how to resolve?
A6: Ensure consistent 500 kbit/s baud rate across all CANopen devices. Monitor bus load and split devices if exceeding 80%. Maintain CANopen bus cable under 100 meters with proper 120Ω termination resistors.
Q7: The PLC's web visualization page doesn't load on my mobile phone in my Australian logistics warehouse--what to do?
A7: Ensure mobile device connects to same network as PLC. Clear browser cache and update to supported versions (Chrome 88+, Safari 14+, Edge 88+). Use responsive design mode for optimal mobile viewing.
Q8: After replacing a faulty PLC in my Japanese smart factory, the old program won't upload--how to fix?
A8: Enter original password if program is protected. Contact Schneider technical support for password reset with PLC serial number and purchase proof. Verify model compatibility and use project restore function instead of manual code copying.
Q9: The power grid voltage in our African factory often drops sharply--sometimes the three-phase voltage falls to 289V, and the PLC directly triggers protection and shuts down. How to fix this?
A9: Install wide-range voltage stabilizer with input voltage lower limit ≤270V. Add surge protector at PLC power terminal. Configure low-voltage delay protection in program. Separate PLC wiring from high-power motors.
Q10: After running for six months, the PLC in a South African mine has accumulated a lot of dust, causing overheating errors. How to resolve this?
A10: Relocate PLC away from dust sources in sealed control cabinet with IP55-rated dustproof fan. Use compressed air for regular cleaning (maintain proper airflow direction). Consider dust covers and reduce maintenance intervals to three months.
Q11: The PLC housing in our Ghana coastal factory has rusted, and the terminal blocks have poor contact. How to deal with salt spray corrosion?
A11: Use C5-M anti-corrosion coated PLC models or apply anti-rust paint. Replace terminals with silver-plated or gold-plated versions. Ensure control cabinet sealing with desiccants. Use waterproof cables and inspect terminals every 2 months.
Q12: After installing the PLC in our Argentine factory using the domestic TN-S grounding method, the leakage protector frequently trips. What's wrong?
A12: Implement TT grounding system compliant with local IRAM 2281 standard. Use deep-well ground electrodes with ground resistance reducing agents. Adopt single-point grounding without shared electrodes. Employ qualified local electricians familiar with regional standards.
Q13: In our Brazilian factory, RS485 communication is interrupted whenever the welding machine starts. How to fix this?
A13: Use double-shielded twisted pair communication cables in galvanized steel pipes. Maintain 30cm separation from power lines. Install isolation modules at RS485 interface. Add π-type filters to communication power supply. Adjust communication timing to avoid welding machine operation peaks.
Q14: When remotely accessing the PLC via Wi-Fi in our Peruvian mountain factory, the signal is intermittent, and it even switches to 2G. How to optimize this?
A14: Upgrade to industrial-grade dual-mode (4G+2G) communication module. Install high-gain antennas at elevated positions. Consider wired Ethernet or dedicated industrial IoT cards from local providers for more reliable connectivity.
Q15: In our Colombian factory, a 0.2-second voltage sag in the power grid causes the PLC to restart, resulting in losses exceeding $20,000 per incident. How to avoid this?
A15: Install online UPS with 1.5x PLC power capacity. Enable breakpoint resume function in PLC program. Upgrade power cables to larger cross-sections. Add voltage monitoring modules for real-time alerts and proactive response planning.
