Product Details
Place of Origin: France
Certification: CE、UL 61010-2-201、CSA C22.2 N°61010-2-201、EAC、RCM、IECEx/ATEX，EN/IEC 61131-2、RoHS、REACH

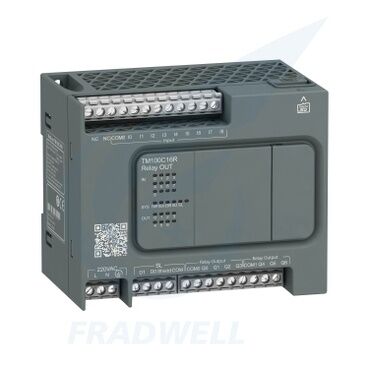

Model Number: TM100C16RN/TM100C24RN/TM100C32RN/TM100C40RN
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD47-500
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Programmable Logic Controller
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Manufacturer's Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Programmable Logic Controller
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Specification Category | Technical Parameters |
|---|---|
| Power Supply | Rated Supply Voltage: 100~240V AC Line Frequency: 50/60Hz Sensor Power Supply: 24V DC |
| Processor Performance | Boolean Processing Speed: 0.2μs/Boolean Event Task Response Time: 60μs Instruction Execution Time: 0.3ms/Instruction |
| I/O Configuration | Digital I/O Points: 16/24/32/40 Points (Model-Dependent) Digital Input Type: 24V DC (Sink/Source) Output Type: Relay Output Max Current per Output: 2A |
| Communication Interfaces | Built-in RS485 Serial Port Built-in USB Mini-B Programming Port Micro SD Card Support: Up to 32GB |
| Storage Specifications | Internal Flash Memory: 512KB Micro SD Card Expansion: Up to 32GB |
| Environmental Adaptability | Operating Temperature: 0~55℃ Storage Temperature: -25~70℃ Protection Class: IP20 |
| Physical Dimensions | Dimensions (W*D*H): 130mm*70mm*90mm (TM100C24R Model) Net Weight: 0.331~0.545kg Mounting Type: DIN 35mm Rail Mount |
| Certifications & Standards | Complies with EN/IEC 61010-2-201, EN/IEC 61131-2 Standards Product Certifications: CE Certification |
| Model | Total I/O Points | Digital Inputs (DI) | Digital Outputs (DO) | Core Configuration | Application Scenarios |
|---|---|---|---|---|---|
| TM100C16RN | 16 Points | 9 Points | 7 Points (Relay Output) | 1*RS485, 1*USB, Micro SD Card | Small Packaging Machinery, Desktop Assembly Equipment |
| TM100C24RN | 24 Points | 14 Points | 10 Points (Relay Output) | 1*RS485, 1*USB, Micro SD Card | Small Compressors, Strapping Machines, HVAC Control |
| TM100C32RN | 32 Points | 20 Points | 12 Points (Relay Output) | 1*RS485, 1*USB, Micro SD Card | Material Handling Equipment, Solar Inverter Control |
| TM100C40RN | 40 Points | 24 Points | 16 Points (Relay Output) | 1*RS485, 1*USB, Micro SD Card | Automated Warehousing, Charging Pile Control |
