S5 PLC: Trusted Spare Parts for Legacy Production Lines Worldwide
The S5 Series PLC, a classic legacy product in industrial automation, remains essential for maintenance and critical operations in aging factories worldwide. Despite being discontinued, its rugged design, broad industry adaptability, and mature global spare parts supply chain make it indispensable for automotive, chemical, logistics, and other legacy production lines. Supporting PROFIBUS DP communication, it integrates with modern PROFINET systems via gateways, while its plug-and-play modular design and virtual machine debugging solutions enable efficient on-site maintenance. Certified with CE, UL, and ATEX standards, the series is available across key markets including Europe, North America, and Southeast Asia, with delivery in 1-2 weeks.
Key Features & Highlights
- Rugged Durability for Long-Term Reliability: Built with robust metal housing and industrial-grade components, the S5 Series excels in harsh environments (high temperature, dust, vibration) common in chemical, metallurgy, and automotive plants. Many units have operated continuously for 20+ years, minimizing unplanned downtime.
- Plug-and-Play Modular Design for Easy Maintenance: The plug-in module structure allows technicians to replace faulty I/O, power, or communication modules in minutes—no complex wiring or specialized expertise required. This reduces maintenance time and labor costs, especially in facilities with limited technical support.
- Flexible Compatibility with New & Old Systems: Native PROFIBUS DP support enables seamless integration with existing legacy control systems. For upgrades, it connects to modern PROFINET devices via gateways, extending the lifecycle of old production lines without heavy investment.
- Global Certifications & Wide Industry Adaptation: Certified with CE (EU), UL (North America), ATEX (explosion-proof), and other international standards, the S5 Series meets regulatory requirements worldwide. It is widely used in automotive welding lines, chemical process control, logistics equipment, and petrochemical hazardous zones.
- Global Spare Parts Supply & Fast Delivery: Despite being discontinued, the S5 Series benefits from a mature global spare parts network. Standard modules are deliverable in 1-2 weeks, while rare models can be sourced within 4-6 weeks, addressing spare parts shortages for legacy line maintenance.
- User-Friendly Debugging with Virtual Machine Support: The S5 Series includes pre-installed STEP5 programming software virtual machines, enabling technicians to debug or modify programs on modern laptops without retrofitting old hardware.
Core Specifications
| Specification Category |
S5-95U (6ES5491-0LB11) |
S5-115U (CPU 943-7UB11) |
S5-135U (CPU 944) |
S5-155U (CPU 947) |
| Processor |
Intel 80186, 16MHz |
Dedicated industrial processor |
Dedicated industrial processor |
High-performance industrial processor |
| Processing Speed |
0.8μs/binary instruction |
Approx. 1ms/instruction |
0.8ms/instruction |
0.18ms/instruction |
| User Memory |
8KB RAM (expandable to 24KB) |
48KB RAM |
96KB RAM |
896KB RAM |
| Timers/Counters |
128/128 |
128/128 |
128/128 |
2048/32768 |
| Digital I/O Capacity |
32 points (16DI/16DO) |
Up to 512 points |
Up to 1024 points |
Up to 4096 points |
| Analog I/O Capacity |
None |
Up to 64 points |
Up to 64 points |
Up to 256 points |
| Communication Interfaces |
RS-485 (PROFIBUS-DP) |
1×20mA current loop (TTY) |
PROFIBUS DP, SINEC H1 |
RS485, PROFIBUS-DP |
| Power Requirement |
24V DC, max. 1.8A |
Compatible with S5-115U standard power modules |
24V DC/AC 110/220V |
24V DC |
| Operating Temperature |
0~55℃ |
0~55℃ |
0~55℃ |
-25℃~60℃ |
| Dimensions (H × W × D) |
120mm×80mm×62mm |
25mm×262mm×193mm |
55mm×58mm×14mm (memory module) |
Custom rack dimensions |
| Weight |
Approx. 0.5kg |
Approx. 0.5kg |
Approx. 40g/60g (memory module) |
Approx. 1.2kg |
| Certifications |
CE, UL |
CE, UL, CSA |
CE, UL, CSA |
CE, UL, IECEx |
Product Models & Applications
| Product Series |
Order Number |
Model Name |
Core Positioning |
Overseas Application Scenarios |
| S5-90U |
6ES5090-8MA01 |
S5-90U Compact Unit |
Micro compact PLC |
Control of small packaging machinery and standalone food processing equipment |
| S5-90U |
6ES5090-8MA11 |
S5-90U Programmable Controller |
Basic small-sized PLC |
Control of conveyors and sorting equipment in small European factories |

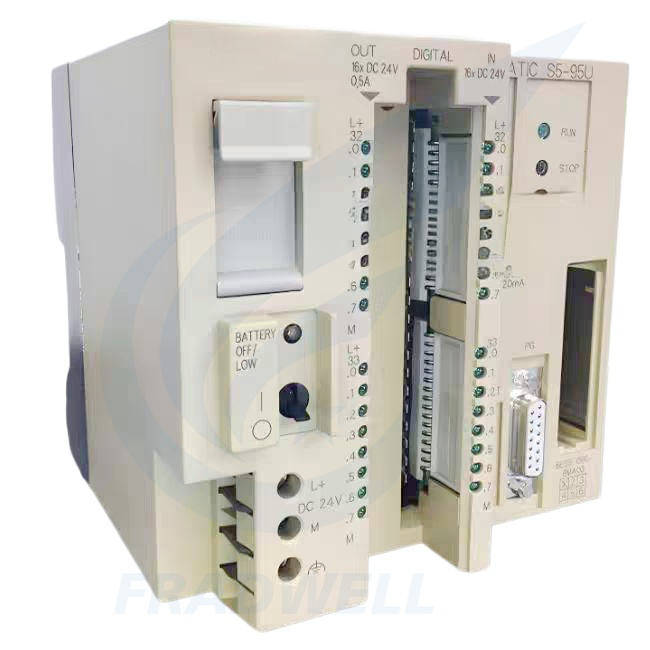

| S5-95U |
6ES5095-8MB31 |
S5-95U PLC with PROFIBUS |
Compact PLC with communication function |
Control of small workstations in automotive parts production lines |
| S5-95U |
6ES5095-8MC31 |
S5-95U with 2nd AS511 Interface |
Compact PLC with dual interfaces |
Warehousing and logistics equipment in European countries such as Germany and France |
| S5-95U |
6ES5491-0LB11 |
S5-95U CPU Module |
Core control module for S5-95U |
Core control unit for small automated production lines in North America |
| S5-100U |
6ES5100-8MA01 |
S5-100U CPU Module |
Small expandable PLC |
Multi-station collaborative control in Southeast Asian electronic assembly lines |
| S5-100U |
6ES5700-8MA11 |
S5-100U Bus Module |
Bus expansion module for S5-100U |
I/O expansion scenarios for S5-100U systems worldwide |
| S5-115U |
6ES5943-7UB11 |
S5-115U CPU 943 |
Mid-range mainstream control CPU |
Control system for medium-sized reactors in the European chemical industry |
| S5-115U |
6ES5944-7UB21 |
S5-115U CPU 944 |
Mid-range CPU with dual interfaces |
Continuous process control of petrochemical equipment in North America |
| S5-115U |
6ES5945-7UA13 |
S5-115U CPU 945 |
Mid-range CPU with high memory |
Process control in large-scale water treatment plants in the Middle East |
| S5-135U |
6ES5135-3KB41 |
S5-135U Central Controller |
Large rack-mounted PLC |
Control of welding production lines in German automobile factories |
| S5-135U |
6ES5130-3WE63 |
S5-135U Compact Controller |
Large compact PLC |
Control of blast furnace auxiliary systems in the European metallurgical industry |
| S5-135U |
6ES5944-7UA12 |
S5-135U CPU 944 |
Core control CPU for large-scale systems |
Continuous production process control in global large-scale manufacturing industries |
| S5-155U |
6ES5948-3UA12 |
S5-155U CPU 948 |
Extra-large high-performance CPU |
High-precision process control in North American aerospace manufacturing |
| S5-155U |
6ES5947-7LC11 |
S5-155U CPU 947 |
Flagship large-scale PLC CPU |
Core control system for global large-scale energy projects |
Application Fields & Usage Scenarios
Automotive Manufacturing (Europe, North America)
Core Application: Control of welding lines and component assembly lines in older automobile factories
Real-World Cases: A Volkswagen legacy factory in Munich, Germany, uses the S5-135U PLC to connect over 200 welding robot actuators. Via PROFIBUS DP, it synchronizes welding current and pressure control—after 25 years of operation, it still maintains welding precision (error ≤ 0.2mm). A General Motors auto parts plant in Detroit, USA, relies on the S5-115U CPU 943 to manage bolt tightening, part inspection, and other processes.
Chemical & Petrochemical Industry (Middle East, Europe, North America)
Core Application: Process control for aging reactors, material transfer pipelines, and oil & gas processing equipment
Real-World Cases: A crude oil distillation unit in a Saudi Arabian refinery uses the S5-155U PLC to monitor distillation tower temperature, pressure, and liquid level. With ATEX explosion-proof certification, it adapts to hazardous oilfield zones. An older chemical plant in Germany's Ruhr region uses the S5-115U CPU 945's high memory to store complex process parameters.
Metallurgy & Steel Industry (Europe, North America, Southeast Asia)
Core Application: Control of blast furnace auxiliary systems, steel rolling lines, and steelmaking furnace temperature
Real-World Cases: A hot rolling production line in a Belgian steel mill uses the S5-135U Compact Controller to regulate roll speed and pressure. Its metal housing resists dust and vibration, enabling stable operation in high-temperature (60℃+), dusty workshop conditions. A small steel mill in Indonesia uses the S5-95U PLC to adjust blast furnace air supply fan flow.
Logistics, Warehousing & Port Equipment (Europe, North America)
Core Application: Control of aging automated warehouse stackers, port cranes, and sorting lines
Real-World Cases: An older container crane at Rotterdam Port in the Netherlands uses the S5-100U PLC to control lifting, luffing, and traveling movements. Its RS-485 communication interface connects to position sensors, enabling precise container positioning (error ≤ 5cm). An older Amazon fulfillment center in Chicago, USA, uses the S5-90U Compact Unit to interface with scanners and sorting robots.
Water Treatment & Municipal Engineering (Middle East, Europe)
Core Application: Process control for aging sewage treatment plant aeration and sedimentation systems, and urban water supply booster stations
Real-World Cases: A biological aeration tank control system in a Dubai sewage treatment plant uses the S5-115U CPU 943 to control aeration fan start/stop and air flow. A water supply booster station in an older Paris neighborhood uses the S5-95U PLC to monitor water pipe pressure.
Food & Beverage Industry (Europe, South America)
Core Application: Standalone control of aging filling lines, pasteurization equipment, and packaging machines
Real-World Cases: A legacy wine filling line in an Italian winery uses the S5-90U Programmable Controller to control filling valve operation and volume. A Brazilian brewery uses the S5-100U CPU Module to control pasteurization temperature (precision ±0.5℃), collecting water temperature data via analog modules.
Frequently Asked Questions
Purchase & Spare Parts
Q: Since the S5 Series is discontinued, can I still get reliable spare parts overseas? And how long does delivery take?
A: Yes—there's a mature global spare parts network for S5. Standard parts ship in 1-2 weeks; rare models (e.g., S5-155U CPU 947) may take 4-6 weeks to source via cross-region transfers. We recommend stocking 1-2 critical modules (like power or CPU) if your factory runs 24/7—avoids costly downtime waiting for parts.
Q: Are the spare parts new or refurbished? Will refurbished modules cause issues in my European factory?
A: Most available parts are tested refurbished (from reputable suppliers) or new old stock (NOS). Reputable suppliers run 24-hour burn-in tests and functional checks—we've had customers in Germany use refurbished S5-135U modules for 5+ years without issues.
Compatibility & Integration
Q: I need to connect my S5 PLC to a new PROFINET-based SCADA system in my North American plant. Is that possible?
A: Absolutely—you'll need a PROFIBUS-to-PROFINET gateway (e.g., Siemens CP 343-1 or third-party gateways like Phoenix Contact). We provide a step-by-step configuration guide: you'll map S5's PROFIBUS signals to PROFINET tags, and the gateway acts as a translator. A customer in Texas did this for their oil refinery's SCADA upgrade—communication was stable within a day of setup, no need to rewrite the S5 program.
Q: Can the S5 PLC work with non-Siemens sensors (e.g., Allen-Bradley) in my Southeast Asian factory?
A: Yes—S5's digital/analog modules use standard industrial signals (24V DC for digital, 4-20mA/0-10V for analog). As long as your sensors output these signals, they'll plug right in. We helped a customer in Thailand connect Allen-Bradley pressure sensors to an S5-100U—no adapters needed, just wired the sensor's signal and power lines to the S5 module's terminals.
Installation & On-Site Maintenance
Q: My S5-90U PLC in a Brazilian food factory keeps tripping—could it be the power supply? How to check on-site?
A: Likely a power issue—Brazil's grid voltage fluctuates a lot. First, use a multimeter to check the input voltage (S5 uses 24V DC, so confirm it's stable between 22-26V). If voltage dips below 22V, add a voltage stabilizer (cheap and easy to install). We've seen this fix 90% of tripping issues in South America. If voltage is stable, check the power module's LED lights—red light means internal failure, so replace the module (common for 20+ year-old units).
Q: We're installing a refurbished S5-135U in an Australian mining site (high dust, vibration). Any special installation tips?
A: Dust and vibration are S5's biggest enemies here. First, mount the PLC rack on a shock-absorbing metal bracket (not directly on the machine frame) to reduce vibration damage. Second, seal unused module slots with factory dust covers—mining dust gets into connectors and causes short circuits. Third, use shielded cables for communication (PROFIBUS) and route them away from power cables to avoid interference. A customer in Western Australia followed this and extended their S5's lifespan by 3+ years.
Programming & Troubleshooting
Q: My team can't install STEP5 software on modern Windows 10/11 laptops—how do we debug the S5 program in our Middle Eastern petrochemical plant?
A: Use a preconfigured virtual machine (VM)—we provide a VM image with Windows XP (compatible with STEP5) and all necessary drivers. You'll run the VM on your modern laptop, connect via a USB-to-RS485 adapter (we include a compatible one), and access the S5 program directly. Customers in Saudi Arabia and UAE use this method daily—no need for old computers, and debugging takes the same time as on original hardware.
Q: The S5 PLC in my European steel mill shows a "module error" LED—how to find which module is faulty without a laptop?
A: S5's error LEDs are straightforward. First, check the CPU's error light: if it's flashing, the fault is in a specific I/O module. Then, look at each I/O module's LED—red light means that module is faulty (e.g., short circuit in a digital input channel). Swap the suspect module with a spare (same model) —if the error clears, that's the problem. We train technicians in Belgium's steel mills to do this in 15 minutes—no software needed, just basic visual checks.
Compliance & Environment
Q: Does the S5 PLC meet EU's ATEX standards for my chemical plant's hazardous zone?
A: Yes—original S5 explosion-proof models (e.g., S5-115U Ex versions) have ATEX certification. For non-explosion-proof models, confirm they're installed in a safe area (Ex Zone 2 or above) or use explosion-proof enclosures. We provide the original ATEX declaration of conformity for all Ex-rated S5 modules—critical for passing EU safety audits. Customers in Germany's chemical parks use this to maintain compliance without replacing the S5 system.
Q: Will the S5 PLC work in my Canadian cold storage facility (-30℃)?
A: Most S5 modules have an operating temperature range of 0~55℃, so -30℃ is too cold for standard units. The fix: use a heated control cabinet (cheap and widely available in North America) to keep the PLC at 5~10℃. A customer in Ontario did this—their S5-95U has run reliably in the cold storage for 4 years. Avoid using the PLC directly in unheated areas—cold temperatures damage capacitors and cause communication failures.
Long-Term Use & Upgrades
Q: My S5 system is 20 years old—should I upgrade to S7 now, or keep maintaining it?
A: It depends on your needs. If the S5 runs smoothly and spare parts are easy to source (which they are), keep maintaining it—upgrading to S7 costs 3-5x more and requires rewriting programs. We have customers in France still using S5-135U for their automotive welding lines—they only upgrade when the production line itself is renovated. If you need new features (e.g., IoT connectivity), add a gateway instead of full replacement—it's cheaper and faster.
Q: What if my S5 CPU fails and the model is no longer available? How to avoid losing the program?
A: First, back up the program now—use the VM and USB adapter to save a copy to your laptop or cloud. If the CPU fails and the exact model is out of stock, we can provide a compatible replacement (e.g., S5-115U CPU 944 works as a drop-in replacement for 943 with a firmware update). The program is stored in non-volatile memory, so you can upload it to the new CPU in 30 minutes. A customer in Mexico did this when their S5-100U CPU failed—no program loss, and production resumed the same day.
