Product Details
Certification: CE 、UL 、PSE 、IEC
Model Number: LOGO! Series
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $50-$150
Delivery Time: 3-5workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Type:
|
PLC Mainframe
|
Type:
|
LOGO! Host Machine
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Manufacturer's Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Product Type:
|
PLC Mainframe
|
|
Type:
|
LOGO! Host Machine
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Type | 24 CE,12/24RCE | 24 RCE/230 RCE | 12/24 RCEo,24 CEo | 24 RCEo,230 RCEo |
|---|---|---|---|---|
| Supply Voltage | 24V DC / 24V DC Transistor Output | 115V/230V AC / Relay Output | 12/24V DC / Relay Output | 24V AC/DC / Relay Output |
| I/O Configuration | 8 Digital Inputs (4 Analog Inputs included), 4 Digital Outputs | 8 Digital Inputs, 4 Digital Outputs | 8 Digital Inputs (4 Analog Inputs included), 4 Digital Outputs | 8 Digital Inputs, 4 Digital Outputs |
| Memory Capacity | Program memory: 400 function blocks | Program memory: 400 function blocks | Program memory: 400 function blocks | Program memory: 400 function blocks |
| Core Functions | Integrated Ethernet, Web Server, Data Logging, Micro SD Card Support, Cloud Connectivity | Integrated Ethernet, Web Server, Data Logging, Micro SD Card Support, Cloud Connectivity | Integrated Ethernet, Web Server, Data Logging, Micro SD Card Support, Cloud Connectivity | Integrated Ethernet, Web Server, Data Logging, Micro SD Card Support, Cloud Connectivity |
| Display | With Display | With Display | Without Display | Without Display |
| Module Model | Module Type | Power Compatibility | I/O Configuration | Application Scenarios |
|---|---|---|---|---|
| DM8 24 | Digital Expansion Module | 24V Compatible | 4 Digital Inputs, 4 Digital Outputs | Compatible with LOGO!8 24V base units; expands digital I/O for small-scale control |
| DM16 24 | Digital Expansion Module | 24V Compatible | 8 Digital Inputs, 8 Digital Outputs | Replaces two DM8 24 modules; ideal for 24V systems requiring more digital points |
| AM2 | Analog Expansion Module | Universal Voltage Compatible | 2 Analog Inputs | Works with all base unit voltage types; expands analog data collection |
| AM2 RTD | Analog Expansion Module | Universal Voltage Compatible | 2 PT100/PT1000 Inputs | Precise temperature signal acquisition for industrial applications |
| AM2 AQ | Analog Expansion Module | Universal Voltage Compatible | 2 Analog Outputs | Enables stepless regulation of actuators via analog signals |
| Universal Parameters | Specifications |
|---|---|
| Maximum Expandability | Digital Inputs: 24 max; Digital Outputs: 20 max; Analog Inputs: 8 max; Analog Outputs: 8 max |
| Operating Temperature | -20°C to 55°C (Non-condensing) |
| Programming Software | Compatible with LOGO! Soft Comfort V8.3+ |
| Communication Protocols | Supports S7-TCP, Modbus TCP/IP; Integrated Ethernet Port |
| Data Storage | Supports Micro SD Card (up to 32GB); Stores 20,000+ data logs |
| Mounting Type | Standard DIN35mm Rail Mounting |
| Category | Model | Ordering Number |
|---|---|---|

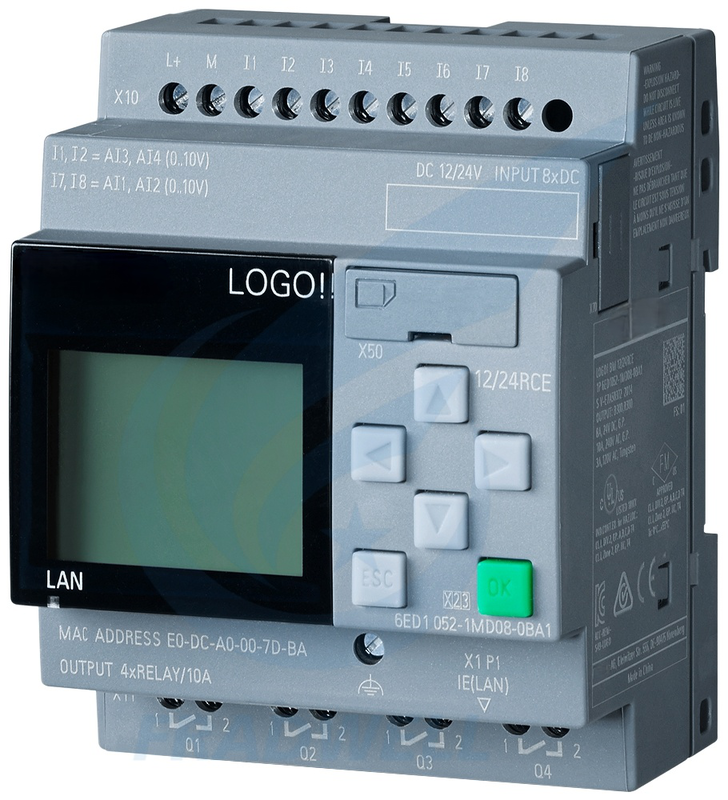

| Basic Units (With Display) | LOGO! 12/24 RCE | 6ED1052 - 1MD08 - 0BA1 |
| LOGO! 24 CE | 6ED1052 - 1CC08 - 0BA1 | |
| LOGO! 24 RCE(AC/DC) | 6ED1052 - 1HB08 - 0BA1 | |
| LOGO! 230 RCE(AC/DC) | 6ED1052 - 1FB08 - 0BA1 | |
| Basic Units (Without Display) | LOGO! 12/24 RCEo | 6ED1052 - 2MD08 - 0BA1 |
| LOGO! 24 CEo | 6ED1052 - 2CC08 - 0BA1 | |
| LOGO! 24 RCEo(AC/DC) | 6ED1052 - 2HB08 - 0BA1 | |
| LOGO! 230 RCEo(AC/DC) | 6ED1052 - 2FB08 - 0BA1 |
