Series:	Altistart 480 / 22 / 01	Technology:	Digital Soft Start With Bypass
Phase:	Three-Phase (ATS480/22)	Operating Temp:	-10°C To +40°C (Up To 60°C With Derating)
Footprint Compatibility:	ATS48 Replacement (ATS480)	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Series:	Altistart 480 / 22 / 01
Technology:	Digital Soft Start With Bypass
Phase:	Three-Phase (ATS480/22)
Operating Temp:	-10°C To +40°C (Up To 60°C With Derating)
Footprint Compatibility:	ATS48 Replacement (ATS480)
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

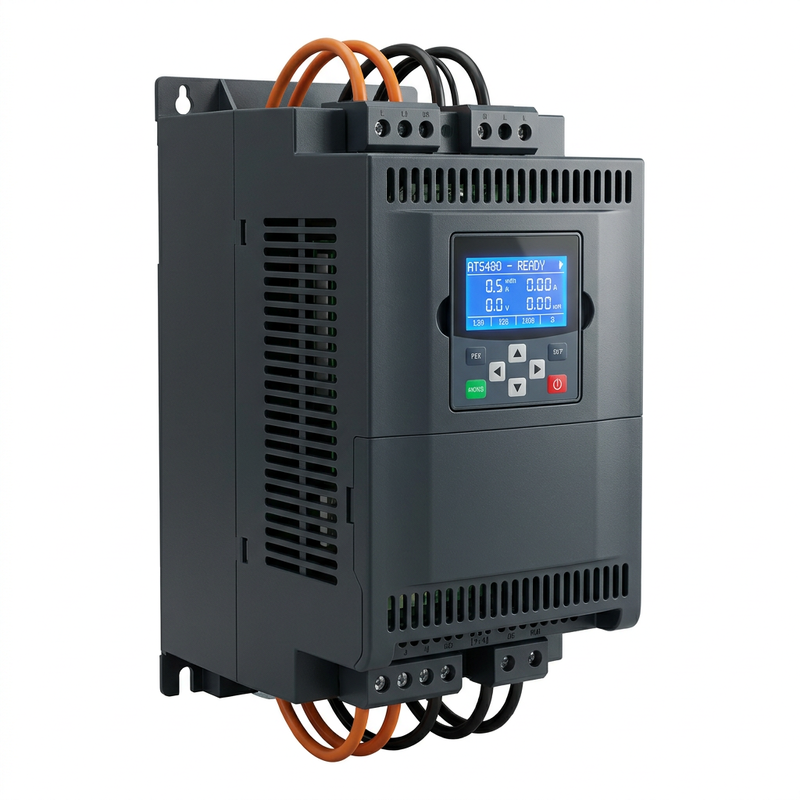

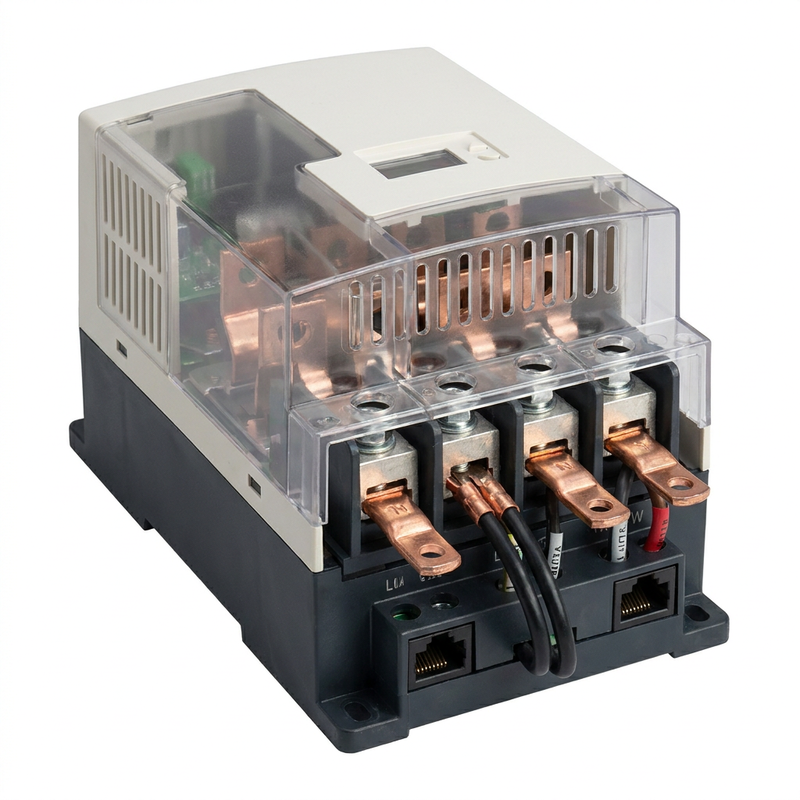

Schneider Altistart 480 ATS480 ATS22 Soft Starter 17A-1200A Motor Control New

The Schneider Electric Altistart series is the premier solution for motor control in commercial buildings and heavy industrial infrastructure. The newly released Altistart 480 (ATS480) is a high-performance starter designed for digital modernization, offering 1:1 footprint compatibility with the legendary ATS48 for rapid site upgrades. The Altistart 22 (ATS22) provides a compact, space-saving design with integrated bypass contacts, ideal for standard pump, fan, and compressor applications.

Product Highlights

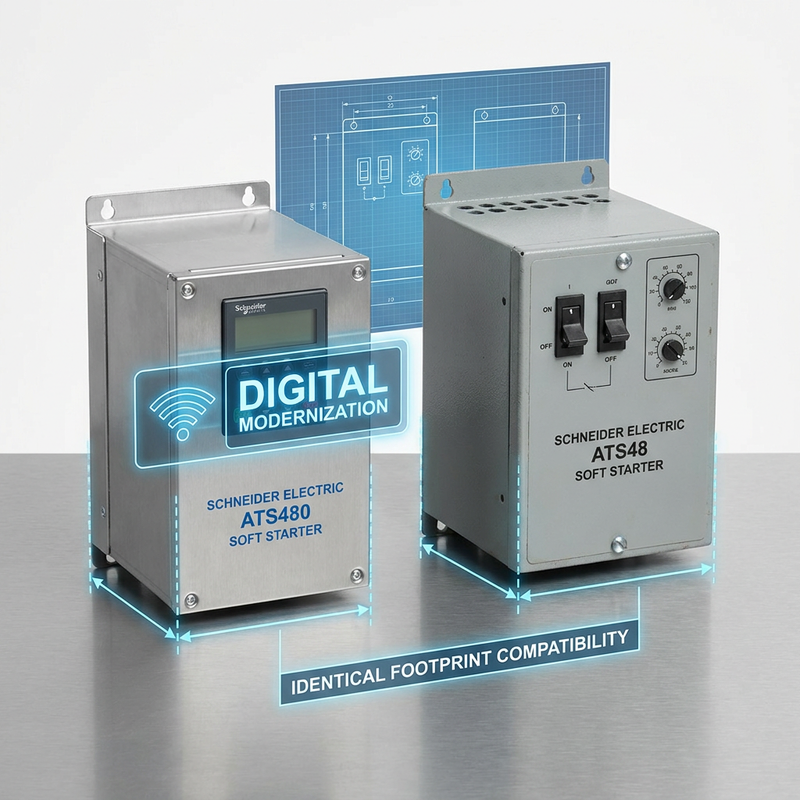

Digital Modernization (ATS480): Designed to replace the classic ATS48 seamlessly; it fits the exact same mounting holes and dimensions, reducing upgrade time by 80%.
Enhanced Connectivity: ATS480 features built-in cybersecurity and native integration with EcoStruxure for real-time asset monitoring.
Space Optimization (ATS22): The integrated bypass contactor eliminates the need for external components, significantly reducing control cabinet size and heat.
Rugged Protection: Advanced thermal protection for both the motor and the soft starter ensures reliable operation in high-cycle industrial environments.

Technical Specifications & Models

Series	Current Range	Voltage Range	Key Advantage	Example Models
Altistart 480	17 A - 1200 A	208 V - 690 V	ATS48 Compatible / IoT	ATS480D17Y, ATS480C14Y
Altistart 22	17 A - 590 A	230 V - 600 V	Integrated Bypass / Compact	ATS22D17Q, ATS22D47Q
Altistart 01	3 A - 32 A	110 V - 480 V	Simple Starting / Small Load	ATS01N206QN, ATS01N232QN

Application Fields

Commercial Buildings: HVAC systems, large ventilation fans, and industrial air conditioning.
Water Infrastructure: Pumping stations, wastewater treatment, and irrigation systems.
Material Handling: Heavy-duty conveyors, escalators, and bulk handling systems.
Industrial OEM: Centrifugal pumps, screw compressors, and industrial mixers.

Frequently Asked Questions

Q1: Is the ATS480 a direct replacement for the old ATS48?

Yes. The ATS480 was specifically engineered to be a 1:1 mechanical and electrical replacement, making it the perfect choice for legacy plant upgrades.

Q2: What is the benefit of the integrated bypass in ATS22?

It reduces the heat dissipated by the starter during steady-state operation, eliminating the need for an external contactor and extra cooling.

Q3: Does the ATS480 support cybersecurity?

Yes, the ATS480 includes firmware protection and secure communication protocols aligned with ISA/IEC 62443 standards.

Q4: Can I use ATS22 for heavy-duty starting?

ATS22 is primarily designed for standard applications. For heavy-duty (Class 20/30) starts, we recommend the ATS480 series.

Q5: What control voltage is required?

ATS22 typically uses 110V or 230V AC; ATS480 offers flexible control options ranging from 110V to 240V AC.

Q6: Are these authentic Schneider Electric products?

Absolutely. Fradwell supplies only 100% genuine, factory-new Schneider Altistart products in original packaging.
