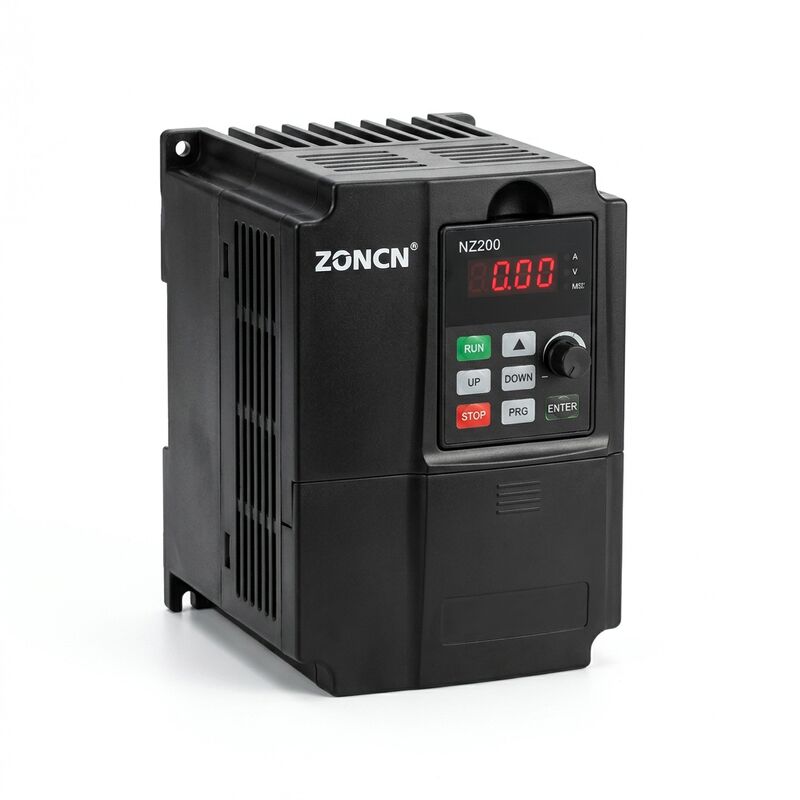

ZONCN 220V to 380V VFD | Single to 3-Phase Step-up Inverter

Name: ZONCN 220V to 380V VFD | Single to 3-Phase Step-up Inverter
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: NZ200-0R7G-2S3/1R5G-2S3/2R2G-2S3/004G-2S3/7R5G-2S3
Price: 335.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZONCN

Certification: CE 、ISO、RoHS

Model Number: NZ200-0R7G-2S3/1R5G-2S3/2R2G-2S3/004G-2S3/7R5G-2S3

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $70 - $600

Packaging Details: original package

Delivery Time: 3-5Workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:

Step-up Ratio:	1:1.73 (Boost Function)	Control Keyboard:	Detachable With Extension Support
Heatsink:	Aluminum Alloy With High-speed Cooling	Firmware:	V3.0 Optimized For Step-up
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line	Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Step-up Ratio:	1:1.73 (Boost Function)
Control Keyboard:	Detachable With Extension Support
Heatsink:	Aluminum Alloy With High-speed Cooling
Firmware:	V3.0 Optimized For Step-up
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

ZONCN 220V to 380V VFD | Single to 3-Phase Step-up Inverter

The ZONCN 220V to 380V VFD is the most popular solution for bridging the gap between domestic and industrial power. This high-performance frequency converter allows you to run industrial 3-phase 380V motors using a standard 1-phase 220V power supply. With an integrated step-up (boost) circuit, it provides a reliable, efficient, and cost-effective way to power your lathes, pumps, and fans without the high cost of installing 3-phase utility lines.

Product Highlights

Eliminate Transformers: Save space and cost with the built-in boost function that directly converts 220V to 380V.
Universal Motor Support: Optimized for high-torque performance on all standard 3-phase asynchronous motors.
Smart Protection: Comprehensive 10-layer electronic protection guards against motor burn-outs and power spikes.

Full Models & Technical Specifications

Model (NZ200/Z2000)	Rated Power (kW)	Output Current (A)	Input Phase	Output Phase
NZ200-0R7G-2S3	0.75 kW	2.5 A	1-PH 220V	3-PH 380V
NZ200-1R5G-2S3	1.5 kW	3.7 A	1-PH 220V	3-PH 380V
NZ200-2R2G-2S3	2.2 kW	5.1 A	1-PH 220V	3-PH 380V
NZ200-004G-2S3	4.0 kW	9.0 A	1-PH 220V	3-PH 380V
NZ200-7R5G-2S3	7.5 kW	17.0 A	1-PH 220V	3-PH 380V

Application Fields

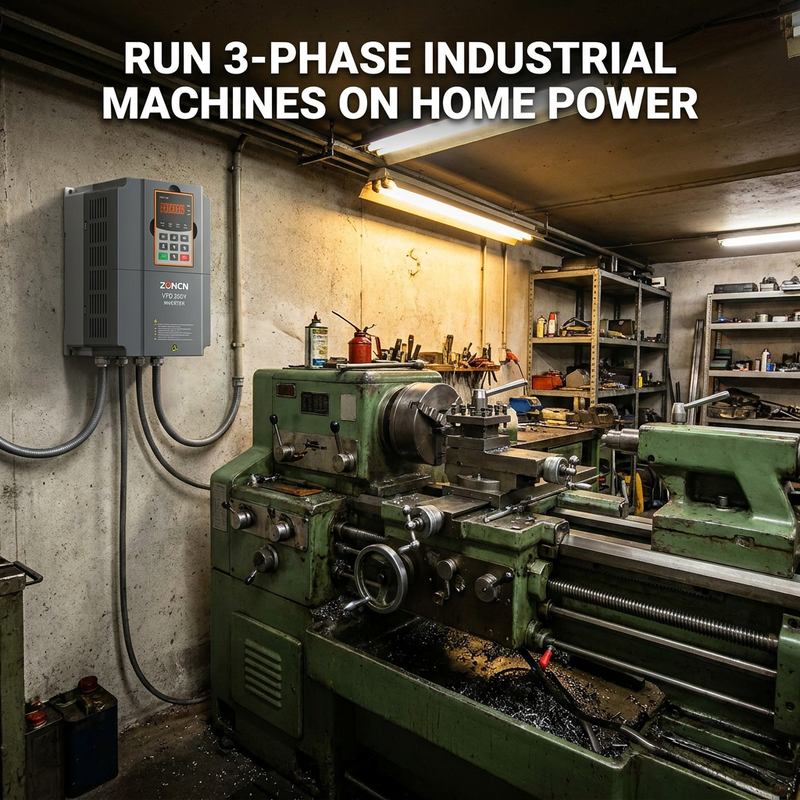

Small Workshops: Running industrial lathes, CNC routers, and grinders on home power.
Residential HVAC: Powering 3-phase air conditioning compressors from 220V grids.
Agricultural Equipment: Driving irrigation pumps and fans in rural areas without 380V power.
DIY & Prototyping: Ideal for testing industrial machinery in R&D labs.

Frequently Asked Questions

Q: How can it output 380V from a 220V input?

A: ZONCN VFDs feature an internal step-up (boost) circuit that increases the voltage before converting it to 3-phase AC.

Q: Can I use this for a 3-phase 220V motor?

A: If your motor is 3-phase 380V, this is perfect. If it's 3-phase 220V, you don't need the step-up version; a standard 220V VFD will work.

Q: Does it support 60Hz systems for the USA?

A: Yes, the input frequency can be 50Hz or 60Hz, and the output frequency is adjustable up to 400Hz.

Q: Is it difficult to set up?

A: Not at all. It comes with a simplified manual, and LINGJUN provides video guides for common 220V-to-380V wiring.

Q: What is the maximum power available for this step-up function?

A: While standard units go up to 11kW, we can provide custom high-power solutions up to 450kW upon request.

Q: Is ZONCN a reliable brand?

A: ZONCN is one of China's top VFD manufacturers, highly rated for reliability in high-volume export markets.
