Product Details
Place of Origin: German

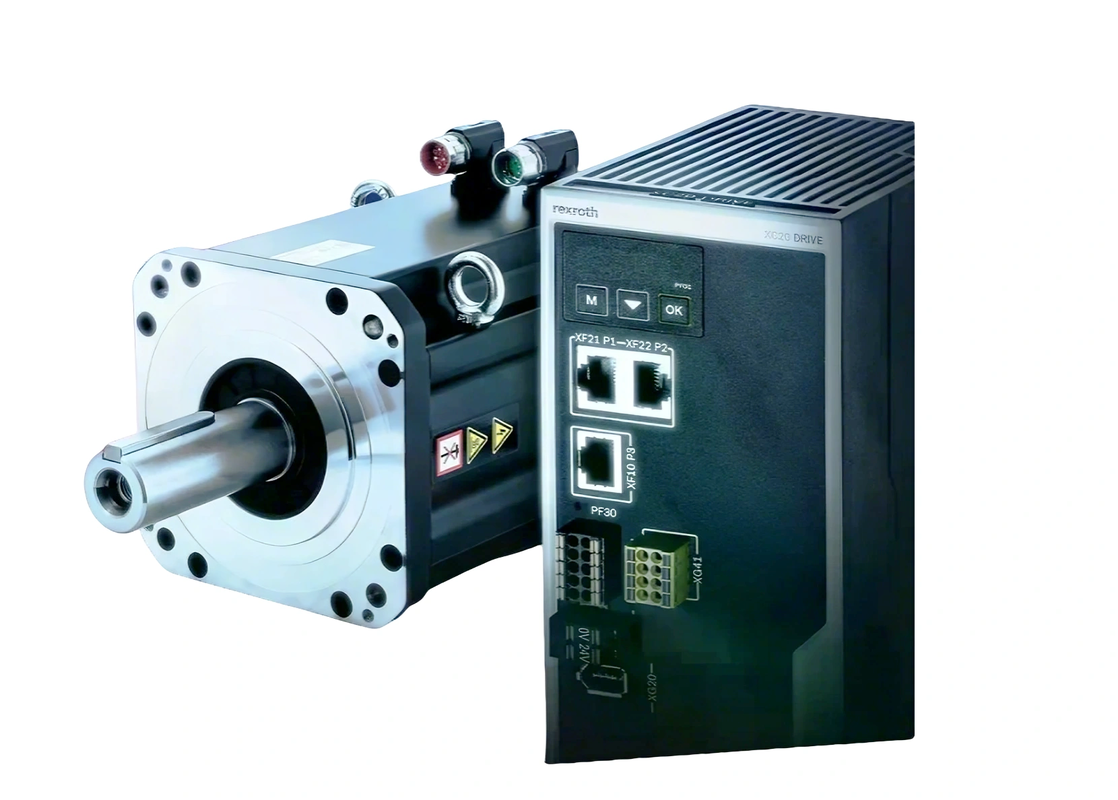

Brand Name: Rexroth
Certification: CE UL/cUL SEMI F-47 STO
Model Number: XC20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $100 – $850
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Servo Drive Motor
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Servo Drive Motor
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Performance Parameter | Specification |
|---|---|
| Overload Capacity | 3.5x overload capability |
| Current Loop Cycle | 125μs |
| Communication Cycle | EtherCAT high-speed scan cycle |
| Encoder Precision | 23-bit mechanical multi-turn absolute encoder |
| Cable Length | Up to 30 meters, supports 5 million drag chain cycles |
| Model Code | Rated Power | Rated Current | Application |
|---|---|---|---|
| XC20-0R2 | 0.2 kW | 1.3 A | Entry-level, small equipment |
| XC20-0R4 | 0.4 kW | 2.6 A | Light load applications |
| XC20-0R7 | 0.75 kW | 4.8 A | General-purpose low power drive |
| XC20-1R5 | 1.5 kW | 8.5 A | Medium load |
| XC20-2R2 | 2.2 kW | 12 A | General industrial equipment |
| XC20-3R0 | 3.0 kW | 16 A | Heavier loads |
| XC20-4R5 | 4.5 kW | 24 A | Medium power drive |
| XC20-5R5 | 5.5 kW | 30 A | Heavy industrial load |
| XC20-7R5 | 7.5 kW | 38 A | Maximum power in series |
| Model Code | Rated Power | Rated Torque | Max Speed |
|---|---|---|---|
| MC20-0R2-L | 0.2 kW | 0.64 Nm | 6000 rpm |
| MC20-0R4-L | 0.4 kW | 1.27 Nm | 6000 rpm |
| MC20-0R7-L | 0.75 kW | 2.39 Nm | 6000 rpm |
| MC20-1R5-L | 1.5 kW | 4.78 Nm | 5000 rpm |
| Model Code | Rated Power | Rated Torque | Max Speed |
|---|---|---|---|
| MC20-0R7-M | 0.75 kW | 2.39 Nm | 4500 rpm |
| MC20-1R5-M | 1.5 kW | 4.78 Nm | 4000 rpm |
| MC20-2R2-M | 2.2 kW | 7.0 Nm | 4000 rpm |
| MC20-3R0-M | 3.0 kW | 9.55 Nm | 3500 rpm |
| MC20-4R5-M | 4.5 kW | 14.3 Nm | 3000 rpm |
| MC20-5R5-M | 5.5 kW | 17.5 Nm | 3000 rpm |
| MC20-7R5-M | 7.5 kW | 23.9 Nm | 2500 rpm |
| Industry | Typical Applications |
|---|---|
| Lithium Battery | Cell manufacturing, module assembly, battery pack testing |
| Semiconductor | Wafer handling, precision positioning, high-precision motion control |
| Automotive | Component assembly, welding, inspection |
| Machine Tools | Spindle drive, feed axis control |
| Packaging | Labeling, filling, sealing equipment |
| Electronics | 3C assembly, PCB manufacturing |
| Logistics | Sorting lines, stackers, shuttles |
| Textile | Textile machinery, chemical fiber equipment |
