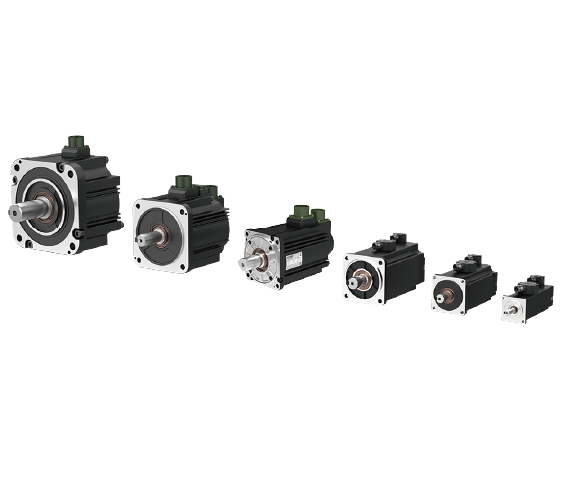

MS1-R Series Servo Drive Motor Compact Variable Speed Servo Motor

Name: MS1-R Series Servo Drive Motor Compact Variable Speed Servo Motor
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: MS1-R
Price: 385.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: CE、UL、TUV、UKCA、EAC、KC

Model Number: MS1-R

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $120-$650

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            MS1-R Series Servo Motor, Compact Variable Speed Servo Motor, Servo Drive Motor Compact


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

MS1-R Series Servo Drive Motor Compact Variable Speed Servo Motor

MS1-R Series Servo Motor

The MS1-R series servo motor, newly developed by Inovance Technology, features a power range of 0.05kW to 7.5kW and frame sizes spanning 40mm to 180mm. It offers flexible configurations of multiple inertia grades and speed ranges, and can be equipped with different encoder types tailored to specific customer requirements, making it an ideal choice for diverse precision control scenarios in industrial automation.

Product Highlights

Broad Adaptability: 0.05-7.5kW power range, 40-180mm frame sizes
Flexible Customization: Multiple inertia/speed options + tailor-made encoder types
Precision Control: High-resolution encoder support for micron-level positioning accuracy
Stable Performance: Rigid structure design, fast dynamic response, low temperature rise
Brand Reliability: Newly developed by Inovance, compliant with industrial automation standards
Wide Compatibility: Works with mainstream industrial bus protocols (EtherCAT/PROFINET)

Core Technical Parameters

Parameter Category	Parameter Item	Specifications
Electrical Parameters	Rated Power	0.05kW ~ 7.5kW
	Rated Voltage	AC 220V (optional for 100/130/180 frames), AC 380V
	Speed Range	Rated speed 3000rpm; Maximum speed 4500rpm~7000rpm (varies by model)
	Overload Capacity	Peak torque up to 3.5 times the rated torque, meeting short-term heavy load requirements
	Energy Efficiency Class	Models 550W~7.5kW comply with GB30253 Class 1 energy efficiency standard, lower energy consumption
	Insulation Class	Class F (temperature resistance 155℃), suitable for harsh working conditions
Mechanical Parameters	Frame Size	40mm, 60mm, 80mm, 100mm, 130mm, 180mm
	Body Design	Optimized structure, maximum length reduction by 29%, more compact installation space
	Protection Level	IP67 (except oil seal), dustproof and waterproof, suitable for complex workshop environments
	Rigidity Level	Typical models have 5-level rigidity improvement, stronger resistance to load disturbance
	Temperature Rise Control	Temperature rise of 60/80 frames reduced by 20K under typical working conditions, more stable operation
Control Precision	Encoder Type	Optional incremental, 23/26-bit single-turn/multi-turn absolute encoders, supporting functional safety encoders
	Positioning Accuracy	Absolute positioning accuracy ≤ ±15 arcseconds, repeat positioning accuracy ±3μm
	Torque Ripple	Built-in compensation function, torque ripple ＜ 0.5%, no jitter at low speed
Adaptability Performance	Inertia Configuration	Multiple inertia grades available; ultra-small inertia added for 60/80 frames, suitable for fast point-to-point control
	Bus Protocol	Compatible with mainstream industrial buses such as EtherCAT, PROFINET, CANopen
	Environmental Adaptability	Operating temperature -10℃~50℃, 10G vibration resistance, 100G impact resistance, bearing life ≥20000h

MS1-R Series Servo Motor Models & Matching Drivers

Frame Size	Motor Model (Overseas Version)	Core Parameters	Matching Driver Model	Application Scenario
40mm	MS1H4-05B30CB-A330Z/R	0.05kW, 220V, 3000rpm, Low Inertia	SV630A/N Series (e.g., SV630AS1R6I-NDB)	Miniature Equipment
	MS1H4-10B30CB-A330Z/R	0.1kW, 220V, 3000rpm, Low Inertia	SV630A/N Series	Miniature Equipment
	MS1H4-20B30CB-A331Z/R(-S)	0.2kW, 220V, 3000rpm, Low Inertia	SV630A/N Series	3C Precision Equipment
	MS1H4-40B30CB-A331Z/R(-S)	0.4kW, 220V, 3000rpm, Low Inertia	SV630A/N Series, SV630IS2R8I	Labeling Machines, Sliding Tables
	MS1H4-05B30CB-T330Z/R	0.05kW, 220V, 3000rpm, Low Inertia	SV630A/N Series	Miniature Equipment
	MS1H4-10B30CB-T330Z/R	0.1kW, 220V, 3000rpm, Low Inertia	SV630A/N Series	Miniature Equipment
	MS1H4-20B30CB-T331Z/R(-S)	0.2kW, 220V, 3000rpm, Low Inertia	SV630A/N Series	3C Precision Equipment
	MS1H4-40B30CB-T331Z/R(-S)	0.4kW, 220V, 3000rpm, Low Inertia	SV630A/N Series, SV630IS2R8I	Labeling Machines, Sliding Tables
	MS1H4-40B30CB-T331Z/R-X6	0.4kW, 220V, 3000rpm, Custom Interface	SV630A/N Series (interface parameters to be matched)	Customized Equipment
	MS1H4-40B30CB-S631R	0.4kW, 220V, 3000rpm, Anti-fall Configuration	SV630IS2R8I, SV660IS2R8I	Miniature Manipulators
75mm	MS1H4-55B30CB-T331R-S	0.55kW, 220V, 3000rpm, Low Inertia	SV630A/N Series	Small Machine Tools
	MS1H4-75B30CB-T331Z/R-S	0.75kW, 220V, 3000rpm, Low Inertia	SV630A/N Series (e.g., SV630AS1R0I-NDB)	Screwdriving Machines
	MS1H4-75B30CB-A331R	0.75kW, 220V, 3000rpm, Low Inertia	SV630A/N/C/P Series	Electronic Assembly Equipment
100mm	MS1H2-10C30CB-A331R	1.0kW, 220V, 3000rpm, Medium-Low Inertia	SV630A/N Series	Packaging Equipment
	MS1H2-15C30CB-A331R	1.5kW, 220V, 3000rpm, Medium-Low Inertia	SV630A/N Series	Packaging Equipment
	MS1H2-15C30CD-A331R	1.5kW, 380V, 3000rpm, Medium-Low Inertia	SV630A/N Series	Printing Equipment
	MS1H2-20C30CD-A331R	2.0kW, 380V, 3000rpm, Medium-Low Inertia	SV630A/N Series	Printing Equipment
	MS1H2-25C30CD-A331R	2.5kW, 380V, 3000rpm, Medium-Low Inertia	SV630A/N Series	Conveyor Lines
	MS1H2-10C30CB-T331R	1.0kW, 220V, 3000rpm, Medium-Low Inertia	SV630A/N Series	Packaging Equipment
	MS1H2-20C30CD-T331R	2.0kW, 380V, 3000rpm, Medium-Low Inertia	SV630A/N Series	Conveyor Lines
130mm	MS1H3-18C15CB-A331R	1.8kW, 380V, 1500rpm, Medium Inertia	SV660 Series	Machine Tool Feed Axes
	MS1H3-18C15CD-A331Z/R	1.8kW, 380V, 1500rpm, Medium Inertia	SV660 Series	Machine Tool Feed Axes
	MS1H3-85B15CB-T331Z/R	0.85kW, 220V, 1500rpm, Medium Inertia	SV660 Series	Small Machining Centers
	MS1H3-13C15CB-T331R	1.3kW, 220V, 1500rpm, Medium Inertia	SV660 Series	Small Machining Centers
	MS1H3-18C15CD-T331R	1.8kW, 380V, 1500rpm, Medium Inertia	SV660 Series	Machine Tool Feed Axes
	MS1H3-29C15CD-A331R	2.9kW, 380V, 1500rpm, Medium Inertia	SV660 Series	Heavy-Duty Conveyor Lines
	MS1H3-44C15CD-A331R	4.4kW, 380V, 1500rpm, Medium Inertia	SV660 Series	Heavy-Duty Conveyor Lines
	MS1H3-29C15CD-T331Z/R	2.9kW, 380V, 1500rpm, Medium Inertia	SV660 Series	Heavy-Duty Conveyor Lines
180mm	MS1H3-55C15CD-A331R	5.5kW, 380V, 1500rpm, Medium Inertia	SV660/SV680 Series	Heavy-Duty Machine Tools
	MS1H3-75C15CD-A331R	7.5kW, 380V, 1500rpm, Medium Inertia	SV660/SV680 Series	Heavy-Duty Machine Tools
	MS1H3-75C15CD-A631R	7.5kW, 380V, 1500rpm, Medium Inertia	SV660IS011I, SV680IS011I	Metallurgical Conveyor Lines
	MS1H3-55C15CD-T331Z/R	5.5kW, 380V, 1500rpm, Medium Inertia	SV660/SV680 Series	Injection Molding Machine Manipulators

Application Fields

3C Electronics Manufacturing: Precision positioning for PCB drilling, component mounting, and device assembly lines.
CNC Machine Tools: High-speed, high-rigidity control for lathes, milling machines, and engraving equipment.
Packaging & Labeling Machinery: Synchronized motion control for filling, sealing, and labeling systems with variable speed requirements.
Logistics Automation: Accurate handling for conveyor sorting, palletizing robots, and AGV positioning systems.
Textile & Printing Machinery: Stable speed regulation for fabric cutting, color printing, and pattern positioning devices.
Medical Equipment: Micron-level motion control for diagnostic devices, sample handling systems, and precision dispensers.

Frequently Asked Questions

Can the MS1-R servo motor be customized with different encoders?

Yes. We offer absolute, incremental and other encoder types based on your positioning accuracy needs. Just note the specs when placing an order.

What industrial bus protocols does the MS1-R support?

It's compatible with mainstream protocols like EtherCAT and PROFINET, no extra adapter needed for connection to your existing control system.

Does the MS1-R have overseas certification?

The full series has CE and UL certifications, meeting EU and North American market access requirements. We can provide certification documents for customs clearance.

How to choose the right frame size and power for my equipment?

Tell us your device's load weight, running speed and positioning precision, and our engineers will recommend the most suitable model for free.

What's the lead time for bulk orders?

Standard models are in stock, delivery within 7 working days. Customized models take 2-4 weeks, depending on the configuration complexity.

Can the MS1-R work in high-temperature or dusty environments?

Yes. It has an IP65 protection rating (housing), suitable for most industrial scenarios like workshops and production lines. For extreme environments, we can provide enhanced protection solutions.

Is there a warranty for the MS1-R series?

We offer a 12-month warranty. If there's a quality problem during this period, we'll provide free replacement parts.

How does the MS1-R compare with ABB/Lenze similar models in price and performance?

It has comparable precision and stability, but our price is 10-15% lower, and we provide faster customization and after-sales response.
