Product Details
Place of Origin: China
Certification: CE、RoHS、WEEE、REACH、UL、UKCA、EAC、RCM、KC

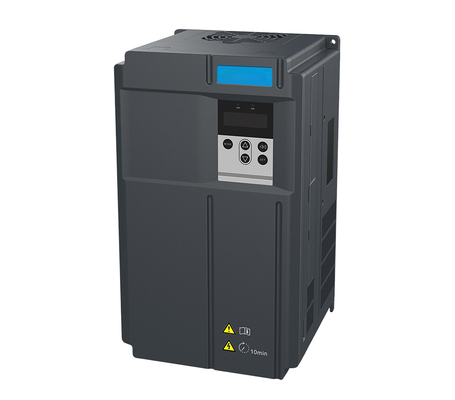

Model Number: IS650
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $1000- $12000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Servo Drive Motor
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Servo Drive Motor
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Power Range | 11kW - 55kW |
| Control Modes | Position Control, Speed Control, Torque Control, Hybrid Control |
| Encoder Type | 23-bit Absolute Encoder (Incremental Encoder Supported) |
| Response Frequency | ≤ 0.5ms |
| Input Voltage | 220V Single-Phase / 380V Three-Phase / 480V Three-Phase |
| Protection Level | IP65 (Body) |
| Vibration Resistance | 5G Vibration Tolerance (Compliant with Industrial Vibration Standards) |
| Communication Interfaces | RS485, EtherCAT, Profinet, Modbus TCP |
| Overload Capacity | 150% Rated Load for 60s; 200% Rated Load for 3s |
| Compatible Motor Types | Asynchronous Servo Motors, Synchronous Servo Motors (Supports Mainstream Third-Party Motors) |
| Operating Temperature | -10℃ ~ +50℃ |
| Cooling Method | Air Cooling (Water Cooling Optional) |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Overload, Overheating, Short Circuit, Motor Phase Loss Protection |
| Overseas Model | Rated Power | Rated Current | Compatible Motor Series & Power Range | Applicable Regions |
|---|---|---|---|---|
| IS650PT025IUX | 11kW | 25A | Matched servo motor: 11kW synchronous servo motor; Third-party motors: 7.5kW-11kW AC servo motors | Global (Europe, America, Asia) |
| IS650PT032IUX | 15kW | 32A | Matched servo motor: 15kW synchronous servo motor; Third-party motors: 11kW-15kW AC servo motors | Global (Europe, America, Asia) |
| IS650PT037IUX | 18.5kW | 37A | Matched servo motor: 18.5kW synchronous servo motor; Third-party motors: 15kW-18.5kW AC servo motors | Global (Europe, America, Asia) |
| IS650PT037IUX-B | 18.5kW (Pulse Type) | 37A | Matched servo motor: 18.5kW pulse-type synchronous servo motor; Third-party motors: 15kW-18.5kW pulse-control AC servo motors | Europe, North America |
| IS650PT045IUX | 22kW | 45A | Matched servo motor: 22kW synchronous servo motor; Third-party motors: 18.5kW-22kW AC servo motors | Global (Europe, America, Asia) |
| IS650PT060IUX | 30kW | 60A | Matched servo motor: 30kW synchronous servo motor; Third-party motors: 22kW-30kW AC servo motors | Global (Europe, America, Asia) |
| IS650PT091I-C | 45kW | 91A | Matched servo motor: 45kW CANlink synchronous servo motor; Third-party motors: 30kW-45kW CANlink AC servo motors | Europe, Southeast Asia |
| IS650PT112I-C | 55kW | 112A | Matched servo motor: 55kW CANlink synchronous servo motor; Third-party motors: 45kW-55kW CANlink AC servo motors | Europe, North America, Southeast Asia |
