Product Details
Place of Origin: China
Certification: CE、UL、KC、EAC、UKCA、SEMI F47、PLd/SIL 2
Model Number: SV670
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $250- $320
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Servo Drive Motor
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Servo Drive Motor
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Specific Parameters |
|---|---|
| Power Range | 0.05kW ~ 7.5kW |
| Control Methods | Pulse Command, Modbus, CANopen, CANlink, EtherCAT |
| Encoder Type | 23-bit Multi-turn Absolute Encoder |
| Speed Loop Bandwidth | Up to 3.2kHz |
| Positioning Accuracy | ±0.001mm (with high-precision encoder) |
| Protection Class | IP20 (Main Unit) |
| Cooling Method | Natural Cooling + Independent Air Duct Heat Dissipation |
| Control Modes | Position Control, Speed Control, Torque Control |
| Closed-Loop Support | Supports ABZ Quadrature Pulse Full Closed-Loop Control |
| Communication Protocol | Compatible with Mainstream Industrial Bus Protocols |
| International Certifications | CE, UL, UKCA |
| Compatible Motors | Inovance Standard AC Servo Motors (Mid-Low Power Series) |
| Operating Ambient Temperature | -10℃ ~ +50℃ |
| Supply Voltage | Three-Phase AC 200V ~ 240V / Single-Phase AC 220V (Depending on Model) |

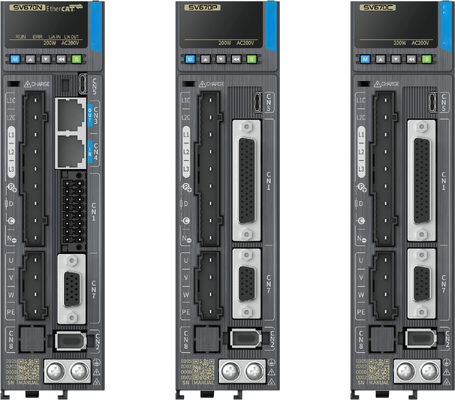

| Drive Series | Drive Model | Rated Power | Voltage Level | Matching Motor Series | Matching Motor Model | Key Motor Parameters |
|---|---|---|---|---|---|---|
| SV670N (EtherCAT Network Type) | SV670N-S1R6I | 0.05kW / 0.1kW | Single/Three-Phase 220V | MS1-R Series | MS1H1-05B30CB-A330Z/-A332Z, MS1H1-10B30CB-A330Z/-A332Z | 40mm frame, 3000rpm, 23-bit multi-turn absolute encoder |
| SV670N-S2R8I | 0.2kW / 0.4kW | Single/Three-Phase 220V | MS1-R Series | MS1H1-20B30CB-A331R/-A334R, MS1H1-40B30CB-A331R/-A334R | 60mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N-S5R5I | 0.55kW / 0.75kW | Single/Three-Phase 220V | MS1-R Series | MS1H1-55B30CB-A331R, MS1H1-75B30CB-A331R/-A334R | 80mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N-S7R6I | 1.0kW | Single/Three-Phase 220V | MS1-R Series | MS1H1-10C30CB-A331R/-A334R, MS1H2-10C30CB-A331R/-A334R | 80/100mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N-S012I | 1.5kW | Single/Three-Phase 220V | MS1-R Series | MS1H2-15C30CB-A331R/-A334R | 100mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N-S018I | 2.0kW | Three-Phase 220V | MS1-R Series | MS1H2-20C30CB-A331R/-A334R | 100mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N-S022I | 2.5kW / 3.0kW | Three-Phase 220V | MS1-R Series | MS1H2-25C30CB-A331R/-A334R, MS1H2-30C30CB-A331R/-A334R | 100/130mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N-S027I | 4.0kW / 5.0kW | Three-Phase 220V | MS1-R Series | MS1H2-40C30CB-A331R/-A334R, MS1H2-50C30CB-A331R/-A334R | 130mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N (380V High-Voltage Version) | SV670N-T3R5I | 1.0kW / 0.85kW | Three-Phase 380V | MS1-R Series | MS1H2-10C30CD-A331R/-A334R, MS1H3-85B15CD-A331R/-A334R | 100/130mm frame, 3000/1500rpm, 23-bit multi-turn absolute encoder |
| SV670N-T012I | 3.0kW | Three-Phase 380V | MS1-R Series | MS1H2-30C30CD-A331R/-A334R | 130mm frame, 3000rpm, 23-bit multi-turn absolute encoder | |
| SV670N-T026I | 7.5kW | Three-Phase 380V | MS1-R Series | MS1H3-75C15CD-A331R/-A334R | 180mm frame, 1500rpm, 23-bit multi-turn absolute encoder | |
| SV670P (Pulse Type) | SV670P-SxxxI | 0.05kW ~ 7.5kW | Single/Three-Phase 220V / Three-Phase 380V | MS1-R Series | Same as matching motors of SV670N series with the same power | Consistent with the above MS1-R series motor parameters |
| SV670C (CANopen Type) | SV670C-SxxxI | 0.05kW ~ 7.5kW | Single/Three-Phase 220V / Three-Phase 380V | MS1-R Series | Same as matching motors of SV670N series with the same power | Consistent with the above MS1-R series motor parameters |
| SV670-INT (International Flagship Version) | SV670-INT-NxxxI/SV670-INT-PxxxI | 0.05kW ~ 7.5kW | Single/Three-Phase 220V / Three-Phase 380V | MS1 Series | Same as matching motors of SV670N/P series with the same power | 23-bit multi-turn absolute encoder, support full closed-loop control |
