Product Details
Place of Origin: TAIWAN
Certification: CE、UL、cUL、EMC

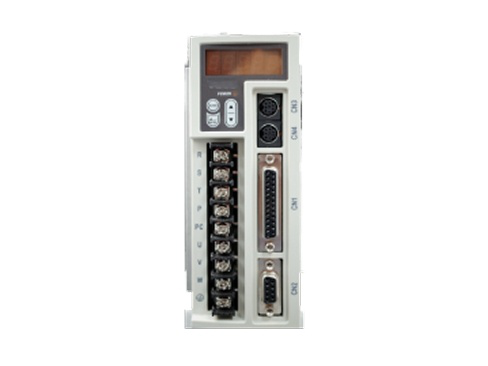

Model Number: JSDEP
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $50- $800
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Servo Drive Motor
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Servo Drive Motor
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter | Details |
|---|---|
| Model Range | JSDEP-10A, JSDEP-15A, JSDEP-20A, JSDEP-30A, JSDEP-50A, JSDEP-75A3 |
| Rated Power Range | 100W, 400W, 750W, 1kW, 2kW, 3kW |
| Input Voltage | 200-230V AC (Single/Three-Phase Compatible) |
| Output Voltage | 0-230V AC (Varies with Input) |
| Encoder Resolution | 2500 ppr, 8192 ppr (Incremental Encoder) |
| Control Modes | Position Control, Speed Control, Torque Control; Supports mode switching (Position/Speed, Speed/Torque, Position/Torque) |
| Communication Interfaces | Built-in RS-232, RS-485; Supports Modbus Protocol |
| Digital I/O | 6 Configurable Digital Inputs, 3 Configurable Digital Outputs |
| Analog Inputs | 2 Channels (±10V for Speed/Torque Control) |
| Protective Functions | Overcurrent, Overvoltage, Undervoltage, Overheating, Motor Overload, Encoder Error, Phase Loss |
| Architecture | Dual-Core Architecture |
| Regenerative Braking | Built-in Regenerative Braking Function; Reserved Interface for External Braking Resistor |
| Certifications | CE, UL, cUL Compliant |
| Operating Temperature | 0-40°C (No Condensation); Storage Temperature: -20-60°C |
| Servo Drive Model | Rated Power | Compatible Servo Motor Model | Motor Inertia Type | Key Specifications |
|---|---|---|---|---|
| JSDEP-10A | 100W | JSMA-RC01ABK00, JSMA-PUC01A7K | Low inertia | Encoder resolution: 2500 ppr; Rated speed: 3000 rpm |
| JSDEP-15A | 400W | JSMA-SC02ABK00, JSMA-SC04ABK00, JSMA-PUC02A7K, JSMA-PUC04A7K | Low inertia | Encoder resolution: 2500 ppr; Rated speed: 3000 rpm; Suitable for light-load high-speed applications |
| JSDEP-20A | 750W | JSMA-SC08ABK00, JSMA-LC08ABK00, JSMA-PUC08ABK, JSMA-PBC08A7K-Y1 | Low inertia | Encoder resolution: 2500/8192 ppr (optional); Rated speed: 3000 rpm; With overheat and overload protection |
| JSDEP-30A | 1kW | JSMA-MB10ABK00, JSMA-MA10ABK00, JSMA-PMB10ABK, JSMA-MB10A7K | Medium inertia | Encoder resolution: 2500/8192 ppr (optional); Rated speed: 3000 rpm; Suitable for medium-load transmission scenarios |
| JSDEP-50A3 | 2kW | JSMA-MB20ABK00, JSMA-PMB20ABK, JSMA-MB20A7K | Medium inertia | Encoder resolution: 2500/8192 ppr (optional); Rated speed: 3000 rpm; Reserved external braking resistor interface |
| JSDEP-75A3 | 3kW | JSMA-MB30ABK00, JSMA-PMB30ABK, JSMA-MB30A7K | Medium inertia | Encoder resolution: 2500/8192 ppr (optional); Rated speed: 1500/3000 rpm (optional); High torque output, suitable for heavy-load applications |
