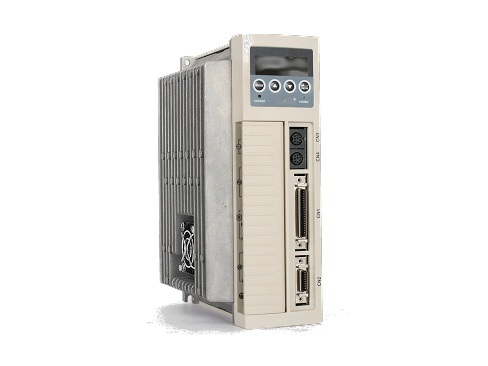

JSDAP AC Servo Drive - Dual-Core Architecture 0.1s Protection & 0.001mm Precision
JSDAP AC Servo Drive - Dual-Core Architecture
Built with advanced dual-core architecture, the JSDAP AC Servo Drive delivers ultra-precise 0.001mm positioning accuracy and 0.1s rapid fault protection—ideal for high-speed, high-precision industrial automation scenarios. It ensures stable, reliable operation for CNC machines, industrial robots and precision assembly lines, minimizing downtime and maximizing production efficiency.
Product Features
- Supports 15-bit absolute and 17-bit incremental encoder motors, delivering ultra-high positioning precision and rapid motion response
- Adopts advanced dual-core architecture to boost computing efficiency drastically, shorten protection reaction time, and enhance overall system stability
- Works seamlessly with dedicated peripheral monitoring software, enabling full-system real-time monitoring and maintenance for safe, uninterrupted operation
- Offers a cost-effective industrial automation solution that fits diverse application needs across manufacturing, robotics, and CNC sectors
Core Technical Parameters
| Parameter Category | Specification |
|---|---|
| Input Power Supply | Three-phase AC 200-240V, 50/60Hz; Single-phase AC 200-240V (for low-power models) |
| Output Power Range | 0.1kW - 15kW |
| Control Mode | Position control (Pulse/Dir, CW/CCW, A/B phase pulse); Speed control (Analog voltage, RS-485); Torque control (Analog voltage, RS-485) |
| Positioning Accuracy | ±1 pulse (pulse command mode); Up to ±0.01° (encoder feedback matching) |
| Speed Regulation Range | 1:5000 (2500-line encoder) |
| Speed Fluctuation Rate | ≤±0.01% (at rated speed, no load) |
| Encoder Feedback | 2500 P/R incremental encoder (standard); Support 17-bit/23-bit absolute encoder (optional) |
| Communication Interface | RS-485 (Modbus-RTU protocol); Optional EtherCAT / PROFINET fieldbus |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overheating, motor overload, encoder fault, external emergency stop |
| Digital Input/Output | 6 digital inputs (programmable), 3 digital outputs (programmable); 2 analog inputs (0-10V / 4-20mA), 1 analog output (0-10V) |
| Cooling Method | Natural cooling (≤1kW); Forced air cooling (>1kW) |
| Operating Temperature | 0°C - 40°C (without derating); -10°C - 50°C (with derating) |
| Protection Grade | IP20 (control cabinet installation) |
| Compatible Motors | TECO TSB series servo motors (0.1kW-15kW); Support third-party servo motors with matching encoder parameters |
JSDAP Series Models & Matching Motors
| Drive Model | Maximum Capacity | Applicable Motor Power Range | Matching TECO Servo Motor Models | Typical Application Scenarios |
|---|---|---|---|---|
| JSDAP-10A | 100W | ≤100W | JSMA-RC01ABK00, JSMA-PUC01A7K | Miniature robotic arms, small sensor drives, precision electronic component processing equipment |
| JSDAP-15A | 400W | 100W-400W | JSMA-SC02ABK00, JSMA-PUC02A7K, JSMA-PUC04ABK, JSMA-PUC04A7K, JSMA-SC04ABK00 | Small conveyors, auxiliary packaging machines, small printing equipment |
| JSDAP-20A | 750W | 400W-750W | JSMA-SC08ABK00, JSMA-LC08ABK00, JSMA-PLC08ABK, JSMA-PUC08ABK, JSMA-PUC08A7K, JSMA-PBC08A7K-Y1, JSMA-PBC08B7K-Y1 | Medium assembly lines, food processing equipment, pharmaceutical packaging machines |
| JSDAP-30A | 1KW | 750W-1KW | JSMA-MB10ABK00, JSMA-MA10ABK00, JSMA-PMB10ABK, JSMA-PMA10ABK, JSMA-MB10A7K, JSMA-MA10A7K | CNC machine tool feed axes, small printing machines, textile machinery auxiliary axes |
| JSDAP-50A3 | 2KW | 1KW-2KW | JSMA-MB15ABK00, JSMA-MA15ABK00, JSMA-PMB15ABK, JSMA-MB15A7K | Medium machine tool spindles, automatic sorting equipment, logistics sorting conveyors |
| JSDAP-75A3 | 3KW | 2KW-3KW | JSMA-MB20ABK00, JSMA-PMB20ABK, JSMA-MB20A7K, JSMA-MB30ABK00, JSMA-PMB30ABK, JSMA-MB30A7K | Heavy-duty conveyors, large mixers, plastic injection molding machine auxiliary equipment |
| JSDAP-100A3 | 4.5KW | 3KW-4.5KW | JSMA-PBH09A7K-Y, JSMA-PBH09B7K-Y, JSMA-PBH13A7K-Y, JSMA-PBH13B7K-Y | Large injection molding machine auxiliary equipment, industrial robots, precision stamping equipment |
| JSDAP-150A3 | 5.6KW | 4.5KW-5.6KW | JSMA-PBH18A7K-Y, JSMA-PBH18B7K-Y, JSMA-PBH29AAK, JSMA-PBH29BAK | Heavy machine tools, chemical reactor stirring systems, metallurgical auxiliary equipment |
| JSDAP-200A3 | 7.5KW | 5.6KW-7.5KW | JSMA-PBH44AAK, JSMA-PBH44BAK, JSMA-PIH30A7K, JSMA-PIH44A7K | Large compressors, metallurgical auxiliary equipment, large-scale water treatment equipment |
| JSDAP-300A3 | 15KW | 7.5KW-15KW | JSMA-PBH55AAK, JSMA-PBH55BAK, JSMA-PIH55A7K, JSMA-PIH75A7K, JSMA-PIH110A7K | Heavy industrial machinery, main drives of large production lines, large marine auxiliary equipment |
Product Application Fields
- CNC Machining Equipment - Perfect for CNC lathes, milling machines, and machining centers, delivering 0.001mm positioning accuracy to ensure consistent, high-quality workpiece processing
- Industrial Robots - Supports articulated robots, SCARA robots, and collaborative robots, with fast response speed to enable smooth, precise pick-and-place, assembly, and handling tasks
- Packaging & Printing Machinery - Excels in high-speed packaging lines, label printers, and flexographic printing machines, handling frequent start-stop cycles without performance degradation
- Electronic Manufacturing Equipment - Ideal for PCB drilling machines, component placement machines, and semiconductor testing equipment, meeting the strict precision requirements of electronic component production
- Material Handling Systems - Fits conveyor belts, linear modules, and automated guided vehicle (AGV) positioning systems, ensuring stable speed regulation and accurate position locking
- Textile & Printing and Dyeing Machinery - Suitable for textile looms, printing and dyeing setting machines, providing consistent tension control and precise motion synchronization
Frequently Asked Questions
Q: Can this drive work with third-party motors?
A: Yes, it's compatible with most 15-bit absolute and 17-bit incremental encoder motors from other brands, as long as the rated power and voltage match.
Q: The motor jitters badly when starting. How to fix it?
A: First check if the mechanical installation is aligned properly. Then lower the rigidity level via the debugging software, or enable the vibration suppression function.
Q: What causes overvoltage alarms?
A: Most likely due to excessive regenerative energy from too-fast deceleration. Either slow down the deceleration time, or install an external braking resistor.
Q: Positioning accuracy is poor with noticeable deviations. What to do?
A: First verify if the electronic gear ratio is set correctly. Then check if the encoder cable is loose. Perform a load inertia identification if necessary.
Q: How to reset an encoder error?
A: Power off the device, re-plug the encoder connector, and ensure stable power supply. A power cycle fixes most cases.
Q: The drive triggers an overload alarm suddenly during operation. What to check?
A: First inspect if there's any mechanical jamming. Then check if the cooling vents are blocked. Make sure the load inertia does not exceed 30 times that of the motor.
Q: Can't connect to the controller via communication. How to troubleshoot?
A: Confirm the communication protocol is consistent. Check that the cables are securely connected. Separate power cables from signal cables to avoid interference.
Q: Does ambient temperature affect operation?
A: Recommended operating temperature is 0-55℃. The drive will automatically derate when temperature exceeds 45℃. Leave sufficient space for ventilation and heat dissipation.
