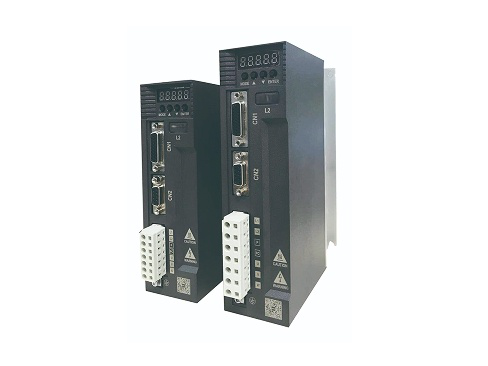

JSDE2 AC Servo Drive - 1.2kHz High Response & 23bit High Resolution Encoder
| Parameter Category | Specification Details |
|---|---|
| Input Power Supply | 3-phase AC: 200-230V, 50/60Hz; Single-phase AC: 200-230V, 50/60Hz (for low-power models only) |
| Output Power Range | 0.1kW - 3.0kW |
| Control Modes | Position Control, Speed Control, Torque Control, Full-Closed Loop Control |
| Positioning Accuracy | Pulse command: ±1 pulse; Analog command: ±0.1% of maximum speed range |
| Speed Regulation Rate | ≤ ±0.01% (under constant temperature and no-load conditions) |
| Response Frequency | Position loop response frequency up to 1kHz |
| Communication Interfaces | RS-485 (Modbus-RTU), optional CANopen / Ethernet (depending on model) |
| Input Signals | 8 digital input points (NPN/PNP selectable), 2 analog input points (0-10V, 4-20mA) |
| Output Signals | 3 digital output points (transistor type), 1 analog output point (0-10V) |
| Protection Functions | Over-voltage, Under-voltage, Over-current, Over-load, Motor over-heat, Encoder fault |
| Cooling Method | Natural cooling (≤1kW), Forced air cooling (>1kW) |
| Operating Temperature | 0°C - 50°C (no derating); Storage temperature: -20°C - 60°C |
| Protection Grade | IP20 (suitable for cabinet installation) |
| Compatible Motors | TECO JSMA series servo motors (200V class, with incremental/absolute encoder) |
| Motor Model | Rated Power | Rated Speed | Rated Torque | Maximum Torque | Rotor Inertia | Encoder Type | Motor Weight |
|---|---|---|---|---|---|---|---|
| JSMA-LC01AB | 0.1kW | 3000rpm | 0.32N*m | 0.96N*m | 0.003kg*m² | Incremental 2500 lines / Absolute 17-bit (optional) | 1.2kg |
| JSMA-LC02AB | 0.2kW | 3000rpm | 0.64N*m | 1.92N*m | 0.005kg*m² | Incremental 2500 lines / Absolute 17-bit (optional) | 1.5kg |
| JSMA-LC04AB | 0.4kW | 3000rpm | 1.27N*m | 3.81N*m | 0.012kg*m² | Incremental 2500 lines / Absolute 17-bit (optional) | 2.3kg |
| JSMA-LC08AB | 0.75kW | 3000rpm | 2.39N*m | 7.17N*m | 0.028kg*m² | Incremental 2500 lines / Absolute 17-bit (optional) | 4.5kg |
| JSMA-LC10AB | 1.0kW | 3000rpm | 3.18N*m | 9.54N*m | 0.045kg*m² | Incremental 2500 lines / Absolute 17-bit (optional) | 6.2kg |
| JSMA-LC20AB | 2.0kW | 3000rpm | 6.37N*m | 19.11N*m | 0.15kg*m² | Incremental 2500 lines / Absolute 17-bit (optional) | 12.8kg |
| JSMA-LC30AB | 3.0kW | 3000rpm | 9.55N*m | 28.65N*m | 0.28kg*m² | Incremental 2500 lines / Absolute 17-bit (optional) | 18.5kg |
| Drive Models | Matching Motor Series | Matching Motor Models | Motor Rated Power | Motor Rated Speed | Motor Inertia Characteristics |
|---|---|---|---|---|---|
| JSDE2-10A, JSDE2-10A-B | PUC Series (Ultra-Low Inertia) | PUCP5A3K, PUC01A3K | 50W, 100W | 3000rpm | Ultra-low inertia, small capacity |
| PBC Series (High Inertia) | PBC01A3K | 100W | 3000rpm | High inertia, small capacity | |
| JSDE2-15A, JSDE2-15A-B | PUC Series (Ultra-Low Inertia) | PUC02A3K, PUC04A3K | 200W, 400W | 3000rpm | Ultra-low inertia, small capacity |
| PBC Series (High Inertia) | PBC02A3K, PBC04A3K | 200W, 400W | 3000rpm | High inertia, small capacity | |
| PLC Series (Low Inertia) | PLC03A3K | 300W | 3000rpm | Low inertia, small capacity | |
| JSMA Series (Medium Inertia) | JSMA-LC03AB | 300W | 3000rpm | Medium inertia, general purpose | |
| JSDE2-20A, JSDE2-20A-B | PUC Series (Ultra-Low Inertia) | PUC08A3K | 750W | 3000rpm | Ultra-low inertia, small capacity |
| PBC Series (High Inertia) | PBC08A3K | 750W | 3000rpm | High inertia, small capacity | |
| PLC Series (Low Inertia) | PLC08A3K | 750W | 3000rpm | Low inertia, small capacity | |
| JSMA Series (Medium Inertia) | JSMA-LC08AB, JSMA-SC08ABKB (with brake) | 750W | 3000rpm | Medium inertia, general purpose (some with brake) | |
| JSDE2-30A, JSDE2-30A-B | PMB Series (Medium Inertia) | PMB10A3K | 1.0kW | 2000rpm | Medium inertia, medium capacity |
| PBH Series (High Inertia) | BH09 | 0.85kW | 1500rpm | High inertia, medium capacity | |
| JSDE2-50A3, JSDE2-50A3-B | PMB Series (Medium Inertia) | PMB15A3K, PMB20A3K | 1.5kW, 2.0kW | 2000rpm (1.5kW), 3000rpm (2.0kW) | Medium inertia, medium capacity |
| PBH Series (High Inertia) | BH13 | 1.3kW | 1500rpm | High inertia, medium capacity | |
| JSMA Series (Medium Inertia) | JSMA-LC20AB | 2.0kW | 3000rpm | Medium inertia, general purpose | |
| JSDE2-75A3, JSDE2-75A3-B | PMB Series (Medium Inertia) | PMB30A3K | 3.0kW | 2000rpm | Medium inertia, medium capacity |
| PBH Series (High Inertia) | BH18, BH18_18 | 1.8kW | 1500rpm | High inertia, medium capacity | |
| PIH Series (Medium Inertia) | PIH30A3K | 3.0kW | 1500rpm | Medium inertia, medium capacity |
