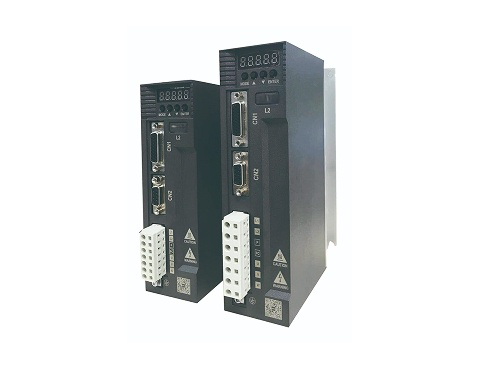

JSDL2 AC Servo Drive | 17bit Encoder & Dual-Core Processor - High Precision Control
-
Highlight
TECO JSDL2 servo drive with 17bit encoder
,high precision servo drive motor
,dual-core processor AC servo drive
-
TypeServo Drive Motor
-
WarrantyOriginal Manufacturer's Warranty
-
PakageOriginal Pakage
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginTAIWAN
-
CertificationCE、UL、CSA 、EAC
-
Model NumberJSDL2
-
Minimum Order Quantity1
-
Price$80- $350
-
Delivery Time3-5Workday
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
JSDL2 AC Servo Drive | 17bit Encoder & Dual-Core Processor - High Precision Control
JSDL2 AC Servo Drive
Elevate your industrial automation precision with the JSDL2 AC Servo Drive—equipped with a 17-bit high-resolution encoder and powerful dual-core processor, this drive delivers ultra-accurate motion control for CNC machines, robotics, and automated production lines. Its advanced encoding technology ensures minimal position deviation, while the dual-core architecture enables fast response times and seamless real-time adjustments, eliminating lag even in high-speed operation scenarios.
Product Features
- 1.2kHz high-response + 17-bit encoder for pinpoint positioning control
- Auto-Tuning function: one-click servo parameter setup, zero manual hassle
- High/low frequency resonance suppression: smoother runs, longer machine life
- User-friendly PC software: fast integration, cut debugging time in half
- High-CP solution for general position control applications
Core Technical Parameters
| Parameter Category | Specification Details |
|---|---|
| Control Mode | Position Control / Speed Control / Torque Control |
| Response Bandwidth | 1.2kHz |
| Encoder Resolution | 17-bit High Resolution |
| Supported Voltage | Single-phase 220V / Three-phase 380V |
| Power Range | 100W - 1kW |
| Communication Interface | RS-232 / RS-485 |
| I/O Interface | 8-channel Digital Input (DI) / 4-channel Digital Output (DO) |
| Core Functions | Auto-Tuning, High & Low Frequency Resonance Suppression |
| Supporting Software | Windows-compatible, Multi-language Operation Interface |
| Protection Class | IP20 (Standard Industrial Protection) |
| Operating Temperature | -10℃ ~ +50℃ |
| Warranty Period | 12 Months |
Overseas Product Models & Matching Motors
| Drive Model | Supported Voltage | Rated Power | Matching Servo Motor | Motor Core Parameters | Applicable Regions |
|---|---|---|---|---|---|
| JSDL2-S100 | Single-phase 220V | 100W | JS-M100-17B | 17-bit encoder, Rated speed: 3000rpm, Rated torque: 0.32N*m | North America, Europe, Southeast Asia |
| JSDL2-S200 | Single-phase 220V | 200W | JS-M200-17B | 17-bit encoder, Rated speed: 3000rpm, Rated torque: 0.64N*m | North America, Europe, Southeast Asia |
| JSDL2-S400 | Single-phase 220V | 400W | JS-M400-17B | 17-bit encoder, Rated speed: 3000rpm, Rated torque: 1.27N*m | North America, Europe, Southeast Asia |
| JSDL2-T500 | Three-phase 380V | 500W | JS-M500-17B | 17-bit encoder, Rated speed: 3000rpm, Rated torque: 1.59N*m | Europe, Middle East, Africa |
| JSDL2-T750 | Three-phase 380V | 750W | JS-M750-17B | 17-bit encoder, Rated speed: 3000rpm, Rated torque: 2.39N*m | Europe, Middle East, Africa |
| JSDL2-T1000 | Three-phase 380V | 1kW | JS-M1000-17B | 17-bit encoder, Rated speed: 3000rpm, Rated torque: 3.18N*m | Global (compatible with 380V industrial power standards) |
Application Scenarios
- CNC machine tools & precision machining
- Industrial robotics & automated assembly lines
- SMT equipment & electronic component processing
- Printing, labeling & packaging machinery
- Injection molding & plastic processing equipment
Frequently Asked Questions
What voltage does the JSDL2 servo drive support?
It works with single-phase 220V and three-phase 380V, matching most overseas industrial power standards.
Can it connect to my PLC or HMI directly?
Yes, it supports RS-232/485 communication protocols, plug-and-play with mainstream PLC brands like Siemens, Mitsubishi and Allen-Bradley.
How long does the Auto-Tuning take?
Only 1-2 minutes to complete parameter optimization, no professional skills needed.
Will it work for high-speed, high-precision tasks?
Definitely. 1.2kHz high-response bandwidth + 17-bit encoder ensures pinpoint positioning even in fast-motion scenarios like CNC machining and robot arms.
How to solve resonance problems during operation?
Built-in high/low frequency resonance suppression technology eliminates vibration automatically, no extra accessories required.
Is the PC software available in multiple languages?
Yes, it supports English, Spanish, German and Japanese—fit for global users.
What's the warranty period?
12 months warranty, plus online technical support 24/7.
Is it cost-effective for small and medium-sized factories?
Absolutely. It delivers premium performance at a competitive price, perfect for general position control applications without overspending.
