Product Details
Place of Origin: TAIWAN
Certification: CE, UL、RoHS

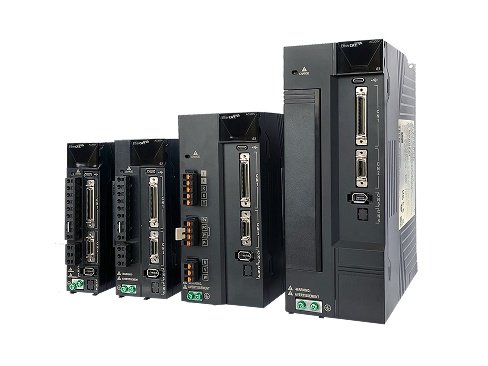

Model Number: JSDG3
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $250- $2000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Servo Drive Motor
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Servo Drive Motor
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Specific Parameter | Parameter Value |
|---|---|---|
| Basic Specifications | Power Range | AC 200V Series: 0.1~3kW; AC 400V Series: 0.4~7.5kW (New 40A model with the same frame size as 30A) |
| Input Voltage | 3-Phase AC 200~240V; 3-Phase AC 380~480V | |
| Input Frequency | 50/60Hz | |
| Protection Class | Drive IP20; Motor IP67 (Direct Plug Connector) | |
| Performance Parameters | Speed Response Bandwidth | Max 3.2kHz |
| Tuning Time | 1ms | |
| Overload Capacity | Max 350% Overload (Max Duration 3 Seconds) | |
| Input/Output Pulse | Max 4Mpps | |
| Encoder Parameters | Resolution | Supports 17bit (131,072 pulse/rev), 23bit (8,388,608 pulse/rev) |
| Encoder Type | Both Incremental/Absolute Supported | |
| Full Closed-Loop Support | Supported, compatible with A/B/Z phase grating, magnetic grid and other displacement sensors | |
| Control Functions | Control Modes | Integrated multi-modes: Position/Speed/Torque/Canopen; Supports turret/tool magazine control, gantry synchronization control, electronic cam flying shear control |
| Communication Protocols | Supports CANopen, EtherCAT high-speed communication protocols | |
| Intelligent Functions | Real-time auto-gain adjustment, high-low frequency resonance suppression (5 groups for high frequency 0~2000Hz, 3 groups for low frequency 1~100Hz), model following control, friction compensation | |
| Debug Interface | Type-C interface, supports TecoServo G3 upper computer debugging software, including teaching-type parameter setting function | |
| Motor Parameters | Rated Speed | Standard 3000rpm; Max 6000rpm for models below 750W |
| Motor Design | New 5-pole design with higher power density; Body length shortened by 22% compared to the previous generation (taking PEC series 400W as an example) | |
| Torque Ripple | Cogging Torque ≤2% | |
| Environment & Reliability | Operating Temperature | -10~40℃ (Up to 50℃ without protective cover) |
| Heat Dissipation Design | Drive with independent heat dissipation air duct; Main capacitor life increased by 40% (under 40℃ environment and 80% load current conditions) | |
| Life Prediction | Supports drive life prediction function, remaining life displayed in color (<10%: Red background with gray text; 10%~29.99%: Yellow background with blue text; ≥30%: Blue background with white text) | |
| Certifications & Standards | International Certifications | CE, UL Certifications, RoHS Compliant |
| Design Standards | Compliant with International Industrial Electrical Safety Standards |
| Servo Drive Series | Drive Model | Input Voltage | Power Range | Compatible Servo Motor Series | Example of Compatible Motor Model | Remarks (Overseas Adaptation Features) |
|---|---|---|---|---|---|---|
| JSDG3-E Series (3rd Gen High Performance) | JSDG3-E010A | 3-Phase AC 200~240V | 0.1kW (100W) | JSMA Series (Low/Medium Inertia) | JSMA-SC01ABK01 | Supports EtherCAT/CANopen, CE/UL Certified, with Industry-Customized Control Modes, Suitable for European and American Precision Manufacturing Scenarios |
| JSDG3-E020A | 3-Phase AC 200~240V | 0.2kW (200W) | JSMA Series (Low/Medium Inertia) | JSMA-SC02ABK01 | ||
| JSDG3-E040A | 3-Phase AC 200~240V | 0.4kW (400W) | JSMA Series (Low/Medium Inertia) | JSMA-SC04ABK01 | ||
| JSDG3-E075A | 3-Phase AC 200~240V | 0.75kW (750W) | JSMA Series (Low/Medium Inertia) | JSMA-LC08ABK01 | ||
| JSDG3-E100A3 | 3-Phase AC 200~240V | 1.0kW | JSMA Series (Medium Inertia) | JSMA-TC08ABK02 | ||
| JSDG3-E200A3 | 3-Phase AC 380~480V | 2.0kW | TSA Series (Medium/High Inertia) | TSA-MB20ABK01 | ||
| JSDG3-E300A3 | 3-Phase AC 380~480V | 3.0kW | TSA Series (Medium/High Inertia) | TSA-MB30ABK01 | ||
| JSDG3-E750A3 | 3-Phase AC 380~480V | 7.5kW | TSA Series (High Inertia) | TSA-MH75ABK01 | ||
| JSDG3 Series (3rd Gen General Purpose) | JSDG3-010A | 3-Phase AC 200~240V | 0.1kW | JSMA Series (Low Inertia) | JSMA-SC01ABK01 | 3-in-1 Control Mode, 23-bit Encoder, EtherCAT Compatible, Global Voltage Adaptation |
| JSDG3-040A | 3-Phase AC 200~240V | 0.4kW | JSMA Series (Low Inertia) | JSMA-SC04ABK01 | ||
| JSDG3-075A | 3-Phase AC 200~240V | 0.75kW | JSMA Series (Medium Inertia) | JSMA-LC08ABK01 | ||
| JSDG3-100A3 | 3-Phase AC 200~240V | 1.0kW | JSMA Series (Medium Inertia) | JSMA-TC08ABK02 | ||
| JSDG3-300A3 | 3-Phase AC 380~480V | 3.0kW | TSA Series (Medium Inertia) | TSA-MB30ABK01 | ||
| JSDG3-750A3 | 3-Phase AC 380~480V | 7.5kW | TSA Series (High Inertia) | TSA-MH75ABK01 |
