Highlight:
                                                                                                                                                            SEW-EURODRIVE DR servo gear motor, high precision servo drive motor, CNC machining servo motor with overload


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

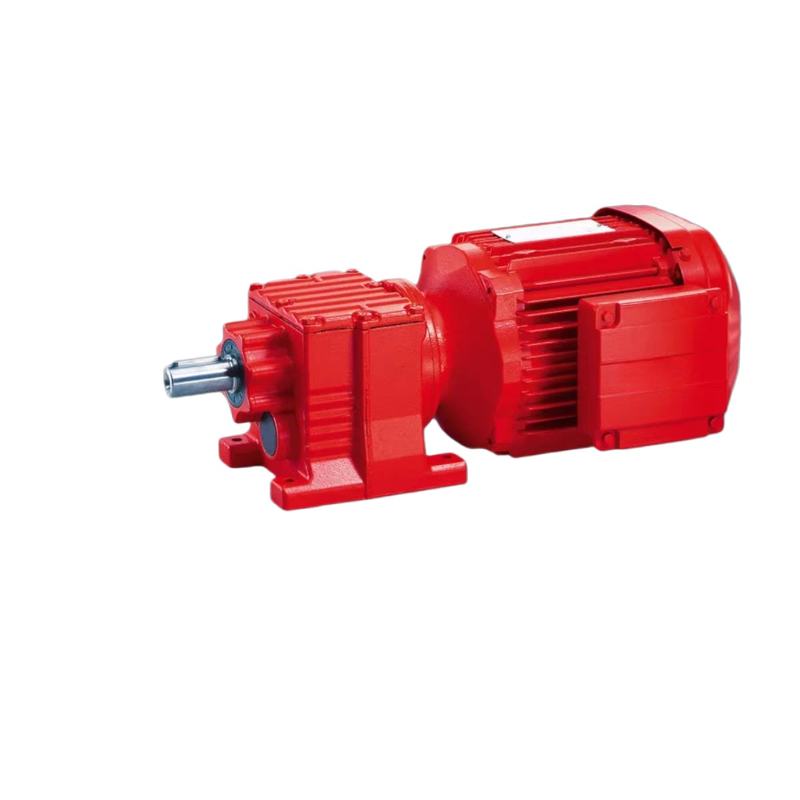

DR Series Servo Gear Motor - High Precision & 350% Overload for CNC Machining

DR Series Servo Gear Motor

Engineered for high-precision CNC machining applications, this servo gear motor delivers ultra-low backlash and precise positioning performance to meet strict accuracy demands. With an impressive 350% peak torque overload capacity, it reliably handles sudden load changes and start-stop shocks in heavy-duty CNC workflows.

Key Features & Benefits

≤3 arcmin low backlash + 23-bit absolute encoder - ±0.001° positioning accuracy for precision CNC/robotics tasks
350% peak torque overload (10s max) - Reliably handles start-stop shocks & load variations in heavy-duty automation
95% motor efficiency + ≥92% gearbox efficiency - 15-20% annual energy savings vs. standard motors
IP65 protection (IP67 optional) + Class F insulation - Stable operation in dusty, wet outdoor/shop-floor environments
18% smaller footprint + multi-mount options - Saves installation space; 30% faster assembly for compact equipment
Built-in self-diagnosis + RS485/Ethernet connectivity - Remote monitoring & fault alerts; 20,000h maintenance-free bearing life
200-240V AC (1/3-phase), 50/60Hz compatible - Global grid support, no extra transformer required

Core Technical Parameters

Parameter Category	Technical Specifications
Basic Motor Parameters	Rated Power: 0.1-7.5kW Rated Voltage: 200-240V AC (1-phase/3-phase) Frequency: 50/60Hz Insulation Class: Class F
Gearbox Performance	Backlash: ≤3 arcmin (High Precision Model); 5-8 arcmin (Standard Model) Transmission Efficiency: ≥92% Reduction Ratio Range: 3:1-1000:1
Positioning Accuracy	Encoder Type: 23-bit Absolute Encoder Positioning Accuracy: ±0.001°
Torque Performance	Rated Torque: 5-500Nm Peak Torque: 350% of Rated Value (Max Duration: 10s)
Protection Level	Standard Model: IP65 Optional Upgrade: IP67
Operating Environment	Operating Temperature: -10℃-40℃ (Derating required for over-temperature) Storage Temperature: -25℃-60℃ Environmental Adaptability: Suitable for dusty and humid workshop conditions
Mounting Options	Flange Mounting, Foot Mounting, Shaft Mounting
Communication Interface	Standard: RS485 Optional: Ethernet Interface
Maintenance Cycle	Bearing Maintenance-Free Operation: 20,000h Grease Replacement Cycle: 20,000h

Available Models & Compatible Drives

Motor Category	Available Models	Key Specifications	Recommended Compatible Drives
Standard Efficiency AC Motors (IE1)	DRS.. Series (DR 71 ~ DR 315) DR2S.. Series	Power Range: 0.09 ~ 300 kW Frequency: 50/60 Hz Mounting: S, MS, MK, M, L, LS, etc.	SEW Drives: MOVIDRIVE®, MOVITRAC®, MOVIFIT®, MOVIMOT®, MOVIPRO® Third-party drives: Compatible (signal matching required)
High Efficiency AC Motors (IE2)	DRE.. Series (DR 71 ~ DR 315)	Power Range: 0.37 ~ 300 kW Frequency: 50/60 Hz Complies with CEMEP, NBR 7094, MEPS 2006, etc.	SEW Drives: MOVIDRIVE®, MOVITRAC®, MOVIFIT®, MOVIMOT®, MOVIPRO® Third-party drives: Compatible (signal matching required)
Premium Efficiency AC Motors (IE3/NEMA Premium®)	DRP.. Series (DR 71 ~ DR 315) DRN.. Series	Power Range: 0.37 ~ 300 kW Frequency: 50/60 Hz Complies with EISA 2007, CSA C390, etc.	SEW Drives: MOVIDRIVE®, MOVITRAC®, MOVIFIT®, MOVIMOT®, MOVIPRO® Third-party drives: Compatible (signal matching required)
Super Premium Efficiency AC Motors (IE4)	DRU.. Series (DR 71 ~ DR 315)	Power Range: 0.18 ~ 300 kW Frequency: 50/60 Hz Energy-saving, long service life	SEW Drives: MOVIDRIVE®, MOVITRAC®, MOVIFIT®, MOVIMOT®, MOVIPRO® Third-party drives: Compatible (signal matching required)
Asynchronous Servo Motors	DR2L.. Series (DR 71 ~ DR 225) DRL.. Series	Continuous Torque: 2.5 ~ 300 Nm Peak Torque: 5 ~ 1100 Nm (300-350% of rated torque) Encoder: High-resolution sine/cosine encoder	SEW Drives: MOVIDRIVE®, MOVIAXIS® (optimal for servo control) Third-party drives: Compatible (signal matching required)
LSPM Motors (Line Start Permanent Magnet)	DRE..J Series (71S ~ 100M/L) DRP..J Series (71S ~ 100L) DRU..J Series (71S ~ 100L)	Power Range: 0.18 ~ 5.5 kW Frequency: 50/60 Hz High efficiency, constant torque (300~2610 rpm)	SEW Drives: MOVITRAC® (LTP B / B), MOVIFIT®, MOVIMOT® Third-party drives: Compatible (signal matching required)
Single-phase AC Motors	DRK.. Series (DR 71 ~ DR 90)	Optional Encoders: ES 7S, ES 7R, ES 7C, AS 7W, AS 7Y, EV 7.., AV 7.., XV.., etc.	SEW Drives: MOVITRAC®, MOVIFIT®, MOVIMOT® Third-party drives: Compatible (signal matching required)

Application Fields

CNC Machining & Tooling - Ideal for CNC lathes, milling machines, and machining centers, delivering ultra-precise positioning and high overload capacity to handle heavy cutting tasks with zero deviation.
Industrial Robotics - Perfect for robotic arms, collaborative robots (cobots), and pick-and-place systems, supporting smooth, accurate joint movements even under variable payloads.
Automated Production Lines - Suited for conveyor systems, palletizers, and assembly line actuators, with high efficiency and IP65 protection to adapt to 24/7 dusty, high-humidity workshop environments.
Packaging & Printing Machinery - Applied in high-speed packaging machines, label printers, and carton formers, ensuring consistent speed control and precise positioning for seamless production.
Medical & Laboratory Equipment - Used in diagnostic devices, sample handling systems, and precision medical machinery, meeting strict accuracy and stability requirements for sensitive operations.
Material Handling & Logistics - Fits for AGVs/AMRs, hoists, and warehouse sorting equipment, providing strong torque and reliable performance for heavy-load transportation and positioning.

Frequently Asked Questions

Q: Can the DR Series work with non-SEW servo drives?

A: Yes. It's compatible with most mainstream third-party drives (e.g., Siemens, Mitsubishi) via standard encoder signals (TTL/HTL). Just confirm signal matching before connection.

Q: What's the maximum ambient temperature it can handle?

A: Up to 40°C (104°F) for continuous operation. For higher temps (40-60°C), derate the load by 5% per 5°C to avoid overheating.

Q: How do I choose the right backlash level for my CNC project?

A: Go for ≤3 arcmin for high-precision milling/engraving. For general material handling or conveyor systems, 5-8 arcmin is cost-effective enough.

Q: Is IP65 protection enough for outdoor dusty sites?

A: Absolutely. IP65 keeps dust out completely and resists low-pressure water jets. For heavy rain or full immersion, upgrade to the IP67 optional version.

Q: Does it support global voltage standards?

A: Yes. It works with 200-240V AC (1/3-phase, 50/60Hz) out of the box. No extra transformer needed for EU, US, or Southeast Asian grids.

Q: How long is the maintenance-free period for the gearbox?

A: 20,000 hours of continuous use with original lubricant. After that, just replace the grease--no need to disassemble the whole unit.

Q: Can I get a custom mounting solution for my robotic arm?

A: Sure. Flange, foot, and shaft mounting are standard. Customized interfaces are available for bulk orders--contact our sales team for details.
