Highlight:
                                                                                                                                                            Lenze MCA servo motor compact design, asynchronous servo motor low inertia, servo drive motor dynamic applications


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

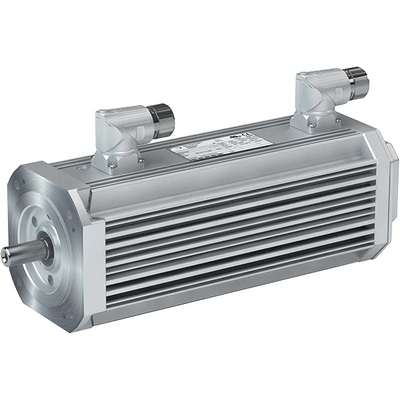

MCA Asynchronous Servo Motor - Compact Design & Low Inertia for Dynamic Applications

The MCA Asynchronous Servo Motor features an ultra-compact design and low inertia, engineered for high-speed, dynamic industrial applications. Ideal for robotics, packaging lines, and precision assembly equipment, this motor delivers smooth, responsive motion control while conserving installation space. Perfect for applications requiring quick acceleration, deceleration, and consistent performance.

Product Highlights

Compact footprint for space-constrained automation setups
Ultra-low inertia for rapid acceleration/deceleration in dynamic applications
Plug-in connection enables tool-free quick installation and easy maintenance
Optimized compatibility with g500, g7x0 & g8x0 gearboxes for geared motor configurations
Seamless integration with i700 cabinet and i950 cabinet servo drives for synchronized motion control

Core Technical Parameters

Parameter Category	Technical Specifications
Basic Specifications	Power Range: 0.8-53.8kW Torque Range: 2.3-290Nm Pole Number: 4-pole
Performance Parameters	Moment of Inertia: Ultra-low inertia design Speed Regulation Range: 1:1000 wide speed ratio Response Frequency: ≥500Hz Overload Capacity: 150% rated load (60s), 200% rated load (3s)
Protection Class	IP65 (IP67 for shaft end optional)
Mounting Type	B3 Flange Mounting / B5 Flange Mounting / B14 Flange Mounting
Connection Method	Plug-in quick connection (power supply + encoder)
Compatible Components	Gearboxes: g500, g7x0, g8x0 Series Servo Drives: i700 cabinet, i950 cabinet Series
Environmental Parameters	Operating Temperature: -10℃ ~ +40℃ (high-temperature version up to +60℃) Storage Temperature: -25℃ ~ +85℃ Protection Class: IP65 (body), IP67 (shaft extension, optional)
Certification Standards	CE, RoHS, cURus

Full Model List & Compatible Drives

Size Series	Full Product Models	Compatible Servo Drives	Additional Compatibility Notes
MCA10	MCA10I40, MCA10Lxx (e.g., MCA10L25, MCA10L30)	i700 Cabinet Series, i950 Cabinet Series, 9300 Servo PLC Series (e.g., EVS9323-ES)	Suitable for low-power applications; compatible with 400V three-phase power supply
MCA13	MCA13Ixx, MCA13Lxx (e.g., MCA13L35, MCA13L40)	i700 Cabinet Series, i950 Cabinet Series, 9400 Highline Servo Drives	Standard resolver feedback; optional incremental/absolute encoder for high-precision requirements
MCA14	MCA14L35, MCA14L42, MCA14Ixx	i700 Cabinet Series, i950 Cabinet Series, 9300 Servo PLC Series, 8400 Topline Inverter Drives	Supports forced ventilation version (IP23s); compatible with ECS Servo Drives for simple motion control
MCA17	MCA17Lxx (e.g., MCA17L35, MCA17L45), MCA17Ixx	i700 Cabinet Series, i950 Cabinet Series, 9400 Highline Servo Drives, 8400 Topline Inverter Drives	Optimized for combination with g500/g7x0 gearboxes; suitable for medium-load automation scenarios
MCA19	MCA19Lxx (e.g., MCA19L40, MCA19L50), MCA19Ixx	i950 Cabinet Series, 9400 Highline Servo Drives, 9300 Servo PLC Series	Reinforced bearing option available; compatible with high-torque applications up to 50Nm
MCA20	MCA20Lxx (e.g., MCA20L45, MCA20L55), MCA20Ixx	i950 Cabinet Series, 9400 Highline Servo Drives, 8400 Topline Inverter Drives	Power range: 9.1-16.4kW; compatible with g8x0 gearboxes for heavy-load transmission
MCA21	MCA21Lxx (e.g., MCA21L50, MCA21L60), MCA21Ixx	i950 Cabinet Series, 9400 Highline Servo Drives, 9300 Servo PLC Series (high-current models)	Long bearing service life (10,000h); suitable for continuous operation in industrial robotics and material handling
MCA22	MCA22P08, MCA22Lxx (e.g., MCA22L55, MCA22L70), MCA22Ixx	i950 Cabinet Series, 9400 Highline Servo Drives, 8400 Topline Inverter Drives	Power range: 8.8-33.8kW; supports IP65 protection class for harsh industrial environments
MCA26	MCA26Lxx (e.g., MCA26L70, MCA26L90), MCA26Ixx	i950 Cabinet Series, 9400 Highline Servo Drives (high-power models)	Maximum power up to 53.8kW; requires external braking resistor for high dynamic braking scenarios

Product Application Fields

CNC Machining Centers: Delivers precise positioning and rapid spindle response for high-accuracy cutting, milling and drilling tasks
Industrial Robotics: Low inertia and compact size support agile movement of robotic arms in material handling, assembly and palletizing
Packaging Machinery: Ensures consistent speed and torque control for labeling, filling, sealing and cartoning lines with minimal downtime
Printing & Converting Equipment: Enables smooth, synchronized operation for web tension control and high-speed printing processes
Material Handling Systems: Optimizes conveyor speed and positioning accuracy for automated warehouses, sorting lines and transfer stations
Textile Machinery: Provides stable motion control for weaving, knitting and dyeing equipment requiring precise tension and speed regulation

Common Questions Answered

What's the biggest advantage of MCA asynchronous servo motor over traditional motors?

Compact size + low inertia. It fits tight spaces and responds faster to speed changes, perfect for dynamic automation tasks.

Can MCA motor work with g500/g7x0/g8x0 gearboxes directly?

Yes, it's pre-optimized for these gearboxes. Just assemble them to get a high-efficiency geared motor for heavy loads.

How easy is it to install and maintain the MCA motor?

Super easy. Plug-in connection design—no complex wiring, and you can replace parts quickly to cut downtime.

Is the MCA motor compatible with i700 cabinet and i950 cabinet servo drives?

Fully compatible. They form a synchronized motion control system, no extra adapters needed.

What's the typical application of MCA asynchronous servo motor?

Widely used in CNC machines, robotics, packaging lines, and material handling systems—anywhere needing precise, fast motion control.

Does the MCA motor have international certifications?

It meets CE/RoHS standards, so it's acceptable for most overseas markets without compliance issues.

Can I get a custom MCA motor for my specific equipment?

Contact our sales team directly. We offer custom solutions for voltage, speed, and mounting options.
