Highlight:
                                                                                                                                                            Lenze MCS synchronous servo motor, industrial automation servo drive motor, high precision servo motor with warranty


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

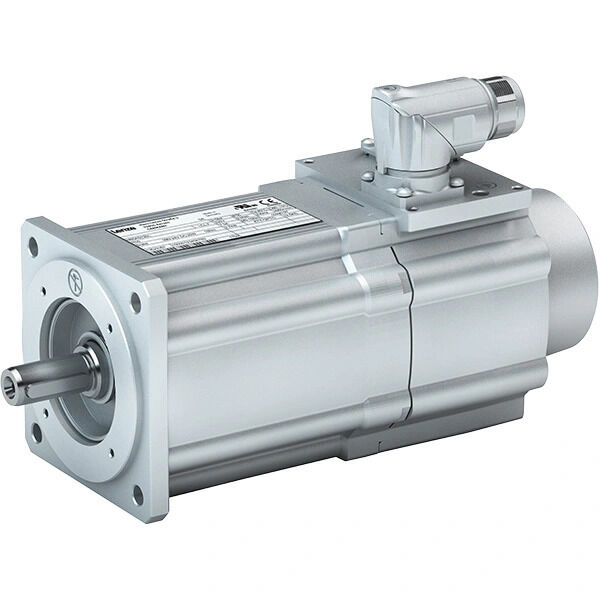

MCS Synchronous Servo Motor: High Dynamics & Precision for Industrial Automation

MCS Synchronous Servo Motor

MCS Synchronous Servo Motor delivers unrivaled high dynamics and precision for industrial automation, boasting exceptional high overload capacity and large angular acceleration to handle instantaneous heavy loads with ease. Its plug-and-play connection enables fast installation and hassle-free maintenance, while seamless compatibility with g500/g7x0/g8x0 reducers and i700/i950 cabinet servo drives ensures flexible system integration—ideal for robotics, packaging, CNC machines and more high-precision motion control scenarios.

Product Highlights

High Overload Capacity: Easily handles instantaneous high-load requirements in industrial scenarios with stable and uninterrupted operation
Large Angular Acceleration: Fast response speed for high-precision and high-dynamic positioning and speed regulation control
Plug-in Convenient Connection: Plug-and-play design shortens installation time significantly and facilitates hassle-free maintenance and disassembly
Perfectly Matched with Reducers: Professionally optimized to be combined with g500, g7x0 and g8x0 series reducers for efficient use as geared motors
Servo Drive Compatibility: Seamlessly compatible with i700 cabinet and i950 cabinet servo drives for smoother system integration

Technical Specifications

Parameter	Specification Range
Rated Power	0.25 kW - 15.8 kW
Rated Voltage	230 V AC (1-phase/3-phase), 400 V AC (3-phase)
Rated Speed	3000 rpm - 6000 rpm
Torque Range	0.8 Nm - 102 Nm (continuous) / 2.4 Nm - 306 Nm (peak)
Overload Capacity	300% of rated torque (short-term)
Angular Acceleration	Up to 10,000 rad/s²
Protection Class	IP54 (standard), IP65 (optional)
Cooling Method	Natural cooling (IC410), Forced air cooling (IC416, optional)
Encoder Type	Incremental encoder (TTL/HTL), Absolute encoder (EnDat 2.2, Hiperface)
Connection Type	Plug-in connector (SpeedTec)
Compatible Reducers	g500, g7x0, g8x0 series reducers
Compatible Drives	i700 cabinet, i950 cabinet servo drives
Mounting Type	B5 flange, B14 flange, Face mounting, Foot mounting
Ambient Temperature	-20°C to +40°C (standard), -20°C to +60°C (with derating)
Certifications	CE, RoHS, UL, CURus

Motor Series Compatibility

Motor Series	Overseas Model Range	Corresponding Servo Drives	Remarks
MCS 06 Series (Small Frame)	MCS06CXX-RS0B0, MCS06CXXLRS0B0, MCS06CXX-RS0P1, MCS06CXXLRS0P1, MCS06FXX-RS0B0, MCS06FXXLRS0B0, MCS06FXX-RS0P1, MCS06FXXLRS0P1, MCS06IXX-RS0B0, MCS06IXXLRS0B0, MCS06IXX-RS0P1, MCS06IXXLRS0P1, MCS06i41-rs0p1-a11n-st5s00n-r0su, MCS06i60-skmp1-a11n-st5s00n-r0su, MCS06c60-rs0p1-b11n-st5s00n-r0su, MCS06f41-rs0p1-a11n-st5s00n, MCS06i41-rs0b0-z0c0-st5s00n-r6su, MCS06f41-rs0b0-alln-st5s00n-r0su, MCS06f60-rs0b0-b11n-st5s00n-r0su	i700 cabinet servo drive, i950 cabinet servo drive, ECS series servo drive (ECS 107x/ECS 211), 9400 highline cabinet servo drive	Low moment of inertia, suitable for compact equipment with high dynamic requirements
MCS 09 Series (Medium Frame)	MCS09Dxx-RS0B0, MCS09Dxx-RS0P1, MCS09Dxx-RS0P2, MCS09FXX-RS0B0, MCS09FXXLRS0B0, MCS09FXX-RS0P1, MCS09FXXLRS0P1, MCS09FXX-RS0P2, MCS09FXXLRS0P2, MCS09HXX-RS0B0, MCS09HXXLRS0B0, MCS09HXX-RS0P1, MCS09HXXLRS0P1, MCS09HXX-RS0P2, MCS09HXXLRS0P2, MCS09Lxx-RS0B0, MCS09Lxx-RS0P1, MCS09Lxx-RS0P2, MCS09h41-rs0b0-b14n-st5s00n-r0su	i700 cabinet servo drive, i950 cabinet servo drive, 9400 highline cabinet servo drive, 8400 topline inverter drive	Balanced dynamic performance and torque output, widely used in general industrial automation scenarios
MCS 12 Series (Medium-Large Frame)	MCS12Dxx-RS0B0, MCS12Dxx-RS0P1, MCS12Dxx-RS0P2, MCS12HXX-RS0B0, MCS12HXXLRS0B0, MCS12HXX-RS0P1, MCS12HXXLRS0P1, MCS12HXX-RS0P2, MCS12HXXLRS0P2, MCS12LXX-RS0B0, MCS12LXXLRS0B0, MCS12LXX-RS0P1, MCS12LXXLRS0P1, MCS12LXX-RS0P2, MCS12LXXLRS0P2, MCS12139-rs0p2-a19n-st5f10n-p0su, MCS12h35-rs0b0-a19n-st5s00n-r0su, MCS12139-rs0b0-b19n-st5f10n-r0su	i700 cabinet servo drive, i950 cabinet servo drive, 9400 highline cabinet servo drive, ECS series servo drive	High power density, suitable for equipment requiring large torque and high precision, such as CNC machine tools and industrial robots
MCS 14 Series (Large Frame)	MCS14Dxx-RS0B0, MCS14Dxx-RS0P1, MCS14Dxx-RS0P2, MCS14Hxx-RS0B0, MCS14Hxx-RS0P1, MCS14Hxx-RS0P2, MCS14Lxx-RS0B0, MCS14Lxx-RS0P1, MCS14Lxx-RS0P2, MCS14Pxx-RS0B0, MCS14Pxx-RS0P1, MCS14Pxx-RS0P2, MCS14h32-rs0pl-z0ffff0-st5s00n-r0su, MCS14h32-rs0p1-b24n-kk5s00n-r0su, MCS14h32-rs0b0b24n-kk5s00n-r0su, MCS14P19-RSOBO, MCS14P18-RSOBO	i950 cabinet servo drive, 9400 highline cabinet servo drive	High overload capacity, suitable for heavy-duty applications such as large-scale automated production lines and logistics handling equipment
MCS 19 Series (Extra-Large Frame)	MCS19Fxx-RS0B0, MCS19Fxx-RS0P1, MCS19Pxx-RS0B0, MCS19Pxx-RS0P2	i950 cabinet servo drive, 9400 highline cabinet servo drive	Maximum torque output, designed for heavy-load precision control scenarios, compatible with large-scale reducers

Application Fields

CNC Machine Tools: High dynamic response and precise positioning meet the high-precision processing needs of milling, turning, etc., improving equipment machining accuracy and efficiency.
Industrial Robots: Large angular acceleration adapts to the rapid start-stop and multi-axis coordinated movements of robotic arms, ensuring smooth operation in handling, assembly, sorting and other scenarios.
Packaging Machinery: Stably copes with instantaneous load fluctuations in high-speed filling, labeling, cartoning and other processes, enabling efficient and continuous operation of packaging lines.
Printing & Textile Equipment: Precise tension control capability adapts to the high-precision transmission needs of printing registration and textile dyeing, avoiding material stretching or offsetting.
Automated Production Lines: Compatible with various reducers and drives, flexibly integrated into conveying, sorting, palletizing and other line links, optimizing line space layout.
Electronic Manufacturing Equipment: Low-inertia design supports high-speed, high-frequency placement and soldering actions, meeting the stringent requirements for precision assembly of 3C products.

Frequently Asked Questions

Q: The motor fails to start after connecting to i700/i950 drives. What could be the issue?

A: First check if the power voltage matches the motor rating. Then confirm the encoder wiring and communication protocol (e.g. EtherCAT) are consistent. Finally verify if the drive firmware version is compatible; update or adjust parameters if there is a mismatch.

Q: The motor overheats significantly during operation. What causes this?

A: Most likely the load exceeds the rated value, or the ventilation ports are blocked by dust. First reduce the load to the rated range and clean debris from the heat dissipation vents. If overheating persists, check if the installation environment temperature is too high.

Q: There is abnormal noise after matching with G-series reducers. How to fix it?

A: First check the alignment between the motor and reducer—misalignment causes vibration and noise. Then inspect if the bearings are worn; replace them if damage is severe. Finally confirm the load inertia ratio is within the reasonable range.

Q: The signal is unstable and disconnects frequently after plug connection. What to do?

A: First check if the plug is fully inserted without loosening or oxidation. Replace with shielded cables to reduce electromagnetic interference. Meanwhile, avoid excessive bending of cables and keep them away from power lines during wiring.

Q: Positioning accuracy decreases and deviation becomes larger. How to troubleshoot?

A: First check if the encoder works properly and the signal feedback is stable. Then verify if the electronic gear ratio setting is correct. Finally confirm that the connection between the motor and load is not loose.

Q: The motor stops suddenly and the control system alarms. How to handle it?

A: First check the fault type corresponding to the alarm code. Reduce the load for overload alarms; inspect wiring for short circuits for overcurrent alarms; reconfigure network parameters or repair cables for communication alarms.

Q: Power specifications vary in different regions. Can the motor be used directly?

A: Do not use it directly. First confirm if the motor rated voltage matches the local power supply. Use a voltage converter if necessary to avoid winding burnout caused by voltage mismatch.

Q: What are the key maintenance points after long-term use?

A: Regularly clean dust on the motor surface and check the condition of plugs and terminals. Inspect bearing wear every 1-2 years and replace lubricating grease as needed. Back up drive parameters regularly for quick recovery after faults.
