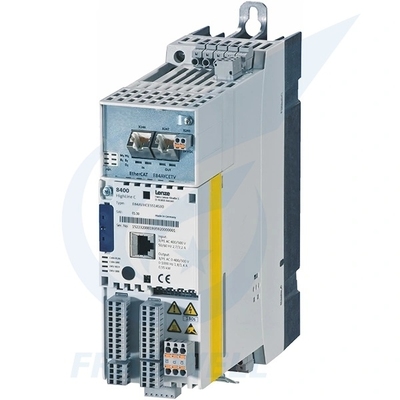

8400 TopLine Variable Frequency Drive Inverter 0.25kW-45kW For Dynamic Motion

Name: 8400 TopLine Variable Frequency Drive Inverter 0.25kW-45kW For Dynamic Motion
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: 8400 TopLine
Price: 2,000.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Certification: CE、cUL、EAC、RoHS

Model Number: 8400 TopLine

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100- $3900

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            8400 TopLine VFD inverter, Variable Frequency Drive Inverter 0.25kW, 45kW Variable Frequency Drive Inverter


Type:	Frequency Inverter Converter	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Frequency Inverter Converter
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

8400 TopLine Variable Frequency Drive Inverter 0.25kW-45kW For Dynamic Motion

8400 TopLine Inverter｜Servo-Quality for Dynamic Motion(0.25-45kW)

8400 TopLine Inverter - Servo-Quality Dynamic Motion Control

The 8400 TopLine Inverter delivers high-performance drive capabilities with servo-grade precision for dynamic motion control applications. Combining servo control accuracy with inverter ease of use, this solution works with both synchronous and asynchronous motors. Ideal for material handling, positioning, and multi-axis synchronization, it offers a cost-effective alternative to traditional servo drives without performance compromise.

Core Positioning & Key Features

Servo-Grade Dynamic Performance: Feedback-based servo control supporting synchronous/asynchronous motors with integrated resolver and multi-encoder inputs. Compatible with absolute position measurement for fast dynamic response and high positioning accuracy.
Multi-Axis Synchronization: Built-in axis bus supporting electronic shafts and gearboxes. Perfect for continuous material processing and multi-axis synchronization applications.
Safety & Compliance: Optional Safe Torque Off (STO) function compliant with EN IEC 61800-9-2 eco-design standards for operational safety and regulatory compliance.
Flexible Compatibility: Works seamlessly with Lenze servo motors and can be configured for third-party motors with proper parameter setup.

Key Technical Specifications

Parameter Item	Specification Details
Power Range	0.25-45kW (1AC 230V: 0.25-2.2kW; 3AC 400/480V: 0.37-45kW)
Power Supply	1AC 230V, 3AC 400V/480V
DC Bus Voltage	3AC 400/480V version: 455-775V
Overload Capacity	150% (60s), 200% (3s)
I/O Interfaces	8 digital inputs, 4 digital outputs, 2 analog inputs, 2 analog outputs, 1 NO/NC relay
Communication Protocols	Axis bus, CANopen, EtherCAT, EtherNet/IP, PROFIBUS, PROFINET
Protection Class	IP20
Operating Temperature	-10℃ to +55℃ (2.5% derating per K above 45℃)

Available Models

Core Series Models (E84AVTCE Series)

Voltage Specification	Model Category	Models	Key Parameters & Adaptation Notes
3AC 400/480V (Mainstream Industrial Grade)	Basic Version	E84AVTCE1122SX0, E84AVTCE1124SX0, E84AVTCE1134SX0, E84AVTCE1524SX0, E84AVTCE1534VB0, E84AVTCE2224SX0, E84AVTCE7524SB0	Covers 0.37-45kW power range; standard cabinet installation; basic servo-level dynamic control function
3AC 400/480V	With Function Modules	E84AVTCE1122SX0-EOXXX, E84AVTCE1122SX0-ERXXX, E84AVTCE1122SX0-ETXXX, E84AVTCE1122SX0-IBXXX, E84AVTCE1122SX0-PMXXX, E84AVTCE1124SX0-ECXXX, E84AVTCE1124SX0-EOXXX, E84AVTCE1124SX0-ERXXX, E84AVTCE1124SX0-ETXXX, E84AVTCE1124SX0-IBXXX, E84AVTCE1124SX0-PMXXX, E84AVTCE1134SX0-EOXXX, E84AVTCE1134SX0-ERXXX, E84AVTCE1134SX0-ETXXX, E84AVTCE1134SX0-IBXXX, E84AVTCE1134SX0-PMXXX, E84AVTCE1134SX0-ECXXX, E84AVTCE1522SX0-ECXXX, E84AVTCE1522SX0-EOXXX, E84AVTCE1522SX0-ERXXX, E84AVTCE1522SX0-ETXXX, E84AVTCE1534SX0-ERXXX	Equipped with communication protocols (PROFINET/EtherCAT) or safety functions (STO); XXX suffix indicates specific module configuration
1AC 230V (Small Equipment)	Representative Models	E84AVTCE2512SX0 (0.25kW), E84AVTCE3712SX0 (0.37kW), E84AVTCE5512SX0 (0.55kW)	Suitable for small dynamic control equipment; overseas supply based on regional demand

Derivative Adaptation Models (E84AVSCE Series)

Models	Core Advantages	Applicable Scenarios
E84AVSCE3712SX0, E84AVSCE5512SX0, E84AVSCE3714SB0, E84AVSCE4024VX0, E84AVSCE4024VB0, E84AVSCE4024SX0, E84AVSCE4024SB0, E84AVSCE5514SB0, E84AVSCE5524SX0, E84AVSCE7514SX0, E84AVSCE7524VX0, E84AVSCE1834VX0, E84AVSCE2224VX0, E84AVSCE3034VB0	Optimized core functions, precise power matching, enhanced protection performance	Harsh environment protection, specific process matching, small to medium-sized dynamic control equipment

Typical Applications

Material Handling & Positioning Systems (AGVs, robot joints)
Mobile & Hoisting Drives (automated warehouse stackers, hoisting equipment)
Continuous Material Processing (packaging lines, printing machine multi-axis synchronization)
Precision Speed/Position Control (machine tool spindles, assembly line positioning)

Frequently Asked Questions

Can this inverter work with motors from brands other than Lenze?

Yes, it can. However, you need to correctly configure key parameters like motor power, rated current, and speed. It's recommended to check the motor datasheet first to ensure parameter matching.

Does it support the communication protocols commonly used in European factories?

Definitely. It's compatible with EtherCAT, PROFINET, PROFIBUS and other mainstream protocols in Europe, which can directly connect to most factory control systems.

What should I do if the inverter shows an overload fault during operation?

First, check if the load is too heavy (exceeding 150% for 60s or 200% for 3s). If the load is normal, check the motor wiring for poor contact, or adjust the overload protection parameters appropriately according to the actual working conditions.

Is the STO safety function mandatory for use in the EU?

Not mandatory for all scenarios, but it's required in applications involving personnel safety (such as hoisting, automated assembly lines). It's recommended to confirm local safety standards before installation.

Can the inverter be used in high-temperature environments (e.g., 60℃ workshops)?

No, its maximum operating temperature is 55℃. When the temperature exceeds 45℃, you need to derate by 2.5% for each 1K increase. For 60℃ environments, additional cooling measures (like fans or heat sinks) are necessary.

How to solve the problem of inaccurate positioning in servo mode?

First, check if the encoder is properly installed and connected. Then, verify the position measurement parameters (such as encoder resolution) in the inverter. If there's still an issue, calibrate the servo system again.

Does the inverter come with a power cord, or do I need to buy it separately?

It doesn't come with a power cord. You need to purchase it separately according to the local voltage standard (e.g., 400V 3-phase in EU, 480V in US) and the inverter's power rating.

Can it be used for outdoor applications?

No, its protection class is IP20, which is only suitable for indoor use. If used outdoors, you need to install it in a sealed cabinet to prevent dust, rain and other external factors from affecting it.

What's the difference between this inverter and a dedicated servo drive?

It has servo-level positioning accuracy and dynamic response, but the cost is lower than a dedicated servo drive. The main difference is that it's more versatile (compatible with both synchronous and asynchronous motors) but not suitable for ultra-high-precision scenarios (e.g., micron-level positioning).
