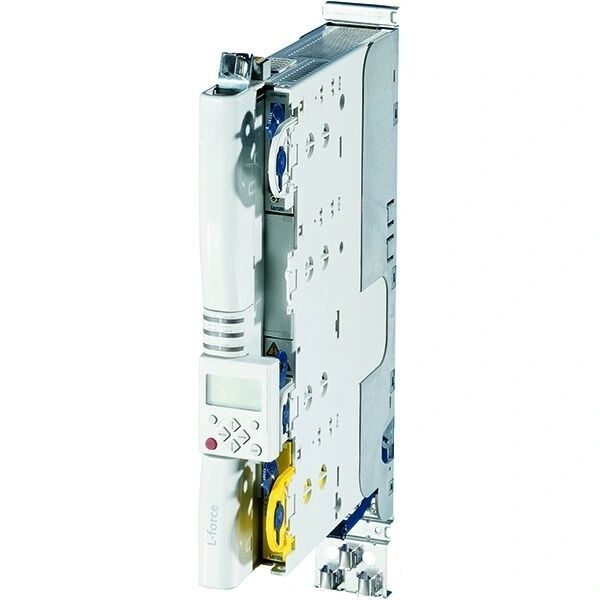

9400 HighLine Servo Drive: Precision Dynamic Control for Industrial Automation
| Category | Specifications |
|---|---|
| Power Supply Specifications | • Input Voltage: Single-phase 230V AC / Three-phase 400-480V AC (optional) • Voltage Fluctuation Range: ±10% • Frequency: 50/60 Hz • Rated Output Current: 1.5 A - 30 A (coverage across models) |
| Control Performance | • Control Modes: Position control, Speed control, Torque control (three-mode switching) • Position Control Accuracy: ±0.01° (with high-precision motor) • Speed Adjustment Range: 0.1 - 6000 rpm • Dynamic Response Time: ≤ 5 ms (speed step response) |
| Environment & Protection | • Operating Temperature: -10℃ ~ 40℃ • Storage Temperature: -25℃ ~ 60℃ • Protection Class: IP20 (standard) / IP54 (optional upgrade) • Relative Humidity: 5% ~ 95% (non-condensing) |
| Physical Parameters | • Dimensions (W×H×D): 85 mm × 180 mm × 150 mm ~ 160 mm × 320 mm × 220 mm (per model) • Weight: 1.2 kg ~ 5.8 kg (per model) |
| Function Category | Details |
|---|---|
| High-Precision Motion Control | Supports electronic cam and electronic gear functions for precise single-axis positioning and multi-axis synchronous linkage. Built-in high-precision encoder interface (incremental/absolute optional) ensures control accuracy and motion stability. |
| Easy Commissioning & Maintenance | Equipped with intuitive LED status indicators and digital display for real-time feedback. Supports PC-based debugging software (Windows/Mac compatible) for parameter configuration, fault diagnosis and data monitoring via USB/EtherNet interface. |
| Comprehensive Safety & Compliance | Complies with EN IEC 61800-9-2 eco-design standard with energy-saving operation mode. Built-in multiple protection functions including overcurrent, overload, overvoltage, overheating and undervoltage. Meets CE and UL certification requirements. |
| Flexible Communication & Expansion | Supports mainstream industrial communication protocols including EtherCAT, Profinet and Modbus TCP. Reserved expansion interfaces for optional IO modules and communication modules to adapt to diverse application scenarios. |
| Efficient Heat Dissipation Design | Optimized heat dissipation air duct and high-efficiency heat sink design enables stable thermal performance under high-load conditions, ensuring long-term continuous operation and extended equipment service life. |
| Model | Rated Power | Rated Current | Recommended Matching Motors | Application Notes |
|---|---|---|---|---|
| E94ASHE0024 | 0.37 kW | 2.0 A | Lenze MCS/MCM series synchronous servo motor (4-pole, 0.37 kW); MQA series asynchronous servo motor | Suitable for small precision equipment |
| E94ASHE0034 | 0.75 kW | 4.0 A | Lenze MCS/MCM series synchronous servo motor (4-pole, 0.75 kW); MQA series asynchronous servo motor | Universal small-load precision motion scenarios |
| E94ASHE0044 | 1.5 kW | 6.0 A | Lenze MCS/MCM series synchronous servo motor (4-pole, 1.5 kW); MQA series asynchronous servo motor | Widely used in small packaging and labeling equipment |
| E94ASHE0074 | 3.0 kW | 10.0 A | Lenze MCS/MCM series synchronous servo motor (4-pole, 3.0 kW); MCA series asynchronous servo motor | Adapt to medium-load conveying and processing equipment |
| E94ASHE0134 | 5.5 kW | 13.0 A | Lenze MCS/MCM series synchronous servo motor (4-pole, 5.5 kW); MCA series asynchronous servo motor | Suitable for printing and textile machinery tension control |
| Model | Rated Power | Rated Current | Recommended Matching Motors | Application Notes |
|---|---|---|---|---|
| E94AMHE0034 | 0.75 kW | 4.0 A | Lenze MCS series small synchronous servo motor (multi-axis matching, 0.75 kW each) | Multi-axis coordinated control of small automation equipment |
| E94AMHE0044 | 1.5 kW | 6.0 A | Lenze MCS series small synchronous servo motor (multi-axis matching, 1.5 kW each) | Applicable to multi-axis labeling and assembly lines |
| E94AMHE0074 | 3.0 kW | 10.0 A | Lenze MCS series synchronous servo motor (multi-axis matching, 3.0 kW each) | Multi-axis linkage of textile machinery carding and drawing equipment |
| E94AMHE0134 | 5.5 kW | 13.0 A | Lenze MCM series synchronous servo motor (multi-axis matching, 5.5 kW each) | Multi-axis synchronization of printing machine web processing |
