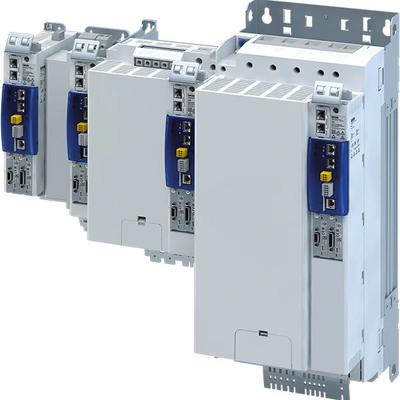

Intelligent i950 Cabinet Servo Drive | 22-110kW Power Expansion, No Programming Required

Name: Intelligent i950 Cabinet Servo Drive | 22-110kW Power Expansion, No Programming Required
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: i950 Cabinet
Price: 1,250.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Certification: CE 、UL 、ODVA EtherNet/IP， EN IEC 61800-9-2 SIL 3/PL e Cat. 4

Model Number: i950 Cabinet

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $500- $2000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            Lenze i950 cabinet servo drive, servo drive motor 22-110kW, no programming servo drive


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Intelligent i950 Cabinet Servo Drive | 22-110kW Power Expansion, No Programming Required

Intelligent i950 Cabinet Servo Drive

The intelligent i950 cabinet servo drive seamlessly integrates into modular machine solutions without complex programming—simple parameterization enables quick deployment. With unified architecture, standardized engineering design, universal application software, and decades of industry experience, it bridges centralized and distributed motion control boundaries. Paired with the all-scenario FAST application software toolbox, it expands device application scope.

This drive serves as a power expansion unit for the i750 cabinet servo drive within the Lenze automation system, covering a power range of 22-110 kW. Its design complies with the EN IEC 61800-9-2 eco-design standard.

Product Highlights

Pre-installed Mature Technical Applications: Built-in functional modules including list positioning, electronic gearbox, and winder control—no additional development required.
One Cable Technology (OCT): Integrates power and signal transmission into a single cable, simplifying wiring, reducing costs, and improving space utilization and stability.
Modular Scalable Design: Supports flexible expansion for feedback systems and fieldbus connections, configurable to diverse equipment architectures.
Intelligent Auto-tuning Function: One-click parameter adjustment without professional debugging experience, shortening commissioning cycles.
High-standard Integrated Safety Technology: Multi-functional safety modules compliant with SIL 3/PL e Cat. 4 standards for comprehensive equipment protection.

Core Technical Data

Category	Specific Parameters
Power and Voltage Parameters	Power Coverage: 22-110 kW; Compatible with industrial three-phase AC power supply; Functions as power expansion unit for i750 cabinet servo drive
Safety and Compliance Standards	Complies with SIL 3/PL e Cat. 4 safety standards; Meets EN IEC 61800-9-2 eco-design guidelines
Connection and Expansion Parameters	Compatible with mainstream industrial fieldbuses; Supports modular feedback systems; Integrates One Cable Technology (OCT)

Core Functional Features

Function Category	Specific Function Description
Convenient Debugging and Integration	Parameterization configuration without programming; Auto-tuning function for quick adaptation; Unified architecture compatibility with i750 cabinet
Pre-installed Application Modules	Built-in core functions: list positioning, electronic gearbox, winder control; FAST application software toolbox with preset modules
Motion Control Capability	Cross-mode control support for centralized and distributed motion control; High-precision control with modular feedback system
Safety and Reliability Functions	Integrated safety technology with multi-functional modules; Stable transmission design with OCT technology
Scalability and Adaptability	Modular expansion for feedback systems and fieldbus connections; Multi-industry adaptation for various working conditions

i950 Cabinet - Available Models & Matching Motors

Model	Power	Voltage Specification	Adaptive Motor Type	Recommended Motor Model
I95AE137D1AV00Z000 (i950‑C0.37/230‑2)	0.37kW/0.5HP	230V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 06F0060, MCA series
I95AE175D1AV00Z000 (i950‑C0.75/230‑2)	0.75kW/1.0HP	230V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 09F0120, MCA 09F0120
I95AE215D1AV00Z000 (i950‑C1.5/230‑2)	1.5kW/2.0HP	230V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 12F0200, MCA 12F0200
I95AE255C1AV00632G (i950‑C5.5/230‑3)	5.5kW/7.5HP	230V 3/PE	Synchronous/Asynchronous Servo Motor (with Resolver Encoder)	MCS 18F0550, MCA 18F0550
I95AE275F1AV10Z000 (i950‑C7.5/400‑3)	7.5kW/10.0HP	400/480V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 22F0750, MCA 22F0750
I95AE315F1AV10Z000 (i950‑C15/400‑3)	15kW/20.0HP	400/480V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 28F1500, MCA 28F1500
I95AE322F1AV10Z000 (i950‑C22/400‑3)	22kW/30.0HP	400/480V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 35F2200, MCA 35F2200
I95AE330F1AV10Z000 (i950‑C30/400‑3)	30kW/40.0HP	400/480V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 45F3000, MCA 45F3000
I95AE345F1AV10Z000 (i950‑C45/400‑3)	45kW/60.0HP	400/480V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 55F4500, MCA 55F4500
I95AE375F1AV10Z000 (i950‑C75/400‑3)	75kW/100.0HP	400/480V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 63F0750, MCA 63F0750
I95AE3110F1AV10Z000 (i950‑C110/400‑3)	110kW/150.0HP	400/480V 3/PE	Synchronous/Asynchronous Servo Motor (with OCT)	MCS 71F1100, MCA 71F1100

Core Requirements for Adaptive Motors: Supports OCT (One Cable Technology), Resolver/SinCos/Hiperface and other encoders, and complies with IEC 61800‑9‑2 standard. Models with 22-110kW are power expansion units for i750 Cabinet, adapting to higher-power motors and supporting distributed linkage control.

Application Scenarios

Material Handling and Warehousing Equipment: Automated storage and retrieval systems, conveyor sorting systems with precise displacement control
Packaging and Printing Machinery: High-speed packaging machines, web-fed printing machines with electronic gearbox and winder modules
Metal Processing and Forming Equipment: CNC bending machines, laser cutting machines, stamping production lines with auto-tuning function
Textile and Chemical Fiber Machinery: Spinning machines, chemical fiber winders with constant tension control
Automated Assembly Lines: Auto parts assembly, 3C product assembly with flexible production process switching
Hoisting and Lifting Equipment: Small and medium-sized cranes, intelligent lifting platforms with heavy-load capability

Frequently Asked Questions

Q1: Can this drive directly replace my existing Lenze i750 cabinet?

No direct replacement, but it works as a power expansion unit for i750 (covering 22-110 kW range). It shares the same architecture and software, enabling seamless integration into Lenze automation systems.

Q2: Will debugging be difficult without professional programmers?

Not at all. No programming required—just parameter configuration to finish debugging. Plus the auto-tuning function, even beginners can quickly complete controller adaptation.

Q3: Is One Cable Technology (OCT) reliable? Will it affect signal stability?

Absolutely reliable. Integrating power and signal into one cable not only simplifies wiring and saves space, but also reduces cable failure points. Signal transmission stability is even improved.

Q4: Can the feedback system and fieldbus be compatible with our existing third-party equipment?

Modular expansion is supported. Both feedback components and fieldbus types can be selected on demand, compatible with mainstream third-party devices—no need to modify your existing system.

Q5: Does it meet EU market safety standards?

Definitely. The integrated safety technology complies with high standards of SIL 3/PL e Cat.4. Meanwhile, its design meets the EN IEC 61800-9-2 eco-design directive, fully complying with EU access requirements.

Q6: What practical problems can the FAST application software toolbox solve?

It covers a wide range of scenarios. Common functions like list positioning, electronic gearbox, and winding control all have ready-to-use modules. No secondary development needed, directly matching production line requirements.

Q7: Can this drive support both centralized and distributed motion control?

Yes. The unified architecture and software directly break the boundary between the two control modes. Whether it's single-device control or distributed linkage of multiple production lines, it can handle it easily.

Q8: What is the power coverage range? Is it suitable for heavy-duty equipment?

The power range is 22-110 kW, which can meet the needs of heavy-duty working conditions such as small and medium-sized cranes, heavy metal processing equipment, and large winding machines.
