i700 Cabinet Servo Drive | High-Dynamic Motion Control for Multi-Axis Automation

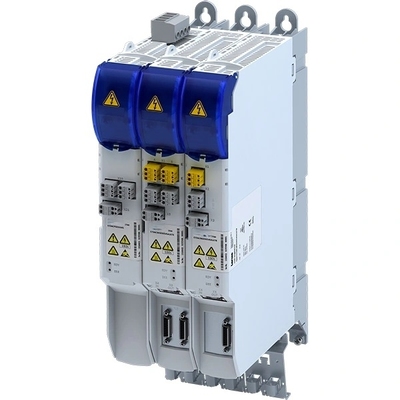

i700 Cabinet Servo Drive
The i700 Cabinet Servo Drive is engineered for high-performance dynamic motion control and multi-axis applications. It supports interconnected systems of single-axis or dual-axis equipment. When paired with our controllers and integrated with components from premium suppliers, it becomes the ideal solution for all your automation needs.
Key Features
-
Integrated DC Bus ConnectionEnables seamless energy sharing between axes, reducing power consumption and optimizing system efficiency for continuous operation.
-
Ultra-Compact Dual-Axis DesignWith a minimum width of just 50 mm for dual-axis configuration, it saves valuable cabinet space and simplifies installation in space-constrained environments.
-
High Overload CapacityAxis modules support multiple overloads, delivering peak output current ranging from 5 A to 64 A; dual-axis setups can reach up to 32 A, ideal for heavy-duty dynamic motion scenarios.
-
Automatic Tuning FunctionFacilitates fast and hassle-free controller parameter adjustment, eliminating complex manual tuning and reducing machine commissioning time significantly.
-
Safe Torque Off (STO) Safety FeatureComplies with international safety standards, ensuring reliable torque cut-off in emergency situations and safeguarding both equipment and operators.
Technical Specifications
| Feature | Specification |
|---|---|
| Peak Output Current | Single-axis: 5 - 64 A; Dual-axis: Max. 32 A |
| Axis Module Width | Minimum 50 mm for dual-axis configuration |
| Core Connection Function | Integrated DC bus, supporting energy sharing between axes |
| Commissioning Function | Automatic tuning, no professional skills required; one-click parameter matching |
| Safety Function | Safe Torque Off (STO), compliant with EN ISO 13849-1 and UL 508 standards |
| Overload Capacity | Multiple overload resistance, suitable for high-dynamic load scenarios |
| Control Compatibility | Compatible with standard protocols of mainstream industrial controllers; full-function multi-axis coordination achievable when paired with C520 controller |
| Power Expansion Solution | Can be paired with i950 Cabinet Servo Drive for power expansion, covering 22 - 110 kW power range |
| Operating Environment | Protection class: IP20 (for cabinet installation); Operating temperature: -10°C ~ 45°C (well-ventilated cabinet required) |
Available Models & Motor Compatibility
| Product Category | Model | Key Specifications | Recommended Motors | Application Scenarios |
|---|---|---|---|---|
| Axis Module (Dual-axis) | E70ACMS 0054SA2ET□ | Dual-axis; Peak output current: 2x5A; Power range: 0.75-1.5kW; Communication: EtherCAT | LENZE MCS Synchronous Servo Motor (Low power series) | Small packaging machinery, precision labeling equipment |
| Axis Module (Dual-axis) | E70ACMS 0104SA2ETD | Dual-axis; Peak output current: 2x10A; Power range: 4.0-7.5kW; Communication: EtherCAT | LENZE MCS Synchronous Servo Motor (Mid-low power series) | Textile machinery, small AGVs |
| Axis Module (Single-axis) | E70ACMS 0324SA1ET | Single-axis; Peak output current: 32A; Power range: 7.5kW; Communication: EtherCAT | LENZE MCS Synchronous Servo Motor (Mid power series) | Medium-sized CNC lathes, printing presses |
| Axis Module (Single-axis) | E70ACMS 0484SA1ETD | Single-axis; Peak output current: 48A; Power range: 11kW; Communication: EtherCAT | LENZE MCS Synchronous Servo Motor (Mid-high power series) | High-precision machining centers, industrial robot joints |
| Axis Module (Single-axis) | E70ACMS 0644SA1ETD | Single-axis; Peak output current: 64A; Power range: 15kW; Communication: EtherCAT | LENZE MCS Synchronous Servo Motor (High power series) | Heavy-duty CNC milling machines, large material handling robots |
| Axis Module (Dual-axis) | E70ACMSE0054SA2ETR | Dual-axis; Peak output current: 2x5A; Power range: 0.75-1.5kW; Encoder input: Resolver; Communication: EtherCAT | LENZE MCS Synchronous Servo Motor (Resolver feedback type) | Outdoor-used material conveyors in harsh environments |
| Power Supply Module | E70ACPSD0304S | Rated DC bus current: 30A; Input voltage: 400/480V AC; Output voltage: DC 565/675V; Protection class: IP20 | Matching with dual-axis/single-axis modules (total power ≤ 15kW) | Central power supply for multi-axis systems |
| Power Supply Module | E70ACPSD0604S | Rated DC bus current: 60A; Input voltage: 400/480V AC; Output voltage: DC 565/675V; Protection class: IP20 | Matching with single-axis modules (15kW) or multiple dual-axis modules | Large-scale multi-axis automation systems |
Application Fields
- CNC Machine Tools - High-precision machining centers, lathes, and milling machines for complex cutting and shaping tasks.
- Packaging Machinery - Fast, accurate positioning in food, beverage, and pharmaceutical packaging lines.
- Material Handling Systems - Automated guided vehicles (AGVs), robotic arms, and palletizers for precise load movement.
- Printing & Labeling Equipment - Stable speed and position control for printing presses and labelers.
- Textile Machinery - Looms, spinning machines, and dyeing equipment with uniform tension control.
- Semiconductor & Electronics Manufacturing - Ultra-precision requirements for PCB drilling and chip mounters.
- Industrial Robotics - Core drive unit for articulated, SCARA, and delta robots in assembly and welding applications.
Frequently Asked Questions
Can the i700 Cabinet Servo Drive work with third-party controllers, or only with your C520?
It's compatible with most mainstream industrial controllers via standard protocols. Pairing with C520 unlocks full multi-axis coordination performance, though.
What's the actual advantage of the integrated DC bus connection?
Cuts power waste by sharing energy between axes, lowers cabinet heat, and reduces electricity bills long-term.
The dual-axis width starts at 50mm--does that mean sacrificing overload capacity?
No. It still handles multiple overloads, with peak current up to 64A. Compact size + high durability, that's the win.
How easy is the auto-tuning function? Do I need a professional technician?
Super easy. Just follow the on-screen prompts, no expert skills needed. Cuts commissioning time by 50% at least.
Does the STO safety function meet EU and North American safety standards?
Yes, it's certified to EN ISO 13849-1 and UL 508. Fully compliant for global market use.
When should I use the i950 as a power extension for the i700?
When your load requires more than the i700's max power--i950 covers 22-110kW, perfect for heavy-duty applications.
Can the i700 handle harsh industrial environments (dust, temperature swings)?
It's built with IP20 protection for cabinet installation. Works fine in -10°C to 45°C; just keep the cabinet well-ventilated.
