i750 Cabinet Servo Drive - High Precision for Complex Multi-Axis Applications
-
Highlight

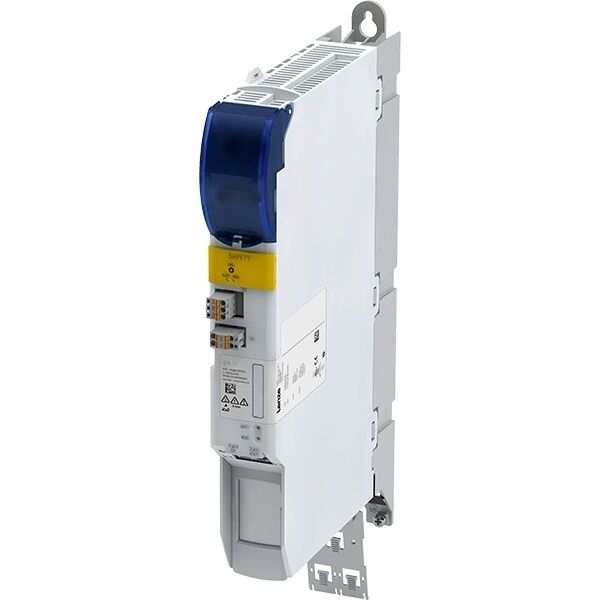

Lenze i750 cabinet servo drive
,high precision servo drive motor
,multi-axis servo drive with warranty
-
TypeServo Drive Motor
-
WarrantyOriginal Manufacturer's Warranty
-
PakageOriginal Pakage
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginGermany
-
CertificationCE、UKCA、UL、CSA、RoHS
-
Model Numberi750 Cabinet
-
Minimum Order Quantity1
-
Price$120- $2000
-
Delivery Time3-5Workday
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
i750 Cabinet Servo Drive - High Precision for Complex Multi-Axis Applications
i750 Cabinet Servo Drive
The i750 Cabinet Servo Drive meets all requirements for precision and dynamic motion control in complex multi-axis applications. Enhanced safety functions and single-cable technology significantly reduce wiring and control complexity. Data-driven intelligent functions and Industrial Internet of Things (IIoT) capabilities turn innovative motion control concepts into reality.
The single-axis or dual-axis i750 Cabinet, paired with compatible components, enables seamless integration into the Lenze automation system. Equipped with Lenze controllers and the FAST application software toolkit, this drive delivers outstanding advantages across a wide range of applications.
Product Highlights
- Integrated DC bus connection
- Compact overall width for dual-axis models, starting from 50 mm
- Axis modules withstand multiple overloads, with peak output current ranging from 5-64 A and up to 32 A per axis for dual-axis models
- Built-in functional safety features + One Cable Technology (OCT)
- Equipped with auto-tuning function for fast and easy controller adjustment
Core Technical Data
| Axis Configuration | Single-axis module / Dual-axis module |
| Power Range | Single-axis: 1.1-15kW; Dual-axis: 1.1-7.5kW (per axis) |
| Peak Output Current | 5-64A (single-axis); Max. 32A per axis (dual-axis) |
| Supply Voltage | Three-phase 380-480V AC, 50/60Hz |
| Module Width | Minimum 50mm for dual-axis module |
| Protection Class | IP20 (cabinet mounting) |
| Communication Interface | Open EtherCAT CiA402 interface |
| Cooling Method | Natural cooling / Forced air cooling (optional) |
Core Functions
- Integrated DC Bus Connection: Supports parallel power supply for multiple modules, reducing energy consumption and optimizing energy utilization efficiency.
- One Cable Technology (OCT): Power, signal, and encoder feedback share a single cable, lowering wiring costs and reducing fault points.
- Built-in Functional Safety: Supports safety stop modes such as SS1 and SS2, no additional safety modules required, compliant with international safety standards.
- Auto-Tuning Function: One-click matching of third-party servo motor parameters, quickly completing controller commissioning and lowering the operation threshold.
- Multiple Overload Resistance: Axis modules can withstand short-term peak loads, suitable for scenarios with frequent start-stop and impact loads.
- IIoT Data Collection: Supports equipment operation data monitoring and remote diagnosis, enabling intelligent operation and maintenance.
- Seamless Integration with Lenze System: Compatible with Lenze controllers and FAST application software toolkits, simplifying the configuration of multi-axis synchronous control.
Available Models & Compatible Motors
| Drive Type | Available Models | Power Range | Core Parameters | Matching Motors | Adaptation Advantages |
|---|---|---|---|---|---|
| Single-axis i750 Cabinet | E94DSHE0034A22NNDN-S0034N (Order No.: 16642740) | 1.1-3kW | Peak current 5-15A, supports OCT, EtherCAT communication | MCS Series Synchronous Servo Motors (0.25-3kW) | Low moment of inertia, high dynamic response |
| Single-axis i750 Cabinet | I75AE222F1BV00KQ0S (Order No.: 16854714) | 3-7.5kW | Peak current 15-30A, built-in STO safety function | MCS Series Synchronous Servo Motors (3-7.5kW) | High overload capacity, supports Hiperface DSL encoder |
| Single-axis i750 Cabinet | E94DSHE0064A22NNDN-S0064N | 7.5-11kW | Peak current 30-45A, forced air cooling optional | M850 Series Servo Motors (7.5-11kW) | Compact design, resistant to impact loads |
| Single-axis i750 Cabinet | E94DSHE0084A22NNDN-S0084N | 11-15kW | Peak current 45-64A, supports SS1/SS2 safe stop | M850 Series Servo Motors (11-15kW) | High torque output, enables complex trajectory control |
| Dual-axis i750 Cabinet | E94DSHE0034D22NNDN-S0034N | 1.1-2.2kW/axis | Single-axis peak current 5-10A, module width 50mm | MCS Series Dual-axis Matching Synchronous Servo Motors | High dual-axis synchronization accuracy, simple wiring |
| Dual-axis i750 Cabinet | E94DSHE0054D22NNDN-S0054N | 2.2-5.5kW/axis | Single-axis peak current 10-25A, integrated brake control | MCS Series Dual-axis Matching Synchronous Servo Motors | Suitable for dual-axis coordinated drive, optimized energy |
| Dual-axis i750 Cabinet | E94DSHE0074D22NNDN-S0074N | 5.5-7.5kW/axis | Single-axis peak current 25-32A, extended safety functions | M850 Series Dual-axis Matching Servo Motors | High power density, suitable for multi-axis coordinated processes |
| Universal Adaptation Model | Custom models (prefix: E94DSHE/I75AE) | 1.1-15kW (single-axis); 1.1-7.5kW/axis (dual-axis) | Customizable communication modules, safety function levels | MCA/MQA Asynchronous Servo Motors | Suitable for harsh industrial environments, strong compatibility |
Application Fields
- Automated Assembly Lines: Precise multi-axis synchronous control, 50mm compact body for high-density lines, OCT one-cable technology simplifies wiring.
- Packaging & Printing Machinery: Dual-axis compact design saves space, auto-tuning function quickly matches roller parameters.
- Material Handling Equipment: 5-64A peak current resists overload, integrated DC bus reduces energy consumption.
- Small Machine Tool Processing: Precise position/speed control supports complex machining paths, seamlessly integrates with Lenze automation system.
- Collaborative Robotics: High-precision dynamic control adapts to robotic arm joint movement, one-cable technology reduces body wiring.
- Small Lithium Battery & PV Equipment: Multi-axis coordination meets precision needs, IIoT function enables data monitoring & remote commissioning.
Frequently Asked Questions
Q1: Can the i750 Cabinet be used with non-Lenze motors?
Yes. It supports auto-tuning for third-party servo motors. Just input the motor's basic parameters (power, current, speed) and run the auto-tuning wizard—works for most standard servo motors.
Q2: What's the advantage of OCT (One Cable Technology) in actual use?
Cuts wiring work by 50%—power, signal, and feedback share one cable. No more messy cable bundles, easier maintenance, and less chance of wiring errors.
Q3: How to handle the overload alarm of the i750 Cabinet?
First check if the load exceeds the motor's rated torque. If it's a short-term peak load, extend the overload protection time in the parameter settings. If it's a long-term overload, upgrade to a higher-power model.
Q4: Can the i750 Cabinet connect to EtherCAT and PROFINET at the same time?
No. It only supports one fieldbus protocol at a time. You need to select the corresponding communication module and set the protocol in the software before use.
Q5: What's the minimum installation space required for the dual-axis i750 Cabinet?
The dual-axis model starts at 50mm wide. Leave at least 10mm of ventilation space on both sides—otherwise, overheating may trigger alarms.
Q6: How to achieve safe stop function with the i750 Cabinet?
It has built-in functional safety. Just connect the safety circuit to the dedicated safety terminals, then set the safety stop type (SS1/SS2) in the parameters—no need for extra safety modules.
Q7: Is the i750 Cabinet suitable for dusty or humid workshops?
The cabinet version has IP20 protection. For harsh environments, install it in a sealed electrical cabinet with ventilation and dehumidification devices, or choose the distributed i550 protec series instead.
Q8: How to quickly commission the i750 Cabinet for multi-axis synchronization?
Use Lenze FAST software toolkit. It has pre-set multi-axis synchronization templates—import the template, set the synchronization ratio, and run the test—done in 30 minutes.
