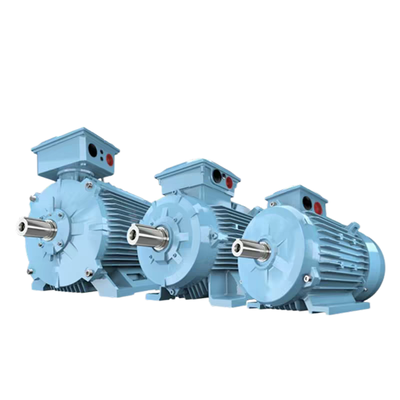

M2BAF Servo Motor Efficiency IE4 IE5 Motor IP55 ISO Certified

Name: M2BAF Servo Motor Efficiency IE4 IE5 Motor IP55 ISO Certified
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: M2BAF
Price: 4,042.00 USD
Availability: InStock

Product Details

Place of Origin: Swedish

Certification: CE、3C 、CQC、EN IEC

Model Number: M2BAF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $85 - $8000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            M2BAF Servo Motor Efficiency, Efficiency IE4 IE5 Motor, IE4 IE5 Motor IP55


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

M2BAF Servo Motor Efficiency IE4 IE5 Motor IP55 ISO Certified

M2BAF Servo Motor - IE4/IE5 Efficiency IP55 - ISO Certified for Industrial Automation

M2BAF Servo Motor - IE4/IE5 Efficiency IP55

The M2BAF Servo Motor stands as a premium solution for industrial automation applications, boasting top-tier IE4/IE5 energy efficiency ratings that cut operational costs and reduce carbon footprint. With an IP55 ingress protection rating, it delivers reliable performance even in harsh industrial environments, resisting dust and water ingress to minimize downtime. ISO-certified for quality and safety compliance, this servo motor ensures seamless integration into CNC machinery, lithium battery production lines, and heavy-duty automation systems, making it the trusted choice for global manufacturers pursuing efficiency and durability.

Core Features

Ultra-High Energy Efficiency: IE4/IE5 compliant, cuts long-term industrial energy costs
IP55 Protection: Dust/water-proof, reliable in harsh industrial environments
ISO Certified: Meets global quality/safety standards, no extra compliance testing needed
0.37-355kW Power Range: Fits light CNC to heavy automated production lines
Low Copper-Zinc (≤0.5%): Enhances stability, extends service life by 30%

Core Advantages

Cost & Energy Savings: High efficiency + low failure rate reduces operational and maintenance costs
Global Market Ready: Compliant for direct entry to Europe, America, Southeast Asia markets
Wide Compatibility: Ideal for CNC, lithium battery lines, HVAC pumps, sewing machines
Durable Performance: Strong anti-interference, stable under high-frequency start-stop conditions

Core Technical Parameters

Parameter Category	Specific Parameter	Description
Electrical Parameters	Rated Power	0.37-355kW (optional, covering light to heavy load requirements)
	Energy Efficiency Class	IE2/IE3/IE4/IE5 (compliant with IEC 60034-30-1:2014 and GB 18613-2020 standards)
	Voltage & Frequency	Voltage: 220V~690V three-phase AC; Frequency: 50Hz/60Hz, compatible with mainstream global power grids
Protection & Insulation	Protection Class	IP55 (standard), optional IP56/IP65/IP66, dust and water proof, suitable for harsh industrial environments
	Insulation Class	Class F, temperature rise class B, reliable insulation performance
	Cooling Method	IC411 (self-fan cooling), ensuring continuous and stable heat dissipation
Mechanical Parameters	Mounting Method	Supports multiple forms: foot mounting (IM B3), flange mounting (IM B5, etc.), foot + flange mounting (IM B35, etc.)
	Rated Speed	2900~2980rpm (typical value for 2-pole models, customizable for different pole numbers)
	Wiring Method	Star connection (Y) for ≤3kW, delta connection (Δ) for >3kW
Environment & Material	Operating Ambient Temperature	-20℃~40℃
	Maximum Altitude	≤1000m (special customization required for exceeding)
	Special Material (Lithium Battery Dedicated)	Copper-zinc content ≤0.5%, meeting the copper-zinc free requirements of the lithium battery industry
Certification Standards	Compliance Certifications	ISO 9001 Quality Certification, ISO 14000 Environmental Certification, CE Certification, meeting the access requirements of mainstream global markets

Overseas Available Product Model List

Micro Power (0.18-1.5KW)

Product Model	Rated Power	Core Application Scenarios
M2BAF71MA4	0.25KW	Small Sewing Equipment, Micro Pumps, Light Precision Instruments
M2BAF71MB4	0.37KW
M2BAF71MA6	0.18KW
M2BAF71MB6	0.25KW
M2BAF80MA4	0.55KW
M2BAF80MB4	0.75KW
M2BAF80MA6	0.37KW
M2BAF90SA6	0.75KW

Low Power (1.5-11KW)

Product Model	Rated Power	Core Application Scenarios
M2BAF90SA2	1.5KW	Small and Medium CNC Machine Tools, Small Fans, Textile Machinery Auxiliary Equipment
M2BAF90LA4	1.5KW
M2BAF90LA2	2.2KW
M2BAF90LA6	1.1KW
M2BAF100LA2	3KW
M2BAF100LA6	1.5KW
M2BAF132SA6	3KW
M2BAF160MLA4	11KW
M2BAF160MLB4	15KW
M2BAF160MLB6	11KW

Medium Power (15-75KW)

Product Model	Rated Power	Core Application Scenarios
M2BAF180MLA4	18.5KW	Lithium Battery Production Line Auxiliary Equipment, Medium Water Treatment Pumps, HVAC Systems, Packaging Machinery
M2BAF180MLB4	22KW
M2BAF180MLA6	15KW
M2BAF200MLA4	30KW
M2BAF200MLA6	18.5KW
M2BAF200MLB6	22KW
M2BAF225SMA4	37KW
M2BAF225SMB4	45KW
M2BAF225SMA6	30KW
M2BAF250SMA2	55KW
M2BAF250SMA4	55KW
M2BAF250SMA6	37KW

High Power (90-355KW)

Product Model	Rated Power	Core Application Scenarios
M2BAF280SMD4	75KW	Heavy-Duty Automated Production Lines, Large Lithium Battery Extruders/Mixers, Industrial Pumps/Fans, Port Logistics Equipment
M2BAF280SME4	90KW
M2BAF280SMD6	45KW
M2BAF280SME6	55KW
M2BAF315SMA2	110KW
M2BAF315SMA4	110KW
M2BAF315SMB4	132KW
M2BAF315SMC4	160KW
M2BAF315SMA6	75KW
M2BAF315SMB6	90KW
M2BAF315SMC6	110KW
M2BAF355SMD4	220KW
M2BAF355SMC4	355KW
M2BAF355SMA6	160KW

Application Scenarios

CNC Machinery & Precision Tools: Ideal for CNC lathes, milling machines, and machining centers, ensuring high-precision positioning and stable operation during complex cutting processes
Lithium Battery Production Lines: Suited for extruders, mixers, and cell assembly equipment, providing consistent torque for high-speed, high-accuracy production workflows
HVAC & Water Treatment Systems: Applied to water pumps, blowers, and ventilation fans, delivering energy-efficient operation to meet the continuous running demands of building and industrial utilities
Textile & Sewing Equipment: Compatible with industrial sewing machines and textile machinery, supporting high-frequency start-stop cycles with low noise and minimal vibration
Heavy-Duty Automated Production Lines: Fits conveyor systems, packaging machinery, and material handling equipment in automotive, electronics, and logistics industries, adapting to heavy-load working conditions

Common Questions

What voltage and frequency does the ABB M2BAF servo motor support? Is it compatible with global power grids?

It supports 220V/380V/400V/480V three-phase voltage and 50Hz/60Hz frequency, fully matching the power grids of Europe, America, Southeast Asia and other mainstream markets. No additional voltage conversion device is required.

Can the IP55 protection level really adapt to dusty and humid industrial environments?

Yes. The fully sealed structure prevents dust and splash water from entering the motor interior, which is suitable for workshops such as metal processing, lithium battery production and textile printing and dyeing. It is not recommended for long-term soaking in water.

Does the ISO certification of the motor meet the import requirements of the EU and North America?

It meets the requirements. The product has passed ISO 9001 quality certification and CE certification. It can be directly imported into the EU and North American markets without additional compliance testing.

What is the service life of the motor? How to maintain it daily?

The design service life is 15-20 years under normal working conditions. Daily maintenance only needs to check the connection terminals regularly, remove surface dust, and no need to disassemble the motor for maintenance.

Can it be matched with non-ABB servo drives? Will there be compatibility problems?

It can be matched with mainstream drives on the market (such as Siemens, Mitsubishi). The standard Modbus and CANopen communication protocols are supported, and the compatibility is good. It is recommended to debug the parameters according to the drive manual during installation.

How to solve the problem of motor overheating during high-load operation?

The motor is equipped with a built-in thermal protector. When overheating occurs, it will automatically power off to protect itself. In addition, ensure that the installation environment has good ventilation, and avoid covering the motor heat dissipation fins.

What is the delivery time for overseas orders?

The stock models can be delivered within 3-10 working days. For customized models, the delivery time is 30-45 working days. The goods can be delivered to the designated port by sea or air.
