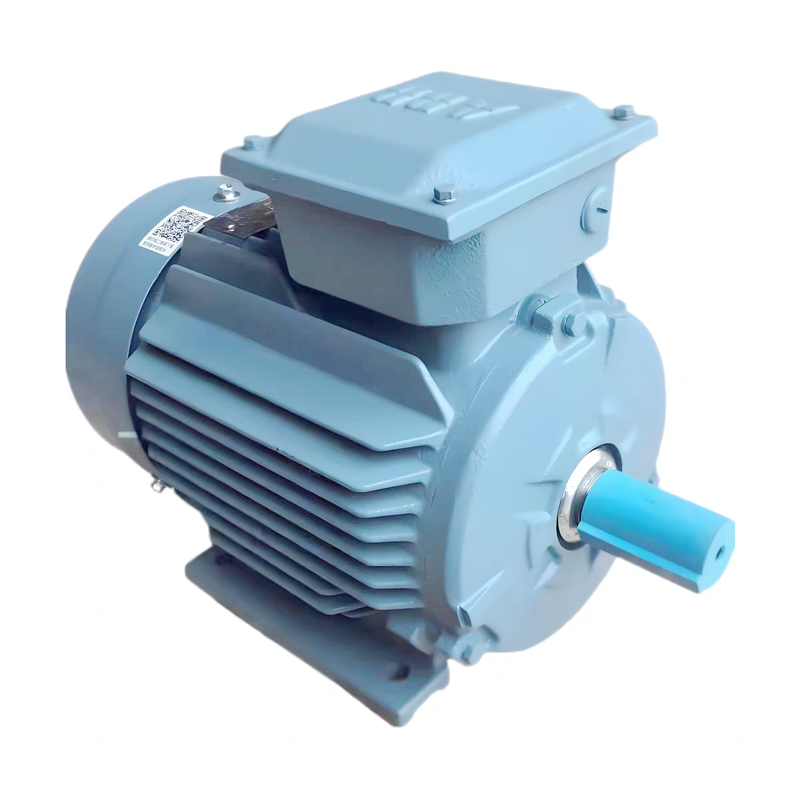

M3BP IE3 Servo Motor: High Efficiency for Ports & Marine Applications

Name: M3BP IE3 Servo Motor: High Efficiency for Ports & Marine Applications
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: M3BP
Price: 39.00 USD
Availability: InStock

Product Details

Place of Origin: Swedish

Certification: CE、UL、CSA 、ATEX、ABS、CCS、DNV

Model Number: M3BP

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $67 - $12,000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            ABB M3BP IE3 servo motor, high efficiency servo motor, marine application servo motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

M3BP IE3 Servo Motor: High Efficiency for Ports & Marine Applications

M3BP IE3 Servo Motor, with a power range of 0.75 kW to 315 kW, is a high-efficiency drive solution tailored for ports and marine applications. Adhering to the global IE3 ultra-high efficiency standard, it cuts energy consumption by 10%-15% and slashes long-term operational costs. Built with robust corrosion-resistant construction and IP55 protection, it withstands harsh conditions like high salt spray, heavy loads and frequent start-stops, ideal for port cranes, ship deck machinery, pumps and fans. Compliant with EU MEPS and IMO mandates, it delivers reliable, sustainable performance backed by ABB's global service network.

Key Features & Advantages

Ultra-High Energy Efficiency: Complies with global IE3 premium efficiency standard with maximum full-load efficiency of 96.2%. Reduces energy consumption by 10%-15% while meeting international efficiency regulations including EU MEPS and IMO requirements.
Wide Power Range & Robust Construction: Covers power span of 0.75 kW to 315 kW. Features IP55 protection rating, anti-corrosion coating and Class F insulation for reliable operation in harsh conditions including high salt spray, humidity and heavy dust.
Stable & High-Performance Operation: Delivers high starting torque and fast response speed, supporting frequent start-stop and forward-reverse switching. Low-vibration and low-noise design ensures continuous stable operation of port cranes and deck machinery.
Global Compliance & Easy Integration: Certified with CE and CCS international standards, compatible with 50/60Hz power grids worldwide. Works seamlessly with mainstream brand drives for direct deployment in overseas projects.
Comprehensive Global Service Support: Backed by ABB's global service network, providing localized technical support and spare parts supply to minimize equipment downtime.

Core Technical Parameters

Parameter Category	Specifications
Basic Information	Type: Three-phase squirrel-cage asynchronous servo motor; Series: M3BP; Efficiency Class: IE3 Ultra-high Efficiency (IE4 optional for some models)
Power Range	0.09 kW - 1000 kW (Regular stock: 0.75 kW - 315 kW; Customizable for 500 kW and above)
Voltage & Frequency	Voltage: 220 V - 690 V (Compatible with 380 V/400 V/415 V/460 V/500 V); Frequency: 50 Hz/60 Hz, VFD supports 0 - 100 Hz
Pole Number & Speed	Pole Number: 2P/4P/6P (Regular), 8P/10P/12P (Customizable); Speed: Approximately 1480 - 1491 r/min for 4-pole at 50 Hz, 1783 - 1792 r/min for 4-pole at 60 Hz
Efficiency Performance	Full-load Efficiency: Up to 96.7% (IE3 class); Partial-load (75%) Efficiency: Up to 96.8%; 10%-15% more energy-efficient than traditional motors
Protection & Insulation	Protection Class: IP55 (Standard), IP56/IP65/IP66 optional; Insulation Class: Class F (155℃ temperature rise allowed)
Cooling Method	Standard: IC411 Self-ventilation; Optional: IC416 (Forced ventilation), IC418 (Independent cooling)
Frame & Material	Frame Size: H71 - H450; Frame Material: Cast iron; Body Length: S (Short)/M (Medium)/L (Long) optional
Mounting Method	Standard: IMB5/IM3001 (With base feet/flange end cap); Supports horizontal, vertical and other mounting forms
Operating Characteristics	Duty Cycle: S1 (Continuous operation); Starting Torque: High, supports frequent start-stop and forward-reverse rotation; Speed Regulation Range: 5 - 100 Hz (VFD mode), maintains 85% rated torque at low frequency
Environmental Adaptability	Ambient Temperature: -15℃ - 40℃; Altitude: ≤1000 m; Resistant to harsh working conditions such as high salt spray, heavy dust and high temperature
Certification Standards	CE, CCS, BV, ABS, KR, etc.; Complies with international regulatory requirements such as EU MEPS and IMO

Overseas Selling Product Model List

2-Pole Motors (Speed: 3000rpm@50Hz / 3600rpm@60Hz)

Mounting Type	Model	Power	Overseas Order Number
B3 (Horizontal)	M3BP71MC2	0.37kW	3GBP071330-ASL
	M3BP71ME2	0.55kW	3GBP071350-ASL
	M3BP80MC2	0.75kW	3GBP081330-ASL
	M3BP80ME2	1.1kW	3GBP081350-ASL
	M3BP90SLA2	1.5kW	3GBP091010-ASL
	M3BP90LA2	2.2kW	3GBP091510-ASL
	M3BP100MLA2	3kW	3GBP101410-ASL
	M3BP112ME2	4kW	3GBP111350-ADL
	M3BP132SMC2	5.5kW	3GBP131230-ADL
	M3BP132SME2	7.5kW	3GBP131250-ADL
	M3BP160MLA2	11kW	3GBP161051-ADK
	M3BP160MLB2	15kW	3GBP161052-ADK
	M3BP160MLC2	18.5kW	3GBP161053-ADK
	M3BP180MLA2	22kW	3GBP181051-ADK
	M3BP200MLA2	30kW	3GBP201051-ADK
	M3BP200MLB2	37kW	3GBP201052-ADK

4-Pole Motors (Speed: 1500rpm@50Hz / 1800rpm@60Hz)

Mounting Type	Model	Power	Overseas Order Number
B3 (Horizontal)	M3BP71MD4	0.25kW	3GBP072340-ASL
	M3BP71MLE4	0.37kW	3GBP072450-ASL
	M3BP80MLC4	0.55kW	3GBP082430-ASL
	M3BP80MLE4	0.75kW	3GBP082450-ASL
	M3BP90LA4	1.1kW	3GBP092510-ASL
	M3BP90LB4	1.5kW	3GBP092520-ASL
	M3BP100LA4	2.2kW	3GBP102510-ASL
	M3BP100MLB4	3kW	3GBP102420-ASL
	M3BP112ME4	4kW	3GBP112350-ADL
	M3BP132SMB4	5.5kW	3GBP132220-ADL

Application Fields

Port Handling Equipment: Port container cranes, gantry cranes, straddle carriers, and conveyor belt systems, providing stable power for heavy-load and frequent start-stop operations.
Marine Deck Machinery: Ship deck winches, anchor windlasses, steering gear, and cargo lifting systems, withstanding high salt spray and harsh marine environments.
Coastal Industrial Pumps & Fans: Seawater circulation pumps, ventilation fans for port terminals, and cooling fans for marine power systems, ensuring energy-efficient and continuous operation.
Metallurgical & Heavy Industry Auxiliary Equipment: Auxiliary drive systems for metallurgical rolling mills and heavy machinery, adapting to high-temperature and high-dust working conditions.
General Industrial Automation Lines: High-precision material handling systems, packaging lines, and assembly equipment in manufacturing plants, compatible with mainstream PLC and servo drive systems.

Common Q&A for Overseas Markets

Q: The motor is prone to rust in high-salt-spray port environments. How to solve this?

A: Prioritize models with anti-corrosion coating. Rinse the motor surface with fresh water regularly, and wrap extra waterproof tape around the junction box seals to prevent salt spray from seeping in.

Q: Frequent alarms occur during startup. What is the most likely cause?

A: First, check if the power supply voltage is stable and the phase sequence is correct. Then confirm if the load is overrated--reserve 10%-20% power margin. If alarms persist, inspect whether the encoder wiring is loose.

Q: What additional certification documents are required for exporting to Europe/Middle East?

A: For Europe, prepare CE certification and MEPS energy efficiency report. For the Middle East, SASO certification is needed for Saudi Arabia, and ESMA certification for the UAE. Remember to prepare Arabic versions of product nameplates and operation instructions to avoid customs clearance delays.

Q: What to do if the motor overheats during operation?

A: First, check if the cooling fan is blocked by dust. If overheating persists after cleaning, the load may be too heavy or the mechanical alignment is poor. Adjust the load or correct the installation accuracy.

Q: Is it compatible with locally purchased drives?

A: It is compatible with mainstream brand drives. Before wiring, confirm that the drive parameters match the motor's rated voltage (220-690V) and frequency (50/60Hz), and complete parameter auto-tuning according to the manual.

Q: Bearings wear out easily. Are there any ways to extend their service life?

A: Avoid long-term overload operation of the motor and check the lubrication status regularly. In scenarios with shaft current, install conductive brushes to reduce bearing electric erosion and wear.

Q: Overseas maintenance is inconvenient. How to handle faults quickly?

A: Contact the local ABB service outlet first, providing the motor serial number and fault symptoms. Simple faults (such as loose wiring or damaged fans) can be fixed by replacing parts yourself according to the manual; complex issues can be resolved through the brand's global warranty service.
