Product Details
Place of Origin: Swedish
Certification: ATEX、IECEx、CE、DNV、UKCA、INMETRO 、ABS、BV、CCS、GL、KR、LR、NK、RINA
Model Number: M2BAX
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $40 - $8000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Servo Drive Motor
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Servo Drive Motor
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Parameter Category | Specific Parameters | Description |
|---|---|---|

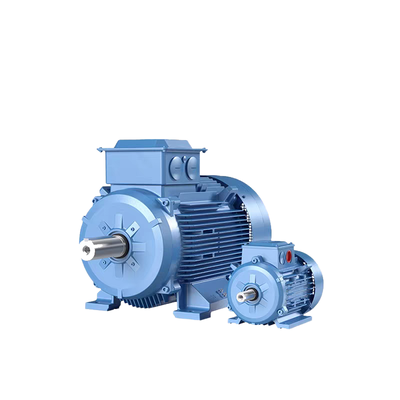

| Electrical Parameters | Motor Type | Totally Enclosed Three-Phase Squirrel-Cage Asynchronous Servo Motor |
| Electrical Parameters | Efficiency Class | IE2, IE3 (Complies with IEC, EN International Standards and China GB Standards) |
| Electrical Parameters | Rated Voltage | Wide Voltage Range of 220-690V, Compatible with Various Voltage Specifications Such as 380V, 400V, 440V, 460V, 500V, 575V |
| Electrical Parameters | Rated Frequency | Dual Frequency Compatibility of 50/60Hz, Universal for Global Power Grids |
| Electrical Parameters | Power Range | 2P: 0.37-355kW; 4P: 0.25-355kW; 6P: 0.18-250kW; 8P: 0.12-200kW |
| Electrical Parameters | Insulation Class/Temperature Rise Class | Insulation Class F, Temperature Rise Class B; Stator Winding Standard Equipped with 3 PCS 150℃ PTC Thermistors |
| Electrical Parameters | Duty Cycle | S1 (Continuous Duty Cycle) |
| Mechanical Parameters | Frame Specification | Cast Iron Frame, Frame Size H71-H355 |
| Mechanical Parameters | Mounting Method | Supports Multiple Mounting Methods Such as B3 (Foot Mounting), B5 (Flange Mounting), B35 (Foot + Flange Mounting), B14 (IM Codes Include IM1001, Etc.) |
| Mechanical Parameters | Protection Level | Standard IP55 (Dust and Water Resistant), Optional IP56/IP65 High Protection Version |
| Mechanical Parameters | Cooling Method | Standard IC411 (Self-Ventilated Cooling), Customizable IC416/IC418 Cooling Solutions for Special Scenarios Such as High Altitude |
| Mechanical Parameters | Bearing Specification | Models with Center Height 71-250mm Standard Equipped with Lifetime Maintenance-Free Bearings (E.g., 6204-2Z/C3, 6205-2Z/C3, Etc.); Models with 280-355mm Equipped with Grease Nipples |
| Mechanical Parameters | Terminal Box Position | Default Top of D-End, Flexible Arrangement Available |
| Mechanical Parameters | Rotation Direction | Bidirectional Rotation |
| Environmental Parameters | Applicable Ambient Temperature | -20℃~40℃ |
| Environmental Parameters | Applicable Altitude | Standard Model Suitable for Below 1000m; For Above 1000m, Power Conversion According to Manual or Custom Cooling Solution Required |
| Environmental Parameters | Applicable Environment | Can Handle Conventional Industrial Dust and Humid Environments; Custom Protection Upgrade Available for Special Harsh Environments |
| General Parameters | Quality Certification | Certified by ISO 9001 Quality Management System and ISO 14000 Environmental Standards, Complies with EU Directives and Multiple National Regulations |
| General Parameters | Country of Origin | China (CN), Poland (PL), Etc.; Production Bases Located in Multiple Regions Globally |
| Model | Rated Power (kW) | Rated Speed (rpm) | Mounting Type (IM Code) | Protection Level | Efficiency Class |
|---|---|---|---|---|---|
| M2BAX71MB2 | 0.37 | 2800 | IM1001 (B3) | IP55 | IE3 |
| M2BAX80MA2 | 0.75 | 2800 | IM1001 (B3) | IP55 | IE3 |
| M2BAX90SA2 | 1.5 | 2800 | IM1001 (B3) | IP55 | IE3 |
| M2BAX90LA2 | 2.2 | 2800 | IM1001 (B3) | IP55 | IE3 |
| M2BAX100LA2 | 3.0 | 2800 | IM1001 (B3) | IP55 | IE3 |
| M2BAX112MA2 | 4.0 | 2800 | IM1001 (B3) | IP55 | IE3 |
| M2BAX132SA2 | 5.5 | 2900 | IM1001 (B3) | IP55 | IE3 |
| M2BAX132MA2 | 7.5 | 2900 | IM1001 (B3) | IP55 | IE3 |
| M2BAX160MA2 | 15 | 2900 | IM1001 (B3) | IP55 | IE3 |
| M2BAX160LA2 | 18.5 | 2900 | IM1001 (B3) | IP55 | IE3 |
| M2BAX71MB4 | 0.25 | 1400 | IM1001 (B3) | IP55 | IE3 |
| M2BAX80MA4 | 0.55 | 1400 | IM1001 (B3) | IP55 | IE3 |
| M2BAX90SA4 | 0.75 | 1400 | IM1001 (B3) | IP55 | IE3 |
| M2BAX90LA4 | 1.5 | 1440 | IM1001 (B3) | IP55 | IE3 |
| M2BAX100LA4 | 3.0 | 1440 | IM1001 (B3) | IP55 | IE3 |
| M2BAX112MA4 | 4.0 | 1440 | IM1001 (B3) | IP55 | IE3 |
| M2BAX132SA4 | 5.5 | 1450 | IM1001 (B3) | IP55 | IE3 |
| M2BAX132MA4 | 7.5 | 1450 | IM1001 (B3) | IP55 | IE3 |
| M2BAX160MA4 | 15 | 1480 | IM1001 (B3) | IP55 | IE3 |
| M2BAX160LA4 | 18.5 | 1480 | IM1001 (B3) | IP55 | IE3 |
| M2BAX80MA6 | 0.18 | 930 | IM1001 (B3) | IP55 | IE3 |
| M2BAX90SA6 | 0.37 | 930 | IM1001 (B3) | IP55 | IE3 |
| M2BAX100LA6 | 1.5 | 960 | IM1001 (B3) | IP55 | IE3 |
| M2BAX112MA6 | 2.2 | 960 | IM1001 (B3) | IP55 | IE3 |
| M2BAX132SA6 | 3.0 | 970 | IM1001 (B3) | IP55 | IE3 |
| M2BAX80MA8 | 0.12 | 710 | IM1001 (B3) | IP55 | IE3 |
| M2BAX90SA8 | 0.25 | 710 | IM1001 (B3) | IP55 | IE3 |
| M2BAX100LA8 | 0.75 | 740 | IM1001 (B3) | IP55 | IE3 |
| M2BAX112MA8 | 1.1 | 740 | IM1001 (B3) | IP55 | IE3 |
| M2BAX132SA8 | 2.2 | 740 | IM1001 (B3) | IP55 | IE3 |
