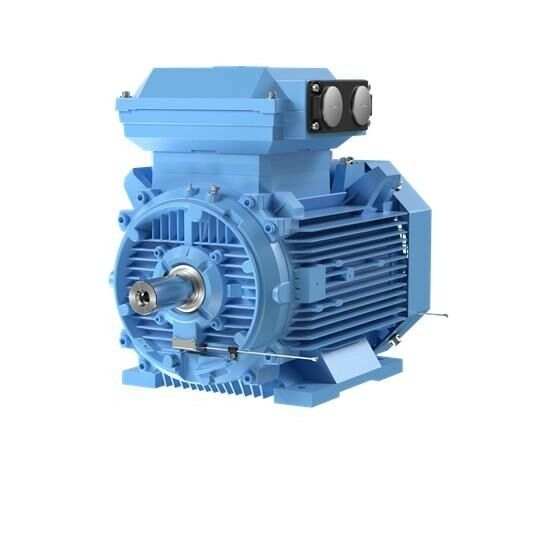

M3KP Flameproof Servo Motor - ATEX Certified for Explosive Areas

Name: M3KP Flameproof Servo Motor - ATEX Certified for Explosive Areas
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: M3KP
Price: 3,250.00 USD
Availability: InStock

Product Details

Place of Origin: Swedish

Certification: ATEX 、IECEx 、INMETRO、DNV GL 、

Model Number: M3KP

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $500 - $6000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            ABB M3KP flameproof servo motor, ATEX certified servo drive motor, explosion proof servo motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

M3KP Flameproof Servo Motor - ATEX Certified for Explosive Areas

The M3KP Flameproof Servo Motor is a robust, ATEX-certified solution engineered specifically for explosive environments, from petrochemical plants to mining operations. Boasting IE3 premium efficiency, IP66 dust and water protection, and a power range of 0.55-950kW, it delivers high torque, precise speed control, and reliable performance even in harsh conditions. Compliant with IEC and ATEX standards, this servo motor ensures operational safety while cutting energy costs, making it the trusted choice for industrial automation systems that demand uncompromising durability and regulatory adherence.

Core Features & Competitive Advantages

Core Product Features

Flameproof Safety Design: Adopts Ex db/Ex dbeb explosion-proof structure with cast iron housing, which can withstand internal explosion pressure and prevent flame propagation, suitable for Zone 1 explosive hazardous areas.
Multiple International Certifications: Certified by ATEX, IECEx, INMETRO and other authoritative bodies, compliant with IEC, EN standards and EU MEPS regulations, applicable to industrial scenarios in multiple countries worldwide.
Wide-Range Adaptive Performance Parameters: Power range covers 0.55-950kW, frame size 80-450, supports 2/4/6/8 pole configurations, compatible with 220-690V voltage and 50/60Hz dual frequency.
High Protection & Durable Structure: Protection class up to IP55-IP66 for dust and water resistance; Class F insulation with Class B temperature rise design, suitable for wide temperature environment from -15°C to 40°C; anti-corrosion coating complies with ISO 12944-5 standard.
Flexible Control & Installation: Supports multiple drive methods including Direct-On-Line (DOL), Variable Frequency Drive (VFD) and Soft Starter (SS); compatible with horizontal/vertical installation; terminal box design simplifies wiring.

Competitive Advantages

Safety & Compliance Without Risk: Meets the requirements of gas group IIB/IIC and temperature class T4 (T5/T6 optional), eliminates explosion risks from the source, ideal for high-risk industries such as petroleum, chemical engineering and mining.
High Efficiency & Energy Saving to Reduce Costs: Achieves IE2-IE4 energy efficiency classes, with some models boasting over 85% full-load efficiency; combined with IC411 self-ventilation or IC416 forced ventilation design, significantly cuts long-term energy consumption.
Stable Operation in Harsh Working Conditions: Equipped with deep groove ball bearings and Totally Enclosed Fan-Cooled (TEFC) structure, resistant to dust, humidity, vibration and other severe conditions, reducing downtime and maintenance frequency.
Strong Global Compatibility: Fully compatible with ABB ACS series inverters, supporting vector control and scalar control; provides localized certification and technical support, lowering the difficulty of cross-border project implementation.
Long Service Life & Low Total Cost of Ownership: High-quality cast iron body and precision manufacturing process, coupled with PTC thermistor overheat protection, extend service life and reduce replacement and maintenance costs.

Core Technical Parameters

Parameter Category	Technical Specifications
Basic Specifications	Power Range: 0.55-950kW Frame Size: 80-450 Pole Number: 2/4/6/8 Poles Rated Speed: 750-3000rpm
Electrical Parameters	Rated Voltage: 220-690V AC Frequency: 50/60Hz Insulation Class: Class F (Assessed by Class B Temperature Rise) Energy Efficiency Class: IE2-IE4
Explosion-Proof & Certifications	Explosion-Proof Structure: Ex db/Ex dbeb Certification Standards: ATEX, IECEx, INMETRO Applicable Area: Zone 1 (Gas Explosion Hazard Area) Gas Group: IIB/IIC Temperature Class: T4 (T5/T6 Optional)
Protection & Environment	Protection Class: IP55 (Standard)/IP66 (Optional) Operating Temperature: -15°C~40°C (Customization Required for Beyond Range) Corrosion Resistance Class: ISO 12944-5 C3/C4 Cooling Method: IC411 (Self-Ventilation)/IC416 (Forced Ventilation)
Mechanical Parameters	Mounting Type: B3 (Horizontal)/B5 (Vertical)/B35 (Horizontal & Vertical) Bearing Type: Deep Groove Ball Bearings (Lifetime Lubrication Optional) Shaft Extension Type: Cylindrical/Tapered Protective Coating: Epoxy Resin Spraying
Control Characteristics	Compatible Control Modes: V/f Control, Vector Control Overload Capacity: 150% Rated Load for 60s; 200% Rated Load for 3s Built-in Protection: PTC Thermistor Overheat Protection

Overseas Selling Models

Product Model	ABB Catalog Number	Key Parameters (Power/Poles/Voltage)	Mounting Type	Applicable Regions
M3KP 80MA2	-	0.75kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 80MB2	-	1.1kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 90SLA2	-	1.5kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 90SLC2	-	2.2kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 100LA2	-	3kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 112MB2	-	4kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 132SMB2	-	7.5kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 132SMD6	3GKP133240-ADL/BDL	5.5kW, 6 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)/IMB5 (Flange)	Europe, Southeast Asia
M3KP 132SMG4	3GKP132270-ADK	7.5kW, 4 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Europe, Americas
M3KP 160MLA2	-	15kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 160MLB2	-	18.5kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 180MLA2	3GKP312210	22kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Europe, Asia
M3KP 200MLA2	-	30kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 225SMB2	-	45kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 250SMA2	-	55kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 280SMA2	3GKP352420	75kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Europe, Americas
M3KP 315SMA2	3GKP402510	110kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Europe, Asia
M3KP 315SMC2	-	132kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Global
M3KP 355SMA8	3GKP352230	160kW, 8 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Europe, Middle East
M3KP 355SMC2	3GKP452520	200kW, 2 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Europe, Americas
M3KP 400LC6	3GKP282220	250kW, 6 Poles, 400/690V 50/60Hz	IMB3 (Horizontal)	Europe, Africa

Application Scenarios

Petrochemical Industry: Suitable for driving pumps, fans, and compressors in explosive hazardous areas such as crude oil extraction, refining, and chemical raw material transportation. It fully meets explosion-proof compliance requirements, ensuring safe and stable operation in environments with flammable and explosive media.
Mining Industry: Compatible with underground mine ventilation systems, ore conveying equipment, and crushing & screening machinery. Its robust structure and high protection performance enable stable operation even in harsh conditions with high dust and humidity.
Natural Gas Processing Industry: Applied to motor drives in natural gas purification, liquefaction, and transportation processes. Compliant with ATEX Zone 1 explosion-proof standards, it effectively avoids explosion risks caused by gas leakage, providing reliable power support for the entire natural gas processing chain.
Pharmaceutical & Chemical Industry: Ideal for equipment like flammable and explosive solvent mixing and reactor stirring. It features precise speed control to meet the strict process requirements of pharmaceutical and fine chemical production, while the explosion-proof design eliminates potential safety hazards in the production environment.
Grain & Oil Processing Industry: Matches delivery pumps and mixing devices in oil extraction and solvent recovery sections. The explosion-proof structure addresses the safety risks posed by organic solvent volatilization, ensuring continuous and safe production in grain and oil processing workshops.
Offshore Platform Engineering: Serves various auxiliary equipment on offshore oil and gas extraction platforms. With excellent salt spray corrosion resistance, it adapts well to the high-humidity and strong-corrosion marine environment, ensuring long-term reliable operation in offshore working conditions.

Frequently Asked Questions

Q1: Is the ABB M3KP motor compatible with non-ABB inverters?

A1: Yes, it works with most standard inverters (VFDs) on the market, as long as the voltage and frequency match its parameters (220-690V, 50/60Hz).

Q2: What certifications does this motor have for European markets?

A2: It's ATEX and IECEx certified, fully compliant with EU EN standards, so it can be directly used in EU countries.

Q3: Can it operate in high-temperature or low-temperature environments?

A3: Normally, it's suitable for -15°C to 40°C. For extreme temps (above 40°C or below -15°C), we recommend customizing the insulation and cooling system.

Q4: How long is the delivery time for bulk orders?

A4: Standard models take 2-4 weeks. Customized ones (special power/pole configuration) may take 6-8 weeks, depending on the order quantity.

Q5: Does it come with a warranty? What's covered?

A5: 1-year global warranty, covering manufacturing defects. Damage from improper installation, misuse or harsh environments isn't included.
