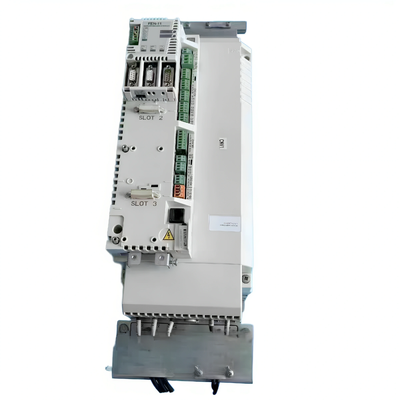

ACSM1 Servo Drive: High Precision Motion Control for Demanding Machinery

Name: ACSM1 Servo Drive: High Precision Motion Control for Demanding Machinery
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: ACSM1
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: Swedish

Certification: TUV、UL、cUL、CSA、Ecodesign Directive 2009/125/E、Profinet、EtherCAT

Model Number: ACSM1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $800 - $8000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            ABB ACSM1 servo drive, high precision servo drive, motion control servo motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

ACSM1 Servo Drive: High Precision Motion Control for Demanding Machinery

Tailored for high-precision industrial automation needs, the ACSM1 series servo drives leverage advanced Direct Torque Control (DTC) technology to easily handle demanding scenarios with variable loads and complex operating conditions, delivering millisecond-level response speeds, precise positioning accuracy, and smooth torque output. Covering a wide power range from 0.75kW to 355kW, they are fully compatible with both synchronous and induction motors, flexibly adapting to diverse applications such as precision manufacturing and heavy-duty material handling. With stable and reliable operation, these drives effectively reduce downtime and maintenance costs while optimizing energy efficiency, making them a cost-effective choice for industrial users looking to boost the productivity of their core equipment.

Core Product Features

Powerful Control Performance: Equipped with advanced Direct Torque Control (DTC) technology, it updates motor control parameters 40,000 times per second, with torque response time less than 2ms and static speed control accuracy up to ±0.5%. Supporting speed, torque and position control modes, it is compatible with synchronous motors, induction motors and high-torque motors, and adapts to both open-loop and closed-loop control systems.
Flexible Adaptability: Covering a wide power range from 0.75kW to 355kW, it offers multiple mounting options including DIN rail, wall-mounted and side-by-side installation, as well as cooling solutions like air cooling and water cooling. It comes with rich communication interfaces, compatible with fieldbus, Ethernet and real-time synchronous communication, enabling multi-axis synchronous control via daisy-chain connection.
Compact Modular Design: Adopting a modular structure with separated power unit, control unit and storage unit, it maintains a compact size for both single-drive and multi-drive systems, and supports common DC bus connection. Built-in brake chopper, with optional regenerative supply module to realize brake energy recovery and reuse.
Safety & Easy Configuration: Standard with Functional Safety (STO) module and emergency power interface, supporting UPS or backup battery power supply to ensure operation and maintenance safety. Equipped with an independent storage unit for quick parameter copy, combined with DriveStudio programming tool and 7-segment digital display to simplify commissioning and maintenance processes.

Core Competitive Advantages

High Energy Efficiency: Regenerative supply technology feeds braking power back to the power grid, reducing energy waste, and the flux optimization function further cuts down energy consumption. No need for additional brake resistors, which saves costs and reduces installation space. Professional filter modules also minimize grid pollution.
Stability & Reliability: Circuit boards come with conformal coating as standard, adapting to harsh industrial environments and effectively reducing downtime risks. Compliant with multiple global standards (CE, UL, cUL, etc.), it supports plug-in I/O expansion, allowing flexible functional upgrades to meet diverse application requirements.
Cost Optimization: A single drive can control multiple motor types, reducing equipment procurement and inventory costs. Modular design and common DC bus configuration cut down cable consumption and line current, simplify system structure, and shorten design, installation and commissioning cycles.
Wide Application Compatibility: Pre-programmed application solutions are available for various industries including plastics & rubber, printing, material handling, textiles, food & beverage, etc. Supporting function block programming expansion, it can develop customized solutions based on specific needs, adapting to diverse demands from precision manufacturing to heavy-duty equipment.

Core Technical Parameters

Parameter Category	Specific Parameters	Description
Basic Information	Model Series	ACSM1-04 (380-480V AC); Power Range: 0.75kW - 355kW (1HP - 450HP)
Basic Information	Protection Class	IP20 (UL Open Type, Suitable for Cabinet Installation)
Basic Information	Cooling Method	Air Cooling (Cold Plate Cooling Supported for Some Models)
Power Supply Specifications	Input Voltage	Three-phase 380-480V AC, Allowable Fluctuation Range: +10%/-15%
Power Supply Specifications	Input Frequency	50/60Hz, Allowable Fluctuation Range: ±5%
Power Supply Specifications	DC Bus Voltage	548-721V DC (Varies with Input Voltage)
Output Performance	Rated Output Current	2.5A - 635A (Depends on Model)
Output Performance	Output Frequency	0-500Hz
Output Performance	Switching Frequency	2-16kHz (Default 4kHz; Derating Required Above 4kHz)
Output Performance	Control Mode	Direct Torque Control (DTC); Supports Sensorless Vector Control, Vector Control with Feedback; Speed/Torque/Position Control Achievable
Motor Compatibility	Compatible Motor Types	Synchronous Motors, Induction Motors, High-Torque Motors (With/Without Feedback Device Supported)
Motor Compatibility	Feedback Interface	Supports Incremental Encoders, Resolvers, etc.
Communication & I/O	Digital Inputs	6 Channels of DI, 3 Channels of DI/O
Communication & I/O	Analog Inputs	2 Channels of AI (Current/Voltage Selectable)
Communication & I/O	Analog Outputs	2 Channels of AO
Communication & I/O	Relay Outputs	1 Channel
Communication & I/O	Communication Interfaces	Standard RS485 (Modbus RTU); Supports CANopen, Profibus, DeviceNet, Ethernet, etc.; Expandable via F-Series Option Cards
Safety Functions	Safety Rating	Complies with SIL 3 (IEC 61508); Supports Safe Torque Off (STO, EN 61800-5-2)
Environmental Conditions	Operating Temperature	-10℃ to +55℃ (Derating Required Above 40℃)
Environmental Conditions	Relative Humidity	≤95% (No Condensation)
Environmental Conditions	Installation Altitude	≤4000m (Derating Required Above 1000m)
Environmental Conditions	EMC Standards	Complies with EN 61000-3-2/-3-12/-3-4, etc.
Other Functions	Brake Unit	Standard Built-in Brake Chopper (External Brake Resistor Required for Some Models)
Other Functions	Parameter Storage	Supports Independent Storage Unit for Quick Parameter Copy/Import

ACSM1 Series Overseas Product Models & Compatible Motors

Power Range	Overseas Product Models	Compatible Motors	Additional Notes
0.75kW - 45kW	ACSM1-04CS-024A-4	1. ABB BSM series AC servo motors (synchronous, with incremental encoder/resolver/Endat/Hiperface feedback) 2. General-purpose induction motors 3. Low-power high-torque motors (open-loop/closed-loop optional)	IP20 protection class, suitable for cabinet installation; 3-phase 380-480V AC input
0.75kW - 45kW	ACSM1-04CS-046A-4	1. ABB BSM series AC servo motors (synchronous) 2. Asynchronous servo motors 3. Medium-torque induction motors (with/without feedback devices)	Built-in brake chopper; compatible with FEN series feedback modules for various sensor types
0.75kW - 45kW	ACSM1-04CS-060A-4	1. ABB BSM series AC servo motors (synchronous, peak torque up to 4× continuous rating) 2. High-efficiency induction motors 3. Small-sized high-torque motors	Supports Profibus/CANopen/DeviceNet via option cards; suitable for precision manufacturing
0.75kW - 45kW	ACSM1-04CS-073A-4	1. ABB BSM series AC servo motors (synchronous) 2. Asynchronous servo motors 3. General industrial induction motors	Air cooling standard; compatible with common DC bus configuration for multi-drive systems
0.75kW - 45kW	ACSM1-04CS-090A-4	1. ABB BSM series AC servo motors (synchronous) 2. High-torque induction motors 3. Asynchronous motors for material handling applications	Complies with CE/UL/cUL standards; suitable for packaging and printing machinery
0.75kW - 45kW	ACSM1-04PL-024A-4	1. Low-power synchronous servo motors 2. General-purpose induction motors 3. Small high-torque motors (closed-loop control recommended)	Compact design for DIN rail installation; ideal for small-scale automation equipment
45kW - 355kW	ACSM1-04LM-110A-4	1. Large-power ABB BSM series servo motors (synchronous) 2. High-power induction motors 3. Heavy-duty high-torque motors for industrial machinery	3-phase 380-480V AC input; supports regenerative supply module for energy recovery
45kW - 355kW	ACSM1-04LM-135A-4	1. Synchronous servo motors (with high-precision feedback devices) 2. Asynchronous induction motors for heavy loads 3. High-torque motors for plastics/rubber machinery	Cold plate cooling optional; conformal coated circuit boards for harsh environments
45kW - 355kW	ACSM1-04LM-175A-4	1. Large inertia synchronous servo motors 2. High-power asynchronous motors 3. Heavy-duty high-torque motors for material handling	Supports daisy-chain connection for multi-axis synchronous control; compatible with Ethernet/IP via FENA-02 card
45kW - 355kW	ACSM1-04LM-210A-4	1. High-power synchronous servo motors 2. Industrial induction motors for heavy-duty applications 3. High-torque motors with resolver feedback	Built-in STO safety function (SIL 3); suitable for large-scale automated assembly lines
45kW - 355kW	ACSM1-04LM-260A-4	1. Ultra-high-power synchronous servo motors 2. Heavy-duty induction motors 3. High-torque motors for paper converting and textile machinery	Requires external brake resistor for some applications; supports common DC bus for multi-drive systems
Regenerative Supply Models	ACSM1-204XR-07A0-4	1. ABB BSM series servo motors (synchronous) 2. Asynchronous servo motors 3. High-torque motors with frequent braking requirements	Regenerative power feedback function; suitable for applications with high braking power duty cycles
Regenerative Supply Models	ACSM1-204XR-016A-4	1. Synchronous servo motors 2. High-efficiency induction motors 3. Medium-torque motors for continuous operation	Compatible with single/multi-drive configurations; reduces energy waste significantly
Regenerative Supply Models	ACSM1-204XR-031A-4	1. Large-power synchronous servo motors 2. Heavy-duty induction motors 3. High-torque motors for extruders and calenders	Conforms to IEC 61508 (SIL 3); suitable for plastics and rubber industry applications
Regenerative Supply Models	ACSM1-204XR-090A-4	1. Ultra-high-power synchronous servo motors 2. Heavy-duty high-torque motors 3. Asynchronous motors for large-scale material handling	High-power regenerative module; ideal for high-energy-consumption industrial equipment
Decentralized Control Models	ACSM1-04LS-110A-4 ACSM1-04LS-135A-4 ACSM1-04LS-175A-4 ACSM1-04LS-210A-4 ACSM1-04LS-260A-4	1. ABB BSM series servo motors (synchronous) 2. Asynchronous servo motors 3. General-purpose induction motors (with remote feedback devices)	Decentralized motion control design; suitable for distributed automation systems; supports long-distance motor connection

ACSM1 Series Servo Drive Application Scenarios

Precision Manufacturing & Machining: Ideal for CNC machine tools, laser cutting equipment, and precision machining centers, delivering high-accuracy positioning and fast response to ensure consistent product quality and machining efficiency.
Packaging & Printing Machinery: Perfect for high-speed packaging lines, label printers, and flexographic printing machines, providing stable torque output and synchronous control to meet the strict speed and position requirements of continuous production.
Material Handling & Logistics Systems: Suitable for automated conveyor belts, palletizers, and robotic handling equipment, supporting heavy-load start-stop and smooth speed regulation to optimize material transfer efficiency in warehouses and production workshops.
Plastics & Rubber Machinery: Applied to injection molding machines, extruders, and blow molding equipment, adapting to variable load conditions during the molding process and improving the precision and repeatability of product forming.
Textile & Garment Equipment: Used in spinning frames, looms, and fabric cutting machines, ensuring precise tension control and synchronous operation of multiple axes to enhance the quality of textiles and reduce material waste.
Food & Beverage Production Lines: Compatible with filling machines, capping machines, and sorting equipment, featuring stable and hygienic operation to meet the strict clean production standards of the food and beverage industry.
Automated Assembly Lines: Fits for automotive parts assembly, electronic component mounting, and consumer goods assembly lines, enabling multi-axis coordinated motion to boost assembly speed and consistency.

ACSM1 Series Servo Drive FAQs

Q: What should I do if the drive displays "F0001 Overcurrent" fault?

A: First check if the motor is overloaded, and shorten the acceleration time (refer to parameter group 25). Then verify the motor and cable connections, make sure the startup parameters (parameter group 99) match the motor nameplate. Never connect power factor correction capacitors or surge absorbers to the cable.

Q: Can it work with non-ABB servo motors?

A: Yes, it's compatible with synchronous, induction and high-torque motors. Just use the corresponding feedback module to adapt the feedback device (e.g., incremental encoder, resolver).

Q: How to copy configuration parameters quickly after installation?

A: Use the drive's built-in independent storage unit to copy the configured parameters directly. When replacing or adding new drives later, you can import the parameters instantly without repeated commissioning.

Q: What might cause the "Overheating" alarm?

A: First check if the ambient temperature is too high and if the cooling fan is faulty. Then inspect whether the heat sink is dusty, the airflow is unobstructed, and if the motor power matches the drive power.

Q: How long should I wait before touching internal components after power-off?

A: Wait at least 5 minutes after disconnecting the power supply to let the intermediate circuit capacitors discharge. If you're controlling a permanent magnet motor, disconnect the motor from the drive first, lock the motor shaft and confirm power-off.

Q: What communication methods are supported? Can it be expanded?

A: It comes with built-in fieldbus, Ethernet and real-time synchronous communication interfaces. You can also add F-series fieldbus option cards for expansion. Multi-axis systems can achieve synchronous control via daisy-chain connection.

Q: How to fix storage unit errors (e.g., 9003, 9004)?

A: First check if the storage unit is properly inserted; reattach it if it's loose. If the storage unit is damaged or the data is corrupted, replace it with a new one directly.

Q: Can it meet hygiene requirements for use in the food and beverage industry?

A: Yes, it runs stably and is suitable for clean production scenarios. When paired with stainless steel motors (e.g., ABB BSM series), it fully complies with the hygiene standards of the food and beverage industry.
