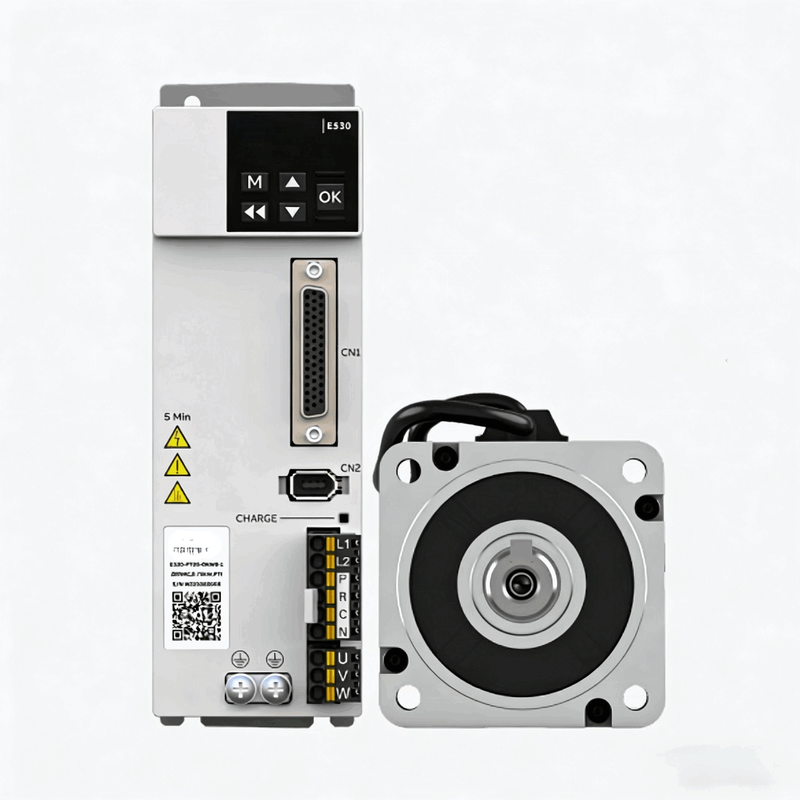

E530 Servo Drive - EtherCAT/Modbus TCP Support, 0.2-7.5kW Power Range

Name: E530 Servo Drive - EtherCAT/Modbus TCP Support, 0.2-7.5kW Power Range
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: E530
Price: 850.00 USD
Availability: InStock

Product Details

Place of Origin: Swedish

Certification: CE、UKCA、China RoHS、WEEE、ETG（

Model Number: E530

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $300 - $1400

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            ABB E530 servo drive with EtherCAT, ABB servo drive 0.2-7.5kW power range, Modbus TCP servo drive motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

E530 Servo Drive - EtherCAT/Modbus TCP Support, 0.2-7.5kW Power Range

E530 Servo Drive Overview

The E530 Servo Drive is a versatile, high-performance motion control solution designed for industrial automation applications including machine tools, packaging lines, material handling systems, and robotics. With a flexible power range of 0.2-7.5kW, it accommodates both light-load precision tasks and medium-load high-speed operations. The drive features built-in dual industrial communication protocols—EtherCAT and Modbus TCP—enabling plug-and-play integration with mainstream PLCs and motion controllers from Siemens, Mitsubishi, Allen-Bradley, and others. Certified to CE and UKCA standards, the ABB E530 delivers reliable performance in harsh industrial environments while its compact design optimizes cabinet space.

Core Features & Advantages

High-Precision & High-Efficiency Performance

2kHz high-speed loop response frequency with 4MHz pulse input and 23-bit high-resolution encoder for exceptional positioning accuracy
EtherCAT bus version achieves minimum 250μs communication cycle with ultra-low data transmission latency
300% overload capacity across full power range with maximum motor speed of 6000rpm
Supports position, torque, and speed control modes plus multiple sub-modes including PP/PV/PT

Flexible & Compatible System Integration

Power range 0.2-7.5kW with voltage support for single/three-phase 200-240V AC and three-phase 380-480V AC
Two communication versions: E530-PT (Modbus TCP/IP) and E530-EC (EtherCAT)
Seamless compatibility with DSM series servo motors and mainstream controllers
Extended functions including unlimited rotation and Touch probe with continuous firmware upgrades

Stable & Reliable Industrial Design

UV-coated PCB board, independent heat dissipation channel, and low-temperature-rise power components
Built-in braking resistors for models ≥0.75kW
Certified with CE, UKCA, RoHS, and other global standards
5 real-time alarm displays and 20 historical alarm records for efficient fault diagnosis

Convenient & User-Friendly Operation

Compact design allows side-by-side mounting to save control cabinet space
Standard Ethernet interface, dedicated debugging tools, and plug-in wiring design
Automatic motor data identification, one-click gain tuning, and vibration suppression technology
Pre-installed standard cables and comprehensive accessories

Core Technical Parameters

Parameter Category	Parameter Item	Technical Specifications
Basic Power Parameters	Power Range	0.2-7.5kW
	Input Voltage	Single/Three-phase 200-240V AC; Three-phase 380-480V AC
	Output Current	1.2-18A
Control Performance	Speed Loop Response Frequency	2kHz
	Pulse Input Frequency	4MHz
	Encoder Resolution	23-bit (Absolute/Incremental)
	Overload Capacity	300% Instantaneous Overload
	Maximum Motor Speed	6000rpm
	Control Modes	Position/Torque/Speed; Sub-modes: PP/PV/PT
Communication Interface	Communication Protocols	E530-EC: EtherCAT; E530-PT: Modbus TCP/IP
Communication Interface	Communication Cycle Time	EtherCAT: Minimum 250μs
Structure & Protection	Protection Class	IP20 (Control Cabinet Installation)
	Mounting Method	Side-by-Side Mounting
	Cooling Method	Natural Cooling
	PCB Protection	UV Coating (Moisture & Corrosion Resistant)
Function Configuration	Braking Resistor	Built-in for Models ≥0.75kW
	Fault Recording	5 Real-time Alarms + 20 Historical Alarms
	Extended Functions	Unlimited Rotation, Touch Probe
Certification Standards	Compliance Certifications	CE, UKCA, RoHS

Available Models & Matching Motors

Drive Model	Rated Power	Input Voltage	Communication Protocol	Matching Servo Motor	Motor Key Parameters	Regions & Certifications
E530-PT0S-0KW2-1	0.2kW	Single/Three-phase 200-240V AC	Modbus TCP/IP	DSM04L-0KWA-302, DSM06L-0K2A-302	23-bit encoder, Max speed 6000rpm, 3.5x overload, Flange size 40mm/60mm	Europe, North America, Southeast Asia; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-PT0S-0KW4-1	0.4kW	Single/Three-phase 200-240V AC	Modbus TCP/IP	DSM06L-0K4A-302, DSM08L-0K4A-302	23-bit encoder, Max speed 6000rpm, 3.5x overload, Flange size 60mm/80mm, Length 92mm	Europe, North America, Southeast Asia; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-PT0S-0KW8-1	0.75kW	Single/Three-phase 200-240V AC	Modbus TCP/IP	DSM08L-0K8A-302, DSM10L-0K8A-302	23-bit encoder, Max speed 6000rpm, 3.5x overload, Flange size 80mm/100mm, Length 105mm	Europe, North America, Southeast Asia; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-PT0S-1KW0-1	1.0kW	Single/Three-phase 200-240V AC	Modbus TCP/IP	DSM10L-1K0A-302, DSM13L-1K0A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 100mm/130mm, Low/medium inertia optional	Europe, North America, Southeast Asia; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-PT0S-1KW5-2	1.5kW	Single/Three-phase 200-240V AC	Modbus TCP/IP	DSM10L-1K5A-302, DSM13L-1K5A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 100mm/130mm, Low/medium inertia optional	Europe, North America, Southeast Asia; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-PT0S-2KW0-2	2.0kW	Single/Three-phase 200-240V AC	Modbus TCP/IP	DSM13L-2K0A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 130mm, Military connector	Europe, North America, Southeast Asia; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-EC0S-0KW2-1	0.2kW	Single/Three-phase 200-240V AC	EtherCAT (Min cycle 250μs)	DSM04L-0KWA-302, DSM06L-0K2A-302	23-bit encoder, Max speed 6000rpm, 3.5x overload, Flange size 40mm/60mm, Cable outlet connector	Global; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-EC0S-0KW4-1	0.4kW	Single/Three-phase 200-240V AC	EtherCAT (Min cycle 250μs)	DSM06L-0K4A-302, DSM08L-0K4A-302	23-bit encoder, Max speed 6000rpm, 3.5x overload, Flange size 60mm/80mm, Length 92mm	Global; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-EC0S-0KW8-1	0.75kW	Single/Three-phase 200-240V AC	EtherCAT (Min cycle 250μs)	DSM08L-0K8A-302, DSM10L-0K8A-302	23-bit encoder, Max speed 6000rpm, 3.5x overload, Flange size 80mm/100mm, Length 105mm	Global; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-EC0S-1KW0-1	1.0kW	Single/Three-phase 200-240V AC	EtherCAT (Min cycle 250μs)	DSM10L-1K0A-302, DSM13L-1K0A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 100mm/130mm, Low/medium inertia optional	Global; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-EC0S-2KW0-2	2.0kW	Single/Three-phase 200-240V AC	EtherCAT (Min cycle 250μs)	DSM13L-2K0A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 130mm, Military connector	Global; CE, UKCA, RoHS, UL (motor: 2025/02+)
E530-EC4S-4KW0-2	4.0kW	Three-phase 380-480V AC	EtherCAT (Min cycle 250μs)	DSM18L-4K0A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 180mm, Military connector, IP67 protection	Global; CE, UKCA, RoHS
E530-EC4S-5KW5-2	5.5kW	Three-phase 380-480V AC	EtherCAT (Min cycle 250μs)	DSM18L-5K5A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 180mm, Military connector, IP67 protection	Global; CE, UKCA, RoHS
E530-EC4S-7KW5-2	7.5kW	Three-phase 380-480V AC	EtherCAT (Min cycle 250μs)	DSM18L-7K5A-302	23-bit encoder, Max speed 6000rpm, 3x overload, Flange size 180mm, Military connector, IP67 protection	Global; CE, UKCA, RoHS

Application Scenarios

Precision Machine Tool Machining

Compatible with CNC lathes, milling machines, and machining centers. The 2kHz high response frequency and 23-bit high-resolution encoder achieve micron-level positioning accuracy for complex component cutting and drilling. 300% overload capacity handles instantaneous load fluctuations during machining.

Automated Packaging Equipment

Targeting high-speed packaging lines in food, pharmaceutical, and daily chemical industries. Supports multi-axis synchronous control and fast start-stop for material sorting, filling, sealing, and labeling processes. EtherCAT low-latency communication ensures production line consistency.

Electronics Manufacturing Equipment

Applied to pick-and-place machines, semiconductor wafer handling, and PCB inspection equipment. The 0.2-7.5kW power range adapts to light-load and high-speed motion requirements for precise nozzle pick-and-place and chip positioning.

Industrial Robotics

Suitable for SCARA robots, collaborative robots, and articulated robots. Supports multiple control modes for flexible movement, precise grasping, and assembly. Stable overload performance ensures smooth robot movement during load-bearing operations.

Logistics and Warehouse Automation

Used in intelligent sorters, AGV handling trolleys, and automated warehouse stackers. Modbus TCP communication enables quick connection to warehouse management systems for accurate sorting, handling, and stacking processes.

New Energy Equipment Manufacturing

Applied to lithium battery cell assembly lines and photovoltaic module welding equipment. High-precision positioning ensures consistency in cell lamination and photovoltaic grid line welding. CE/UKCA certification meets overseas new energy factory standards.

Frequently Asked Questions

Q: Drive alarms "FAULT 21" (Overcurrent) right after power-on, and the motor doesn't run. What's wrong?

A: Most likely the motor U/V/W wiring is out of phase, or the motor coil has a ground fault. First power off and check the three-phase wiring, then use a multimeter to test motor insulation. Watch out for metal shavings getting into the coil—dust is a big issue in overseas workshops and causes this problem often.

Q: Drive runs but the motor speed fluctuates, and positioning is off. How to fix it?

A: First check if the pulse encoder wiring is loose, especially cables in drag chains—constant movement can fray the inner wires. Then verify if the electronic gear ratio parameter is set correctly. Excessive load inertia can also cause jitter; try increasing the position loop gain.

Q: Unstable grid voltage overseas triggers frequent "UNDERVOLT" (Undervoltage) alarms. What's the solution?

A: Install a voltage stabilizer or reactor. The ABB E530 is sensitive to input voltage fluctuations, especially with the 110V grid in North America—even a slight voltage drop will trip the drive. Also check if the incoming terminal connections are loose; poor contact can also show as undervoltage.

Q: Drive overheats and alarms after running for a while, but the fan works fine. What's the cause?

A: Either the heat sink is clogged with dust—common in dusty overseas factories, so clean it regularly with compressed air; or the load is continuously over the rated current—don't exceed the drive's rated amp draw. Another possibility is insufficient installation space for ventilation; make sure to leave enough clearance for heat dissipation.

Q: Trying to control the drive via PLC, but no response after connecting the communication cable. How to troubleshoot?

A: First confirm the correct communication protocol is selected—Modbus RTU is the most common for E530. Set the right slave address and baud rate in parameters. Then check if the communication cable shield is grounded properly; don't bundle it with power cables—electromagnetic interference will cut off communication.

Q: Motor brake won't release, drive shows no alarm, and the motor turns manually. What's going on?

A: The brake coil power supply is wired incorrectly. The E530's brake output is a relay contact, which needs an external 24V power supply. Also check the brake parameters—if it's set to "brake on stop", the brake won't unlock during operation and will stay locked.

Q: Overseas after-sales service is slow. Can I temporarily replace the faulty drive with another brand?

A: For short-term use, you can replace it with another ABB E-series model of the same power, like E150—most parameters are compatible. Don't directly substitute with other brands; different motor encoder protocols can easily burn the drive module.

Q: Drive parameters were messed up, and after restoring factory settings, the motor won't run. How to fix it?

A: After factory reset, you need to re-enter the motor parameters—input the rated voltage, current and speed from the motor nameplate, then run a motor auto-tuning. Otherwise the drive won't recognize the motor, and it definitely won't run.
