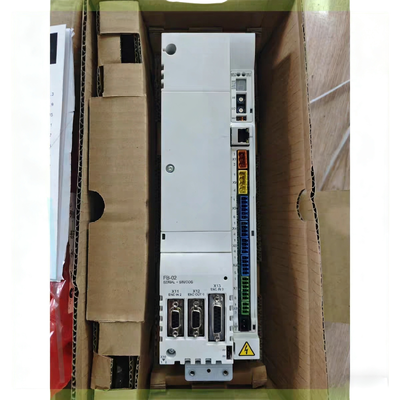

MotiFlex e180 Servo Drive - High Precision + EN60204-1 for Robot Automation

Name: MotiFlex e180 Servo Drive - High Precision + EN60204-1 for Robot Automation
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: MotiFlex e180
Price: 550.00 USD
Availability: InStock

Product Details

Place of Origin: Swedish

Certification: CE, UL, cUL/UL508C

Model Number: MotiFlex e180

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $300 - $800

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            ABB MotiFlex e180 servo drive, high precision servo drive for robots, EN60204-1 compliant servo motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Warranty:	Original Manufacturer's Warranty	Pakage:	Original Pakage
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

MotiFlex e180 Servo Drive - High Precision + EN60204-1 for Robot Automation

MotiFlex e180 Servo Drive

The MotiFlex e180 Servo Drive is a high-performance solution engineered for robot automation applications, delivering exceptional precision control while complying with EN 60204-1 electrical safety standards for machinery. Featuring flexible Ethernet protocol support including EtherCAT and Profinet, dual encoder feedback, and 300% dynamic overload capacity, this drive eliminates mechanical errors and accelerates production cycles. The integrated MINT motion programming language enables seamless multitask control, compatible with both rotary and linear servo motors. Ideal for metalworking, packaging machinery, logistics, and warehouse robotics applications, its built-in Safe Torque Off (STO) function, robust environmental adaptability, and easy integration capabilities help businesses enhance productivity, reduce downtime, and ensure operational compliance.

Product Features

Precision Motion Control: Dual encoder feedback enables master-slave axis following and dual closed-loop control, eliminating mechanical errors. Features 2 x 1μs high-speed latch inputs for ultra-precise position capture, compatible with closed-loop vector control of rotary/linear servo motors and asynchronous motors.
Flexible Network Compatibility: Ports E1/E2 support EtherCAT, PROFINET IO and POWERLINK; Port E3 is compatible with EtherNet/IP and Modbus TCP. Protocol switching via simple switch settings adapts to PLC and HMI from multiple brands.
Powerful Dynamic Performance: Three-phase 200-480V power supply with 300% peak overload capacity (sustainable for 3 seconds), providing greater dynamic acceleration torque and reduced production cycle times.
Comprehensive Safety Compliance: Standard dual-channel Safe Torque Off (STO) function compliant with IEC 61800-5-2 and SIL3/PLe safety levels, certified to EN 60204-1 machinery electrical safety standards. Safety protection without cutting main power in most scenarios reduces downtime.
Versatile Feedback Compatibility: Supports multiple encoders and resolvers including SSI, BiSS‑B, EnDat 2.1/2.2, 1V pk‑pk SinCos and Hiperface DSL. Hiperface DSL enables single-cable power supply and feedback, reducing wiring costs.
Intelligent Programming & I/O: Equipped with MINT advanced motion programming language for easy multi-task coordination. Onboard 6 digital inputs, 4 digital outputs, 2 analog inputs/1 analog output with software-configurable functions.
Reliable Design & Scalability: IP20 cabinet-mount design compliant with Ecodesign environmental specifications. Supports functional expansion modules; I/O, encoder simulation output and other functions can be added on demand.

Product Advantages

Efficient Integration & Cost Reduction: Multi-protocol Ethernet and versatile feedback interfaces reduce investment in third-party gateways and adapters. Hiperface DSL single-cable solution and fast protocol switching shorten installation and commissioning cycles.
Safety & Reliability, Higher Productivity: STO function ensures personnel and equipment safety, reducing unplanned downtime. 300% dynamic overload and precision control improve equipment response speed and production efficiency.
Flexible Adaptation & Easy Scalability: Compatible with multiple motor types and control architectures, supporting single-machine or multi-axis systems. MINT language and modular expansion design enable quick adaptation to customized motion requirements.
Stable & Durable, Long Service Life: Dual encoder feedback and closed-loop control enhance system stability. Robust industrial design and compliance certifications adapt to harsh working conditions, extending equipment lifespan.
Global Adaptation, Compliance Assurance: Compliant with EU Machinery Directive and environmental specifications, adapted to mainstream industrial standards worldwide for international market access.

Core Technical Parameters

Parameter Category	Specifications
Power Input	Three-phase 200-480V AC (±10%), 50/60Hz (±5%); 270-650V DC (±10%)
Output Performance	Continuous output current: Up to 90A; 300% dynamic overload torque, sustainable for 3 seconds
Control Precision	Positioning accuracy: ±0.01mm; High-speed latching: 1μs; Dual encoder input supported
Safety Features	Standard STO (Safe Torque Off); Safety level: SIL3 PLe; Compliant with EN60204-1 standard
Communication Protocols	EtherCAT, Profinet IO, Modbus TCP, Ethernet/IP, POWERLINK
Motor Compatibility	Rotary servo motors, linear servo motors, asynchronous motors, synchronous motors
Programming Capability	Mint multi-task programming language; Supports logic control, motion control, and HMI interaction
Wiring Solution	Single-cable solution available; HIPERFACE DSL supported for models with ≤46A output current
Environmental Protection	Protection class: IP20 (for cabinet installation); Operating temperature: 0-40°C (derating required above 40°C)
Certifications	CE certified, UL certified, cUL/UL508C compliant

Product Models

Drive Model	Frame Size	Continuous Output Current	Peak Output Current	Input Voltage	Matched Servo Motors	Typical Application Scenarios
MFE180-04AN-03A0-4	A	3A	9A	200-480V AC, 3-phase	ABB ESM Series: ESM 04 (100-200W), ESM 06 (300-500W)	Small 3C electronic component handling, precision small actuators
MFE180-04AN-05A0-4	A	5A	15A	200-480V AC, 3-phase	ABB ESM Series: ESM 06 (500-750W), ESM 08 (1.0-1.5KW)	Precision electronic assembly, small packaging machine
MFE180-04AN-07A0-4	A	7A	21A	200-480V AC, 3-phase	ABB ESM Series: ESM 08 (1.5-2.0KW); ABB DSM Series: DSM 08 (1.5-2.0KW)	Medium-speed packaging equipment, 3C product testing machines
MFE180-04AN-016A-4	B	16A	48A	200-480V AC, 3-phase	ABB ESM Series: ESM 13 (2.0-3.0KW); ABB HDS Series: HDS 13 (2.0-3.0KW)	CNC lathe feed axis, small industrial robot (3-5 axes)
MFE180-04AN-024A-4	C	24A	72A	200-480V AC, 3-phase	ABB HDS Series: HDS 13 (3.0-5.0KW), HDS 18 (5.0-7.5KW); Linear Servo Motors	High-speed CNC milling machine, precision gantry robot
MFE180-04AN-031A-4	C	31A	93A	200-480V AC, 3-phase	ABB HDS Series: HDS 18 (7.5-11KW); DD Motors (Small-Medium Torque)	Heavy-duty CNC machining center, precision stamping equipment
MFE180-04AN-046A-4	C	46A	138A	200-480V AC, 3-phase	ABB HDS Series: HDS 18 (11-15KW); Third-Party Synchronous/Asynchronous Servo Motors	Large industrial robot (6-axis), heavy-duty conveyor line drive
MFE180-04AN-060A-4	D	60A	180A	200-480V AC, 3-phase	ABB HDS Series: HDS 18 (15-22KW); Large-Scale Linear Servo Motors	High-power packaging production line, heavy-duty material handling robot
MFE180-04AN-090A-4	D	90A	270A	200-480V AC, 3-phase	ABB HDS Series: HDS 18 (22-37KW); DD Motors (High Torque)	Large-scale CNC gantry mill, heavy-duty palletizing robot system

Key Applications

Robotics & Automation Integration: Perfect for articulated, SCARA, Delta, and logistics sorting robots. Delivers ultra-precise positioning, multi-axis sync, and built-in STO safety for automotive assembly, electronics manufacturing, and warehouse automation.
Packaging Machinery: Handles high-speed tasks like VFFS/HFFS bagging, labeling, and pharmaceutical filling. 1μs position latch enables seamless flying shear and register printing, reducing cycle times and material waste.
Metal Processing & Forming: Tackles CNC laser/plasma cutting, bending, and stamping with dual encoder feedback and 300% dynamic overload. Ensures consistent precision for aerospace and automotive component manufacturing.
Printing & Paper Processing: Enables tight color registration and tension control for web-fed presses, die-cutters, and corrugated lines. Multi-protocol Ethernet syncs with printing systems in real time.
Material Handling & Logistics: Drives high-speed sorting lines, stackers, and AGV/RGV fleets. Fast protocol switching and STO safety meet 24/7 demands of e-commerce warehouses and port logistics.

Frequently Asked Questions

Q1: Can the MotiFlex e180 work with non-ABB servo motors?

Yes, it supports most rotary/linear servo motors and even asynchronous motors with closed-loop vector control. Just match the right encoder type (like Hiperface DSL, EnDat) and set parameters correctly.

Q2: What communication protocols does it support? Do I need extra gateways?

It has multi-protocol ports (EtherCAT, PROFINET, EtherNet/IP, Modbus TCP). Switch protocols via a simple setting—no third-party gateways needed, saving cost and setup time.

Q3: Does it meet EU safety standards? Is STO included as standard?

Absolutely. It's EN 60204-1 certified, with dual-channel STO (SIL3/PLe) built-in. No need to buy extra safety modules, which is essential for EU market compliance.

Q4: How does the 300% overload capacity help my production?

The 3-second peak overload handles sudden load spikes common in metal cutting or robot positioning. It reduces motor stalling and unplanned downtime, boosting overall equipment efficiency.

Q5: Is it easy to integrate into my existing PLC system?

Super easy. It works with mainstream PLCs (Siemens, Mitsubishi, Allen-Bradley) via native protocols. The MINT programming language also simplifies multi-axis sync tasks without complex coding.

Q6: What's the typical lifespan, and how hard is it to maintain?

With IP20 cabinet-mount design and industrial-grade components, it lasts 8-10 years on average. Maintenance is minimal—just check cooling fans periodically and update firmware via Ethernet.

Q7: Can it handle harsh environments like high temperature or dust?

It's designed for industrial use, operating stably in -10°C to +55°C. While it's IP20 (needs a cabinet), the enclosed design resists dust and vibration well, perfect for factory floors.

Q8: What's the difference between MotiFlex e180 and other ABB servo drives?

It's optimized for robot automation and high-precision tasks. The dual encoder feedback and 1μs position latch are key advantages over basic models, plus it's more cost-effective for mid-to-high power applications.
