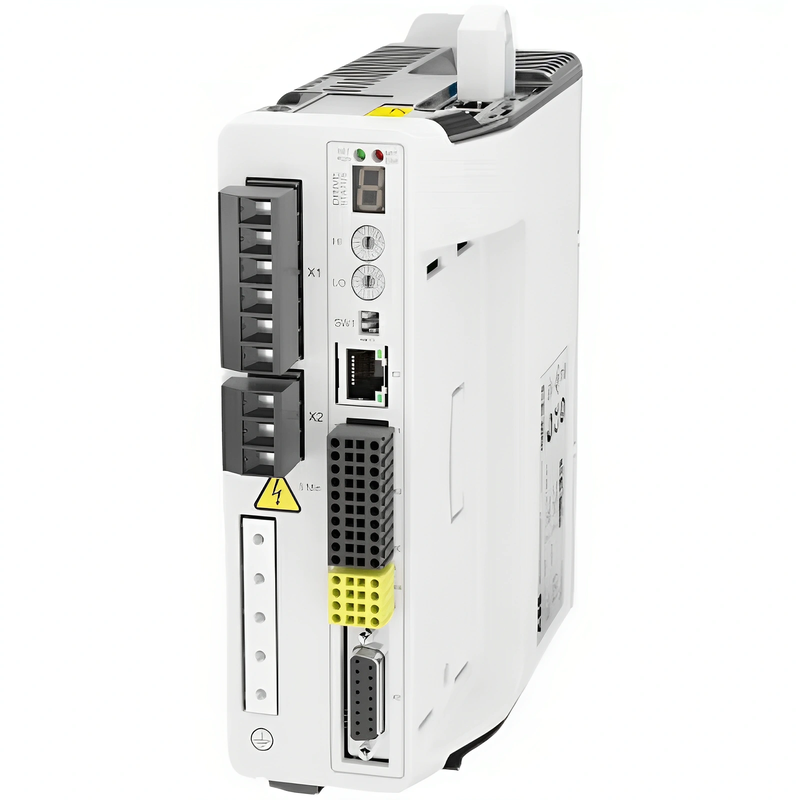

MicroFlex e190 Servo Drive | 300% Peak Torque, Multi-Ethernet, STO Safety | Precision Motion Control

Name: MicroFlex e190 Servo Drive | 300% Peak Torque, Multi-Ethernet, STO Safety | Precision Motion Control
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: MicroFlex e190
Price: 1,050.00 USD
Availability: InStock

Product Details

Place of Origin: Swedish

Certification: UL、CE、RoHS、TÜV

Model Number: MicroFlex e190

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $300 - $1800

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            ABB MicroFlex e190 servo drive, servo drive with STO safety, multi-Ethernet servo drive motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

MicroFlex e190 Servo Drive | 300% Peak Torque, Multi-Ethernet, STO Safety | Precision Motion Control

MicroFlex e190 Servo Drive

The MicroFlex e190 Servo Drive is a high-performance motion control solution designed for industrial automation applications requiring precision and reliability. Featuring 300% peak torque for dynamic load handling, multi-ethernet protocols for smart factory integration, and STO safety functions meeting international standards, this compact drive delivers optimal power, connectivity, and safety for electronic assembly, small packaging machinery, and laboratory equipment.

Core Product Features

Robust Performance: 200-240V single/three-phase power supply with 1.5-20A output current range. Two overload modes (200%/300%) with peak torque sustainable for 3 seconds and high-resolution feedback.
Advanced Communication: Software-selectable Ethernet protocols including EtherCAT, PROFINET IO, and EtherNet/IP. Dual-port PROFINET enables real-time communication with various encoder types and third-party motors.
Integrated Safety: Standard dual-channel Safe Torque Off (STO) function compliant with IEC 61800-5-2 standard and rated at SIL 3/PL e for equipment and personnel safety.
Intelligent Motion Control: Supports Mint advanced motion programming language with electronic gearing, flying shear, and position latching functions. Dual encoder input eliminates mechanical errors.
Compact Design: Optimized heat dissipation and fan design with small footprint, installable with only 2 mounting holes for space-constrained applications.

Core Product Advantages

High Dynamic Response: 300% peak torque delivers fast acceleration with 1μs position latching latency for high-speed precision applications.
Global Adaptability: Compatible with mainstream European and American industrial protocols, certified by UL/CE/RoHS with international standard grounding and EMC design.
Reduced Operation Costs: Built-in memory for quick parameter cloning, Mint Workbench tool simplifies commissioning, and optimized connector design improves maintenance efficiency.
Flexible Expansion: Configurable digital and analog I/O, support for extension modules, compatible with pulse and analog control for new and legacy systems.
Reliable Operation: Strong anti-interference capability, low-noise operation, IP protection design and standardized grounding for extended equipment life.

Core Technical Parameters

Parameter Category	Specific Parameters
Power Supply Specifications	Universal 200-240V AC single/three-phase Voltage fluctuation range: ±10% Frequency: 50/60Hz
Output Performance	Output current range: 1.5-20A Peak torque: 300% rated torque, lasting 3 seconds Overload mode: 200%/300% optional
Control Modes	Position control, speed control, torque control Supports electronic gearing, electronic cam, flying shear, position latching
Communication Protocols	Software-selectable: EtherCAT, PROFINET IO, EtherNet/IP Dual-port PROFINET supports real-time communication
Safety Functions	Standard dual-channel STO (Safe Torque Off) Compliant with standards: IEC 61800-5-2, SIL 3/PL e rating
Encoder Interfaces	Supports incremental encoders, absolute encoders (single-turn 23-bit / multi-turn 23/16-bit) Compatible with HIPERFACE DSL single-cable solution
Operating Environment	Temperature: -10℃ ~ +50℃ (no condensation) Humidity: 5% ~ 95% RH (non-condensing) Protection class: IP20 (must be installed in electrical cabinet)
Installation & Dimensions	Installation method: DIN rail mounting Mounting holes: 2 mounting holes, compatible with standard industrial rails Size: Compact design, saving cabinet space
Certification Standards	UL, CE, RoHS certified, meeting access requirements of major overseas markets

MicroFlex e190 Series Models and Motor Compatibility

Drive Model	Core Parameters	Overload Mode	Matching Motor Series	Application Description
MFE190-04UD-03A0-2	200-240V AC single/three-phase; 3.0A output	200%: 6.0A peak; 300%: 7.5A peak (3s)	ABB eSM Series, BSM N/R Series, third-party small servo motors	Single-axis precision scenarios: electronic assembly, small laboratory equipment
MFE190-04UD-06A0-2	200-240V AC single/three-phase; 6.0A output	200%: 12.0A peak; 300%: 15.75A peak (3s)	ABB eSM Series, BSM N/R Series, ESM13E Sub-series	High-speed scenarios: small packaging machines, labeling machines
MFE190-04UD-09A0-2	200-240V AC single/three-phase; 9.0A output	200%: 18.0A peak; 300%: 22.5A peak (3s)	ABB eSM Series, ESM13E Sub-series, HDS Series	Light material handling, AGV auxiliary positioning
MFE190-04UN-01A6-2	200-240V AC single/three-phase; 1.0A output	200%: 2.0A peak; 300%: 3.0A peak (3s)	ABB eSM Series (micro), third-party micro servo motors	Precision electronic testing equipment, micro laboratory automation
MFE190-04UN-03A0-2	200-240V AC single/three-phase; 3.0A output	200%: 6.0A peak; 300%: 9.0A peak (3s)	ABB eSM Series, BSM R Series	Small electronic placement equipment, versatile for electronic manufacturing
MFE190-04UN-06A0-2 / MFE190-04UN-06A0-21	200-240V AC single/three-phase; 6.0A output	200%: 12.0A peak; 300%: 18.0A peak (3s)	ABB eSM Series, ESM13B Sub-series, BSM N Series	Small automated production lines, compatible with Siemens and Rockwell PLCs

Application Scenarios

Electronic Assembly & Testing Equipment: PCB component placement, semiconductor wafer handling, and electronic testing stations with 300% peak torque and microsecond-level position latching.
Small Packaging Machinery: Desktop packaging machines, labeling machines, and small-scale filling equipment in food, pharmaceuticals, and daily chemical industries.
Laboratory & Precision Testing Devices: Precision test benches, material performance testing machines, and laboratory automation equipment with low-noise operation.
Lightweight Material Handling Systems: Small conveyors, pick-and-place robots, and AGV auxiliary positioning modules in logistics and warehousing.
Medical Equipment: Sample sorting systems, medical analyzer motion modules, and dental equipment meeting strict regulatory requirements.

Frequently Asked Questions

Does this drive support single-phase or three-phase power supply? Will unstable voltage damage the unit?

It supports universal 200-240V single/three-phase power supply without extra wiring modifications. It operates reliably as long as voltage fluctuation stays within ±10%. For sites with large voltage swings, a standard voltage stabilizer is recommended.

Can the MicroFlex e190 connect directly to Siemens/Rockwell PLCs?

No gateway required! It directly supports mainstream protocols like PROFINET and EtherNet/IP—simply select the corresponding protocol in the software for direct configuration with Siemens or Rockwell PLCs.

How to wire the STO safety function? Is dual-channel wiring mandatory?

STO is a dual-channel safety circuit, and both channels must be connected to trigger safety protection to meet SIL 3 standards. The drive can operate without STO wiring, but safety functions will be disabled.

How long can the 300% peak torque last? Will frequent high-load operation shorten drive life?

The 300% peak torque can last a maximum of 3 seconds, ideal for short-time scenarios like jogging and rapid acceleration. Frequent high-load cycles may trigger overheat protection and reduce component lifespan—consider selecting a larger model for such applications.

What are simple troubleshooting tips for encoder wiring problems?

Check cable wiring correctness and ensure proper grounding of encoder shield at one end only. Use the drive's built-in encoder self-test function to quickly identify whether issues come from faulty encoders or incorrect wiring.

Can common faults be resolved without professional service?

Yes! The drive features a built-in fault code library that displays exact causes. Multilingual troubleshooting manuals available from the official website enable resolution of 80% of minor issues through step-by-step guidance.

Is the drive suitable for low-temperature/high-humidity environments?

Operating temperature range is -10℃ to +50℃—avoid condensation in low-temperature environments. For high-humidity sites, install a cabinet dehumidifier. The drive has IP20 rating and must be installed inside an electrical cabinet.

What advantages does MicroFlex e190 offer compared to Panasonic/Yaskawa drives?

Key advantages include compatibility and safety. It works with third-party motors without replacement and includes SIL 3-rated STO as standard—competitors often require additional safety modules. Multi-protocol support eliminates the need for drive replacement when switching PLCs.
