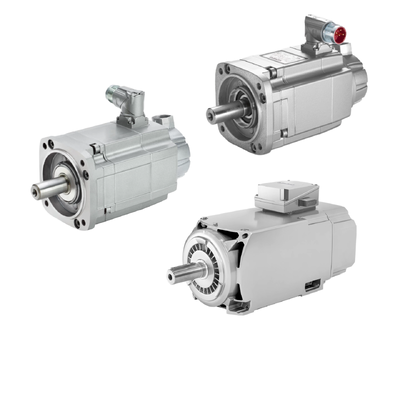

1FS2 Servo Motor IP69K Protection & High Dynamics Servo Motor Drive

Name: 1FS2 Servo Motor IP69K Protection & High Dynamics Servo Motor Drive
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: 1FS2
Price: 2,750.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Certification: CE、UL、UKCA、EAC、REACH、RoHS、EMC、WEEE

Model Number: 1FS2

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $1000 - $4500

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            1FS2 Servo Motor, Servo Motor IP69K, High Dynamics Servo Motor Drive


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

1FS2 Servo Motor IP69K Protection & High Dynamics Servo Motor Drive

1FS2 Servo Motor - IP69K Protection & High Dynamics for Industrial Automation

The 1FS2 Servo Motor is a high-performance solution engineered for demanding industrial automation applications. Featuring top-tier IP69K protection on the motor housing and comprehensive IP66/IP67 protection for the entire unit, it withstands high-pressure, high-temperature water jets and dust in harsh environments. Constructed with 1.4404 stainless steel housing, EPDM seals, and NSF H1-approved bearing grease, it delivers exceptional corrosion resistance and clean-in-place (CIP) compatibility, making it ideal for hygiene-sensitive industries including food, beverage, and pharmaceuticals. With low inherent inertia and high overload capacity, this motor provides outstanding dynamic performance for precision motion control tasks such as pick-and-place operations, while its standard 22-bit multi-turn encoder ensures ultra-high positioning accuracy. The innovative one-cable connection (OCC) simplifies installation and cleaning procedures, and seamless compatibility with Siemens SINAMICS S210 drive systems enhances system integration efficiency.

Key Features

Superior Protection Rating IP69K-rated motor housing with full-unit IP66/IP67 protection, engineered to resist high-pressure, high-temperature water jets and heavy dust infiltration.
Corrosion-Resistant Construction 1.4404 stainless steel housing, EPDM seals, and NSF H1-approved bearing grease with full clean-in-place (CIP) compatibility.
High Dynamic Performance Low inherent inertia design paired with outstanding overload capacity for rapid acceleration and deceleration in dynamic motion control tasks.
Precision Positioning Standard 22-bit multi-turn encoder for ultra-precise position detection and repeatable positioning accuracy.
Simplified Installation Innovative one-cable connection (OCC) technology integrating power and signal transmission into a single cable.
Seamless System Integration Full compatibility with Siemens SINAMICS S210 drive systems for plug-and-play integration with minimal setup time.

Operational Advantages

Reliable Performance in Harsh Environments Thrives in demanding industrial settings and hygiene-sensitive sectors, eliminating downtime caused by corrosion, dust, or water damage.
Hygiene Compliance Meets strict industry standards and compliance requirements, preventing lubricant contamination risks and supporting frequent cleaning protocols.
Enhanced Productivity Delivers exceptional dynamic performance for high-speed, high-precision applications, boosting production line throughput and task accuracy.
Ultra-Fine Positioning Control Guarantees consistent, precise positioning ideal for applications demanding minimal margin of error.
Reduced Installation Complexity Cuts down installation time and reduces cable clutter, lowering maintenance costs and simplifying cleaning procedures.
Optimized System Integration Minimizes integration challenges and debugging time, enhancing automation line stability and operational efficiency.

Core Technical Parameters

Parameter Category	Specific Parameter	Parameter Value
Basic Performance Parameters	Rated Power Range	0.45 - 2 kW (0.60 - 2.68 hp)
	Rated Torque Range	3.1 - 14 Nm (2.28 - 10.32 ft-lbs)
	Rated Speed	2500 rpm (Typical value, slight variation by model)
	Maximum Allowable Speed	Depends on specific model, suitable for high-speed motion control requirements
	Inertia Characteristic	Low Inherent Inertia
Power Supply Parameters	Power Supply Voltage	3AC 380 - 480 V
	Power Supply Frequency	50/60 Hz
	Overload Capacity	High Overload Capacity, suitable for harsh working conditions
Encoder Parameters	Encoder Type	Absolute Encoder
	Resolution	Standard 22-bit Multi-Turn
	Interface Type	Drive-Cliq Interface
Protection & Structural Parameters	Protection Class	IP66/IP67 for the whole unit, IP69K (30 bar) for motor housing
	Housing Material	1.4404 (AISI 316/316L) Stainless Steel
	Seals	EPDM Seals
	Bearing Grease	NSF H1 Certified Food-Grade Grease
Connection & Compatibility Parameters	Connection Method	One-Cable Connection (OCC), integrating power and signal transmission
	Compatible Drives	Seamless Compatibility with Siemens SINAMICS S210 Drive Systems
	Additional Interfaces	Optional direct drive connection at cable end, supporting Motion Connect coupling
Environmental & Compliance Parameters	Applicable Processes	Supports Clean-in-Place (CIP) processes, compatible with industrial cleaning agents
Environmental & Compliance Parameters	Compliance Standards	Complies with US 3-A Standards and European EHEDG Standards
Optional Configurations	Braking Device	Optional Holding Brake
Optional Configurations	Motor Shaft	Optional stainless steel shaft with or without flat key

Product Model Specifications

1FS2 Servo Motor Model	SINAMICS Drive Model	Rated Power	Rated Torque	Rated Speed	Key Configuration & Features
1FS2104-6AF07-0MZ0	6SL3210-5HB10-4UF0	0.45 kW	3.1 Nm	3000 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; optional holding brake; without feather key
1FS2105-6AF07-0MZ0	6SL3210-5HB10-4UF0	0.95 kW	7.6 Nm	3000 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; optional holding brake; without feather key
1FS2106-6AF07-0MZ0	6SL3210-5HB20-6UF0	2.0 kW	14 Nm	3000 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; optional holding brake; without feather key; suitable for high-torque hygiene applications
1FS2106-6AE17-GMZ0	6SL3210-5HB20-6UF0	1.81 kW	14 Nm	2500 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; optional holding brake; with feather key; optimized for stable operation in CIP processes
1FS2104-6AF07-1MZ0	6SL3210-5HB10-4UF0	0.45 kW	3.1 Nm	3000 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; with holding brake; without feather key
1FS2105-6AF07-1MZ0	6SL3210-5HB10-4UF0	0.95 kW	7.6 Nm	3000 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; with holding brake; without feather key
1FS2106-6AF07-1MZ0	6SL3210-5HB20-6UF0	2.0 kW	14 Nm	3000 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; with holding brake; without feather key
1FS2106-6AE17-GMZ1	6SL3210-5HB20-6UF0	1.81 kW	14 Nm	2500 rpm	1.4404 stainless steel housing; IP66/IP67 (whole unit), IP69K (housing); 22-bit multi-turn encoder; NSF H1 grease; with holding brake; with feather key; high compatibility with pharmaceutical sterile production lines

Application Fields

Food & Beverage Processing Ideal for packaging lines, filling machines, slicing equipment, and conveyor systems. Its IP69K protection and stainless-steel construction withstand frequent high-pressure washdowns and CIP processes, meeting strict food safety standards and preventing contamination risks.

Pharmaceutical & Medical Device Manufacturing Suited for sterile production environments, such as tablet press machines, vial filling lines, and medical device assembly stations. The motor's corrosion-resistant design and NSF H1-approved lubricants comply with pharmaceutical industry hygiene regulations, ensuring product purity.

Packaging Machinery Perfect for high-speed pick-and-place robots, labeling machines, and cartoning equipment. Its low inertia and high overload capacity deliver fast, precise motion control, boosting packaging line throughput and accuracy while withstanding regular cleaning routines.

Automotive Component Assembly Used in precision assembly stations for engine parts, electronic components, and chassis systems. The 22-bit multi-turn encoder ensures ultra-accurate positioning, while its rugged build handles the dust and vibration of automotive manufacturing floors.

Electronics Manufacturing Applied to surface mount technology (SMT) equipment, semiconductor handling systems, and precision testing machines. Its high dynamic response supports the rapid, repeatable movements required for micro-component assembly and inspection.

Hygienic Material Handling Fits for automated guided vehicles (AGVs) and robotic arms in clean production facilities, where regular cleaning is mandatory. The one-cable connection design reduces cable clutter and simplifies maintenance in tight, hygienic workspaces.

Frequently Asked Questions

Can this motor be used in high-pressure washdown environments like food processing plants?

Absolutely. It features an IP69K-rated housing and full-unit IP66/IP67 protection, so it can withstand direct high-pressure, high-temperature water jet cleaning. Plus, the stainless steel body and NSF H1-approved grease eliminate any risk of contaminating production environments.

Why does the motor get extremely hot during operation?

There are three common causes: either the load exceeds the motor's rated capacity, the ventilation around the motor is insufficient, or the drive parameters are incorrectly configured. First, check if the load matches the motor specs, then clear any obstructions to ensure proper heat dissipation. If the issue persists, adjust the drive parameters to fit the working conditions.

The motor won't start, and the drive is showing an error code. How do I troubleshoot this?

Start with the basics: First, check if the power supply is stable and all connections are tight. Next, verify the wiring—especially the one-cable connection (OCC) interface—to make sure there's no miswiring. Then, confirm that the drive parameters are correctly matched to the 1FS2 motor model. If all these check out, contact technical support to diagnose potential hardware faults.

Is it plug-and-play with the Siemens SINAMICS S210 drive? Do I need any extra accessories?

Yes, it's fully compatible with no extra accessories required. The motor comes with a Drive-Cliq interface and an electronic nameplate, which automatically syncs parameters with the SINAMICS S210 drive—saving you a ton of setup and debugging time.

The motor makes loud noise and vibrates heavily when running. What's wrong?

Two typical reasons: either the motor is misaligned during installation or the mounting bolts are loose, causing runout during operation; or the bearings are worn out. First, check if the mounting surface is flat and tighten any loose bolts. If the noise and vibration continue, inspect and replace the bearings if needed.

Does it meet hygiene compliance standards for the pharmaceutical industry?

Definitely. Its corrosion-resistant stainless steel housing, EPDM seals, and NSF H1-approved lubricants are all designed for hygienic applications. It also supports clean-in-place (CIP) processes, fully complying with the strict hygiene regulations of the pharmaceutical sector.

What's the expected service life of this motor, and how do I maintain it?

Under normal industrial operating conditions, it can last 8-10 years—maintenance is the key. Routinely clean dust and dirt off the housing to ensure good heat dissipation; inspect cable connections quarterly for looseness or oxidation; and lubricate the bearings once a year. Stick to this routine, and the motor will run steadily for years.
