SINAMICS V70 : High-Precision CNC Servo Drive with 3x Overload Capacity
-
Highlight
Siemens V70 CNC servo drive
,high-precision servo drive motor
,servo drive with overload capacity
-
TypeServo Drive Motor
-
WarrantyOriginal Manufacturer's Warranty
-
PakageOriginal Pakage
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginGermany
-
CertificationCE、UL/CSA、SIL 2/PL d、EMC、ISO 9001
-
Model NumberSINAMICS V70
-
Minimum Order Quantity1
-
Price$500 - $3000
-
Delivery Time3-5Workday
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
SINAMICS V70 : High-Precision CNC Servo Drive with 3x Overload Capacity

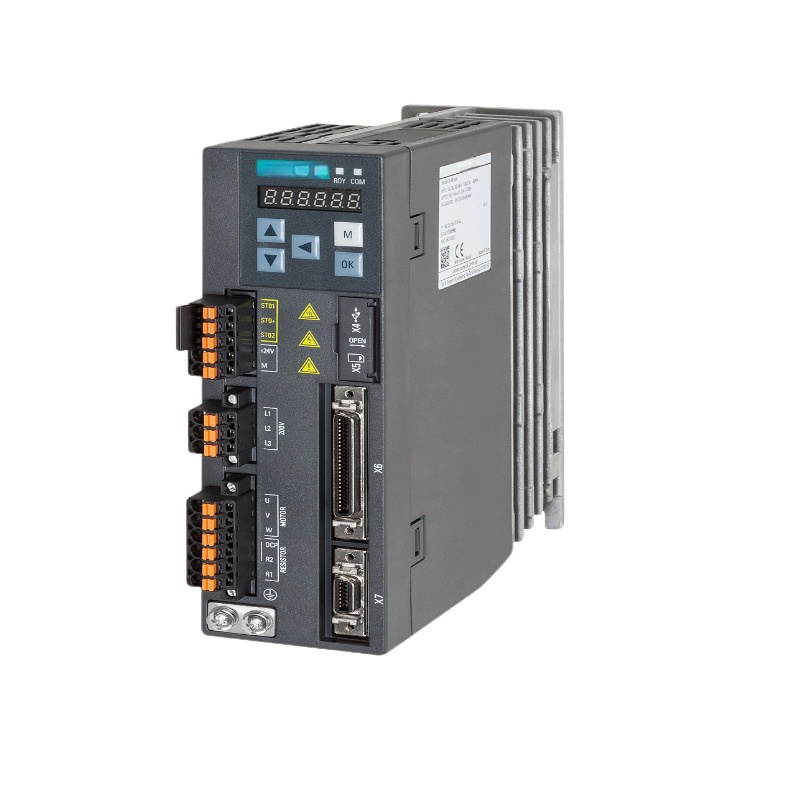

SINAMICS V70: High-Precision CNC Servo Drive
Tailored for small-to-medium CNC lathes, milling machines, and OEM standard equipment, the Siemens SINAMICS V70 is a dedicated high-precision servo drive that delivers exceptional 3x overload capacity to handle peak cutting loads with ease. Ideal for mold processing and batch production scenarios where stable performance matters most. Equipped with a 20-bit absolute encoder for pinpoint positioning accuracy, it integrates seamlessly with SINUMERIK 808D ADVANCED CNC systems via pulse/direction or Drive Bus interfaces, while its maintenance-free, fanless design and wide voltage tolerance (323V-528V) ensure reliable operation even in unstable overseas power grids.
Core Product Features
- CNC-Specific Compatibility: Designed exclusively for small-to-medium CNC lathes and milling machines, seamlessly integrates with SINUMERIK 808D ADVANCED CNC system via bus communication, supporting up to 5 feed/spindle axes.
- High-Precision Positioning Performance: Equipped with 20-bit absolute encoder for exceptional positioning accuracy. Combined with low torque ripple design, ensures stable low-speed operation with stopping residual vibration less than 0.02mm.
- Robust & Compact Design: Features fanless passive cooling structure and compact modular layout with coated electronic components for enhanced durability. Anti-misconnection connectors and IP65 motor protection rating.
- Wide Voltage Adaptability: Input voltage range of 323V-528V adapts to unstable overseas power grids and prevents equipment downtime from voltage fluctuations.
- Safety & Compliance Configuration: Integrates SIL2-certified Safe Torque Off (STO) function, complying with EN618005-2 standard to meet EU industrial safety requirements.
Core Competitive Advantages
- Superior Overload Capacity & Dynamic Response: 3x overload capacity handles peak cutting loads in mold processing and batch production. Fast 2.5ms dynamic response and excellent acceleration performance boost overall machining efficiency.
- Maintenance-Free & Low Cost of Ownership: NV RAM memory and battery-free encoder eliminate regular consumable replacements. Fanless design prevents dust intrusion and lowers failure risks.
- Easy Installation & Commissioning: Motor features rotatable quick-connect plugs for flexible wiring. Commissioning via CNC HMI interface or parameter copying using SD card—no specialized technical skills required.
- Scenario-Tailored Functionality: Supports advanced functions including optimized surface machining and bidirectional screw compensation for mold processing. Expandable for basic gantry axis and auxiliary axis control.
- Global Compliance & Versatility: CE and RoHS certified with multi-language operation interfaces. Motor available in multiple variants (brake/non-brake, smooth shaft/splined shaft) for diverse industrial scenarios.
Core Technical Parameters
| Parameter Category | Specific Parameter | Parameter Specification | Remarks & Explanation |
|---|---|---|---|
| Basic Electrical Parameters | Input Voltage | 3-Phase 380 V - 480 V (-15% / +10%) | Wide voltage range, adaptable to unstable overseas power grids |
| Basic Electrical Parameters | Input Frequency | 45 Hz - 66 Hz | Compatible with global mainstream power grid frequency standards |
| Basic Electrical Parameters | Output Voltage | 0 - Input Voltage (3-Phase) | Variable frequency and voltage output, adaptable to different speed requirements |
| Basic Electrical Parameters | Output Frequency | 0 Hz - 330 Hz | Meets speed regulation requirements of CNC machine tools |
| Power & Current Parameters (Drive) | Rated Output Power | 0.4 kW - 7 kW | Full power range coverage, adaptable to different load scenarios |
| Power & Current Parameters (Drive) | Rated Output Current | 1.2 A, 3.0 A, 4.6 A, 5.3 A, 7.8 A, 11.0 A, 13.2 A | Corresponds to different power levels for precise load matching |
| Power & Current Parameters (Drive) | Peak Output Current | 3.6 A, 9.0 A, 13.8 A, 15.9 A, 23.4 A, 33.0 A, 39.6 A | 3x overload capacity, lasting 3 seconds, coping with cutting peak loads |
| Control & Encoder Parameters | Encoder Type | 20-bit Absolute Encoder | High-precision positioning, battery-free design, maintenance-free |
| Control & Encoder Parameters | Control Mode | Servo Control (Pulse/Direction, Drive Bus) | Seamless connection with SINUMERIK 808D ADVANCED |
| Control & Encoder Parameters | Axis Control Capacity | Supports up to 5 feed axes/spindle axes | Adaptable to multi-axis CNC machine tool requirements |
| Control & Encoder Parameters | Dynamic Response Time | 2.5 ms | Quick response to cutting load changes, ensuring machining stability |
| Mechanical & Protection Parameters | Drive Protection Class | IP20 | Dust-proof design, suitable for cabinet installation |
| Mechanical & Protection Parameters | Motor Protection Class | IP65 (including connector) | Waterproof and dust-proof, adaptable to harsh industrial environments |
| Mechanical & Protection Parameters | Cooling Method | Fanless Passive Cooling | Maintenance-free, no dust inhalation risk |
| Mechanical & Protection Parameters | Drive Dimension (Size A) | 80 mm × 180 mm × 200 mm (W×H×D) | Compact structure, saving installation space |
| Mechanical & Protection Parameters | Drive Dimension (Size B) | 100 mm × 180 mm × 220 mm (W×H×D) | Adaptable to medium power level models |
| Safety & Compliance Parameters | Safety Function | SIL2 Certified Safe Torque Off (STO) | Complies with EN61800-5-2 standard, ensuring equipment operation safety |
| Safety & Compliance Parameters | Certification Qualifications | CE, RoHS | Meets EU and global environmental protection and safety requirements |
| Motor Adaptation Parameters | Matched Motor | SIMOTICS S-1FL6 Servo Motor | Optimized matching of drive and motor for optimal performance |
| Motor Adaptation Parameters | Motor Rated Speed | ≤0.75 kW: 3000 rpm; >0.75 kW: 2000 rpm | Adaptable to speed requirements of different power and application scenarios |
SINAMICS V70 Model List & Matching Components
Full Model of SINAMICS V70 Servo Drive & Matched Motors
| Drive Model | Rated Output Power | Rated Output Current | Peak Output Current | Drive Size | Matched SIMOTICS S‑1FL6 Feed Motor | Matched SIMOTICS M‑1PH1 Spindle Motor |
|---|---|---|---|---|---|---|
| 6SL3210‑5DE12‑4UA0 | 0.4 kW | 1.2 A | 3.6 A | A | 1FL6032‑0AF21‑0AA1 (0.4 kW, 1.9 Nm, 3000 rpm) | N/A |
| 6SL3210‑5DE13‑0UA0 | 0.75 kW | 2.3 A | 6.9 A | A | 1FL6034‑0AF21‑0AA1 (0.75 kW, 3.5 Nm, 3000 rpm) | N/A |
| 6SL3210‑5DE13‑5UA0 | 1.0 kW | 3.0 A | 9.0 A | A | 1FL6042‑0AF21‑0AA1 (1.0 kW, 6 Nm, 3000 rpm) | N/A |
| 6SL3210‑5DE16‑0UA0 | 1.5 kW | 4.6 A | 13.8 A | B | 1FL6052‑0AF21‑0AA1 (1.5 kW, 8 Nm, 2000 rpm) | 1PH1073‑2NF02‑0AA0 (3.7 kW, 24 Nm, 1500 rpm) |
| 6SL3210‑5DE17‑8UA0 | 1.75 kW | 5.3 A | 15.9 A | B | 1FL6054‑0AF21‑0AA1 (1.75 kW, 11 Nm, 2000 rpm) | 1PH1073‑2NF02‑0AA0 (3.7 kW, 24 Nm, 1500 rpm) |
| 6SL3210‑5DE21‑0UA0 | 2.5 kW | 7.8 A | 23.4 A | B | 1FL6061‑0AF21‑0AA1 (2.5 kW, 15 Nm, 2000 rpm) | 1PH1093‑2NF02‑0AA0 (7.5 kW, 48 Nm, 1500 rpm) |
| 6SL3210‑5DE21‑8UA0 | 5.0 kW | 11.0 A | 33.0 A | C | 1FL6064‑0AF21‑0AA1 (5.0 kW, 30 Nm, 2000 rpm) | 1PH1103‑2NF02‑0AA0 (11 kW, 70 Nm, 1500 rpm) |
| 6SL3210‑5DE24‑0UA0 | 7.0 kW | 13.2 A | 39.6 A | D | 1FL6074‑0AF21‑0AA1 (7.0 kW, 40 Nm, 2000 rpm) | 1PH1105‑2NF02‑0AA0 (15 kW, 105 Nm, 1000 rpm) |
Application Fields
Standard CNC Machine Tools (Primary Scenario)
- Feed axes for turning/milling machines: Paired with SIMOTICS S-1FL6 servo motors and SIMOTICS M-1PH1 spindle motors, communicates with 808D ADVANCED CNC via drive bus to achieve high-precision positioning and efficient cutting.
- Small/economical CNC equipment: Educational CNC machines, entry-level machining centers, and special-purpose CNC lathes/milling machines. Compact fanless design and simplified commissioning ideal for batch deployment.
General Industrial Positioning & Conveying
- Simple positioning tasks: PLC-linked positioning mechanisms including stackers/destackers, rotary tables, adjusting axes, and servo valve positioning.
- Conveying & cycle control: Precise speed and position synchronization for production line conveyors, feed axes, and small-scale transport equipment.
Customized Special-Purpose Equipment
- Feed axes for special-purpose machines: Woodworking machinery, small grinding machines, drilling machines, and tapping machines with pre-set motor parameters.
- Light-load automation mechanisms: Small positioning platforms in electronics/photovoltaic industries, and motion axes for dispensing/inspection equipment.
Frequently Asked Questions
What's the main difference between SINAMICS V70 and V20? Can they be swapped for each other?
V70 is a servo drive designed specifically for CNC machine tool feed axes, focusing on high-precision positioning and multi-axis coordination with SINUMERIK 808D ADVANCED. V20 is a general-purpose VFD for basic speed control without servo-level positioning accuracy. They cannot be swapped—V70 is for precise position control in machine tools, while V20 is for simple speed regulation applications.
Why does the drive show error F1000/F1001 during startup? How to fix it quickly?
These are internal software errors typically caused by power glitches or outdated firmware. First, perform a full power cycle by turning off both 24V DC and 3-phase AC power, wait 1-2 minutes, then restart. If the error persists, check firmware version and update if necessary. Contact Siemens support if neither solution resolves the issue.
Can I use a non-Siemens motor with V70?
Not recommended. V70 comes with preset parameters for SIMOTICS S-1FL6 servo motors and M-1PH1 spindle motors, ensuring seamless compatibility and optimal performance. Using third-party motors requires complex parameter tuning and may result in loss of 3x overload capacity and positioning accuracy.
What should I watch out for when using an SD card with V70?
Avoid plugging/unplugging the SD card during startup. Be cautious with data overwriting—if the SD card has user settings, it will replace the drive's existing parameters when powered on. Always back up parameters before using a new SD card and never turn off power during data transfer to prevent firmware damage.
My machine shows "Missing Axis Enable" after commissioning—what's wrong?
Typically due to incorrect parameter configuration or wiring issues. Check if motor ID matches the rating plate, verify 24V power supply and STO connections, and ensure correct brake parameter settings if using a motor with holding brake. Compare settings with a working V70 configuration if issues persist.
What's the voltage range for V70? Will it work with my local power grid?
V70 supports 3-phase AC 380-480V (-15%/+10%), covering most industrial grids in Europe, Asia, and the Americas. For regions with 230V single-phase power, a step-up transformer to convert to 3-phase 380-480V is required.
Why does the encoder error F52984 pop up?
This indicates encoder interface issues. Check encoder cable for proper connection and damage. Inspect encoder for physical damage or contamination. Re-seating the encoder connector or replacing faulty cables often resolves the problem.
Is V70 suitable for high-temperature industrial environments?
Yes, thanks to its fanless compact design. It's robust for typical factory temperatures but avoid direct sunlight or proximity to heat sources. Ensure adequate ventilation spacing around the drive to prevent overheating in crowded cabinets.
