Product Details
Place of Origin: Germany
Certification: CE、UL/CSA、TÜV SÜD、ATEX、RoHS、REACH
Model Number: S120、1FK7
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $500 - $20000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|
Servo Drive Motor
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Servo Drive Motor
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|

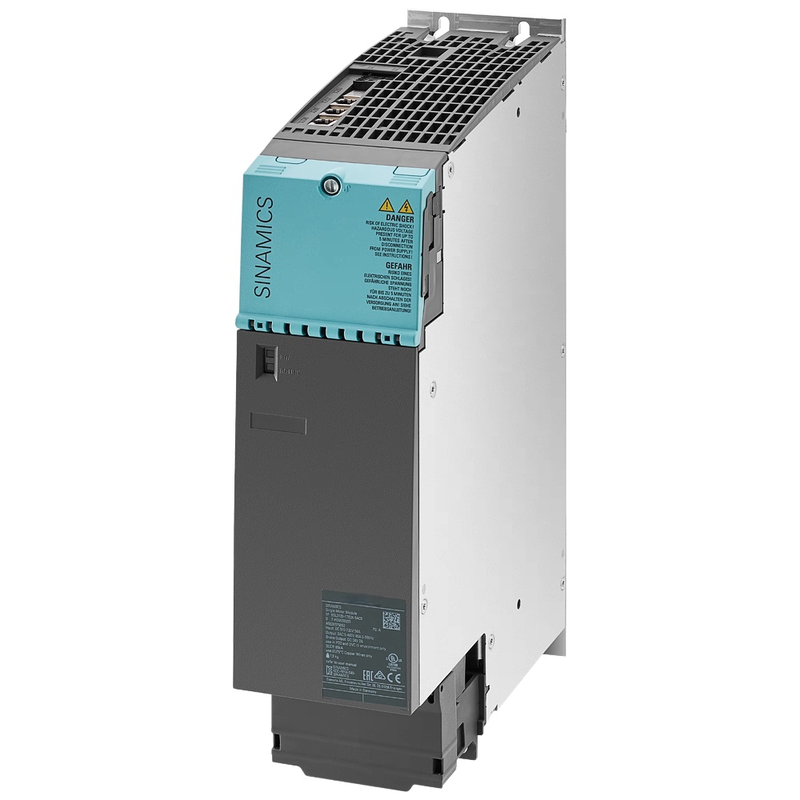

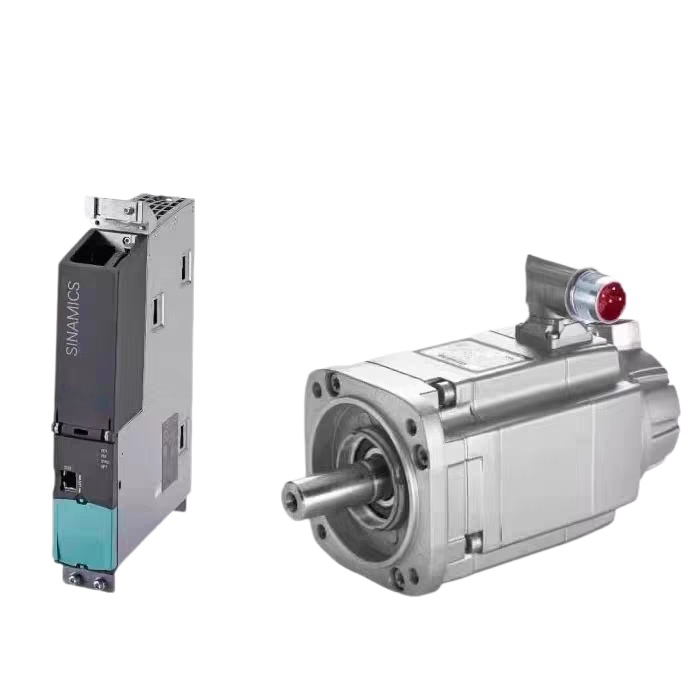

| Parameter Category | SINAMICS S120 Drive | 1FK7 Servo Motor |
|---|---|---|
| Power Range | 0.12 kW - 45 kW | 0.12 kW - 45 kW |
| Control Mode | Position, Speed, Torque, Vector control | Matches drive control modes |
| Communication Interface | Drive-Cliq, PROFINET, PROFIBUS, Ethernet/IP | Drive-Cliq (built-in) |
| Input Voltage | 3-phase AC 200-240 V / 380-480 V | 3-phase AC (matches drive output) |
| Overload Capacity | 150% overload for 60s, 200% overload for 3s | 300% rated torque for short-term overload |
| Protection Grade | IP20 (cabinet installation) | IP64 (standard); IP67 (optional) |
| Insulation Class | -- | Class F |
| Feedback System | Compatible with incremental encoder, absolute encoder, resolver | Incremental encoder (standard); absolute encoder (optional) |
| Max Speed | -- | Up to 6000 RPM |
| Cooling Method | Forced air cooling / Natural cooling | Natural cooling (standard); forced air cooling (optional) |
| Ambient Temperature Range | -10°C ~ +45°C (without derating) | -20°C ~ +40°C (without derating) |
| Certifications | CE, UL, CSA, RoHS | CE, UL, CSA, RoHS |
| Product Series | Model Example | Key Parameters | Application Scope |
|---|---|---|---|
| S120 Booksize | 6SL3120-1TE21-0AA3 | Power: 0.75 - 150 kW; Communication: Drive-Cliq, PROFINET | Small and medium-sized industrial automation equipment |
| S120 Compact | 6SL3130-1TE21-0AA0 | Power: 0.55 - 250 kW; Integrated design | Factory assembly lines, packaging machinery |
| S120 Modular | 6SL3136-1TE21-0AA3 | Power: 75 - 2700 kW; High overload capacity | Large-scale production equipment, heavy industry |
| Product Series | Model Example | Key Parameters | Application Scope |
|---|---|---|---|
| 1FK7 Compact (Low Inertia) | 1FK7011-5AK21-1VG3 | Power: 0.05 - 0.10 kW; Torque: 0.18 - 0.35 Nm | Precision electronic assembly, small robotics |
| 1FK7 Standard (Medium Power) | 1FK7022-5AK71-1VY3 | Power: 0.38 - 0.5 kW; Torque: 0.85 - 1.15 Nm | CNC machine tools, automatic guided vehicles |
| 1FK7 HD (High Power Density) | 1FK7033-4CF21-1CG0 | Power: 0.38 - 1.2 kW; Torque: 1.3 - 4.5 Nm | Industrial robots, material handling |
| Industry Sector | Typical Application Scenarios | Compatible Product Combination |
|---|---|---|
| Precision Machine Tools & Metal Processing | CNC Lathes/Milling Machines, Machining Centers, Laser Cutting | S120 Booksize + 1FK7 Standard/High Power Density |
| Industrial Robotics & Automation | Articulated Robots, SCARA, Delta, Collaborative Robots | S120 Compact + 1FK7 Low Inertia/Preferred |
| Packaging & Printing | High-Speed Packaging Machines, Labeling, Printing | S120 Combi Modules + 1FK7 Standard |
| Logistics & Warehousing | Stackers, Sorting Systems, Conveyor Lines | S120 Compact + 1FK7 High Inertia |
