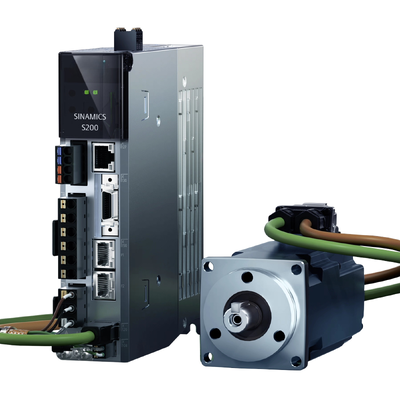

1FL2 Servo Motor + S200 Drive | Compact Design & Reliable Performance

Name: 1FL2 Servo Motor + S200 Drive | Compact Design & Reliable Performance
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: 1FL2 、S200
Price: 610.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: Siemens

Certification: CE、RoHS、WEEE、UL、cULus、UKCA、EAC、KC、RCM、EAC、REAC

Model Number: 1FL2 、S200

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $120- $1100

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            Siemens 1FL2 servo motor, compact servo drive motor, S200 drive reliable performance


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

1FL2 Servo Motor + S200 Drive | Compact Design & Reliable Performance

1FL2 Servo Motor + S200 Drive System

The 1FL2 Servo Motor and S200 Drive system delivers exceptional performance in a compact design, offering reliable operation for demanding industrial applications. With space-saving architecture that reduces installation requirements by 30% and motor lengths shortened by 24%, this system efficiently integrates into tight equipment layouts.

System Overview

Rated with IP65 protection, the system maintains stable performance in harsh working conditions. Covering a power range of 0.1-7kW, it supports up to 21-bit encoder resolution and 350% overload capacity for precise positioning, speed, and torque control. PROFINET IRT compatibility ensures seamless integration into automated production lines, while user-friendly commissioning via Startdrive software and Webserver optimization streamlines workflow from selection to maintenance.

Key Features

Clear Performance Parameters: 0.1-7kW power range, 21-bit high-resolution encoder with ±0.01mm positioning accuracy, 350% maximum overload capacity
Compact Structural Design: 1mm side-by-side mounting gap, 24% shorter motor length, integrated brake control and braking resistor
Versatile Communication: Supports PROFINET IRT, pulse train, Modbus protocols; compatible with Siemens S7-1200/1500 PLCs and third-party controllers
Easy Commissioning: One-click optimization via Webserver or Startdrive software with automatic motor nameplate reading
Comprehensive Protection: IP54/IP65 motor protection ratings with global CE, cULus, UKCA, and KC certifications
Rich Inertia Options: Low, medium, and high inertia types with 0.16-33.4Nm torque range

Performance Advantages

Balanced Precision & Dynamics: 62.5μs fast current controller cycle with 0.03mm/s speed fluctuation for precision machining
Engineering Cost Optimization: Compact design minimizes cabinet footprint; digital commissioning reduces configuration time by 80%
Environmental Adaptability: IP65 protection against dust and oil; wide 200-480V input voltage adapts to global power standards
Full Lifecycle Reliability: Siemens quality assurance with DriveSim digital simulation and remote diagnostics
Global Market Accessibility: Complies with SEMI 47 standards; no additional certifications required for international markets
Flexible Expansion: Supports OEM/ODM customization; scalable multi-axis control via TIA portal

Technical Specifications

Parameter Category	Specific Parameter	Value/Specification
Power Range	Motor Rated Power	0.1-7kW
Power Range	Drive Compatible Power	Basic Version: 0.1-1kW; Standard Version: 0.2-7kW
Control Performance	Encoder Resolution	21-bit (17-bit single-turn, 21-bit single-turn + 12-bit multi-turn optional)
Control Performance	Current Controller Cycle	62.5μs (PTI Mode); 125μs (PROFINET Mode)
Control Performance	Positioning Accuracy	±0.01mm
Control Performance	Maximum Overload Capacity	350% (for 0.75kW model)
Control Performance	Speed Fluctuation	≤0.03mm/s
Structural Dimensions	Motor Length Reduction Ratio	24%
Structural Dimensions	Drive Side-by-Side Mounting Gap	1mm (for 200V version)
Structural Dimensions	Installation Space Saving Ratio	30%
Structural Dimensions	Drive Dimensions (W×H×D)	FSA: 40×170×135mm; FSB: 40×170×170mm; FSC: 60×170×195mm; FSD: 95×260×230mm
Protection Class	Motor Protection	IP54/IP65 (IP65 optional for shaft height 20/30/40)
Protection Class	Drive Protection	IP20
Torque Range	Motor Rated Torque	0.16-33.4Nm
Electrical Parameters	Drive Input Voltage	200-240V AC (1/3-phase), 380-480V AC (3-phase); Voltage fluctuation ±10%/-15%
Electrical Parameters	Drive Output Current	0.8A-13.2A (varies with power models)
Electrical Parameters	Drive Output Frequency	0-550Hz
Communication Protocol	Supported Protocol Types	PROFINET IRT/RT, Pulse Train, Modbus, Analog
Inertia Options	Motor Inertia Types	Low / Medium / High (3 Types)
Compatible Controllers	Adaptable PLC Models	Siemens S7-1200/1500, Third-Party Controllers (Mitsubishi, Omron, etc.)
Global Certifications	Compliance Certifications	CE, cULus, UKCA, KC, SEMI 47
Supporting Tools	Commissioning & Simulation Software	Startdrive (One-Click Auto-Tuning), DriveSim Basic (Virtual Simulation)
Cable Compatibility	Dedicated Connection Cables	MOTION-CONNECT 350 (fixed wiring), 380 (drag chain applications), Max. Length 30m

Available SINAMICS S200 Drive Models

Product No.	Control Mode	Compatible Motor Power	Input Voltage	Output Current	Dimensions (W×H×D)	Protection Class
6SL5510-1BB10-1AA0	Pulse Train Input	0.1kW	200-240V 1/3AC；-15%/+10%；50/60Hz	0.8A	40×170×135mm(FSA)	IP20
6SL5510-1BB10-1AF0	PROFINET	0.1kW	200-240V 1/3AC；-15%/+10%；50/60Hz	0.8A	40×170×135mm(FSA)	IP20
6SL5510-1BB10-2AA0	Pulse Train Input	0.2kW	200-240V 1/3AC；-15%/+10%；50/60Hz	1.33A	40×170×135mm(FSA)	IP20
6SL5510-1BB10-2AF0	PROFINET	0.2kW	200-240V 1/3AC；-15%/+10%；50/60Hz	1.33A	40×170×135mm(FSA)	IP20
6SL5510-1BB10-4AA0	Pulse Train Input	0.4kW	200-240V 1/3AC；-15%/+10%；50/60Hz	2.4A	40×170×170mm(FSB)	IP20
6SL5510-1BB10-4AF0	PROFINET	0.4kW	200-240V 1/3AC；-15%/+10%；50/60Hz	2.4A	40×170×170mm(FSB)	IP20
6SL5510-1BB10-8AA0	Pulse Train Input	0.75kW	200-240V 1/3AC；-15%/+10%；50/60Hz	4.4A	60×170×195mm(FSC)	IP20
6SL5510-1BB10-8AF0	PROFINET	0.75kW	200-240V 1/3AC；-15%/+10%；50/60Hz	4.4A	60×170×195mm(FSC)	IP20
6SL5510-1BB11-0AA0	Pulse Train Input	1kW	200-240V 1/3AC；-15%/+10%；50/60Hz	4.4A	60×170×195mm(FSC)	IP20
6SL5510-1BB11-0AF0	PROFINET	1kW	200-240V 1/3AC；-15%/+10%；50/60Hz	4.4A	60×170×195mm(FSC)	IP20

SIMOTICS S-1FL2 Servo Motor Models (Matching S200 Drives)

Product No.	Rated Power	Rated Speed	Rated Torque	Shaft Height	Protection Class	Special Configuration	Matching Drive Model
1FL2306-7AC11-1MB0	2kW	2000rpm	9.55Nm(Rated)/13.3Nm(peak)	65mm	IP65	With angle connector AM21, shaft key (tolerance N), brake, oil seal	SINAMICS S200 Series
1FL2102-2AG10-0HC0	0.1kW	-	-	-	-	-	6SL5610-1BB10-1AF0,6SL5510-1BB10-1AF0
1FL2102-2AG11-0HC0	0.1kW	-	-	-	-	-	6SL5610-1BB10-1AF0,6SL5510-1BB10-1AF0
1FL2203-4AG10-0SC0	0.2kW	-	-	-	-	-	6SL5610-1BB10-2AF0,6SL5510-1BB10-2AF0
1FL2203-4AG11-0SC0	0.2kW	-	-	-	-	-	6SL5610-1BB10-2AF0,6SL5510-1BB10-2AF0
1FL2102-4AG10-0HC0	0.4kW	-	-	-	-	-	6SL5610-1BB10-4AF0,6SL5510-1BB10-4AF0
1FL2102-4AG11-0HC0	0.75kW	-	-	-	-	-	6SL5610-1BB10-8AF0,6SL5510-1BB10-8AF0
1FL2103-2AG10-0HC0	1kW	-	-	-	-	-	6SL5610-1BB11-0AF0,6SL5510-1BB11-0AF0
1FL2204-4AG10-0SC0	1kW	-	-	-	-	-	6SL5610-1BB11-0AF0,6SL5510-1BB11-0AF0

Important Notes

All models comply with overseas market access standards and have passed global certifications including CE, cULus, UKCA, and KC for direct use in international industrial automation projects.

The S200 drive and 1FL2 motor form a dedicated matching system. For optimal control accuracy and operational stability, select combinations according to the "Matching Drive Model" specifications in the tables above.

Common Installation & Operational Questions

Installation & Compatibility

Q: When installing the S200 drive in Europe with 400V 3-phase power supply but purchased 200-240V model, can we use a transformer?

A: Step-down transformers are possible with transformer power rating at least 1.5 times the drive's rated power. Use 3-phase to 3-phase transformers for stable voltage output within ±10%/-15% fluctuation limits. Avoid single-phase transformers for 3-phase drives to prevent current imbalance and overcurrent alarms.

Commissioning & Communication

Q: Using S200 drive with third-party PLC (Omron NJ series) but cannot establish PROFINET communication?

A: Check PROFINET device name matching between Startdrive software and Omron PLC configuration. Ensure drive and PLC are in same IP segment. Verify network cable is CAT5e or above with maximum 100m length. Consider disabling PLC communication module firewall if blocking PROFINET packets.

Operation & Fault Handling

Q: 1FL2 motor reports overheating faults (F7451) in Middle Eastern stone processing plant with 45°C ambient temperature?

A: Improve equipment cabinet ventilation with exhaust fans or air conditioning to reduce ambient temperature below 40°C. Reduce motor load rate to 80% or below if接近100% rated load. Consider IP65 version motors for better heat dissipation. Check motor cooling fan operation and clean dust accumulation.

Certification & Market Access

Q: Exporting equipment with S200 drives and 1FL2 motors to Canada - additional certifications beyond CE required?

A: Canada requires cULus certification. Most S200 drives and 1FL2 motors have factory cULus certification - verify nameplate for cULus logo. Use certified models (typically suffix "-AF0" for PROFINET versions). Provide whole machine certification documentation for Canadian export requirements.

Cable & Wiring

Q: Need drag chain cables for 1FL2 motor installation in German food processing plant?

A: Use MOTION-CONNECT 380 cables specifically designed for drag chain applications with 10 million bending cycle capability. Maintain same cable cross-sectional area as original (1.5mm² power, 0.75mm² signal). Ensure IP65 protection class for food processing hygiene requirements.

Environmental Adaptation

Q: 1FL2 motor shaft corrosion in Australian coastal areas after six months?

A: Replace standard shaft with stainless steel shaft option available for 1FL2 motors. Install shaft seal cover and apply anti-corrosion grease (food-grade if applicable). Use IP65 protection class for better salt spray resistance. Add rain cover for outdoor installations to prevent direct exposure.
