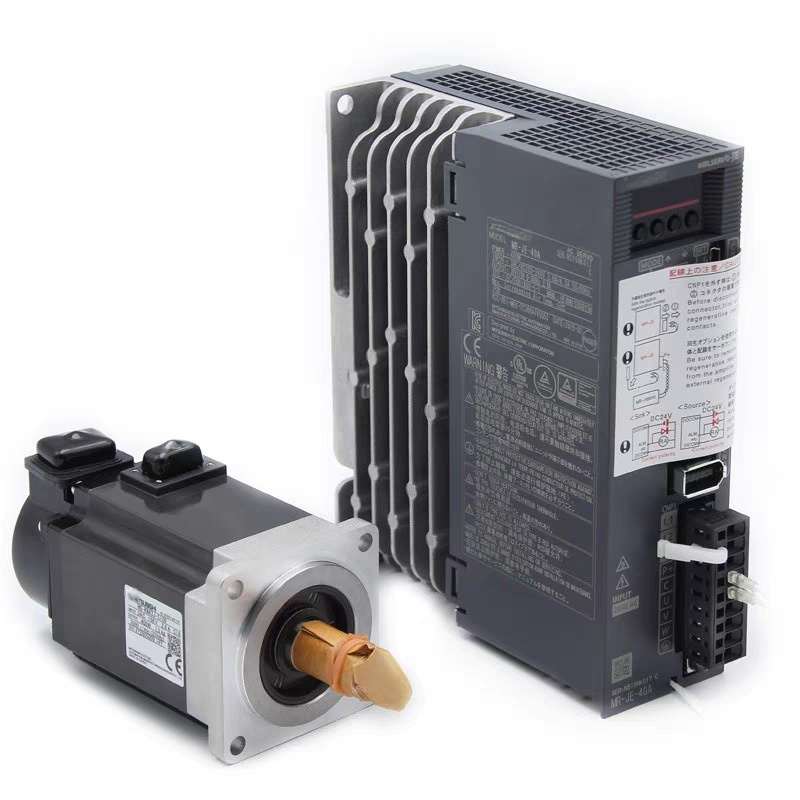

MELSERVO-JE Servo System One Touch Tuning & Worldwide FA Support

Name: MELSERVO-JE Servo System One Touch Tuning & Worldwide FA Support
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: MELSERVO-JE
Price: 550.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: CE、UL/cUL、UKCA、EAC、CCC、KC、RINA、ABS、LR、RoHS、REACH、WEEE

Model Number: MELSERVO-JE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100- $1000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            MELSERVO-JE Servo System, Servo System One Touch Tuning, MELSERVO-JE Servo Drive Motor


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

MELSERVO-JE Servo System One Touch Tuning & Worldwide FA Support

Global Standard MELSERVO-JE Servo System

The MELSERVO-JE Servo System is a globally compliant industrial automation core device that meets international standards and certifications, while supporting both sink and source wiring configurations for universal compatibility across regions. Equipped with advanced one-touch tuning functionality, it eliminates the need for a computer to automatically complete servo gain adjustment, vibration suppression, and robust filter configuration, significantly lowering operational barriers. Backed by a worldwide network of FA centers, it delivers timely technical support and after-sales service to users around the globe. Combined with reliable features such as instantaneous power failure tolerance and high-resolution encoding, the MELSERVO-JE stands out as a top-tier industrial control solution that balances ease of use, compatibility, and global service assurance.

Product Features

High-performance Control Equipped with a dedicated engine for 2.0kHz speed frequency response and a 17-bit (131,072 pulses/rev) high-resolution incremental encoder, supporting 4Mpps high-speed pulse train for position control.
Flexible Control Modes Covers three basic control modes including position, speed and torque, with support for flexible mode switching to adapt to different industrial control requirements.
High-speed Communication Capability The MR-JE-B model is compatible with SSCNET III/H high-speed optical network, enabling 150Mbps full-duplex communication with a communication cycle as low as 0.44ms.
User-friendly Operation Design Features one-touch tuning function, which automatically completes gain adjustment, vibration suppression and robust filter configuration without a computer; built-in USB communication interface for easy parameter setting and debugging.
Global Compatibility Standard compatible with both sink and source wiring methods, compliant with universal global standards and certifications to meet industrial equipment needs in different regions.
Reliable Protection & Energy Efficiency Comes with Instant Stop Tough Drive function and large-capacity main circuit capacitor, supporting effective utilization of regenerative energy; optical fiber communication design greatly enhances anti-interference capability.
Multi-axis Expansion Support A single system can connect up to 16 servo amplifiers, easily building a multi-axis synchronous control system.

Product Advantages

Balanced High Precision & High Efficiency The combination of high-resolution encoder and high-speed response performance achieves precise positioning and smooth operation, shortening equipment cycle time and improving production efficiency.
Lowered Operational Threshold One-touch tuning and automatic adjustment functions simplify the debugging process, allowing quick setup without professional experience and reducing installation and commissioning time.
Guaranteed Stable Operation Vibration suppression technology, comprehensive alarm recording function, strong anti-interference design and instantaneous power failure tolerance reduce downtime losses and ensure continuous production.
Global Service Assurance Backed by Mitsubishi's worldwide FA center network, providing timely technical support and after-sales service to facilitate overseas market deployment.
Wide Scene Adaptability Support for multiple control modes and multi-axis synchronization allows flexible application in various industrial automation scenarios such as machine tools, robotics, packaging and lithium battery manufacturing.
Cost & Energy Consumption Optimization Integrated built-in positioning function reduces the need for additional controllers; regenerative energy utilization design cuts down energy consumption, achieving better cost-effectiveness in long-term use.

Core Technical Specifications

Parameter Category	Specification Details
Control Performance	Speed frequency response: 2.0kHz Positioning pulse support: Up to 4Mpps high-speed pulse train Encoder resolution: 17-bit incremental encoder (131,072 pulses/rev)
Communication Capability	Compatible with SSCNET III/H network (MR-JE-B model) Communication speed: 150Mbps full-duplex Communication cycle: As low as 0.44ms
Control Modes	Position control, speed control, torque control Support for flexible mode switching
Axis Expansion Capability	Maximum 16-axis synchronous control per single system
Wiring Compatibility	Supports universal sink/source wiring, compliant with global universal standards
Protection & Reliability	Instant power failure tolerance (Tough Drive function) Built-in high-performance anti-interference filter Equipped with comprehensive alarm recording function Equipped with vibration suppression technology
Energy-saving Features	Supports regenerative energy utilization Low-noise operation design
Interface Configuration	Built-in USB communication interface for easy parameter setting and debugging

Product Model List

Power Rating	Servo Driver Models	Corresponding Servo Motor Models	Motor Series Characteristics
0.1kW	MR-JE-10A, MR-JE-10B, MR-JE-10C	HG-KN13J-S100 (Non-brake), HG-KN13BJ-S100 (Brake-equipped)	HG-KN Series: Small Capacity, Low Inertia
0.2kW	MR-JE-20A, MR-JE-20B, MR-JE-20C	HG-KN23J-S100 (Non-brake), HG-KN23BJ-S100 (Brake-equipped)	HG-KN Series: Small Capacity, Low Inertia
0.4kW	MR-JE-40A, MR-JE-40B, MR-JE-40C	HG-KN43J-S100 (Non-brake), HG-KN43BJ-S100 (Brake-equipped)	HG-KN Series: Small Capacity, Low Inertia
0.75kW	MR-JE-70A, MR-JE-70B, MR-JE-70C	HG-KN73J-S100 (Non-brake), HG-KN73BJ-S100 (Brake-equipped), HG-SN52J-S100 (Non-brake), HG-SN52BJ-S100 (Brake-equipped)	HG-KN Series (Low Inertia), HG-SN Series (Medium Inertia)
1.0kW	MR-JE-100A, MR-JE-100B, MR-JE-100C	HG-SN102J-S100 (Non-brake), HG-SN102BJ-S100 (Brake-equipped)	HG-SN Series: Medium Capacity, Medium Inertia
1.5kW	MR-JE-200A, MR-JE-200B, MR-JE-200C	HG-SN152J-S100 (Non-brake), HG-SN152BJ-S100 (Brake-equipped)	HG-SN Series: Medium Capacity, Medium Inertia
2.0kW	MR-JE-200A, MR-JE-200B, MR-JE-200C	HG-SN202J-S100 (Non-brake), HG-SN202BJ-S100 (Brake-equipped)	HG-SN Series: Medium Capacity, Medium Inertia
3.0kW	MR-JE-300A, MR-JE-300B, MR-JE-300C	HG-SN302J-S100 (Non-brake), HG-SN302BJ-S100 (Brake-equipped)	HG-SN Series: Medium Capacity, Medium Inertia

Application Fields

Packaging & Printing Industry Core Adaptation Advantages: 2.0kHz high-speed response and precise positioning capability ensure production stability; one-touch tuning function simplifies the debugging process; supports simple cam function to realize multi-station synchronous control; adapts to the needs of small and medium-power equipment, and improves production efficiency and product consistency.
Electronic Manufacturing Industry Core Adaptation Advantages: 17-bit high-resolution encoder achieves micron-level precise positioning; low-inertia motor supports high-speed start-stop; low-noise and strong anti-interference design adapts to clean production environment; high-speed communication models can meet the needs of multi-axis coordinated control.
Automated Assembly & Material Handling Industry Core Adaptation Advantages: Supports up to 16-axis synchronous control; instant stop tolerance and power failure protection functions ensure operation safety; medium-inertia motor provides sufficient torque; universal sink/source wiring simplifies equipment integration and adapts to flexible production needs.
Machine Tool & Processing Industry Core Adaptation Advantages: Up to 4Mpps high-speed pulse response ensures processing accuracy; vibration suppression technology improves workpiece surface quality; high-speed communication realizes real-time feedback of processing data; robust structure and comprehensive alarm functions adapt to harsh working conditions.
New Energy Industry Core Adaptation Advantages: Regenerative energy utilization design conforms to the low-carbon trend; high-precision multi-axis synchronous control meets strict production requirements; strong anti-interference capability adapts to complex electromagnetic environments; complies with global universal standards, facilitating overseas project deployment.
Textile & Leather Industry Core Adaptation Advantages: Stable speed and tension control ensure product quality; low-noise operation improves workshop environment; simple tuning function lowers the operation threshold; durable design adapts to long-term continuous operation needs.

Common Q&A

Q: The motor doesn't respond at all when powered on, and the indicator light won't turn on. What's wrong?

A: First, check if the power cable is fully plugged in and if the terminal connections are loose. Then test if the input voltage falls within the drive's required range. If all these check out, the power module might be burnt out--you'll need to contact a technician for repair.

Q: The motor runs but keeps vibrating, messing up machining accuracy. How to fix this?

A: First, check if the encoder cable is loose or damaged--replug it firmly. Then adjust the gain parameter in the drive; don't set it too high. If the vibration persists, inspect the mechanical transmission parts, like whether the coupling is aligned properly or if the load is unbalanced. Just tighten any loose components.

Q: It trips with an overheating alarm after running for a while. What should I do?

A: First, check if the drive's cooling fan is working and if the air vents are clogged with dust--clean them thoroughly and try again. If the ambient temperature exceeds 40°C, find a way to cool down the working environment. Also, overloading can cause overheating--either reduce the load or switch to a higher-capacity motor.

Q: It keeps throwing an overcurrent alarm (e.g., AL.E6). How to handle this?

A: Power off and check if the motor cable is damaged, short-circuited, or has poor plug contact. Manually turn the motor shaft to see if the mechanism is jammed. Then verify if the motor model parameters in the drive are set correctly--wrong parameters can also trigger alarms. If all else fails, test with a different motor to rule out hardware issues.

Q: Can't establish communication and the drive won't receive control commands. What to check?

A: First, check if the communication cable is broken or if the interface is corroded--try replugging it or using a new cable. Then confirm that the communication protocol settings in the software are correct. Using shielded cables can reduce electromagnetic interference. You can also try restoring factory settings and reconfiguring the drive.

Q: The motor speed fluctuates erratically and isn't stable. What causes this?

A: It's most likely an encoder feedback issue. Check the encoder wiring and power supply stability--replace the encoder if it's faulty. It could also be that the drive's speed loop parameters are not properly set; adjust the gain value, avoid sudden load changes, or enable the load adaptation function.

Q: The drive shows normal status, but the motor has no output at all. Why?

A: First, check if the emergency stop circuit is reset. Then confirm that the enable signal voltage is sufficient (24V). Also, a jammed load can cause no output--manually rotate the motor shaft to eliminate mechanical jamming issues.

Q: It occasionally pops up random alarms, which go away after a restart. Do I need to repair it?

A: These temporary alarms are usually caused by voltage fluctuations or electromagnetic interference--no urgent repair is needed. You can first check the power supply stability, add shielding to the cables, and tighten any loose wiring connections. If the alarms happen frequently, then contact a professional technician for troubleshooting.
