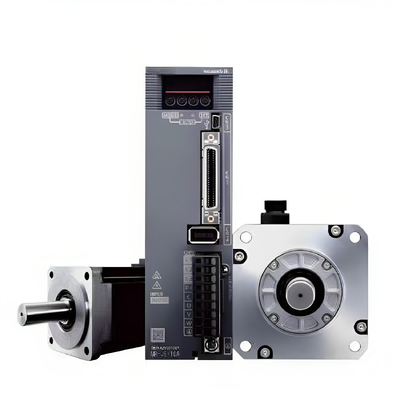

MELSERVO-J5 Servo Drive | High Precision Motion Control for Industrial Automation

Name: MELSERVO-J5 Servo Drive | High Precision Motion Control for Industrial Automation
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: MELSERVO-J5
Price: 4,050.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: CE、UL、RoHS、EtherCAT、KC

Model Number: MELSERVO-J5

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100-$8000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/P,D/A,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            Mitsubishi MELSERVO-J5 servo drive, high precision servo drive motor, industrial automation servo drive


Type:	Servo Drive Motor	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Servo Drive Motor
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

MELSERVO-J5 Servo Drive | High Precision Motion Control for Industrial Automation

MELSERVO-J5 Servo Drive

MELSERVO-J5 Servo Drive delivers industry-leading high precision motion control tailored for a wide range of industrial automation scenarios, from high-speed semiconductor manufacturing equipment and precision robotics to heavy-duty CNC machine tools. Equipped with advanced control algorithms and support for mainstream industrial networks like CC-Link IE TSN, it ensures ultra-smooth speed regulation, micron-level positioning accuracy and seamless multi-axis synchronization, while its integrated functional safety features and energy-saving design further optimize operational reliability and cost efficiency for global automation users.

Product Features

High Precision & High-Speed Control - Equipped with a 6.7-megapulse battery-free absolute encoder, it achieves a speed frequency response of 3.5 kHz and a minimum communication cycle of 31.25 μs, enabling micron-level positioning and ultra-smooth trajectory control for demanding motion tasks.
Multi-Network Compatibility - As the world's first servo drive supporting the CC-Link IE TSN protocol, it is also compatible with mainstream industrial networks including EtherCAT and Ethernet/IP, as well as the CIA®402 drive protocol, ensuring flexible integration with various control systems across global industrial applications.
Intelligent Tuning Functions - It comes with instant tuning (completing parameter optimization in 0.3 seconds) and one-click adjustment features. The newly added vibration suppression algorithm for frequencies above 1 Hz, along with 5 mechanical resonance suppression filters covering the 10 Hz-8000 Hz range, effectively eliminates system vibrations and improves motion stability.
Versatile Scenario Adaptability - Compatible with rotary, linear, and direct-drive motors, it supports multi-axis integrated drive (2-3 motors per module). For linear motors, it delivers a maximum speed of 5.0 m/s and a thrust range of 150 N-7200 N, meeting the diverse motion needs of different industrial equipment.
Full-Cycle Maintenance System - Leveraging AI technology, it enables predictive maintenance of components such as ball screws, guide rails, and belts. It records system status before and after alarms for post-event analysis, and also supports preventive maintenance based on component service life prediction, reducing unplanned downtime.

Product Advantages

Maximized Production Efficiency - High-speed response and precise synchronous control shorten equipment cycle times significantly. The pressure control mode switches in just 0.5 ms, and the linear drive solution boosts production efficiency further compared with traditional ball screw systems, helping manufacturers improve throughput.
Optimized System Costs - The DC common bus design recycles regenerative energy, cutting down energy consumption. The multi-axis integrated structure reduces installation space and wiring costs. It is also compatible with existing assets of the J4 series, lowering the cost of system upgrades and replacements.
Strong Environmental Adaptability - Capable of operating at an altitude of 2000 m and a high temperature of 60 °C, some models feature an IP67 protection rating, ensuring stable performance even in harsh industrial environments such as high-dust and high-humidity workshops.
Simplified Operation & Maintenance - The engineering software supports one-click parameter conversion, making setup quick and easy. The wire breakage detection function distinguishes fault types rapidly, and the modular design streamlines inventory management and spare part replacement, reducing maintenance labor costs.
Reliable Functional Safety - Integrated with functional safety design, the pressure control module realizes overshoot-free operation through feedforward control. It comprehensively safeguards equipment and personnel safety, minimizing operational risks and ensuring compliance with global industrial safety standards.

Product Parameter List

Parameter Category	Parameter Details	MR-J5-G Series (CC-Link IE TSN)	MR-J5-B Series (SSCNET Ⅲ/H)	MR-J5-A Series (Pulse/Analog)	MR-J5-G-N1 Series (Multi-Network)
Basic Power Specifications	Main Circuit Voltage	200V Class: 1-phase/3-phase AC 200-240V (±10%), 50/60Hz 400V Class: 3-phase AC 380-480V (±10%), 50/60Hz	Same as MR-J5-G	Same as MR-J5-G	Same as MR-J5-G
	Control Circuit Voltage	DC 24V (±10%), 0.3A (including CN8 signals)	Same as MR-J5-G	Same as MR-J5-G	Same as MR-J5-G
	Rated Output Power Range	0.05kW - 75kW	0.05kW - 75kW	0.05kW - 75kW	0.05kW - 75kW
Control Performance	Speed Frequency Response	3.5kHz	3.5kHz	3.5kHz	3.5kHz
	Minimum Communication Cycle	31.25μs (1Gbps full-duplex)	0.222ms	4Mpulses/s (max command pulse frequency)	125μs
	Encoder Resolution	67 million pulses (67,108,864 p/r) batteryless absolute encoder (HK series motor standard)	Same as MR-J5-G	17-bit incremental encoder (131072 pulses/rev) compatible	Same as MR-J5-G
	Control Modes	Position, speed, torque, pressure control; seamless switching	Same as MR-J5-G	Same as MR-J5-G	Same as MR-J5-G
Network & Interface	Supported Protocols	CC-Link IE TSN Class B, TCP/IP	SSCNET Ⅲ/H	Analog voltage (±10V), pulse train	CC-Link IE TSN, EtherCAT, Ethernet/IP, CIA®402
Functional Safety	Safety Functions	SIL 3/PLe functional safety (STO, SS1, SS2, SBC, SLT)	Same as MR-J5-G	Same as MR-J5-G	Same as MR-J5-G
Physical & Environmental	Protection Rating	IP20 (standard); some models IP67	Same as MR-J5-G	Same as MR-J5-G	Same as MR-J5-G
	Operating Temperature	0°C - 60°C	0°C - 60°C	0°C - 60°C	0°C - 60°C
	Operating Altitude	Up to 2000m	Up to 2000m	Up to 2000m	Up to 2000m
Special Features	Resonance Suppression	5 filters (10Hz-8000Hz); 1Hz+ vibration suppression algorithm	Same as MR-J5-G	Same as MR-J5-G	Same as MR-J5-G
Special Features	Tuning Function	Instant tuning (0.3s parameter optimization), one-click adjustment	Same as MR-J5-G	Same as MR-J5-G	Same as MR-J5-G

Core Industries & Global On-Site Deployments

Semiconductor & FPD (Korea/Japan/Singapore/Germany)

Wafer Handling & Prober - The MR‑J5‑G‑N1 multi‑axis network model (200V) paired with ultra‑low inertia motors delivers ±0.005mm positioning accuracy for wafer pick‑and‑place operations, perfectly suited for 300mm wafer production lines with high‑cycle handling in cleanrooms of Samsung (Korea) and GlobalFoundries (Singapore).
SMT Pick‑and‑Place - The MR‑J5‑A pulse model (100-400W) drives the Z‑axis of placement heads, supporting 500kHz pulse input to meet the requirement of over 30,000 placements per hour in electronics contract manufacturing plants in Southeast Asia.
LCD Panel Inspection - The direct‑drive MR‑J5‑D model is used in XYθ stages, providing low‑speed high‑torque performance and eliminating transmission backlash to avoid false detections in panel defect inspection equipment in Germany and Japan.

Automotive Manufacturing (Europe/North America/Mexico/Thailand)

EV Battery Module Assembly - The MR‑J5‑G4 network model (400V, 3-7kW) powers tab cutting and cell stacking mechanisms, achieving multi‑axis synchronization error of <1ms. It fits 25ppm production lines at Tesla's Berlin Gigafactory and BYD's Mexico plant.
Body Welding & Stamping - The MR‑J5‑G4‑N1 multi‑axis 400V model drives the 7th axis of robots and stamping slides. Its SIL 3 Safe Torque Off (STO) function complies with EU automotive plant safety regulations.
Wheel Machining - The MR‑J5‑60G (200V) drives rotary tables, with a 67‑million‑pulse encoder ensuring end face runout of <0.01mm, ideal for high‑speed CNC production lines in Italian wheel manufacturing plants.

3C Electronics Assembly (Southeast Asia/India/Poland)

Smartphone Camera Module Bonding - The MR‑J5‑40G network model (200V) drives dispensing heads and bonding stages, with a 2kHz response rate matching 0.01mm dispensing accuracy, widely used in Apple contract manufacturing plants in Vietnam and India.
PCB Test Handler - The MR‑J5‑A pulse model (100-400W) drives the XY axes of probes, offering a cost‑effective solution for medium‑low speed testing equipment in electronics factories in Poland.

New Energy (USA/Spain/Australia)

Solar Cell Stringer - The MR‑J5‑40A pulse model (200V) drives ribbon cutting and cell positioning mechanisms, adapting to 1,500 cells per hour production lines in photovoltaic plants in Thailand and Vietnam.
Energy Storage Battery Winding - The MR‑J5‑200G network model (200V) paired with high‑inertia motors maintains winding tension fluctuation of <±2N, meeting the high‑speed winding needs of energy storage battery factories in the USA.

Food & Beverage Packaging (EU/Brazil/Mexico)

High‑Speed Filling - The MR‑J5‑20G (200V) drives bottle positioning and valve opening/closing mechanisms, suitable for 800 bottles per minute production lines in juice factories in Brazil, supporting quick product changeovers.
Vacuum Packaging - The MR‑J5‑A pulse model (200V, 500W) drives sealing cutters, ideal for small and medium‑sized food factories in the EU, with CE certification eliminating additional compliance costs.

Machine Tools (Germany/Italy/USA)

CNC Milling Table - The MR‑J5‑60G paired with the HG‑SR102J motor achieves ±0.003mm repeat positioning accuracy for worktables, used in precision machining in small and medium‑sized machine shops in Germany.
Laser Cutting - The MR‑J5‑200G network model (200V) drives X/Y axes, ensuring multi‑axis synchronization error of <0.02mm, fitting high‑speed cutting requirements in sheet metal factories in Italy.

Medical Device Manufacturing (USA/Germany/Japan)

IVD Reagent Filling - The MR‑J5‑G network model (100W) paired with explosion‑proof motors meets FDA precision and safety requirements for medical device production, with positioning error of <0.01mm, suitable for small‑dose reagent filling.

Plastic Injection Molding (EU/Turkey/Indonesia)

Precision Injection Molding Clamping - The MR‑J5‑G4 (400V, 3-7kW) drives clamping axes, improving response speed by 30%. It adapts to short‑cycle (<3s) production of automotive interior parts in EU factories, reducing scrap rates.

Common On-Site Issues & Solutions for Global Installation

Q1: Just installed the MR-J5-G4 400V drive in a German factory, but it throws an AL.20 Overload error right after power-on. How to troubleshoot quickly?

First, check the 400V three-phase power wiring--phase reversal is super common on-site. Then inspect the motor cables for insulation damage or short circuits. Next, confirm the motor model matches the drive (never pair a 400V drive with a 200V motor). Finally, use MR Configurator2 to check the load inertia ratio: if it exceeds 100x, set Pr.PA08 to Level 1 and run one-click auto-tuning again. This fixes the issue 90% of the time.

Q2: Using the MR-J5-A pulse-type drive for the Z-axis of an SMT pick-and-place machine in a Vietnamese 3C factory. Positioning error is always ±0.02mm, failing the ±0.01mm requirement. What's the fix?

Start with mechanical checks--loose couplings or stuck linear guides are the top culprits on-site. Then enable Advanced Vibration Suppression II in MR Configurator2 and crank up the speed loop bandwidth to 2.5kHz. Calibrate the pulse input to ensure no pulse loss at 500kHz frequency. Finally, tweak Pr.PA10 (positioning range) to 0.005mm. The accuracy will meet specs in no time.

Q3: Running MR-J5-G4-N1 multi-axis drives for battery stacking in a Mexican automotive plant. EtherCAT communication keeps dropping with AL.510 errors. How to resolve this?

First, use CAT6A shielded cables, limit cable length to under 100m, and crimp connectors properly--ground the shield to the drive's earth terminal (common ground is non-negotiable). Then check slave addresses to avoid conflicts with other devices, and lower the EtherCAT cycle to 125μs. Update the drive firmware to the latest version--many old firmware versions have communication compatibility bugs. Last, enable the communication watchdog in MR Configurator2 and set the timeout to 100ms to reduce false alarms.

Q4: In a Singapore semiconductor cleanroom, the MR-J5-G-N1 paired with ultra-low inertia motors has ±0.008mm positioning fluctuation during wafer handling. How to optimize?

Keep the motor-to-load inertia ratio below 30x and set Pr.PA08 to Level 0. Enable TSN synchronization in the drive--this cuts multi-axis sync error to under 1μs. Check the encoder cable shielding: signal interference in cleanrooms often causes positioning drift. Fine-tune the position loop gain (don't go too aggressive to avoid overshoot) and set Pr.PA10 (positioning range) to 0.003mm. Fluctuation will drop to ±0.005mm or less.

Q5: The MR-J5-20G drives a filling machine in a Brazilian food factory. After 6 months of operation, it occasionally throws AL.45 Overload errors, and the production line can't stop. What to do?

First, check if the load has changed--clogged filling valves often increase resistance. Use MR Configurator2 to monitor the torque curve: if peak torque exceeds 120% of rated value, slightly increase the torque limit. Inspect the motor bearings for abnormal noise--worn bearings add load. Optimize acceleration/deceleration time to reduce startup impact load. These steps will drastically cut down alarm frequency without halting production.
