Product Details
Place of Origin: Taiwan
Model Number: DPD
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $280 - $48000
Delivery Time: 3-5workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|

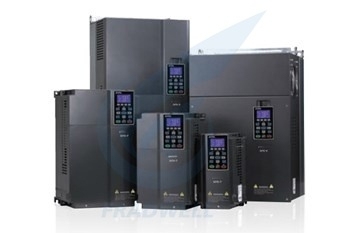

Frequency Converter Inverter
|
Rated Power:
|
0.75kW-630KW
|
IP Level:
|
IP20 IP54
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Manufacturer's Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Type:
|
Frequency Converter Inverter
|
|
Rated Power:
|
0.75kW-630KW
|
|
IP Level:
|
IP20 IP54
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
| Parameter Category | DPD-T Series (High-End Vector Type) | DPD-K Series (Fan & Pump Dedicated Type) |
|---|---|---|
| Control Method | High-end vector control, V/F control | Sensorless vector control, multi-segment V/F curves |
| Rated Power Range | 0.75kW - 630kW (3-phase 380V-480V) | 0.75kW - 630kW (3-phase 380V-480V) |
| Input Voltage | 3-phase 380V±15%, 50/60Hz | 3-phase 380V±15%, 50/60Hz |
| Output Voltage | 3-phase 0 - Input voltage, sine wave | 3-phase 0 - Input voltage, sine wave |
| Output Frequency Range | 0.1Hz - 400Hz | 0.1Hz - 150Hz (Optimized for fans & pumps) |
| Built-in Functions | PLC function, advanced PID, torque limitation, slip compensation | PLC function, advanced PID, multi-segment V/F setting, soft start, energy-saving optimization |
| Protection Functions | Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, short circuit protection | Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, pump dry-run protection |
| Bus Interfaces | Modbus RTU, optional Profibus-DP, CANopen, EtherNet/IP | Modbus RTU, optional Profibus-DP, CANopen, EtherNet/IP |
| Operation Panel | Programmable LCD panel (Supports Chinese/English switching) | Programmable LCD panel (Supports Chinese/English switching) |
| Protection Class | IP20 (Body), IP54 (Optional) | IP20 (Body), IP54 (Optional) |
| Ambient Temperature | -10℃ ~ 40℃ (No derating), 40℃~60℃ (Linear derating) | -10℃ ~ 40℃ (No derating), 40℃~60℃ (Linear derating) |
