Product Details
Place of Origin: TAIWAN

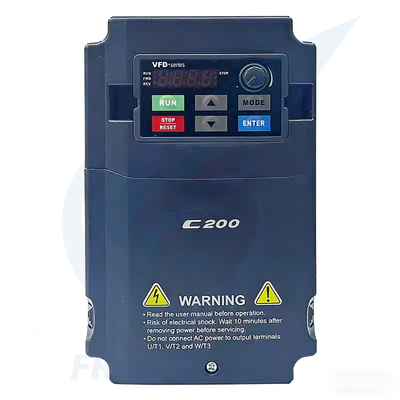

Model Number: C200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $120 - $1000
Delivery Time: 3-5workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Frequency Converter Inverter
|
Rated Power:
|
0.4kW - 7.5kW
|
IP Level:
|
IP20 IP30
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Manufacturer's Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Type:
|
Frequency Converter Inverter
|
|
Rated Power:
|
0.4kW - 7.5kW
|
|
IP Level:
|
IP20 IP30
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
| Parameter Category | Specific Specifications |
|---|---|
| Power Range | 0.4kW - 7.5kW |
| Input Voltage | 1-phase 220V ±15% / 3-phase 220V ±15% / 3-phase 380V ±15% (depending on model) |
| Input Frequency | 50Hz / 60Hz ±5% |
| Output Voltage | 0 - Input voltage (3-phase, sine wave output) |
| Output Frequency Range | 0.1Hz - 600Hz |
| Control Modes | FOC+PG closed-loop vector control, sensorless FOC vector control, sensorless PM motor control, V/F control |
| Motor Compatibility | Induction Motor (IM), Permanent Magnet Motor (PM) |
| PLC Function | Built-in, 5,000 steps program capacity |
| Control Functions | PID control, resonance frequency suppression/skip, torque limit, speed limit, slip compensation |
| Communication Interfaces | Standard: MODBUS (RS-485), CANopen; Optional: PROFIBUS-DP, Ethernet (EtherNet/IP, Modbus TCP) |
| Environmental Protection | Circuit board: IEC 60721-3-3 3C2 grade anti-fouling coating |
| Operating Temperature | -10℃ - 50℃ (derating required above 40℃) |
| Relative Humidity | 5% - 95% (non-condensing) |
| Protection Level | IP20 (panel-mounted), IP30 (with optional protective cover) |
| Cooling Method | Forced air cooling (optimized air duct design + enlarged fan) |
| Built-in Components | Brake chopper (for models ≥1.5kW), PG card interface, high-brightness LED operation panel |
| Model No. | Input Specs | Output Power | Rated Output Current (A) | Control Mode | Key Features | Application Scope |
|---|---|---|---|---|---|---|
| VFD004C21A | 1-phase 220V ±15%, 50/60Hz | 0.4kW | 2.5 | Sensorless FOC/V/F | Built-in 5k-step PLC, PID, MODBUS(RS-485) | Small machinery, treadmills, small pumps |
| VFD007C21A | 1-phase 220V ±15%, 50/60Hz | 0.75kW | 4.2 | Sensorless FOC/V/F | Built-in 5k-step PLC, PID, MODBUS(RS-485) | Food packaging machines, small conveyors |
| VFD015C21A | 1-phase 220V ±15%, 50/60Hz | 1.5kW | 7.0 | Sensorless FOC/V/F | Built-in brake chopper, PLC, PID, MODBUS | Woodworking machines, small fans |
| VFD022C21A | 1-phase 220V ±15%, 50/60Hz | 2.2kW | 9.5 | Sensorless FOC/V/F | Built-in brake chopper, PLC, PID, MODBUS | Textile machines, small water pumps |
| VFD004C23A | 3-phase 220V ±15%, 50/60Hz | 0.4kW | 1.8 | Sensorless FOC/V/F | Built-in 5k-step PLC, PID, MODBUS(RS-485) | Industrial small equipment, solar pumps |
| VFD007C23A | 3-phase 220V ±15%, 50/60Hz | 0.75kW | 3.0 | Sensorless FOC/V/F | Built-in 5k-step PLC, PID, MODBUS(RS-485) | Small conveyors, packaging machinery |
| VFD015C23A | 3-phase 220V ±15%, 50/60Hz | 1.5kW | 5.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Precision woodworking machines, fans |
| VFD022C23A | 3-phase 220V ±15%, 50/60Hz | 2.2kW | 7.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Textile machines, precision conveyors |
| VFD037C23A | 3-phase 220V ±15%, 50/60Hz | 3.7kW | 11.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Medium fans, pumps, industrial conveyors |
| VFD055C23A | 3-phase 220V ±15%, 50/60Hz | 5.5kW | 16.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Large textile machines, water pumps |
| VFD075C23A | 3-phase 220V ±15%, 50/60Hz | 7.5kW | 21.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Heavy-duty fans, industrial pumps |
| VFD004C23B | 3-phase 380V ±15%, 50/60Hz | 0.4kW | 1.0 | Sensorless FOC/V/F | Built-in 5k-step PLC, PID, MODBUS(RS-485) | Industrial small equipment, solar systems |
| VFD007C23B | 3-phase 380V ±15%, 50/60Hz | 0.75kW | 1.8 | Sensorless FOC/V/F | Built-in 5k-step PLC, PID, MODBUS(RS-485) | Small machinery, packaging equipment |
| VFD015C23B | 3-phase 380V ±15%, 50/60Hz | 1.5kW | 3.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Precision machinery, small conveyors |
| VFD022C23B | 3-phase 380V ±15%, 50/60Hz | 2.2kW | 4.2 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Textile machines, fans, pumps |
| VFD037C23B | 3-phase 380V ±15%, 50/60Hz | 3.7kW | 7.5 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Industrial pumps, fans, conveyors |
| VFD055C23B | 3-phase 380V ±15%, 50/60Hz | 5.5kW | 11.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Heavy-duty machinery, water supply systems |
| VFD075C23B | 3-phase 380V ±15%, 50/60Hz | 7.5kW | 15.0 | FOC+PG/Sensorless FOC/V/F | Built-in brake chopper, PG interface, PLC/PID | Large fans, pumps, industrial production line |
