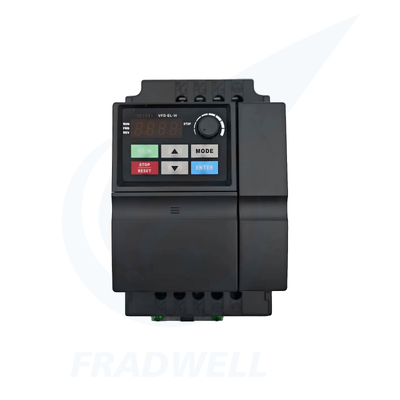

VFD-EL-W: Compact VFD with Full Functions, Save Space & Cost!

Name: VFD-EL-W: Compact VFD with Full Functions, Save Space & Cost!
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: VFD-EL-W
Price: 200.00 USD
Availability: InStock

Product Details

Place of Origin: TAIWAN

Model Number: VFD-EL-W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100 - $300

Delivery Time: 3-5workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    compact VFD with full functions, space-saving frequency inverter converter, cost-effective Delta VFD-EL-W


Type:	Frequency Converter Inverter	Rated Power:	0.2 ~ 5.5KW
IP Level:	IP20	Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Type:	Frequency Converter Inverter
Rated Power:	0.2 ~ 5.5KW
IP Level:	IP20
Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

VFD-EL-W: Compact VFD with Full Functions, Save Space & Cost!

VFD-EL-W: Compact Variable Frequency Drive with Full Functions

The VFD-EL-W represents a new generation of general-purpose sensorless vector inverters, featuring an ultra-compact and exquisite design. With significantly reduced size and weight, it easily installs in equipment with limited space or production lines requiring streamlined layouts, eliminating installation space concerns.

This inverter inherits Delta's proven stable performance characteristics, enabling quick setup without complex debugging. While maintaining industrial-grade equipment reliability, it offers user-friendly operation. Equipped with multiple practical built-in functions, it covers most general application scenarios. Comprehensive protection mechanisms prevent equipment damage or production downtime from unexpected failures, helping customers effectively save on maintenance and accessory costs.

Key Features & Benefits

Ultra-Compact & Lightweight Design: Significantly smaller and lighter than traditional inverters (2.2kW single-phase model: 140×250×130mm, 2-3kg). Ideal for equipment with limited installation space, reducing cabinet size and installation labor costs.
Proven Delta Reliability: Inherits Delta's industrial-grade stability with mature core technology. Delivers consistent performance in harsh industrial environments, minimizing downtime and ensuring long-term operational reliability.
All-in-One Practical Functions: Built-in multi-speed operation, torque compensation, PID control, multi-pump control, constant pressure water supply, and water leakage detection. Eliminates additional controllers, covering 80% of general-purpose scenarios.
Comprehensive Protection Mechanisms: Equipped with overcurrent, overvoltage, undervoltage, overheating, overload, overtemperature, and output phase loss protection. Automatically shuts down or alarms to prevent equipment damage.
Easy Commissioning & Operation: Intuitive interface with preset parameters for common functions. Basic setup can be completed in 30 minutes without professional technical background.
Wide Compatibility: Works with induction motors from all brands (voltage/power match required). Supports single-phase 200-240V and three-phase 380-480V inputs for different regional power supplies.
Energy-Saving & Cost-Effective: Sensorless vector control ensures precise speed regulation, reducing energy consumption for pumps, fans, and variable-load equipment.
Durable & Adaptable: IP20 protection class with self-cooling design. Operates reliably in -10℃~40℃ environments with automatic derating for high temperatures.

Core Specifications

Specification Category	Details
Control Method	Sensorless Vector Control, V/F Control
Input Voltage Range	Single-phase 200-240V ±10% (50/60Hz); Three-phase 200-240V ±10%, 380-480V ±10% (50/60Hz)
Output Voltage Range	0 to Input Voltage (Continuously Adjustable)
Output Frequency Range	0.1-400Hz
Overload Capacity	150% Rated Current for 60s; 180% Rated Current for 1s
Speed Regulation Accuracy	±0.5% Rated Speed (Sensorless Vector Mode)
Carrier Frequency	2-16kHz (Auto-adjustable)
Protection Class	IP20
Cooling Method	Self-cooling
Ambient Temperature	-10℃~40℃ (For each 1℃ rise above 40℃, output current decreases by 2%; 50% derating at 50℃)

Complete Model Specifications

Model	Input Power Specification	Rated Power (kW)	Rated Power (HP)	Rated Current (A)	Output Frequency Range (Hz)	Control Mode	Protection Class	Cooling Method	Suitable Motor Power (kW)	Suitable Motor Power (HP)	Application Scope Notes
VFD004EL21W	Single-phase 200-240V ±10%, 50/60Hz	0.4	0.5	2.5	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	0.4	0.5	Small pumps, fans, mini-conveyors
VFD007EL21W	Single-phase 200-240V ±10%, 50/60Hz	0.75	1.0	4.0	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	0.75	1.0	Household appliances, small workshop equipment
VFD015EL21W	Single-phase 200-240V ±10%, 50/60Hz	1.5	2.0	6.5	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	1.5	2.0	Small packaging machines, lab equipment
VFD022EL21W	Single-phase 200-240V ±10%, 50/60Hz	2.2	3.0	9.0	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	2.2	3.0	Small woodworking machines, gym equipment
VFD037EL21W	Single-phase 200-240V ±10%, 50/60Hz	3.7	5.0	15.0	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	3.7	5.0	Medium-sized fans, industrial pumps
VFD004EL43W	Three-phase 380-480V ±10%, 50/60Hz	0.4	0.5	1.2	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	0.4	0.5	Automation line auxiliary equipment
VFD007EL43W	Three-phase 380-480V ±10%, 50/60Hz	0.75	1.0	2.0	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	0.75	1.0	Small compressors, conveyor belts
VFD015EL43W	Three-phase 380-480V ±10%, 50/60Hz	1.5	2.0	3.5	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	1.5	2.0	Printing machinery, textile auxiliary equipment
VFD022EL43W	Three-phase 380-480V ±10%, 50/60Hz	2.2	3.0	4.8	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	2.2	3.0	Mixers, small agitators
VFD037EL43W	Three-phase 380-480V ±10%, 50/60Hz	3.7	5.0	7.5	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	3.7	5.0	Air compressors, water supply pumps
VFD055EL43W	Three-phase 380-480V ±10%, 50/60Hz	5.5	7.5	11.0	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	5.5	7.5	Medium-sized fans, industrial mixers
VFD075EL43W	Three-phase 380-480V ±10%, 50/60Hz	7.5	10.0	15.0	0.1-400	Sensorless Vector / V/F	IP20	Self-cooling	7.5	10.0	Large water pumps, HVAC systems
VFD110EL43W	Three-phase 380-480V ±10%, 50/60Hz	11.0	15.0	21.0	0.1-400	Sensorless Vector / V/F	IP20	Forced air cooling	11.0	15.0	Heavy-duty conveyors, industrial compressors
VFD150EL43W	Three-phase 380-480V ±10%, 50/60Hz	15.0	20.0	28.0	0.1-400

Application Industries & Scenarios

General Machinery Industry

Water Pumps (Constant Pressure Water Supply Systems, Small Circulation Pumps)
Fans (Ventilation Fans, Exhaust Fans)
Conveyors (Small Production Line Conveying Equipment)
Mixers (Food Processing, Chemical Raw Material Mixing Equipment)
Compressors (Small Air Compressors)

Light Industry Manufacturing

Packaging Machinery (Sealing Machines, Labeling Machines, Small Packaging Lines)
Printing Machinery (Small Printing Machines, Label Printing Equipment)
Textile Machinery (Small Spinning Machines, Weaving Machine Auxiliary Equipment)
Woodworking Machinery (Electric Saws, Grinders, Small Woodworking Machines)

Commercial & Civil Scenarios

HVAC Terminal Fans and Pumps
Building Constant Pressure Water Supply Systems
Small Cold Storage Refrigeration Unit Fans
Gym Equipment (Treadmills, Spinning Bikes Speed Control)

Other Scenarios

Laboratory Small Equipment
Automation Production Line Auxiliary Transmission Equipment
Agricultural Irrigation Pump Control

Frequently Asked Questions

How small is this inverter exactly? Is it suitable for compact spaces?

Take the 2.2kW single-phase model as an example—its dimensions are approximately 140×250×130mm (W×H×D), which is smaller than traditional inverters. Weighing only 2-3kg, it's easy to wall-mount and perfectly suitable for equipment or control cabinets with limited space.

Can it be quickly commissioned without professional technicians?

Absolutely! It has an intuitive operation interface, and common functions like multi-speed operation and PID control come with preset parameters. Follow the user manual step by step, and basic commissioning can be completed within 30 minutes—no complex professional knowledge required.

Do I need an additional sensor for constant pressure water supply applications?

Yes, you need to match it with a pressure sensor (e.g., 4-20mA signal). The inverter has built-in full-featured constant pressure water supply and multi-pump control functions, so no extra controller is needed. Simply connect the sensor and set the target pressure to start using.

What causes the "Overcurrent" alarm during operation?

There are 3 common reasons: 1) Loose or short-circuited motor wiring (check the motor cables); 2) Overload exceeding the inverter's capacity (check if the equipment is jammed); 3) Too short acceleration time (adjust the acceleration time appropriately).

Is this inverter compatible with motors from different brands?

Yes! As long as the motor's rated voltage and power match the inverter, it can drive any brand of induction motor—highly versatile.

Will high ambient temperatures above 40℃ affect performance?

The inverter will automatically derate when the temperature exceeds 40℃ (output current decreases by 2% for each 1℃ rise). For long-term use in high-temperature environments, ensure proper heat dissipation (e.g., add cooling fans, increase installation spacing) to avoid affecting equipment lifespan.

Does it have water leakage detection? How to use it?

Yes, it has a built-in water leakage detection function. Connect an external water leakage sensor, and the inverter will automatically shut down and alarm when water leakage is detected—protecting the equipment from water damage. Ideal for pumps and equipment used in humid environments.
