Product Details
Place of Origin: Taiwan

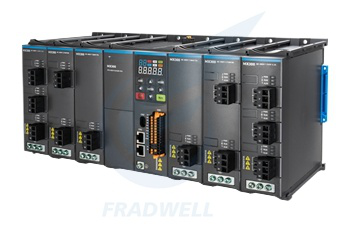

Model Number: MX300
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $850-$1800
Delivery Time: 3-5workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Type:
|
Frequency Converter Inverter
|
Rated Power:
|
0.75kW-75kW
|
IP Level:
|
IP20
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Manufacturer's Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
|
Type:
|
Frequency Converter Inverter
|
|
Rated Power:
|
0.75kW-75kW
|
|
IP Level:
|
IP20
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
|
| Specification | Details |
|---|---|
| Rated Voltage | 3-Phase 200V-240V (±10%), 3-Phase 380V-480V (±10%) |
| Motor Power Range | 0.75kW-75kW (Single-axis output), Total multi-axis power customizable |
| Control Modes | V/F Control, Sensorless Vector Control (SVC), Torque Control |
| Output Frequency Range | 0.1Hz-600Hz |
| Rectifier Module Type | Shared single rectifier module (with brake unit interface) |
| Inverter Module Configuration | 1 rectifier module can pair with 2-6 inverter modules (supports independent multi-axis control) |
| Communication Protocols | Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET, EtherCAT (optional) |
| Protection Class | Control unit IP20, Power unit IP20 (IP54 protection kit optional) |
| Ambient Temperature | Operation: -10℃~40℃ (Derate 2% output current per 1℃ above 40℃, max 50℃); Storage: -20℃~60℃ |
| Main Protection Functions | Overcurrent, Overload, Overvoltage, Undervoltage, Overheating, Phase Loss, Short Circuit Protection |
| Model No. | Rated Voltage | Rectifier Power | Inverter Configuration | Max Output Current | Application Reference |
|---|---|---|---|---|---|
| MX300-2004-E | 3-Phase 200V-240V | 4kW | 2 axes / 2.2kW | 10A | Small electronic assembly lines, mini multi-axis conveyors |
| MX300-2007-E | 3-Phase 200V-240V | 7.5kW | 2 axes / 3.7kW | 16A | Small packaging machines, 2-axis textile equipment |
| MX300-2015-E | 3-Phase 200V-240V | 15kW | 3 axes / 5.5kW | 25A | Medium-sized labeling machines, 3-axis CNC lathes |
| MX300-2022-E | 3-Phase 200V-240V | 22kW | 4 axes / 5.5kW | 25A | 4-axis sorting equipment, small automated production lines |
| MX300-4007-E | 3-Phase 380V-480V | 7.5kW | 2 axes / 3.7kW | 8A | Low-power machine tools, 2-axis material handling equipment |
| MX300-4015-E | 3-Phase 380V-480V | 15kW | 2 axes / 7.5kW | 16A | Medium-power packaging lines, 2-axis milling machines |
| MX300-4022-E | 3-Phase 380V-480V | 22kW | 2 axes / 11kW | 23A | Heavy-duty conveyors, 2-axis machining centers |
| MX300-4037-E | 3-Phase 380V-480V | 37kW | 3 axes / 15kW | 32A | 3-axis automated warehouse stackers, large packaging machinery |
| MX300-4055-E | 3-Phase 380V-480V | 55kW | 4 axes / 15kW | 32A | 4-axis textile dyeing equipment, high-power production lines |
| MX300-4075-E | 3-Phase 380V-480V | 75kW | 6 axes / 11kW | 23A | 6-axis electronic component assembly lines, complex automation systems |
