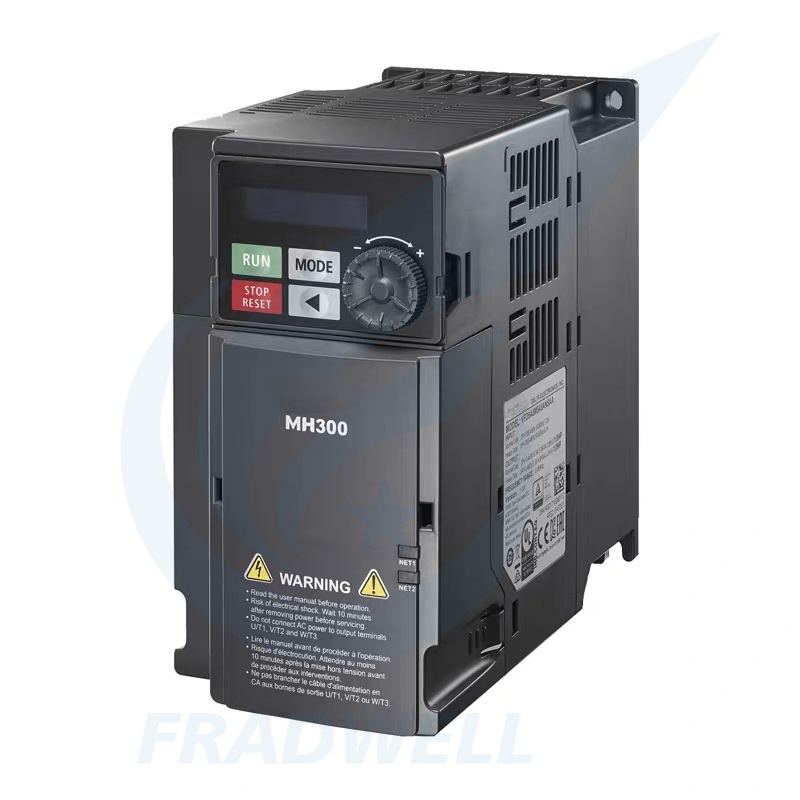

MH300: Compact Vector Inverter, Big Efficiency Boost for Your Production!

Name: MH300: Compact Vector Inverter, Big Efficiency Boost for Your Production!
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: MH300
Price: 442.00 USD
Availability: InStock

Product Details

Place of Origin: Taiwan

Model Number: MH300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $85 - $800

Delivery Time: 3-5workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    compact vector frequency inverter, efficient inverter converter for production, Delta MH300 vector inverter


Type:	Frequency Converter Inverter	Rated Power:	0.1kW-7.5kW (200-240V); 0.4kW-11kW (380-480V)
IP Level:	IP20、IP54	Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Type:	Frequency Converter Inverter
Rated Power:	0.1kW-7.5kW (200-240V); 0.4kW-11kW (380-480V)
IP Level:	IP20、IP54
Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

MH300: Compact Vector Inverter, Big Efficiency Boost for Your Production!

MH300: Compact Vector Inverter for Enhanced Production Efficiency

MH300 series is a compact, high-efficiency vector control inverter that delivers reliable performance for industrial applications. Designed specifically for space-constrained environments and operational efficiency, this inverter addresses key challenges in modern manufacturing facilities.

Core Advantages

Ultra-compact design, high-efficiency drive performance, and smart expandability with precise control and reliable operation for industrial applications.

Key Features & Benefits

Ultra-Compact Design

50% smaller than traditional inverters with 71% space savings over previous generations
Supports side-by-side installation at -20℃ to 40℃ without additional cooling space
Lightweight design from 0.8kg to 4.5kg for easy transportation and installation

Outstanding Drive Performance

200% torque at 0.5Hz (sensorless vector control) and 200% torque at 0Hz (vector control with PG)
150%/60s and 200%/3s overload capacity for shock load handling
Compatible with induction motors and permanent magnet synchronous motors (PMSM)
98% output efficiency with up to 19.7% energy savings in cooling tower applications

Precise Tension Control

Built-in roll diameter calculation with tension control precision up to ±3%
Two sets of PID parameters and tension taper calculation
Friction and inertia compensation for constant tension maintenance
Automatic roll change capability without production stoppage

Smart Operation & Maintenance

Built-in USB port for quick parameter copying without additional software
Integrated 5k steps PLC for distributed control
Regenerative energy utilization for smooth shutdown during power outages

System Safety & Stability

Built-in STO (SIL2/PL d) safe stop function
Standard Modbus and CANopen communication
Optional EtherNet/IP, EtherCAT communication cards
Common DC bus support for regenerative energy recovery

Flexible Expandability

Two sets of 33kHz high-speed pulse input terminals
Two accessory card slots for I/O expansion and communication cards
Models with built-in filters for enhanced electromagnetic compatibility

Technical Specifications

Control Mode	Vector control (V/F, SVC, FVC), torque control mode
Input Voltage Range	Single-phase: 200-240V AC ±10%; Three-phase: 200-240V/380-480V AC ±10%
Output Frequency Range	0.1-400Hz (precision: ±0.01Hz)
Power Range	0.1kW-7.5kW (200-240V); 0.4kW-11kW (380-480V)
Speed Regulation Accuracy	±0.1% of rated speed (FVC mode); ±1% of rated speed (SVC mode)
Protection Level	IP20 (enclosure); IP54 (optional for specific models)
Operating Temperature	-10℃ to 50℃ (derate above 40℃)
Communication Interfaces	Built-in RS485 (Modbus RTU); Optional: Profibus, CANopen, Ethernet

Application Areas

Manufacturing Industry

Textile machinery, plastic & rubber machinery, printing & packaging machinery

Material Handling & Logistics

Conveyors, hoists & cranes, palletizers & stackers

HVAC & Building Automation

Pumps & fans, air conditioning systems

General Industrial Equipment

Machine tools, woodworking machinery, test benches

Frequently Asked Questions

Can the MH300 series work with both induction motors and servo motors?

The MH300 is primarily designed for induction motors (asynchronous motors). It supports V/F, SVC, and FVC control modes, which are fully compatible with most industrial induction motors. For servo motors, we recommend Delta's dedicated servo drives for optimal performance.

How to copy parameters between multiple MH300 inverters?

No additional software is required. The MH300 has a built-in USB port. Simply connect a USB flash drive to export parameters, then plug into another MH300 to import. The process takes only seconds, making batch setup extremely efficient.

What is the ambient temperature range for the MH300?

The standard operating temperature range is -10℃ to 50℃. When ambient temperature exceeds 40℃, derating is required. At 50℃, the derating factor is approximately 80%. Installation in well-ventilated areas is recommended.

Does the MH300 support communication with PLCs from other brands?

Yes. The MH300 has built-in RS485 with Modbus RTU protocol, compatible with most PLCs. For Profibus, CANopen, or Ethernet communication, optional modules are available for seamless integration.

What protection functions does the MH300 have?

Comprehensive protection includes overcurrent, overvoltage, overtemperature, undervoltage, overload, phase loss, and motor stall protection. Fault codes help identify issues for quick troubleshooting.

Is the MH300 compliant with international standards?

Yes. The MH300 series has passed CE, UL, cUL, and other international certifications, meeting safety and EMC requirements for global markets.
