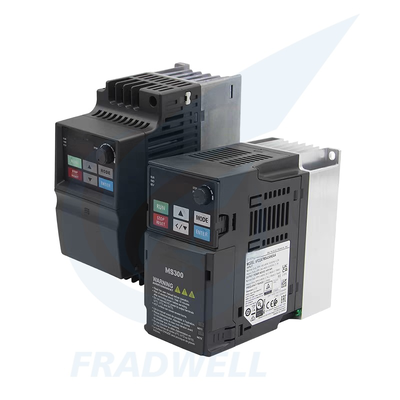

MS300 Series - Compact Standard Vector Control Inverter

Name: MS300 Series - Compact Standard Vector Control Inverter
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: MS300
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Taiwan

Model Number: MS300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100 - $800

Delivery Time: 3-5workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Delta MS300 compact vector inverter, standard frequency inverter converter, vector control inverter with warranty


Type:	Frequency Converter Inverter	Rated Power:	0.2-22KW
IP Level:	IP20、IP40、IP66/NEMA 4X	Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Type:	Frequency Converter Inverter
Rated Power:	0.2-22KW
IP Level:	IP20、IP40、IP66/NEMA 4X
Pakage:	Original Pakage
Warranty:	Original Manufacturer's Warranty
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

MS300 Series - Compact Standard Vector Control Inverter

The MS300 Series combines compact design, high functionality, reliable performance, and easy installation—transforming every industrial investment into fruitful results. Optimized structure and screwless terminal design simplify maintenance procedures, cutting down installation and repair time significantly. The user-friendly interface allows effortless parameter configuration through application-specific selection. Equipped with a built-in USB port, it enables quick parameter copying to boost production efficiency.

Key Features & Highlights

The MS300 is a compact standard vector control inverter designed to balance space-saving design, user-friendliness, and reliable performance—ideal for global small-to-medium industrial applications where efficiency and cost-effectiveness matter.

Ultra-Compact & Easy Installation

60% Space Saving: Optimized structural design reduces footprint by 60% compared to conventional inverters
Screwless Spring-Clamp Terminals: Tool-free wiring cuts installation time by 40%
Lightweight & Stackable: Net weight as low as 0.4kg with vertical stacking capability

User-Centric Operation & Efficiency

Application-Specific Presets: Built-in macros for pumps, fans, conveyors, and general machinery
Built-in USB Port: Fast parameter copying/backup between inverters
Intuitive Interface: Clear LED display with multi-language support

Reliable Performance & Versatility

Vector Control Precision: SVC delivers 150% starting torque at 1Hz
Dual Motor Compatibility: Supports both induction and permanent magnet motors
Wide Voltage Range: Compatible with global power grids

Durability & Environmental Adaptability

Robust Protection: Built-in overcurrent, overvoltage, overheating, and short-circuit protection
Stable Operation Under Fluctuations: Withstands ±15% voltage variation and -10~40℃ operating temperature

Cost-Effective Total Ownership

All-in-One Design: Integrates essential functions without expensive add-ons
Energy-Saving Features: Automatic energy optimization mode adjusts output frequency based on load
Global Support: Backed by Delta's international service network

Technical Parameters

Parameter Category	Parameter Item	Specification Details
Basic Specifications	Power Range	0.2 kW～22 kW (Single/Three-Phase, depending on voltage class)
	Input Voltage	Single-Phase: AC 100-120 V, 200-240 V; Three-Phase: AC 200-240 V, 380-480 V, 500-600 V
	Input Frequency	50/60 Hz (±5%)
	Output Voltage	0～Input Voltage (Automatically adjusted with frequency)
	Output Frequency	Standard Model: 0～599 Hz; High-Speed Model: 0～1500 Hz (IM V/f only)
	Overload Capacity	ND: 120% Ie for 60 s; HD: 150% Ie for 60 s; Peak: 200% Ie for 3 s
	Protection Class	IP20 (Standard), IP40 (Dust-Proof), IP66/NEMA 4X (Outdoor)

Industry Applications & Use Cases

Machine Tools & Metalworking: Small CNC machines, automatic tool changers, grinders, drilling machines
Textile & Garment Manufacturing: Looms, warp knitting machines, setting machines, winding equipment
Woodworking & Furniture Production: Double-sided planers, edge banders, sanding machines
Packaging & Printing: Filling/sealing/labelling machines, wrapping/shrinking machines
Electronics & Semiconductor: SMT machines, insertion machines, conveyor and inspection equipment
Fluid Handling & HVAC: Building water supply systems, cooling tower pumps, air conditioning fans
Food & Beverage: Mixing/stirring equipment, filling/labelling machines, conveyors
Logistics & Warehousing: Sorting lines, elevators, small stackers, AGV/AMR systems
Agriculture & Aquaculture: Irrigation pumps, ventilation fans, feed mixing equipment
Medical & Laboratory Equipment: Centrifuges, ventilators, medical pumps, clean air systems

Frequently Asked Questions

Purchase & Delivery Related

What is the Minimum Order Quantity (MOQ)?

The MOQ for standard models is 1 unit, and small trial orders (1-5 units) are accepted.

Can the product pass the certifications required in our country?

All MS300 overseas models are certified with CE (EU), UL (US), and cUL (Canada). For models used in medical equipment, FDA compliance reports can be provided.

Installation & Power Grid Adaptation Related

The local power grid in our country is 220V 1-phase. Can the 230V 1-phase MS300 be used directly?

Yes, it can be used directly. The 230V series has a voltage adaptation range of 170V-264V, which can tolerate ±10% grid fluctuations.

Operation & Troubleshooting Related

The inverter displays "CP30" error. What's the problem and how to fix it?

"CP30" is an internal communication timeout fault, mostly caused by loose connectors between the control board and drive board or excessive ambient temperature.

After-Sales & Warranty Related

What is the warranty period? What does the warranty cover?

We offer a global 18-month warranty (starting from the shipment date). The warranty covers inherent quality issues of the inverter but excludes human-induced damage.
