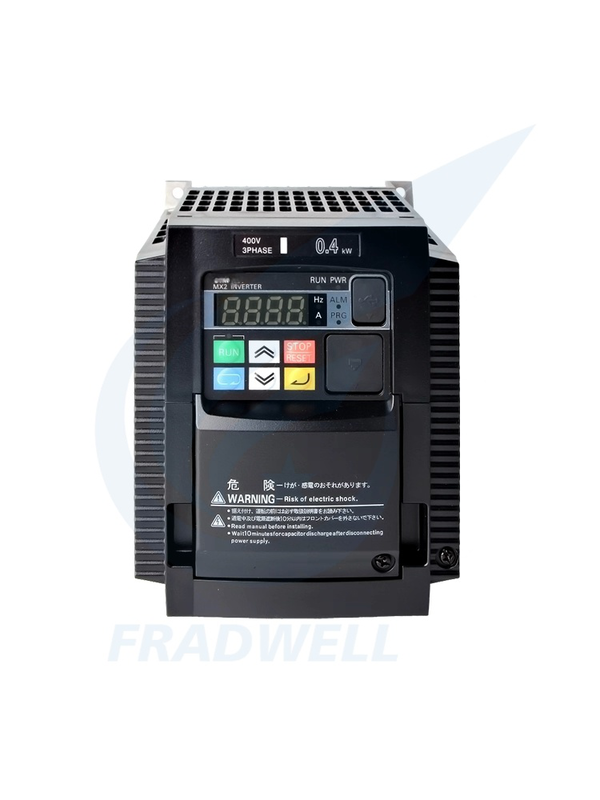

AC200V 3 Phase VFD 3G3MX2-V2 Series Multifunctional Frequency Converter Inverter

Name: AC200V 3 Phase VFD 3G3MX2-V2 Series Multifunctional Frequency Converter Inverter
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: 3G3MX2-V2
Price: 2,890.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Model Number: 3G3MX2-V2

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $280 - $5500

Delivery Time: 3-5workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    AC200V 3 Phase VFD, 3 Phase VFD 3G3MX2-V2, Multifunctional Frequency Converter Inverter


Type:	Frequency Converter Inverter	Rated Power:	0.1kW -18.5kW
IP Level:	IP20	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Type:	Frequency Converter Inverter
Rated Power:	0.1kW -18.5kW
IP Level:	IP20
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

AC200V 3 Phase VFD 3G3MX2-V2 Series Multifunctional Frequency Converter Inverter

3G3MX2-V2 Series Multifunctional Small Frequency Converter Inverter

3G3MX2-V2 series inverter is a highly practical industrial variable frequency product compatible with global mainstream power grids. It covers voltage specifications including 3-Phase AC200V, 3-Phase AC400V, and Single-Phase AC200V, all with an IP20 protection class, making it suitable for cabinet-mounted installations.

Key Features

Simple Positioning Function: Supports positioning with 90° phase-difference encoder input (~32kHz) and single-phase pulse input (~32kHz)
Built-in Communication Unit: Compatible with EtherCAT® communication protocol
Simple Programming Function: Executes basic sequence control directly via the inverter (no additional PLC required)
PM Motor Control: Optimized for high-efficiency Permanent Magnet (PM) motors, enabling further energy savings
Sensorless Vector Control & Auto-Tuning: Delivers 200% high starting torque at 0.5Hz
Safety Functions: Complies with EN ISO13849-1 (Safety Category 3/PLe), equipped with IEC 61800-5-2 Safe Torque Off (STO) function, standard configuration: 2 safety inputs + EDM output
Maximum Output Frequency: Supports up to 590Hz

Product Models

Rated Voltage	IP Rating	Max. Motor Power ND (kW)	Max. Motor Power LD (kW)	Model
3-Phase AC200V	IP20	0.1	0.2	3G3MX2-A2001-V2
3-Phase AC200V	IP20	0.2	0.4	3G3MX2-A2002-V2
3-Phase AC200V	IP20	0.4	0.75	3G3MX2-A2004-V2
3-Phase AC200V	IP20	0.75	1.1	3G3MX2-A2007-V2
3-Phase AC200V	IP20	1.5	2.2	3G3MX2-A2015-V2
3-Phase AC200V	IP20	2.2	3.0	3G3MX2-A2022-V2
3-Phase AC200V	IP20	3.7	5.5	3G3MX2-A2037-V2
3-Phase AC200V	IP20	5.5	7.5	3G3MX2-A2055-V2
3-Phase AC200V	IP20	7.5	11	3G3MX2-A2075-V2
3-Phase AC200V	IP20	11	15	3G3MX2-A2110-V2
3-Phase AC200V	IP20	15	18.5	3G3MX2-A2150-V2
3-Phase AC400V	IP20	0.4	0.75	3G3MX2-A4004-V2
3-Phase AC400V	IP20	0.75	1.5	3G3MX2-A4007-V2
3-Phase AC400V	IP20	1.5	2.2	3G3MX2-A4015-V2
3-Phase AC400V	IP20	2.2	3.0	3G3MX2-A4022-V2
3-Phase AC400V	IP20	3.0	4.0	3G3MX2-A4030-V2
3-Phase AC400V	IP20	4.0	5.5	3G3MX2-A4040-V2
3-Phase AC400V	IP20	5.5	7.5	3G3MX2-A4055-V2
3-Phase AC400V	IP20	7.5	11	3G3MX2-A4075-V2
3-Phase AC400V	IP20	11	15	3G3MX2-A4110-V2
3-Phase AC400V	IP20	15	18.5	3G3MX2-A4150-V2
Single-Phase AC200V	IP20	0.1	0.2	3G3MX2-AB001-V2
Single-Phase AC200V	IP20	0.2	0.4	3G3MX2-AB002-V2
Single-Phase AC200V	IP20	0.4	0.55	3G3MX2-AB004-V2
Single-Phase AC200V	IP20	0.75	1.1	3G3MX2-AB007-V2
Single-Phase AC200V	IP20	1.5	2.2	3G3MX2-AB015-V2
Single-Phase AC200V	IP20	2.2	3.0	3G3MX2-AB022-V2

Core Specifications

Parameter Category	Specification Details
Rated Voltage	3-Phase AC200V, 3-Phase AC400V, Single-Phase AC200V
IP Rating	IP20 (Cabinet-mounted)
Load Type	ND (Standard Load), LD (Light Load)
Power Range	0.1kW-18.5kW (ND Mode), 0.2kW-18.5kW (LD Mode)
Control Method	Sensorless Vector Control, V/f Control
Starting Torque	200% Rated Torque at 0.5Hz
Maximum Output Frequency	590Hz
Positioning Function	Supports 90° phase-difference encoder input positioning (~32kHz), single-phase pulse input positioning (~32kHz)
Communication Function	Built-in EtherCAT® communication unit
Programming Function	Simple programming for standalone basic sequence control
Motor Compatibility	Induction motors, high-efficiency PM (Permanent Magnet) synchronous motors
Safety Functions	EN ISO13849-1 (Safety Category 3/PLe), IEC 61800-5-2 STO function, 2 safety inputs + EDM output
Auto-Tuning	Motor auto-tuning function supported

Industry Applications

Industry Sector	Typical Scenarios	Key Adaptation Points	Power/Load Range
Packaging & Food Processing	High-speed filling machines, labeling machines, sorting lines	200% starting torque, 590Hz high-speed response, EtherCAT synchronization, STO safe stop	0.4-7.5kW (ND/LD)
Electronics Manufacturing	SMT pick-and-place machines, AOI conveyor axes, semiconductor equipment	Sensorless vector control, ±0.01% frequency precision, built-in EMC filter	0.1-3.7kW (ND/LD)
Logistics & Warehousing Automation	E-commerce sorting lines, AGV conveyor rollers, cold chain conveyors	Simple positioning, built-in logic programming, EtherCAT multi-machine linkage	0.75-11kW (ND/LD)
Textile & Printing	Textile machines, winding machines, printing machine axes	Winding control, high torque at 0.5Hz, 590Hz adaptation for high-speed rollers	1.5-15kW (ND/LD)
General Machinery & Machine Tools	Small CNC spindles, drilling/tapping machines, woodworking machinery	Sensorless vector control, pulse positioning, wide temperature range	0.75-11kW (ND/LD)
Water Treatment & HVAC	Water pumps, fans, cooling towers, building air conditioning	LD mode for fans/pumps, PM motor control, built-in PID and communication	3.7-15kW (LD)
Renewable Energy & PV	PV tracking systems, inverter cooling fans, energy storage equipment	PM motor energy savings, wide voltage input, IP20 protection	0.4-5.5kW (ND/LD)
Agriculture & Irrigation	Water-fertilizer integration, drip irrigation pumps, greenhouse fans	LD mode for pumps, built-in logic programming, wide temperature range	0.75-5.5kW (LD)

Selection & Compliance Notes

Regional Differences: The V2 model is designed for non-European markets; for Europe, select EV2/E models to meet CE/EMC requirements
Load Matching: Use ND mode for constant torque applications; use LD mode for variable torque applications to maximize power capacity
Safety & Communication: Standard STO for integration with Omron safety controllers; EtherCAT supports synchronization of up to 512 inverters

With a power range of 0.1-18.5kW, high starting torque, high-speed response, simple positioning, and EtherCAT communication, the 3G3MX2-V2 excels in global scenarios including packaging, electronics, logistics, textiles, general machinery, water treatment, renewable energy, and agriculture. It is particularly suitable for equipment and production lines requiring compact installation, safety compliance, and energy efficiency.

Frequently Asked Questions

Q: We're based in Europe and need to comply with CE standards. Is the standard 3G3MX2-V2 model eligible, or do we need a special version?

A: The standard V2 model doesn't fully meet CE/EMC requirements for Europe. You'll need to switch to the "EV2/E" series - these are factory-tuned for CE compliance, with enhanced EMC filters to pass European electromagnetic compatibility tests.

Q: We want to connect the inverter to a Mitsubishi PLC via EtherCAT. Do we need extra software or configuration files?

A: No extra software is needed, but you'll need the ESI file for the 3G3MX2-V2. Download it from Omron's global website and import the ESI file into your Mitsubishi PLC programming software.

Q: We're using the inverter for a fan application in the Middle East (LD mode, 5.5kW). Why does it trip with an "OL" (overload) fault during startup?

A: OL faults usually stem from two issues: 1) The fan's starting torque is higher than expected - try increasing the acceleration time. 2) The ambient temperature is too high - move the inverter to a shaded, ventilated area or install a cabinet cooler.

Q: Can we use the 3G3MX2-V2 to drive a PM motor for our North American solar pump project? What settings do we need to adjust?

A: Yes, it supports PM motors. First, enable PM motor control. Then enter the motor's rated parameters from the motor nameplate. Run the auto-tuning function with the motor disconnected from the pump.

Q: We're using the simple positioning function for a conveyor in Southeast Asia, but the positioning accuracy is off by ±5mm. How to fix this?

A: Accuracy issues usually come from three places: 1) Encoder wiring - check connections and shielding. 2) Pulse resolution - increase the electronic gear ratio. 3) Mechanical backlash - check the conveyor's gearbox or coupling for play.

Q: We replaced an old Omron 3G3RX inverter with the 3G3MX2-V2. Can we reuse the old parameters?

A: You can't directly import old 3G3RX parameters. Use Omron's "Parameter Conversion Tool" to convert 3G3RX parameter lists to 3G3MX2-V2-compatible ones, but have a technician verify and fine-tune key functions.

Q: The inverter displays "STO" fault during commissioning for our European packaging machine. What's wrong?

A: "STO" is a safety function, not an inverter failure. The 3G3MX2-V2 has two safety inputs that need to be shorted with a dry contact to deactivate STO. Your safety relay must send a valid signal to these inputs.
