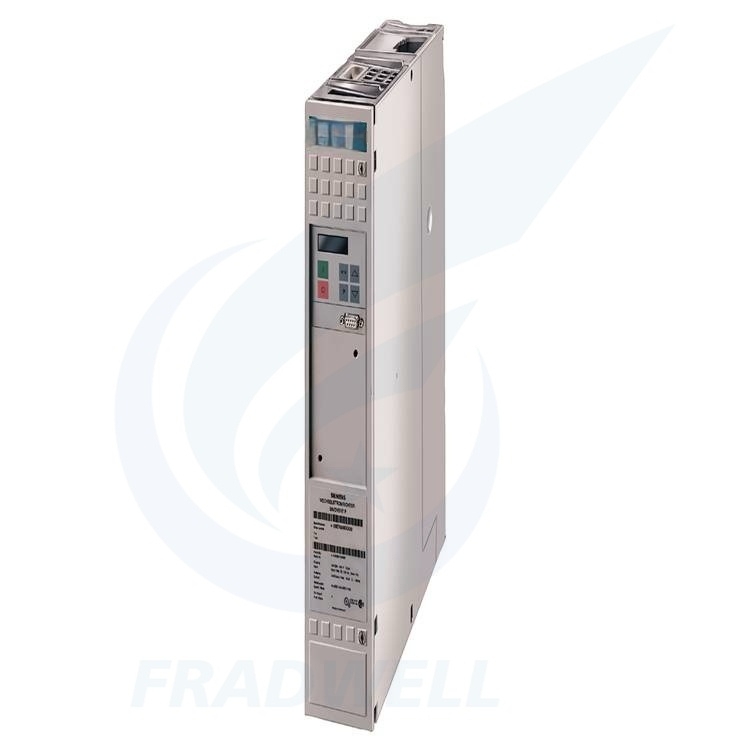

Product Details
Place of Origin: Germany
Model Number: 6SE70
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $100 - $10000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Rated Power:
|
2.2 - 2300kW
|
Level Of Protection:
|
IP00 IP43
|
Warranty:
|
Original Factory Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Rated Power:
|
2.2 - 2300kW
|
|
Level Of Protection:
|
IP00 IP43
|
|
Warranty:
|
Original Factory Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Parameter Category | Specific Parameters | Series General Specifications |
|---|---|---|
| Basic Electrical Parameters | Rated Power Range | 2.2 - 2300kW |
| Basic Electrical Parameters | Input Voltage Adaptation | 380V - 690V (covering 400V, 500V global industrial voltage levels) |
| Basic Electrical Parameters | Output Frequency Range | 0 - 600Hz (variable frequency 3-phase power via PWM) |
| Control Performance Parameters | Control Methods | V/F open-loop control, sensorless vector control, vector control with encoder, torque control |
| Control Performance Parameters | Compatible Motor Types | Asynchronous motor, synchronous motor, reluctance motor, servo motor |
| Structural & Protection Parameters | Protection Class | IP00 - IP43, adjustable by structure type |
| Structural & Protection Parameters | Structure Type | Book-type, cabinet-built type |
| Communication & Interface Parameters | Communication Protocols | Profibus DP, CANopen compatible |
| Communication & Interface Parameters | Expansion Interfaces | Multiple interfaces with 6 option board slots for pulse encoders, analog tachometers |
| Protection & Auxiliary Parameters | Protection Functions | Overcurrent, surge, power failure protection; motor overload protection |
| Protection & Auxiliary Parameters | Energy Regeneration | Supports regenerative braking; rectifier/regenerative units reduce grid interference |
| Model No. | Core Specifications | Application Scenarios |
|---|---|---|
| 6SE7016-1EA61 | 3-phase 380-480V, 2.2kW | AC rectification for small machinery and light industry equipment |
| 6SE7018-0EA61 | 3-phase 380-480V, 3kW | Rectification for general machinery like small-to-medium fans and pumps |
| 6SE7021-0EA61 | 3-phase 380-480V, 4kW | Rectification for small production line conveyor equipment |
| 6SE7021-8EB61 | 3-phase 380-480V, 7.5kW | Rectification for medium compressors and conveyors |
| 6SE7022-6EC61 | 3-phase 380-480V, 11kW | Rectification for medium machine tools and mixing equipment |
| 6SE7026-0HF60 | 3-phase 660-690V, 55kW | Rectification for heavy-duty pumps and fans under high-voltage conditions |
| 6SE7028-2HF60 | 3-phase 660-690V, 75kW | Rectification for small heating furnaces in metallurgical industry |
| 6SE7031-0HG60 | 3-phase 660-690V, 90kW | Rectification for small mining conveyor equipment |
| Model No. | Core Specifications | Application Scenarios |
|---|---|---|
| 6SE7016-1TA61 | DC 510-650V, 2.2kW | Variable frequency speed regulation for small DC-powered equipment |
| 6SE7018-0TA61 | DC 510-650V, 3kW | Variable frequency control for small DC motor drives |
| 6SE7021-0TA61 | DC 510-650V, 4kW | DC variable frequency adjustment for small automation equipment |
| 6SE7021-8TB61 | DC 510-650V, 7.5kW | Variable frequency speed regulation for medium DC-driven machine tools |
| 6SE7022-6TC61 | DC 510-650V, 11kW | DC variable frequency control for medium fans and pumps |
| 6SE7026-0WF60 | DC 890-930V, 55kW | High-voltage DC variable frequency drive for heavy-duty equipment |
| 6SE7028-2WF60 | DC 890-930V, 75kW | High-voltage DC variable frequency for large industrial pumps and fans |
| 6SE7014-0TP70-Z | DC 510-650V, 1.5kW, IP20 protection | Variable frequency for motion control of small precision equipment |
| Model No. | Core Specifications | Application Scenarios |
|---|---|---|
| 6SE7090-0XX84-0FF5 | Motion control adapter module | Motion control function expansion for multi-machine linkage scenarios |
| 6SE7090-0XX84-0FE0 | SBM2 adapter card | Signal adaptation between inverters and external equipment |
| 6SE7090-0XX84-0AB0 | CBP2 communication board | Enhance communication compatibility for overseas industrial scenarios |
| 6SE7038-6GL84-1HJ1 | Main power thyristor control module | Efficient power regulation for industrial panel integration |
| 6SE7032-7EB87-2DA1 | Brake unit | Brake control under heavy-load conditions, reducing shutdown impact |
