SINAMICS G120XA Powering Global Infrastructure with Fan/Pump-Specific VFDs

Name: SINAMICS G120XA Powering Global Infrastructure with Fan/Pump-Specific VFDs
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: G120XA
Price: 2,040.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Model Number: G120XA

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $80 - $4000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Siemens SINAMICS G120XA VFD, fan pump specific frequency inverter, industrial VFD with global compatibility


Product Name:	Frequency Converter Inverter	Rated Power:	0.75 KW~560 KW
Level Of Protection:	IP20/IP55	Pakage:	Original Pakage
Warranty:	Original Factory Warranty	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

Product Name:	Frequency Converter Inverter
Rated Power:	0.75 KW~560 KW
Level Of Protection:	IP20/IP55
Pakage:	Original Pakage
Warranty:	Original Factory Warranty
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

SINAMICS G120XA Powering Global Infrastructure with Fan/Pump-Specific VFDs

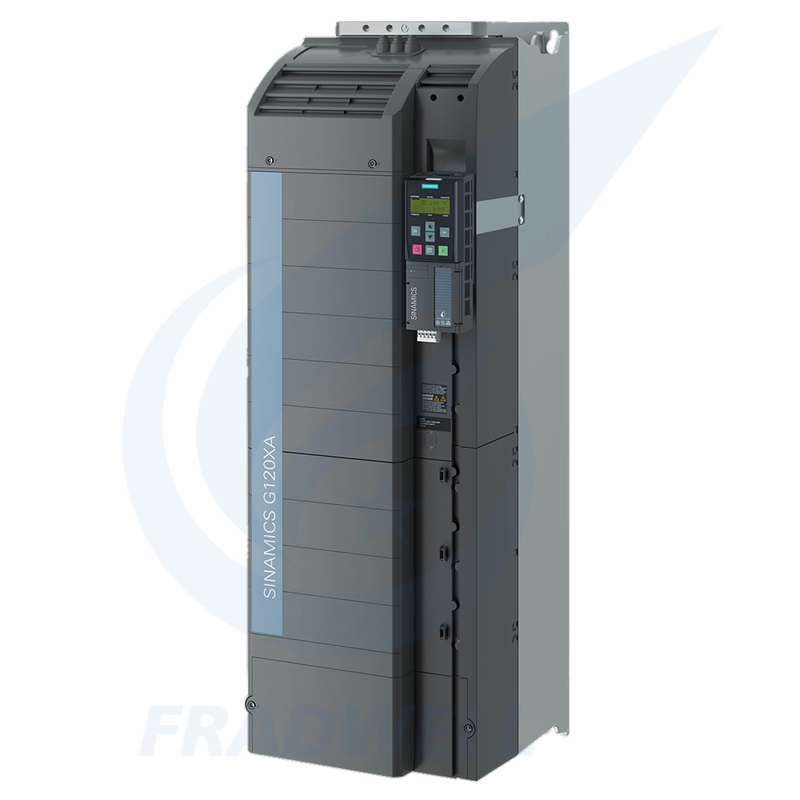

SINAMICS G120XA Variable Frequency Drive

SINAMICS G120XA is a new addition to SINAMICS inverter family, covering a power range of 0.75 kW to 560 kW. Preloaded with industry-specific functions for fans and pumps, it integrates advanced high-performance vector control algorithms, enabling seamless operation of fans, pumps, compressors, and other variable torque loads.

Core Product Features

Feature Category	Core Advantages
Scenario-Specific Function Integration	Built-in fan/pump-specific control functions (sleep/wake mode, cavitation protection, multi-pump control) Integrated PID regulator supporting constant pressure/flow/liquid level control Optimized for variable torque loads, enabling quick deployment without additional programming
High-Performance Vector Control	Equipped with sensorless vector control (SLVC) for ±0.5% speed regulation accuracy and stable low-speed operation Supports V/F control (linear/quadratic characteristics) compatible with various motor types Energy saving rate up to 15%-30%, aligning with global carbon reduction initiatives
High Reliability & Environmental Adaptability	Wide voltage range (380-480V) compatible with 50/60Hz global power grids Operating temperature range: -10℃~60℃, adapting to humid Southeast Asian and high-temperature Middle Eastern conditions Built-in multi-layer protection (overcurrent, overvoltage, phase loss, overload) with MTBF > 100,000 hours
Ease of Use & Integration	Standard BOP-2 operation panel with multi-language support (English/Spanish/Arabic/Japanese, etc.); parameter cloning simplifies batch commissioning Compatible with mainstream buses (Modbus, PROFINET) for seamless integration with Siemens TIA, Rockwell PLC, and other global automation systems Modular structure enabling easy installation/maintenance and high spare part commonality
Global Compliance & Certifications	Certified by CE, UL, cUL, SASO, and other international certifications, meeting market access requirements in the EU, North America, Middle East, and Southeast Asia Compliant with RoHS and REACH environmental standards, aligning with overseas green factory policies

Core Specifications

Parameter Category	Key Specs	Notes
Power Range	0.75-560 kW (3-Phase)	Frame FSA-FSG: 0.75-250 kW; Frame FSH/FSJ: 315-560 kW
Supply Voltage	3AC 380 V (FSA-FSG: -20% to +10%; FSH/FSJ: -15% to +10%)	Mains frequency: 47-63 Hz, compatible with global low-voltage grids
Control Modes	V/F (Linear/Quadratic/FCC/ECO), Sensorless Vector Control (SLVC)	Suitable for induction/synchronous/reluctance motors; stable at low speeds
Overload Capacity	110% of rated load for 60 seconds, with 600-second cycle interval	Typical value; derating required for large frames/high temp/high altitude
Temperature Range	Operating: -10 °C to 60 °C; Storage: -25 °C to 65 °C	Derating required for high altitude or enclosed installation
Protection Class	Standard IP20 (Cabinet/Mounting)	Optional IP21/IP55 enclosure (model-dependent)
Standard I/O	6DI/4DO/2AI/2AO (Modbus/USS/BACnet); Slight variations for PROFINET/EtherNet IP versions	Includes 1x Mot_t motor temperature input; expandable via modules
Communication Buses	Modbus RTU, USS, BACnet MS/TP, PROFINET, EtherNet IP	Compatible with building and industrial automation networks
Industry-Specific Functions	Integrated PID, Constant Pressure/Flow/Level Control, Multi-Pump Control, Sleep/Wake Mode, Cavitation Protection	Ready-to-use for fans, pumps, and compressors
Certifications	CE, UL, cUL, SASO, RoHS, REACH, etc.	Meets market access requirements for multiple regions

Model Table (3AC 380-480 V)

Rated Power	Frame Size	No Built-in Filter (Order Number)	Built-in Filter (Order Number)	Typical Current (A)	Application Scenarios
0.75 kW	FSA	6SL3220-3YD10-0UB0	6SL3220-3YD10-0CB0	2.1	Small fans/pumps
1.1 kW	FSA	6SL3220-3YD12-0UB0	6SL3220-3YD12-0CB0	2.8	Small compressors
1.5 kW	FSA	6SL3220-3YD14-0UB0	6SL3220-3YD14-0CB0	4.1	Small pump sets
2.2 kW	FSA	6SL3220-3YD16-0UB0	6SL3220-3YD16-0CB0	5.6	Small fans
3.0 kW	FSA	6SL3220-3YD18-0UB0	6SL3220-3YD18-0CB0	7.3	Small compressed air systems
4.0 kW	FSA	6SL3220-3YD20-0UB0	6SL3220-3YD20-0CB0	9.3	Medium pump sets
5.5 kW	FSB	6SL3220-3YD22-0UB0	6SL3220-3YD22-0CB0	12.5	Medium fans
7.5 kW	FSB	6SL3220-3YD24-0UB0	6SL3220-3YD24-0CB0	16.5	Medium compressors
11 kW	FSB	6SL3220-3YD26-0UB0	6SL3220-3YD26-0CB0	23.0	Industrial fans
15 kW	FSC	6SL3220-3YD28-0UB0	6SL3220-3YD28-0CB0	31.0	Industrial pump sets
18.5 kW	FSC	6SL3220-3YD30-0UB0	6SL3220-3YD30-0CB0	37.0	Industrial compressors
22 kW	FSC	6SL3220-3YD32-0UB0	6SL3220-3YD32-0CB0	45.0	Large fans
30 kW	FSD	6SL3220-3YD34-0UB0	6SL3220-3YD34-0CB0	59.0	Large pump sets
37 kW	FSD	6SL3220-3YD36-0UB0	6SL3220-3YD36-0CB0	72.0	Large compressors
45 kW	FSE	6SL3220-3YD38-0UB0	6SL3220-3YD38-0CB0	88.0	Industrial HVAC
55 kW	FSE	6SL3220-3YD40-0UB0	6SL3220-3YD40-0CB0	108.0	Large HVAC systems
75 kW	FSF	6SL3220-3YD42-0UB0	6SL3220-3YD42-0CB0	145.0	Large fans/pumps
90 kW	FSF	6SL3220-3YD44-0UB0	6SL3220-3YD44-0CB0	175.0	Large compressors
110 kW	FSF	6SL3220-3YD46-0UB0	6SL3220-3YD46-0CB0	210.0	Large industrial loads
132 kW	FSG	6SL3220-3YD48-0UB0	6SL3220-3YD48-0CB0	255.0	Large industrial systems
160 kW	FSG	6SL3220-3YD50-0UB0	6SL3220-3YD50-0CB0	305.0	Heavy industrial loads
200 kW	FSG	6SL3220-3YD52-0UB0	6SL3220-3YD52-0CB0	370.0	Heavy fans/pumps
250 kW	FSG	6SL3220-3YD54-0UB0	6SL3220-3YD54-0CB0	468.0	Heavy compressors
315 kW	FSH	6SL3220-3YD56-0UB0	6SL3220-3YD56-0CB0	605.0	Extra-large pump sets
400 kW	FSH	6SL3220-3YD58-0UB0	6SL3220-3YD58-0CB0	775.0	Extra-large fans
560 kW	FSJ	6SL3220-3YD60-0UB0	6SL3220-3YD60-0CB0	1080.0	Extra-large industrial systems

Overseas Applicable Industries & Practical Scenarios

Industry Sector	Core Overseas Application Scenarios	Common Power Range	Customer Reasons
Municipal Water/Wastewater	Constant-pressure water supply in EU/US cities, sewage lifting in large Middle Eastern pump stations, flood control pumps during Southeast Asian rainy seasons, well water pumping in remote Australian areas	15-250 kW	1. Built-in multi-pump control + cavitation protection for municipal pipe network pressure fluctuations; 2. Wide voltage design (380-480 V) compatible with developing country power grids; 3. CE/UL/SASO certifications meet tender requirements directly
Building HVAC	Chillers in North American commercial complexes, fresh air systems in European hospitals, fire smoke extraction in Middle Eastern hotels, VRV air conditioning in Southeast Asian office buildings	0.75-45 kW	1. Sleep/wake mode + PID temperature control reduces building energy consumption; 2. BACnet/PROFINET bus seamless integration with Johnson Controls/Siemens building automation systems; 3. Multi-language panel adapts to overseas operation teams
Industrial Ventilation & Cooling	Dust extraction fans in German automotive welding workshops, cooling towers in Brazilian chemical plants, mine ventilation systems in South Africa, air conditioning fans in Indian textile factories	37-560 kW	1. Quadratic torque optimization + stable low-speed operation for fan variable load characteristics; 2. High-temperature tolerance (-10~60℃) adapts to extreme climates in the Middle East/Africa; 3. 110% overload for 60s handles sudden load spikes
Agricultural Irrigation	Drip irrigation systems in Australian farmlands, sprinkler equipment in Middle Eastern deserts, well pumps in South American farms, irrigation units in Southeast Asian rubber plantations	3.0-75 kW	1. Dry-run protection + wide frequency range (47-63 Hz) adapts to unstable power grids in remote areas; 2. Modular design facilitates field installation and maintenance; 3. Low no-load loss reduces farm electricity costs
Compressed Air Systems	Screw compressors in US factories, oil-free compressors in European food plants, air compressor stations in Southeast Asian electronics factories	11-160 kW	1. Built-in compressor-specific control logic, no additional programming required; 2. Energy recovery function aligns with EU/US carbon reduction policies; 3. Built-in filter (model -0CB0) reduces electromagnetic interference
Industrial Pumps	Chemical raw material transfer pumps in Europe, mineral slurry pumps in African gold mines, pulp pumps in Southeast Asian paper mills, oilfield water injection pumps in North America	45-560 kW	1. Switchable constant pressure/flow modes for different medium transfer needs; 2. Optional 3C3 anti-corrosion coating resists harsh chemical/mining environments; 3. MTBF > 100,000 hours minimizes downtime losses
Data Center Cooling	Precision air conditioning in Silicon Valley data centers, cooling water pumps in European cloud computing centers, room ventilation in Middle Eastern data centers	7.5-45 kW	1. Fast-response PID regulation maintains ±0.5℃ constant room temperature; 2. Low-noise operation meets data center quiet requirements; 3. Redundant communication design ensures 24/7 uninterrupted operation

Frequently Asked Questions

I. Installation & Wiring

Q: Installed the G120XA in a Thai coastal factory--after 2 months, the terminal blocks are corroded. How to fix?

A: Coastal humidity + salt spray causes corrosion. Solutions:

Replace corroded terminals with marine-grade ones (e.g., Phoenix Contact IP65-rated)
Apply anti-corrosion paste to all wiring connections
Install a dehumidifier in the control cabinet (maintain humidity < 60%)

For future projects, choose the IP55 enclosure with 3C3 coating--worth the extra $200/unit to avoid downtime.

Q: In Canada, the electrician says the G120XA's wiring doesn't comply with CSA C22.2 standards. What's the issue?

A: CSA C22.2 has strict requirements:

Ground wire must be yellow-green, cross-section ≥ 2.5mm² (same as power wire)
Control cables must be shielded and separated from power cables by ≥ 30cm (vs. 20cm in EU)
Terminal blocks must have CSA certification marks

Fix: Replace uncertified terminals and rewire with CSA-approved shielded cables--otherwise, the electrical inspection will fail.

Q: Installed the G120XA in a South African mine (altitude 2,500m)--it trips due to overheating even at 80% load. Why?

A: High altitude reduces air density, weakening heat dissipation. Solution:

Derate the drive by 15% (e.g., 75kW model runs as 64kW)
Install an extra cooling fan in the control cabinet (blows directly at the drive's heatsink)
Remove the dust filter (mine air is filtered, so no risk of debris) to improve airflow

Never run at full load at high altitudes--permanent damage to the power module may occur.

Q: Trying to integrate the G120XA with a Rockwell PLC in the US--EtherNet/IP communication fails. How to troubleshoot?

A: Common issues:

IP address not in the same subnet as the PLC (set the drive's IP to 192.168.1.X to match Rockwell's default)
EtherNet/IP option not enabled (check the order code--must include "ENIP")
Firewall blocking communication (disable Windows Firewall on the commissioning laptop)

If still failing, use Rockwell's RSLinx software to scan for the drive--often, the PLC's communication port is set to "PROFINET" by mistake.

II. Operation & Maintenance

Q: The G120XA controls a cooling tower in Dubai--during summer (ambient 50℃), it frequently shuts down with "overtemperature" (F30030). How to resolve?

A: Dubai's extreme heat exceeds the drive's standard operating limit (60℃, but cabinet temperature can reach 70℃). Fix:

Move the control cabinet to a shaded area and install an air conditioner (set to 25℃)
Upgrade the drive's cooling fan to a high-speed model (Siemens part number 6SL3201-0BE21-1AA0)
Enable "overtemperature derating" (parameter P250=1) to reduce load automatically when temperature rises above 55℃

Q: In a European food factory, the G120XA's BOP-2 panel displays "F7310" (motor overload) when running a pump at low speed. Why?

A: Low-speed operation (below 30Hz) reduces motor airflow, causing overheating. Solutions:

Enable "fan/pump auto-adaptation mode" (P210=1) to adjust current limits
Install a separate cooling fan for the motor (24V DC, triggered when speed < 30Hz)
Set a minimum speed (P1080=25Hz) to ensure adequate motor cooling

The food factory's 24/7 low-flow operation makes this critical--ignoring it will burn out the motor.

Q: The G120XA in an Australian farm's irrigation system keeps tripping due to "grid voltage dip" (F30002). The grid is unstable--what can I do?

A: Australian rural grids often have voltage fluctuations. Fix:

Install a 3-phase voltage stabilizer (rated for 380V, 10% tolerance) before the drive
Extend the voltage dip ride-through time (P280=3s, default 1s)
Enable "voltage imbalance compensation" (P281=1) to tolerate up to 15% phase difference

The stabilizer costs ~$800 but is cheaper than replacing a damaged drive.

Q: After a power outage in Mexico, the G120XA won't restart automatically. The operator doesn't speak English--how to set auto-restart via the Spanish panel?

A: Step-by-step for Spanish panel:

Press "ESC" + "OK" to enter the menu -> Select "Configuracion" -> "Arranque" -> "Reinicio automatico" (P1210)
Set to "Si" (1) and adjust "Retardo de reinicio" (P1211) to 5s
Save and exit

If the panel is in English, switch to Spanish first (hold "ESC" + "Up Arrow" for 3s -> Select "Español"). Print a simple Spanish cheat sheet for common functions--critical for non-English-speaking operators.
