Product Details
Place of Origin: Switzerland
Model Number: ACS530
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD650-20000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|

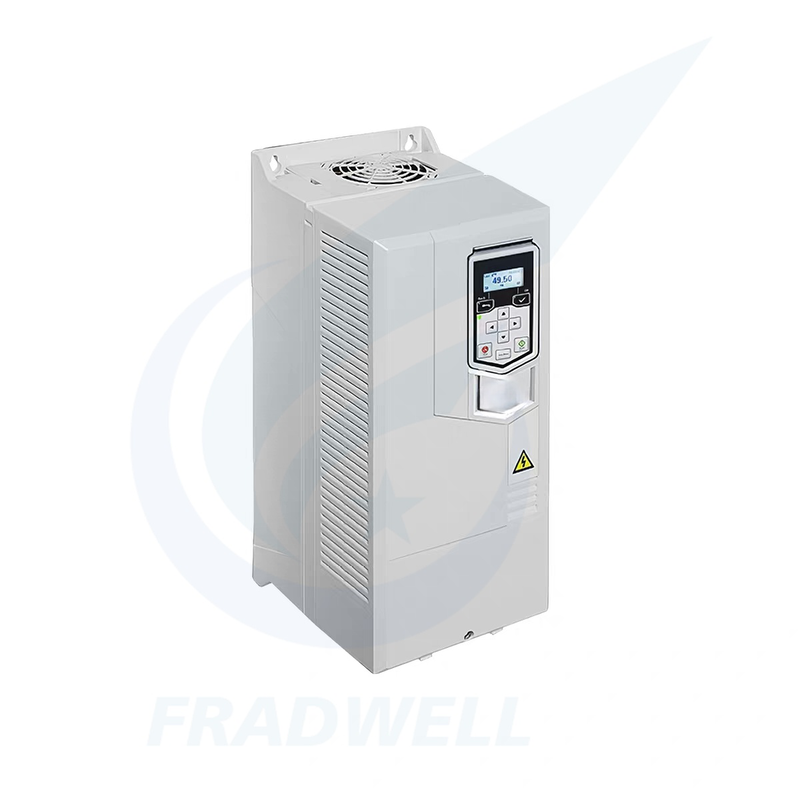

Frequency Converter Inverter
|
Rated Power:
|
0.75-250KW
|
Level Of Protection:
|
IP21 IP54
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Rated Power:
|
0.75-250KW
|
|
Level Of Protection:
|
IP21 IP54
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Parameter Category | Specific Parameters | Details |
|---|---|---|
| Power Range | Rated Power | 0.75 - 250kW (1 - 335hp) |
| Voltage Specifications | Input Voltage | Three-phase 380-480V AC±10%; Single-phase 230V AC±10% (0.75-2.2kW models) |
| Control Functions | Control Modes | V/F Control (fan/pump optimized), Sensorless Vector Control |
| Control Functions | Speed Regulation Range | 0.5 - 60Hz |
| Control Functions | PID Regulation Accuracy | ±0.5% |
| Communication Interfaces | Standard Interface | Modbus RTU (RS-485) |
| Communication Interfaces | Optional Interfaces | PROFIBUS DP, DeviceNet, EtherNet/IP, PROFINET |
| Structure & Protection | Protection Class | Standard: IP21; Optional IP54 enclosure |
| Structure & Protection | Installation Method | Cabinet-mounted, Wall-mounted (IP54 models) |
| Environmental Adaptability | Operating Temperature | -10℃ - 50℃ (derated to 60℃) |
| Environmental Adaptability | Anti-Interference Design | Class C3 EMC filter, compliant with EN 61800-3 |
| Energy-Saving Features | Core Energy-Saving Functions | Fan/pump optimized V/F curve, PID closed-loop control, Sleep/Wake-up function |
| Protection Functions | Core Protection Functions | Overcurrent, Overvoltage, Overheating, Phase loss, Motor overload, PID feedback loss, Ground fault protection |
| Model | Output Current (A) | Motor Power (kW) | Motor Power (hp) | Input Voltage | Frame Size | EMC Class | Core Features | Application Scenarios |
|---|---|---|---|---|---|---|---|---|
| ACS530-01-01A3-4 | 1.3 | 0.75 | 1 | 380-480V AC±10% | R1 | C3 | Standard V/F control, Modbus RTU | Small cooling pumps, laboratory ventilation fans |
| ACS530-01-02A1-4 | 2.1 | 1.1 | 1.5 | 380-480V AC±10% | R1 | C3 | Fan/pump optimized macro | Small conveyors, printing machines |
| ACS530-01-02A6-4 | 2.6 | 1.5 | 2 | 380-480V AC±10% | R1 | C3 | PID closed-loop control | Small constant pressure water supply pumps |
| ACS530-01-03A6-4 | 3.6 | 2.2 | 3 | 380-480V AC±10% | R1 | C3 | Sensorless vector control | Medium ventilation fans, machine tool cooling pumps |
| ACS530-01-04A5-4 | 4.5 | 3 | 4 | 380-480V AC±10% | R2 | C3 | 16-step speed control | Industrial cooling pumps, packaging machinery |
| ACS530-01-06A2-4 | 6.2 | 4 | 5.5 | 380-480V AC±10% | R2 | C3 | Multi-motor switching | Medium constant pressure water supply pumps |
| ACS530-01-08A0-4 | 8.0 | 5.5 | 7.5 | 380-480V AC±10% | R2 | C3 | Sleep/wake-up function | Industrial ventilation fans, sewage treatment pumps |
| ACS530-01-09A7-4 | 9.7 | 7.5 | 10 | 380-480V AC±10% | R2 | C3 | High overload capacity | Large cooling pumps, mine ventilation fans |
| ACS530-01-13A8-4 | 13.8 | 11 | 15 | 380-480V AC±10% | R3 | C3 | PROFINET expandable | Production line conveyors, large ventilation fans |
| ACS530-01-17A2-4 | 17.2 | 15 | 20 | 380-480V AC±10% | R3 | C3 | EtherNet/IP expandable | Industrial circulation pumps, booster pumps |
| ACS530-01-25A4-4 | 25.4 | 18.5 | 25 | 380-480V AC±10% | R3 | C3 | Multi-pump linkage | Large constant pressure water supply systems |
| ACS530-01-31A0-4 | 31.0 | 22 | 30 | 380-480V AC±10% | R4 | C3 | IP54 optional | Mine ventilation fans, large industrial fans |
| ACS530-01-43A0-4 | 43.0 | 30 | 40 | 380-480V AC±10% | R4 | C3 | Ground fault protection | Sewage treatment aerators, circulation pumps |
| ACS530-01-59A0-4 | 59.0 | 45 | 60 | 380-480V AC±10% | R5 | C3 | High-voltage drop mode | Large industrial cooling systems, water supply stations |
| ACS530-01-72A0-4 | 72.0 | 55 | 75 | 380-480V AC±10% | R5 | C3 | Remote diagnosis support | Mine main ventilation fans, central AC fans |
| ACS530-01-92A0-4 | 92.0 | 75 | 100 | 380-480V AC±10% | R6 | C3 | EMC C2 optional | Ultra-large industrial fans, high-pressure pumps |
| ACS530-01-125A0-4 | 125.0 | 90 | 125 | 380-480V AC±10% | R6 | C3 | Enhanced heat dissipation | Large industrial circulation systems |
| ACS530-01-155A0-4 | 155.0 | 110 | 150 | 380-480V AC±10% | R7 | C3 | PID auto-tuning | Ultra-large ventilation fans, sewage treatment |
| ACS530-01-180A0-4 | 180.0 | 132 | 175 | 380-480V AC±10% | R7 | C3 | Multi-bus support | Industrial giant cooling fans, urban water supply |
| ACS530-01-220A0-4 | 220.0 | 160 | 215 | 380-480V AC±10% | R8 | C3 | IP54 standard | Ultra-large industrial fluid systems |
| ACS530-01-260A0-4 | 260.0 | 200 | 268 | 380-480V AC±10% | R8 | C3 | Heavy-duty design | Ultra-large mine ventilation fans, circulation pumps |
| ACS530-01-310A0-4 | 310.0 | 250 | 335 | 380-480V AC±10% | R8 | C3 | Extended warranty optional | Ultra-large industrial cooling systems |
| ACS530-01-01A3-4+C2 | 1.3 | 0.75 | 1 | 380-480V AC±10% | R1 | C2 | Low electromagnetic interference | Precision laboratory equipment |
| ACS530-01-03A6-4+C2 | 3.6 | 2.2 | 3 | 380-480V AC±10% | R1 | C2 | Low-noise operation | Food processing, clean room ventilation |
| ACS530-01-17A2-4+IP54 | 17.2 | 15 | 20 | 380-480V AC±10% | R3 | C3 | Dustproof and waterproof | Outdoor irrigation pumps, coastal ventilation |
| Industry | Application Scenarios | Adaptation Advantages |
|---|---|---|
| Industrial Manufacturing | Production line conveyors, machine tool cooling pumps, packaging machinery | Compact design, multi-step speed control, high reliability for 24/7 operation |
| Municipal Water Supply/Wastewater Treatment | Constant pressure water supply, sewage treatment aeration, booster pump stations | Pump-specific macros, precise PID regulation, significant energy savings |
| HVAC | Central air conditioning, hotel circulation pumps, industrial ventilation | Building automation integration, low-noise operation, indoor compliance |
| Mining/Building Materials | Mine ventilation, cement production cooling, stone processing conveyors | High protection class, dust/moisture resistance, wide voltage adaptation |
| Agriculture/Fisheries | Farm irrigation, fish pond aerators, grain drying fans | Energy-saving features, wide temperature tolerance, outdoor suitability |
| Food & Beverage | Food processing conveyors, beverage filling, cold storage cooling | Hygienic design, low-noise operation, low electromagnetic interference |
