Product Details
Place of Origin: Switzerland
Model Number: ACS380
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $400 - $2300
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|

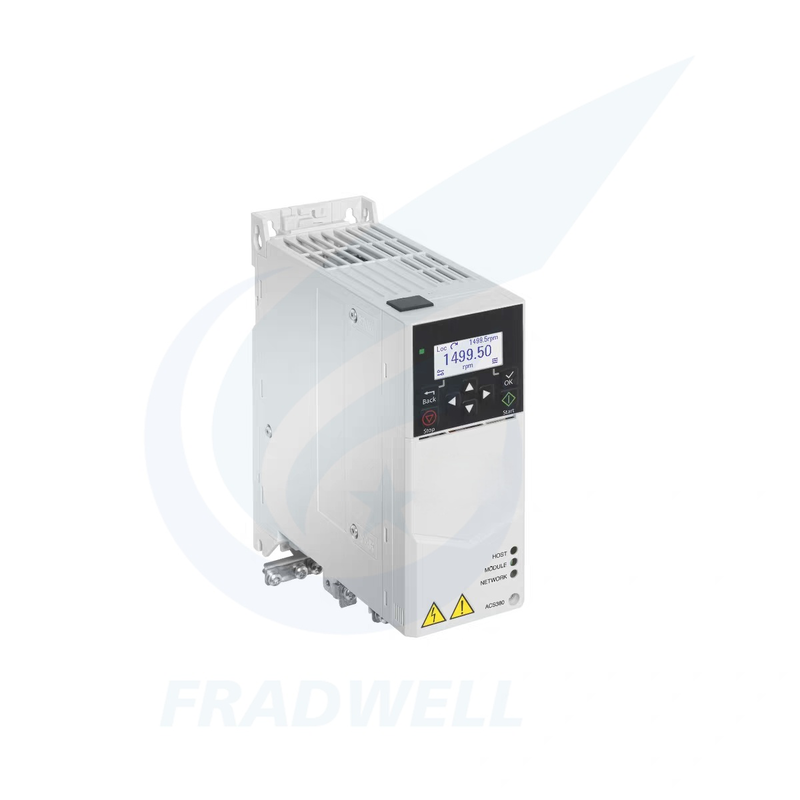

Frequency Converter Inverter
|
Rated Power:
|
0.25 - 22kW
|
Level Of Protection:
|
IP21 IP54
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Rated Power:
|
0.25 - 22kW
|
|
Level Of Protection:
|
IP21 IP54
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Parameter Category | Specific Parameters | Details |
|---|---|---|
| Power Range | Rated Power | 0.25 - 22kW (0.33 - 30hp) |
| Voltage Specifications | Input Voltage | Three-phase 380 - 480V AC±10%; Single-phase 200 - 240V AC±10% (0.25 - 2.2kW models) |
| Control Functions | Control Modes | Sensorless Vector Control, Sensored Vector Control, V/F Control |
| Control Functions | Supported Motor Types | Induction Motor, Permanent Magnet Synchronous Motor (PMSM), Synchronous Reluctance Motor (SynRM) |
| Control Functions | Speed Regulation Range | 0 - 600Hz |
| Control Functions | Speed Regulation Accuracy | Sensorless Vector Control: ±0.1%; Sensored Vector Control: ±0.01% |
| Communication Interfaces | Standard Interfaces | Modbus RTU (RS-485), EtherNet/IP |
| Communication Interfaces | Optional Interfaces | PROFIBUS DP, PROFINET, DeviceNet, IO-Link |
| Structure & Protection | Protection Class | Standard model: IP21; Optional IP54 protective enclosure |
| Structure & Protection | Installation Method | Cabinet-mounted, Wall-mounted (IP54 models) |
| Environmental Adaptability | Operating Temperature | -10℃ - 50℃ (derated operation up to 60℃) |
| Environmental Adaptability | Anti-Interference Design | Standard Class C3 EMC filter, compliant with EN 61800-3 |
| Safety Functions | Core Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS) (SIL 3 certified) |
| Model | Rated Power (kW) | Rated Power (hp) | Rated Output Current (A) | Input Voltage Range | Series Features | Frame Size | Overseas Application Scenarios |
|---|---|---|---|---|---|---|---|
| ACS380-040S-01A8-4 | 0.37/0.55 | 0.5/0.75 | 1.8 | 3-phase 380 - 480V AC | Basic series, standard Modbus RTU | R0 | General machinery manufacturing, small conveyors |
| ACS380-040S-02A6-4 | 0.55/0.75 | 0.75/1 | 2.6 | 3-phase 380 - 480V AC | Basic series, rich I/O ports | R0 | Southeast Asian electronics factories |
| ACS380-040S-03A3-4 | 0.75/1.1 | 1/1.5 | 3.3 | 3-phase 380 - 480V AC | Basic series, compact design | R1 | Small textile machinery in Europe |
| ACS380-040S-04A0-4 | 1.1/1.5 | 1.5/2 | 4.0 | 3-phase 380 - 480V AC | Basic series, built-in STO safety function | R1 | Medium and small packaging machines worldwide |
| ACS380-040S-05A6-4 | 1.5/2.2 | 2/3 | 5.6 | 3-phase 380 - 480V AC | Basic series, stable low-speed torque | R1 | Mixers in African food factories |
| Overseas Industry | Practical Application Scenarios | Core Adaptation Advantages |
|---|---|---|
| High-End Complete Equipment Manufacturing (Global) | Automated assembly lines, high-precision packaging machines, intelligent material handling equipment | Precise control + multi-motor adaptation; rich bus expansion capabilities |
| Food & Beverage Machinery (Europe, America, Japan, South Korea) | High-speed filling machines, aseptic packaging equipment, intelligent sorting conveyors | Multi-language panel + food-grade protection design; preset dedicated macros |
| Logistics & Warehousing Equipment (North America, Europe) | Small stackers, intelligent conveyors, sorting robots | Stable low-speed high-torque output; supports EtherNet/IP bus integration |
| Electronic Manufacturing Equipment (Southeast Asia, Taiwan China) | PCB conveyors, electronic component placement machines, precision testing equipment | High speed regulation accuracy; low electromagnetic interference; compact design |
| Medical Equipment (Global) | Small medical robots, laboratory precision instruments, rehabilitation equipment | Low-noise operation; supports PMSM control; complies with global safety standards |
| High-End Textile Machinery (Europe, Japan) | Precision winding machines, electronic jacquard machines, intelligent knitting machines | Precise tension control; supports multi-bus expansion for production management |
