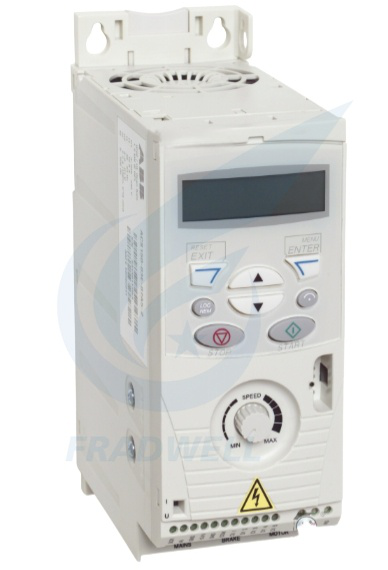

22kW Variable Frequency Drive Inverter ACS355 Three Phase Frequency Converter

Name: 22kW Variable Frequency Drive Inverter ACS355 Three Phase Frequency Converter
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: ACS355
Price: 1,550.00 USD
Availability: InStock

Product Details

Place of Origin: Switzerland

Model Number: ACS355

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $300 - $2800

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    22kW Variable Frequency Drive Inverter, Variable Frequency Drive Inverter ACS355, ACS355 Three Phase Frequency Converter


Product Name:	Frequency Converter Inverter	Rated Power:	0.37 - 22kW
Level Of Protection:	IP20	Pakage:	Original Pakage
Warranty:	Original Factory Warranty	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

Product Name:	Frequency Converter Inverter
Rated Power:	0.37 - 22kW
Level Of Protection:	IP20
Pakage:	Original Pakage
Warranty:	Original Factory Warranty
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

22kW Variable Frequency Drive Inverter ACS355 Three Phase Frequency Converter

ACS355 Frequency Converter Inverter– Flexible Drive Solution for Small Conveyors, Packaging & Textile Machines

ACS355 Frequency Converter Inverter

Flexible Drive Solution for Small Conveyors, Packaging & Textile Machines

The ACS355 is an economical inverter designed for the equipment manufacturing industry, covering a power range of 0.37 - 22kW. With core advantages of high cost-effectiveness and excellent connectivity, it accurately meets the drive needs of most small and medium-sized mechanical equipment, especially suitable for various customized small machinery scenarios.

Core Product Features

High Cost-Effectiveness for OEM Needs

Integrates core control functions and stable performance, eliminating the need for additional expansion modules to meet basic automation requirements. Effectively controls equipment manufacturing costs, making it the preferred drive solution for small and medium-sized equipment manufacturers.

Flexible and Powerful Connectivity

Comes standard with a Modbus RTU communication interface and supports optional bus adapters such as PROFIBUS DP and DeviceNet. Enables quick integration into automated control systems for equipment manufacturing, adapting to multi-device linkage scenarios.

Strong Customization Adaptability

Supports sensorless vector control and V/F control, compatible with induction motors and permanent magnet synchronous motors (PMSMs). Offers a wide speed regulation range (0 - 590Hz), meeting personalized speed control needs of customized small machinery (e.g., special-purpose machine tools, custom conveyors).

Stable, Reliable, and Easy to Maintain

Features a compact design with an IP20 protection class, suitable for installation in narrow control cabinets of equipment. Coated circuit board design resists light dust and moisture, reducing failure rates in production environments and lowering maintenance costs.

Core Specifications

Parameter Category	Specific Parameters	Details
Power Range	Rated Power	0.37 - 22kW (corresponding to 0.5 - 30hp)
Voltage Specifications	Input Voltage	Three-phase 200 - 240V±10%, 380 - 480V±10%
Control Functions	Control Modes	Sensorless Vector Control, V/F Control
Speed Regulation Range	Speed Range	0 - 590Hz
Communication Interfaces	Standard Interface	Modbus RTU (RS-485)
Communication Interfaces	Optional Interfaces	PROFIBUS DP, DeviceNet, EtherNet/IP
Structure & Protection	Protection Class	IP20
Structure & Protection	Installation Method	Cabinet-mounted, compact design
Environmental Adaptability	Operating Temperature	-10℃ - 40℃ (derated operation up to 50℃)
Environmental Adaptability	Anti-Interference Design	Standard Class C3 EMC filter for harmonic suppression

Model Specifications

Model	Rated Output Current (A)	Rated Motor Power (kW)	Rated Motor Power (hp)	Input Voltage Range	Frame Size	Compatible Low-Leakage RFI Filter	Compatible Standard RFI Filter	Compatible Input Reactor	Compatible Output Reactor
ACS355-03E-01A3-4	1.3	0.37	0.5	380-480V AC±10%	R0	LRFI-31	RFI-32	CHK-01	ACS-CHK-B3
ACS355-03E-02A1-4	2.1	0.55	0.75	380-480V AC±10%	R0	LRFI-31	RFI-32	CHK-01	ACS-CHK-B3
ACS355-03E-02A6-4	2.6	0.75	1	380-480V AC±10%	R1	LRFI-31	RFI-32	CHK-01	ACS-CHK-B3
ACS355-03E-03A6-4	3.6	1.1	1.5	380-480V AC±10%	R1	LRFI-31	RFI-32	CHK-01	ACS-CHK-B3
ACS355-03E-04A5-4	4.5	1.5	2	380-480V AC±10%	R1	LRFI-31	RFI-32	CHK-02	ACS-CHK-C3
ACS355-03E-06A2-4	6.2	2.2	3	380-480V AC±10%	R1	LRFI-31	RFI-32	CHK-02	ACS-CHK-C3
ACS355-03E-08A0-4	8.0	3	4	380-480V AC±10%	R2	LRFI-32	RFI-32	CHK-02	NOCH0016-6x
ACS355-03E-09A7-4	9.7	4	5.5	380-480V AC±10%	R2	LRFI-32	RFI-32	CHK-03	NOCH0016-6x
ACS355-03E-13A8-4	13.8	5.5	7.5	380-480V AC±10%	R3	-	RFI-33	CHK-03	NOCH0016-6x
ACS355-03E-17A2-4	17.2	7.5	10	380-480V AC±10%	R3	-	RFI-33	CHK-04	NOCH0016-6x
ACS355-03E-25A4-4	25.4	11	15	380-480V AC±10%	R3	-	RFI-33	CHK-04	NOCH0030-6x
ACS355-03E-34A1-4	34.1	15	20	380-480V AC±10%	R4	-	RFI-34	CHK-05	NOCH0030-6x
ACS355-03E-41A8-4	41.8	18.5	25	380-480V AC±10%	R4	-	RFI-34	CHK-06	NOCH0030-6x
ACS355-03E-48A4-4	48.4	22	30	380-480V AC±10%	R4	-	RFI-34	CHK-06	NOCH0070-6x

Optional Accessories

Accessory Category	Accessory Name	Model	Function Description	Compatible Models
Control Panels	Basic Control Panel	ACS-CP-C	Supports basic parameter setting, operation control, and fault diagnosis	All models
Control Panels	Advanced Control Panel	ACS-CP-D	Features multi-language display (English, Spanish, German, French) and parameter copy function	All models
Communication Expansion	PROFIBUS DP Adapter	PM55P-01	Enables PROFIBUS DP communication for integration into large-scale automation systems	All models
Communication Expansion	DeviceNet Adapter	PM55D-01	Supports DeviceNet protocol for connection with Rockwell automation equipment	All models
Communication Expansion	EtherNet/IP Adapter	PM55E-01	Realizes Ethernet communication for remote monitoring and data transmission	All models
Braking Components	Braking Resistor	BR355-01 (1kW)	Enhances dynamic braking performance for quick stopping of high-inertia loads	Models ≤11kW
Braking Components	Braking Resistor	BR355-02 (2kW)	Suitable for heavy-load braking scenarios (e.g., packaging machines, conveyors)	Models 15-22kW
Installation Kits	Cabinet-Mounted Installation Bracket	ACS-MNT-01	Facilitates secure installation in standard 19-inch control cabinets	All models
Installation Kits	Control Panel Extension Cable	ACS-CP-EXT-5M	5-meter extension cable for remote mounting of control panels	All models

Applicable Industries & Scenarios

Industry	Practical Application Scenarios	Core Adaptation Advantages
Small & Medium-Sized Equipment Manufacturing (Global)	Custom conveyors, small special-purpose machine tools, packaging machinery, woodworking machinery	Flexible connectivity, support for customized speed control, and high cost-effectiveness, aligning with equipment manufacturers' cost control and functional requirements
Food & Beverage Machinery (Europe, Southeast Asia)	Small filling machines, sauce mixing equipment, food grading conveyors	Stable operation and easy cleaning; coated circuit boards resist moisture and dust in production environments, complying with food machinery hygiene standards
Textile Machinery (India, Bangladesh)	Small winding machines, yarn conveyors, knitting machinery	High speed regulation accuracy (±0.1%) and support for stable low-speed operation, adapting to tension control needs of textile machinery
Building Materials Machinery (Middle East, Africa)	Small mixers, tile cutting machines, cement transfer pumps	Temperature and dust resistance design for harsh construction site environments; wide voltage range (200 - 480V±10%) to cope with power grid fluctuations
Medical Equipment (Global)	Small medical auxiliary machinery, laboratory-specific equipment	Low noise operation (≤60dB) and low electromagnetic interference (EMC Class C3), without affecting the operation of precision equipment

Frequently Asked Questions

Q1: A small European machine tool factory uses the ACS355 to drive a customized processing machine tool. After connecting to the PLC via PROFIBUS DP, communication disconnections frequently occur. How to solve this?

A: First, check if the bus adapter is firmly inserted—vibrations in industrial production environments often cause loose connections. Second, adjust the communication baud rate from the default 187.5kbps to 9600bps to improve anti-interference capability. Additionally, install 120Ω terminal resistors at both ends of the bus to reduce signal reflection (cable wiring in machine tool factories is relatively long, leading to significant signal attenuation). If disconnections persist, check if power cables and communication cables are laid in parallel—maintain a distance of at least 50cm to avoid electromagnetic interference.

Q2: A Southeast Asian food machinery factory uses the ACS355 to control sauce mixing equipment. During operation, the inverter housing has slight leakage current, and an electroprobe lights up, but the motor runs normally. Is there a safety hazard?

A: Yes, there is a safety hazard! This is mainly caused by poor grounding. Food factories have humid environments, increasing the risk of electric shock. Solutions: Check if the ground cable gauge meets standards (at least the same as the power cable) and if the ground terminal is tightly fastened. Measure the ground resistance—European standards require ≤4Ω, while some Southeast Asian countries require ≤10Ω, ensuring compliance with local regulations. If the inverter is installed on a metal frame, the frame must also be grounded to form an equipotential connection, avoiding electric shock accidents.

Q3: An Indian textile factory uses the ACS355 to drive a winding machine. The motor vibrates at low speeds, resulting in uneven yarn tension. How to debug?

A: The ACS355 defaults to V/F control mode, which has poor low-speed performance. Switch to "Sensorless Vector Control" mode and perform motor auto-tuning (enter motor nameplate parameters) to allow the inverter to accurately match motor characteristics. Meanwhile, adjust the "Low-Speed Torque Compensation" parameter from the default 0 to 5-10% to enhance low-speed operation stability. Additionally, check if the mechanical transmission parts of the winding machine (e.g., gearbox, belt) are worn—mechanical jamming can also cause vibration and requires timely maintenance.

Q4: A small African building materials factory uses the ACS355 to drive a cement transfer pump. The power grid voltage fluctuates heavily, and "undervoltage" faults frequently occur. How to handle this?

A: Enter the parameter menu, switch the "Input Voltage Allowable Range" to "Wide," expanding the undervoltage threshold from 380V to 342V to adapt to grid fluctuations. Second, check if the power cable gauge is too small—building materials factories are often far from transformers, and line loss causes voltage drops at terminals. It is recommended to upgrade the cable gauge (e.g., from 1.5mm² to 2.5mm²). If fluctuations are frequent, install a small voltage stabilizer or UPS to avoid frequent inverter shutdowns affecting production.

Q5: A small North American packaging machinery factory uses the ACS355 to control a customized packaging machine. It requires quick stopping, but even with the inverter's deceleration time set to the shortest, there is obvious inertial coasting. How to solve this?

A: ACS355 models ≤11kW support external braking resistors. After installing a braking resistor, enable the "DC Braking" function in the parameters, setting the braking start frequency to 5Hz and braking time to 3 seconds to quickly consume the motor's inertial energy. If frequent start-stop is not required, an electromagnetic brake can also be installed at the mechanical end, cooperating with the inverter to achieve precise stopping (packaging machines have high requirements for stopping positions, and relying solely on electrical braking may be insufficient).
