Product Details
Place of Origin: Switzerland
Model Number: ACS310
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $150 - $200
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|

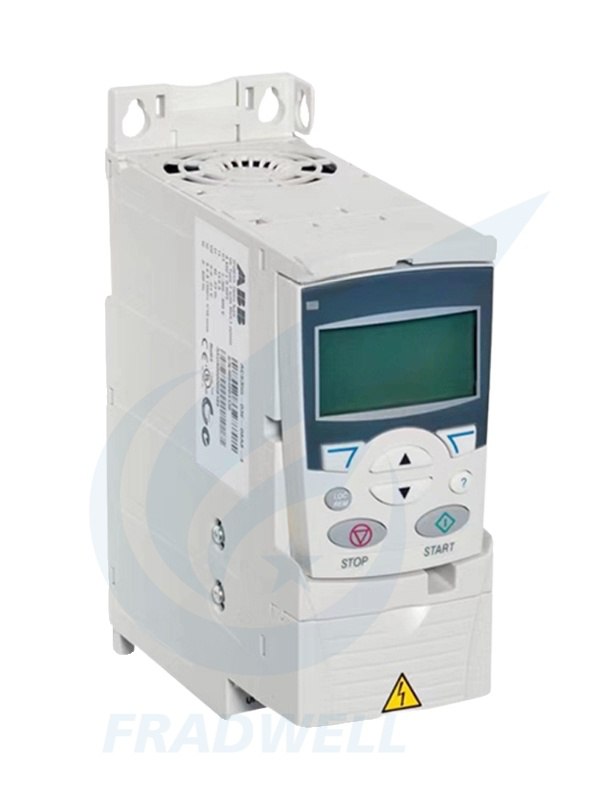

Frequency Converter Inverter
|
Rated Power:
|
0.37 - 2.2kW
|
Level Of Protection:
|
IP20
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Rated Power:
|
0.37 - 2.2kW
|
|
Level Of Protection:
|
IP20
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Parameter Category | Specific Parameters | Details |
|---|---|---|
| Power Specifications | Power Range | Single-phase: 0.37-2.2kW; Three-phase: 0.37-22kW (0.5-30hp) |
| Power Supply Parameters | Input Voltage | Single-phase for corresponding power models; Three-phase 200-240V AC±10%, 380-480V AC±10% |
| Power Supply Parameters | Input Frequency | 48-63Hz |
| Control Functions | Core Control | Built-in PID controller, PFC macros; Sensorless vector control; Max motor frequency 599Hz |
| Communication | Interfaces | Standard Modbus RTU EIA-485; Optional PROFIBUS DP adapters |
| Structure & Protection | Protection Class | IP20 standard |
| Environmental | Operating Temperature | Standard: -10℃ to 40℃; Extended: -20℃ to 50℃ |
| Safety | Safety Function | Safe Torque Off (STO) SIL 3 certified |
| Model | Rated Output Current (A) | Rated Motor Power (kW) | Rated Motor Power (hp) | Frame Size |
|---|---|---|---|---|
| ACS310-03E-01A3-4 | 1.3 | 0.37 | 0.5 | R0 |
| ACS310-03E-02A1-4 | 2.1 | 0.55 | 0.75 | - |
| ACS310-03E-02A6-4 | 2.6 | 0.75 | 1 | R1 |
| ACS310-03E-03A6-4 | 3.6 | 1.1 | 1.5 | R1 |
| ACS310-03E-04A5-4 | 4.5 | 1.5 | 2 | R1 |
| ACS310-03E-06A2-4 | 6.2 | 2.2 | 3 | R1 |
| ACS310-03E-08A0-4 | 8.0 | 3 | 4 | - |
| ACS310-03E-09A7-4 | 9.7 | 4 | 5.5 | - |
| ACS310-03E-13A8-4 | 13.8 | 5.5 | 7.5 | R3 |
| ACS310-03E-17A2-4 | 17.2 | 7.5 | 10 | R3 |
| ACS310-03E-25A4-4 | 25.4 | 11 | 15 | R3 |
| ACS310-03E-34A1-4 | 34.1 | 15 | 20 | R4 |
| ACS310-03E-41A8-4 | 41.8 | 18.5 | 25 | R4 |
| ACS310-03E-48A4-4 | 48.4 | 22 | 30 | R4 |
| Industry | Application Scenarios | Core Needs & Adaptability |
|---|---|---|
| Municipal Water & Wastewater | Small-town water supply, sewage lift pumps, constant-pressure systems | Built-in PID for pressure adjustment, multi-pump cascade control, wide voltage adaptation |
| HVAC & Building Services | Central air conditioning, ventilation systems, fresh air units | Dedicated fan control macros, compact size, low noise operation |
| Food & Beverage | Dough mixers, filling line conveyors, cooling pumps | Soft start function, easy-clean design, simple parameter setting |
| Agriculture & Aquaculture | Irrigation pumps, pond aerators, drying fans | Energy-saving optimization, wide voltage range, automatic fault reset |
| Small-Scale Manufacturing | Assembly line conveyors, polishing machines, packaging equipment | Standard Modbus interface, preset application macros, braking chopper |
| Retail & Commercial | Refrigerator cooling fans, display cabinet ventilators, vending machines | Low power consumption, compact design, stable temperature operation |
